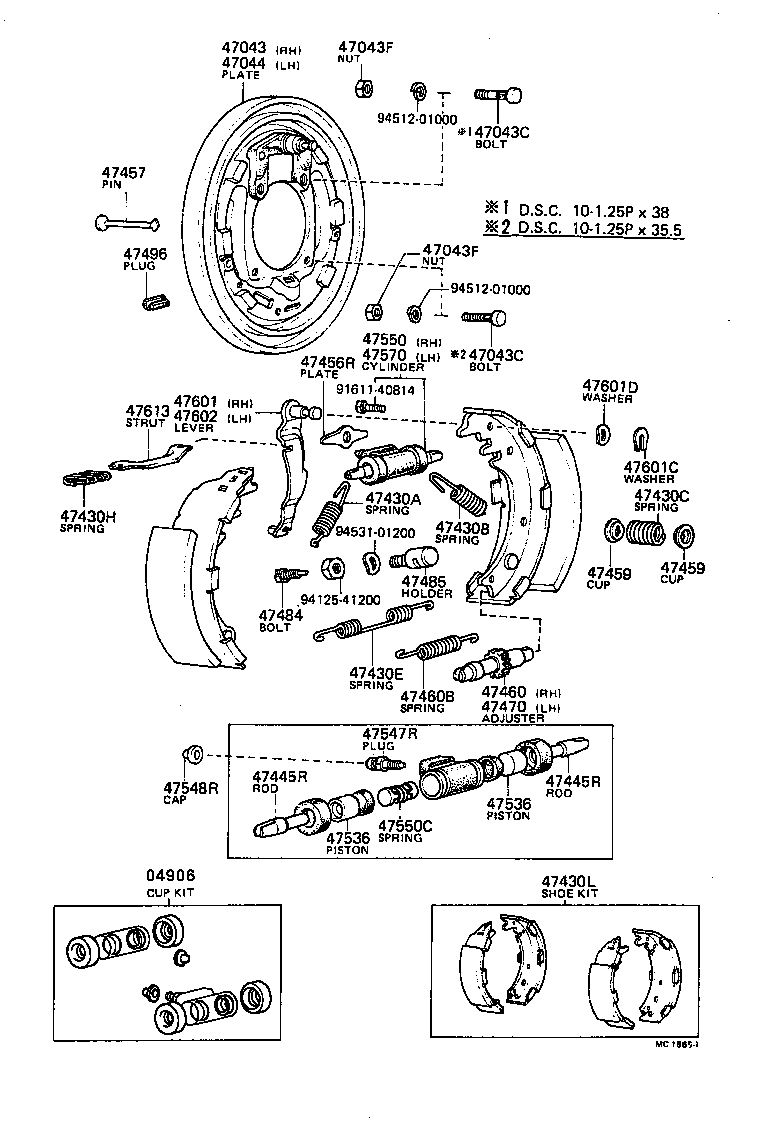

RN41R-JD3 (1978)
Toyota Hilux
(7808- )RN41..SR5..GEN..ECB ; (7808- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-31010 |
RN31,41..DLX,STD ID=20.64 WHEEL CYLINDER |
1 | ||
| 04906-31010 |
RN31,41..DLX,STD ID=20.64 WHEEL CYLINDER |
1 | ||
| 04906-35080 |
RN41..GEN,ME,SA ID=22.22 WHEEL CYLINDER |
1 | ||
| 04906-35080 |
RN41..GEN,ME,SA ID=22.22 WHEEL CYLINDER |
1 | ||
| 04906-31010 |
LN30,40,RN30,31,40,41 ID=20.64 WHEEL CYLINDER |
1 | ||
| 04906-31010 |
LN30,40,RN30,31,40,41 ID=20.64 WHEEL CYLINDER |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-35041 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47043-35041 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10002 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX37-18.5,*10-1.25PX35.5 |
4 | ||
| 90114-10002 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX37-18.5,*10-1.25PX35.5 |
4 | ||
| 90114-10016 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX41-18,*10-1.25PX41 |
4 | ||
| 90114-10016 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX41-18,*10-1.25PX41 |
4 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10002 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX37-18.5,*10-1.25PX35.5 |
4 | ||
| 90114-10002 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX37-18.5,*10-1.25PX35.5 |
4 | ||
| 90114-10016 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX41-18,*10-1.25PX41 |
4 | ||
| 90114-10016 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX41-18,*10-1.25PX41 |
4 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10172 |
LN30,40,RN30,31,40,41 |
8 | ||
| 90170-10172 |
LN30,40,RN30,31,40,41 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10172 |
LN30,40,RN30,31,40,41 |
8 | ||
| 90170-10172 |
LN30,40,RN30,31,40,41 |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-35031 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47044-35031 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47430A - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26331 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 90506-26331 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47430B - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26394 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 90506-26394 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20225 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
4 | ||
| 90501-20225 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
4 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26002 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 90506-26002 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 47430H - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-18012 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 90504-18012 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47430L - SHOE KIT, REAR BRAKE | ||||
| 04495-26020 |
RN41..DLX,STD;RN41..SR5..GEN;LN30,40,RN30,31,40 FR DRUM BRAKE |
1 | ||
| 04495-26020 |
RN41..DLX,STD;RN41..SR5..GEN;LN30,40,RN30,31,40 FR DRUM BRAKE |
1 | ||
| 47445R - ROD, REAR WHEEL CYLINDER | ||||
| 47538-35010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
4 | ||
| 47538-35010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
4 | ||
| 47445R - ROD, REAR WHEEL CYLINDER | ||||
| 47538-35010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
4 | ||
| 47538-35010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
4 | ||
| 47456R - PLATE, REAR BRAKE SHOE GUIDE | ||||
| 47456-20010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47456-20010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
4 | ||
| 47447-20010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
4 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-20011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
8 | ||
| 47449-20011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
8 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-20011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
8 | ||
| 47449-20011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
8 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47405-30010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47405-30010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47460B - SPRING, TENSION(FOR REAR BRAKE ADJUSTER) | ||||
| 90506-23344 |
RN41..DLX,STD;RN41..SR5..GEN;LN30,40,RN30,31,40 FR DRUM BRAKE |
2 | ||
| 90506-23344 |
RN41..DLX,STD;RN41..SR5..GEN;LN30,40,RN30,31,40 FR DRUM BRAKE |
2 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47406-30010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47406-30010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47484 - BOLT, REAR BRAKE SHOE RETRACTING SPRING CLAMP | ||||
| 47408-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 47408-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 47485 - SPACER OR HOLDER, SHOE RETRACTING SPRING CLAMP | ||||
| 47485-35010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 47485-35010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-35040 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47491-35040 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-31011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 WHEEL CYLINDER |
4 | ||
| 47531-31011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 WHEEL CYLINDER |
4 | ||
| 47531-20071 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 WHEEL CYLINDER |
4 | ||
| 47531-20071 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 WHEEL CYLINDER |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-31011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 WHEEL CYLINDER |
4 | ||
| 47531-31011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 WHEEL CYLINDER |
4 | ||
| 47531-20071 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 WHEEL CYLINDER |
4 | ||
| 47531-20071 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 WHEEL CYLINDER |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47547-20010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LN3#,4#,RN3#,4# |
2 | ||
| 31478-30010 |
LN3#,4#,RN3#,4# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-39115 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 |
1 | ||
| 47550-39115 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 |
1 | ||
| 47550-29175 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 |
1 | ||
| 47550-29175 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-22010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 WHEEL CYLINDER |
2 | ||
| 47509-22010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 WHEEL CYLINDER |
2 | ||
| 47509-20010 |
LN30,40,RN30,31,40,41 ID=22.22 WHEEL CYLINDER |
2 | ||
| 47509-20010 |
LN30,40,RN30,31,40,41 ID=22.22 WHEEL CYLINDER |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-29175 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 |
1 | ||
| 47550-29175 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 |
1 | ||
| 47550-39115 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 |
1 | ||
| 47550-39115 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) |
1 | ||
| 47601-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
LN3#,4#,RN3#,4# T=1.6 |
2 | ||
| 90213-07010 |
LN3#,4#,RN3#,4# T=1.6 |
2 | ||
| 47601D - WASHER, WAVE(FOR REAR BRAKE) | ||||
| 90206-10059 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 90206-10059 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) |
1 | ||
| 47602-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) |
1 | ||
| 47613 - STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE) | ||||
| 47613-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) RH |
1 | ||
| 47613-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) RH |
1 | ||
| 47614-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) LH |
1 | ||
| 47614-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) LH |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||
| 94125-41200 | ||||
| 94512-01000 | ||||
| 94531-01200 | ||||
(7808-8108)RN41..DLX,STD ; (7808-8108)RN41..SR5..GEN ; (7808-8108)LN30,40,RN30,31,4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-31010 |
RN31,41..DLX,STD ID=20.64 WHEEL CYLINDER |
1 | ||
| 04906-31010 |
RN31,41..DLX,STD ID=20.64 WHEEL CYLINDER |
1 | ||
| 04906-35080 |
RN41..GEN,ME,SA ID=22.22 WHEEL CYLINDER |
1 | ||
| 04906-35080 |
RN41..GEN,ME,SA ID=22.22 WHEEL CYLINDER |
1 | ||
| 04906-31010 |
LN30,40,RN30,31,40,41 ID=20.64 WHEEL CYLINDER |
1 | ||
| 04906-31010 |
LN30,40,RN30,31,40,41 ID=20.64 WHEEL CYLINDER |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-35041 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47043-35041 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10002 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX37-18.5,*10-1.25PX35.5 |
4 | ||
| 90114-10002 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX37-18.5,*10-1.25PX35.5 |
4 | ||
| 90114-10016 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX41-18,*10-1.25PX41 |
4 | ||
| 90114-10016 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX41-18,*10-1.25PX41 |
4 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10002 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX37-18.5,*10-1.25PX35.5 |
4 | ||
| 90114-10002 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX37-18.5,*10-1.25PX35.5 |
4 | ||
| 90114-10016 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX41-18,*10-1.25PX41 |
4 | ||
| 90114-10016 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX41-18,*10-1.25PX41 |
4 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10172 |
LN30,40,RN30,31,40,41 |
8 | ||
| 90170-10172 |
LN30,40,RN30,31,40,41 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10172 |
LN30,40,RN30,31,40,41 |
8 | ||
| 90170-10172 |
LN30,40,RN30,31,40,41 |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-35031 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47044-35031 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47430A - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26331 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 90506-26331 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47430B - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26394 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 90506-26394 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20225 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
4 | ||
| 90501-20225 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
4 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26002 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 90506-26002 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 47430H - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-18012 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 90504-18012 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47430L - SHOE KIT, REAR BRAKE | ||||
| 04495-26020 |
RN41..DLX,STD;RN41..SR5..GEN;LN30,40,RN30,31,40 FR DRUM BRAKE |
1 | ||
| 04495-26020 |
RN41..DLX,STD;RN41..SR5..GEN;LN30,40,RN30,31,40 FR DRUM BRAKE |
1 | ||
| 47445R - ROD, REAR WHEEL CYLINDER | ||||
| 47538-35010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
4 | ||
| 47538-35010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
4 | ||
| 47445R - ROD, REAR WHEEL CYLINDER | ||||
| 47538-35010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
4 | ||
| 47538-35010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
4 | ||
| 47456R - PLATE, REAR BRAKE SHOE GUIDE | ||||
| 47456-20010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47456-20010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
4 | ||
| 47447-20010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
4 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-20011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
8 | ||
| 47449-20011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
8 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-20011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
8 | ||
| 47449-20011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
8 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47405-30010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47405-30010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47460B - SPRING, TENSION(FOR REAR BRAKE ADJUSTER) | ||||
| 90506-23344 |
RN41..DLX,STD;RN41..SR5..GEN;LN30,40,RN30,31,40 FR DRUM BRAKE |
2 | ||
| 90506-23344 |
RN41..DLX,STD;RN41..SR5..GEN;LN30,40,RN30,31,40 FR DRUM BRAKE |
2 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47406-30010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47406-30010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47484 - BOLT, REAR BRAKE SHOE RETRACTING SPRING CLAMP | ||||
| 47408-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 47408-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 47485 - SPACER OR HOLDER, SHOE RETRACTING SPRING CLAMP | ||||
| 47485-35010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 47485-35010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-35040 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47491-35040 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-31011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 WHEEL CYLINDER |
4 | ||
| 47531-31011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 WHEEL CYLINDER |
4 | ||
| 47531-20071 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 WHEEL CYLINDER |
4 | ||
| 47531-20071 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 WHEEL CYLINDER |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-31011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 WHEEL CYLINDER |
4 | ||
| 47531-31011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 WHEEL CYLINDER |
4 | ||
| 47531-20071 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 WHEEL CYLINDER |
4 | ||
| 47531-20071 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 WHEEL CYLINDER |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47547-20010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LN3#,4#,RN3#,4# |
2 | ||
| 31478-30010 |
LN3#,4#,RN3#,4# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-39115 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 |
1 | ||
| 47550-39115 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 |
1 | ||
| 47550-29175 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 |
1 | ||
| 47550-29175 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-22010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 WHEEL CYLINDER |
2 | ||
| 47509-22010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 WHEEL CYLINDER |
2 | ||
| 47509-20010 |
LN30,40,RN30,31,40,41 ID=22.22 WHEEL CYLINDER |
2 | ||
| 47509-20010 |
LN30,40,RN30,31,40,41 ID=22.22 WHEEL CYLINDER |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-29175 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 |
1 | ||
| 47550-29175 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 |
1 | ||
| 47550-39115 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 |
1 | ||
| 47550-39115 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) |
1 | ||
| 47601-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
LN3#,4#,RN3#,4# T=1.6 |
2 | ||
| 90213-07010 |
LN3#,4#,RN3#,4# T=1.6 |
2 | ||
| 47601D - WASHER, WAVE(FOR REAR BRAKE) | ||||
| 90206-10059 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 90206-10059 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) |
1 | ||
| 47602-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) |
1 | ||
| 47613 - STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE) | ||||
| 47613-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) RH |
1 | ||
| 47613-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) RH |
1 | ||
| 47614-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) LH |
1 | ||
| 47614-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) LH |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||
| 94125-41200 | ||||
| 94512-01000 | ||||
| 94531-01200 | ||||
(7808-8108)SR5..IV3 ; (7808-8108)RN31,41..RCB ;(7808-8108)LN40,RN30,40..EUR ; (810
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-31010 |
RN31,41..DLX,STD ID=20.64 WHEEL CYLINDER |
1 | ||
| 04906-31010 |
RN31,41..DLX,STD ID=20.64 WHEEL CYLINDER |
1 | ||
| 04906-35080 |
RN41..GEN,ME,SA ID=22.22 WHEEL CYLINDER |
1 | ||
| 04906-35080 |
RN41..GEN,ME,SA ID=22.22 WHEEL CYLINDER |
1 | ||
| 04906-31010 |
LN30,40,RN30,31,40,41 ID=20.64 WHEEL CYLINDER |
1 | ||
| 04906-31010 |
LN30,40,RN30,31,40,41 ID=20.64 WHEEL CYLINDER |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-35041 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47043-35041 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10002 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX37-18.5,*10-1.25PX35.5 |
4 | ||
| 90114-10002 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX37-18.5,*10-1.25PX35.5 |
4 | ||
| 90114-10016 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX41-18,*10-1.25PX41 |
4 | ||
| 90114-10016 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX41-18,*10-1.25PX41 |
4 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10002 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX37-18.5,*10-1.25PX35.5 |
4 | ||
| 90114-10002 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX37-18.5,*10-1.25PX35.5 |
4 | ||
| 90114-10016 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX41-18,*10-1.25PX41 |
4 | ||
| 90114-10016 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) *10-1.25PX41-18,*10-1.25PX41 |
4 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10172 |
LN30,40,RN30,31,40,41 |
8 | ||
| 90170-10172 |
LN30,40,RN30,31,40,41 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10172 |
LN30,40,RN30,31,40,41 |
8 | ||
| 90170-10172 |
LN30,40,RN30,31,40,41 |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-35031 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47044-35031 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47430A - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26331 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 90506-26331 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47430B - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26394 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 90506-26394 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20225 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
4 | ||
| 90501-20225 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
4 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26002 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 90506-26002 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 47430H - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-18012 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 90504-18012 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47430L - SHOE KIT, REAR BRAKE | ||||
| 04495-26020 |
RN41..DLX,STD;RN41..SR5..GEN;LN30,40,RN30,31,40 FR DRUM BRAKE |
1 | ||
| 04495-26020 |
RN41..DLX,STD;RN41..SR5..GEN;LN30,40,RN30,31,40 FR DRUM BRAKE |
1 | ||
| 47445R - ROD, REAR WHEEL CYLINDER | ||||
| 47538-35010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
4 | ||
| 47538-35010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
4 | ||
| 47445R - ROD, REAR WHEEL CYLINDER | ||||
| 47538-35010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
4 | ||
| 47538-35010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
4 | ||
| 47456R - PLATE, REAR BRAKE SHOE GUIDE | ||||
| 47456-20010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47456-20010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
4 | ||
| 47447-20010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
4 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-20011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
8 | ||
| 47449-20011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
8 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-20011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
8 | ||
| 47449-20011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
8 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47405-30010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47405-30010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47406-30010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47406-30010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-35040 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47491-35040 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-31011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 WHEEL CYLINDER |
4 | ||
| 47531-31011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 WHEEL CYLINDER |
4 | ||
| 47531-20071 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 WHEEL CYLINDER |
4 | ||
| 47531-20071 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 WHEEL CYLINDER |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-31011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 WHEEL CYLINDER |
4 | ||
| 47531-31011 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 WHEEL CYLINDER |
4 | ||
| 47531-20071 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 WHEEL CYLINDER |
4 | ||
| 47531-20071 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 WHEEL CYLINDER |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47547-20010 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LN3#,4#,RN3#,4# |
2 | ||
| 31478-30010 |
LN3#,4#,RN3#,4# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-39115 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 |
1 | ||
| 47550-39115 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 |
1 | ||
| 47550-29175 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 |
1 | ||
| 47550-29175 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-22010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 WHEEL CYLINDER |
2 | ||
| 47509-22010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 WHEEL CYLINDER |
2 | ||
| 47509-20010 |
LN30,40,RN30,31,40,41 ID=22.22 WHEEL CYLINDER |
2 | ||
| 47509-20010 |
LN30,40,RN30,31,40,41 ID=22.22 WHEEL CYLINDER |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-29175 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 |
1 | ||
| 47550-29175 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD ID=20.64 |
1 | ||
| 47550-39115 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 |
1 | ||
| 47550-39115 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) ID=22.22 |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) |
1 | ||
| 47601-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
LN3#,4#,RN3#,4# T=1.6 |
2 | ||
| 90213-07010 |
LN3#,4#,RN3#,4# T=1.6 |
2 | ||
| 47601D - WASHER, WAVE(FOR REAR BRAKE) | ||||
| 90206-10059 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 90206-10059 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) |
1 | ||
| 47602-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) |
1 | ||
| 47613 - STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE) | ||||
| 47613-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) RH |
1 | ||
| 47613-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) RH |
1 | ||
| 47614-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) LH |
1 | ||
| 47614-35011 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) LH |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||
| 94512-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
