RN41R-JD3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )12R#,18R

Click highlighted areas on diagram

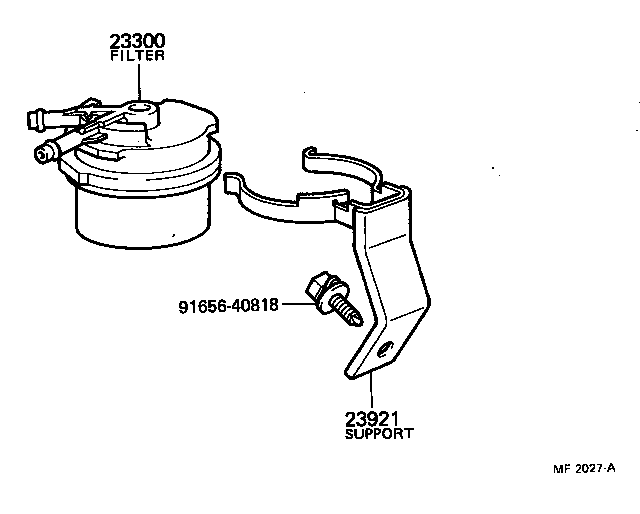

diagram 23300 23921 9165640818
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-34100

18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA

 1
23921 - SUPPORT, FUEL FILTER
90461-10340

12R#,18R..RN3#,4#

 1
Common parts
91656-40818

(7909- )L

Click highlighted areas on diagram

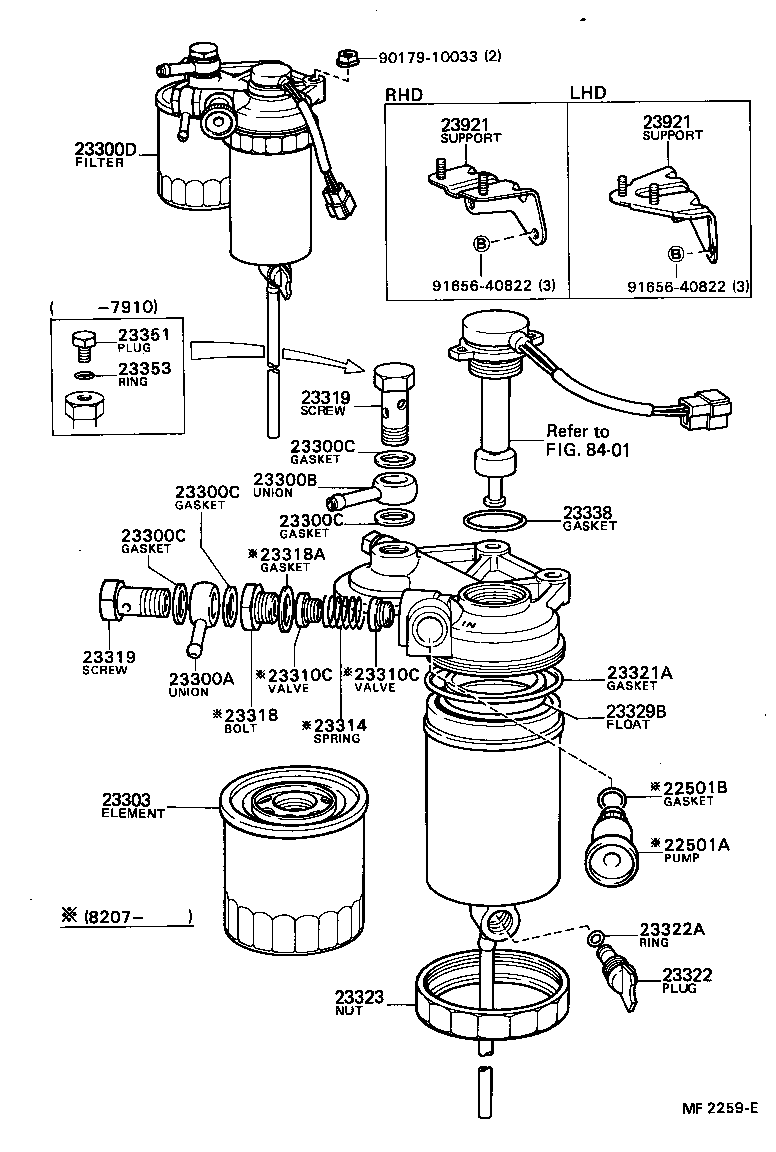

diagram 22501A 22501B 23300A 23300B 23300C 23300C 23300C 23300C 23300D 23303 23310C 23310C 23314 23318 23318A 23319 23319 23321A 23322 23322A 23323 23329B 23338 23351 23353 23921 23921 8401 9017910033 9165640822 9165640822
Part # Description Qty Price
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-54043

L..LN3#,4#..RHD

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-54011

L..LN3#,4#

 1
23921 - SUPPORT, FUEL FILTER
90461-10340

12R#,18R..RN3#,4#

 1
23921 - SUPPORT, FUEL FILTER
90461-10340

12R#,18R..RN3#,4#

 1
Common parts
90179-10033
91656-40822
Linked diagrams
8401
