RN41R-JD (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )RN31,41..RHD

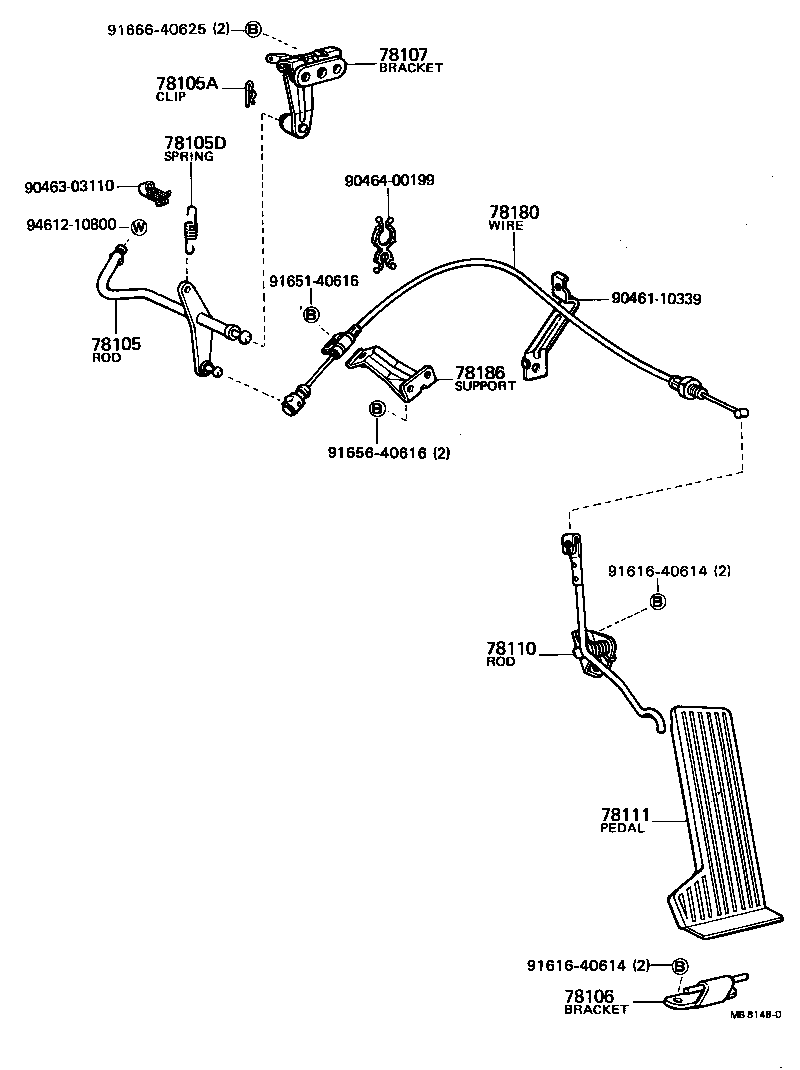

Click highlighted areas on diagram

diagram 78105 78105A 78105D 78106 78107 78110 78111 78180 78186 9046110339 9046303110 9046400199 9161640614 9161640614 9165140616 9165640616 9166640625 9461210800
Part # Description Qty Price
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-89112

RN31,41..RHD

 1
78105A - CLIP (FOR ACCELERATOR TORQUE ROD)
90468-16012

RN31,36,41;RN30,40..LHD;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA

 1
78105D - SPRING (FOR ACCELERATOR TORQUE ROD)
90506-09020

RN31,41..RHD

 1
78106 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78011-89101

LN30,40,RN30,31,40,41

 1
78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD
78170-89102

RN31,41..RHD

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-89101

RN30,31,40,41..RHD

 1
78111 - PEDAL, ACCELERATOR
78111-89102

LN3#,4#,RN3#,4#

 1
78180 - WIRE ASSY, ACCELERATOR
78180-89118

RN31,41..RHD

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-89103

RN31,41..RHD

 1
Common parts
90461-10339
90463-03110
90464-00199
91616-40614
91651-40616
91656-40616
91666-40625
94612-10800
