RN41R-JD (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808-7908)18R

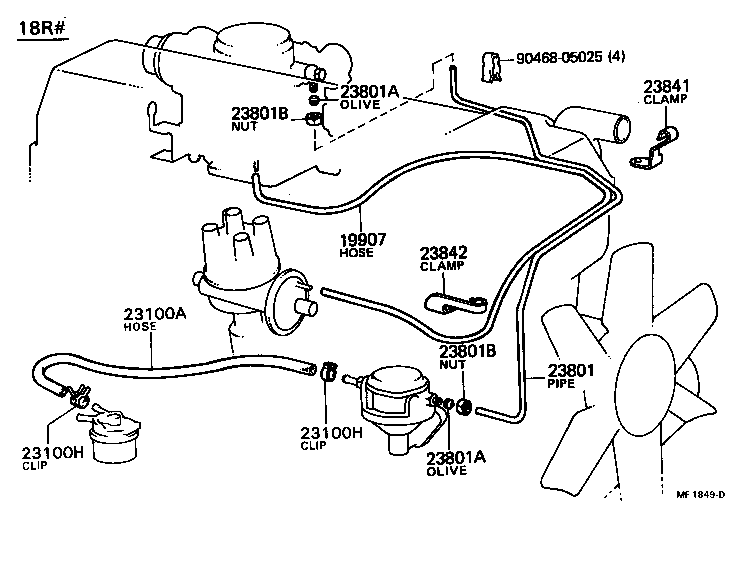

Click highlighted areas on diagram

diagram 19907 23100A 23100H 23100H 23801 23801A 23801A 23801B 23801B 23841 23842 9046805025
Part # Description Qty Price
19907 - HOSE, VACUUM, NO.1
95411-19995

18R..RN31,36,41,46..GEN,ME,SA

*H,L=850

 1
23100A - HOSE, FUEL
95332-06026

18R..RN31,36,41,46

L=260

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

12R#,18R..RN3#,4#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

12R#,18R..RN3#,4#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-34031

18R..RN31,36,41,46

 1
23801A - OLIVE(FOR FUEL PIPE)
96395-71400

18R..RN31,36,41,46

 2
23801A - OLIVE(FOR FUEL PIPE)
96395-71400

18R..RN31,36,41,46

 2
23801B - NUT, UNION(FOR FUEL PIPE)
90402-13041

18R..RN31,36,41,46

 2
23801B - NUT, UNION(FOR FUEL PIPE)
90402-13041

18R..RN31,36,41,46

 2
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-34020

18R..RN31,36,41,46

 1
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23842-34041

18R..RN31,36,41,46

 1
23842-34050

18R..RN31,36,41,46

 1
Common parts
90468-05025
