RN41L-KD (1978)

Toyota Hilux

Production Aug 1978 - Jul 1983
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )RN31,36,41,46..DLX,STD

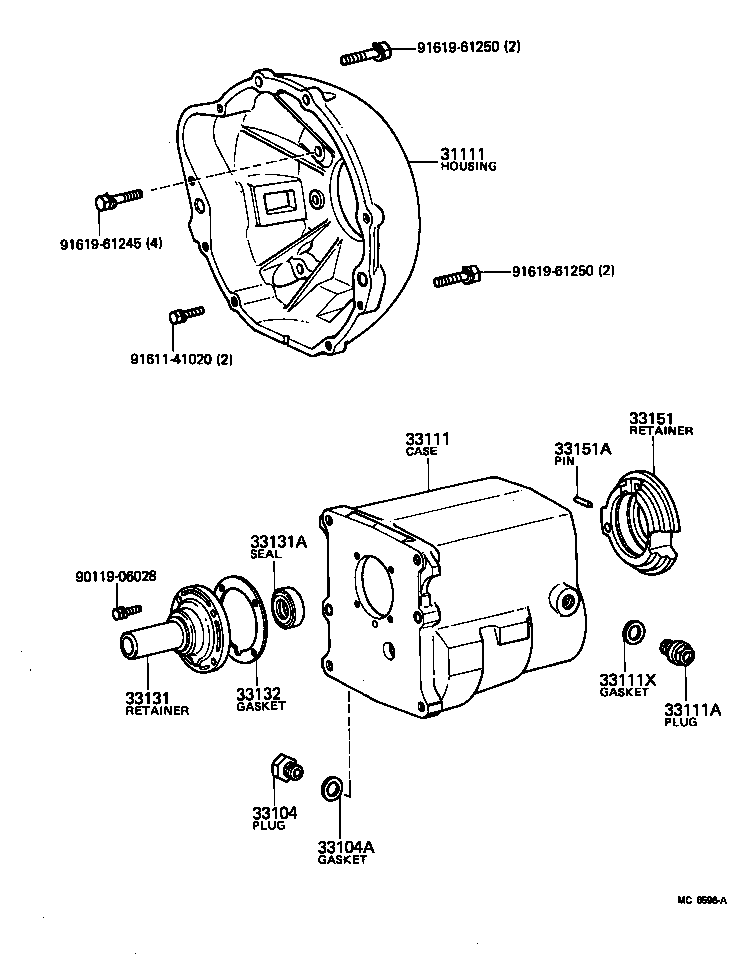

Click highlighted areas on diagram

diagram 31111 33104 33104A 33111 33111A 33111X 33131 33131A 33132 33151 33151A 9011906028 9161141020 9161961245 9161961250 9161961250
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-20120

RN31,41

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

LN3#,4#,RN3#,4#

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

LN3#,4#,RN3#,4#

 1
33111 - CASE, MANUAL TRANSMISSION
33111-35031

RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN31,36,41..4F,4H

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

RN31,41..DLX,STD;LN3#,4#,RN30,36,40,46

 1
90341-18002

RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;RN3#,40,41..DLX,STD

 1
90341-18002

LN3#,4#,RN3#,4#

 1
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

LN3#,4#,RN3#,4#

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-20050

RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN31,36,41..4F,4H

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32106

RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-30030

RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN31,36,41..4F,4H

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-26010

RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H

 1
33151A - PIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAI
90254-05005

RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H

 1
Common parts
90119-06028
91611-41020
91619-61245
91619-61250
