RN40R-KRSN3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )RN30,31,40,41

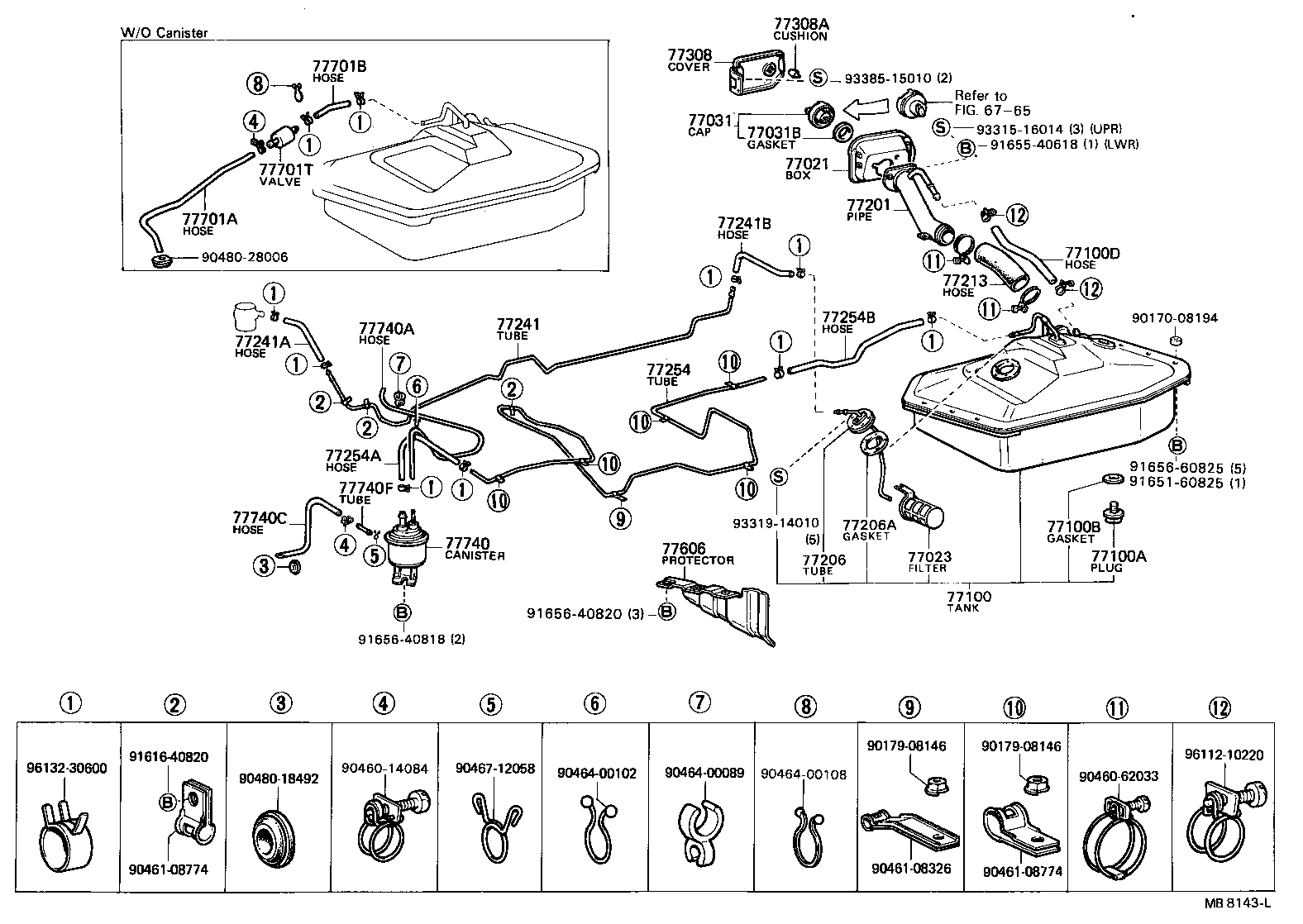

Click highlighted areas on diagram

diagram 6765 77021 77023 77031 77031B 77100 77100A 77100B 77100D 77201 77206 77206A 77213 77241 77241A 77241B 77254 77254A 77254B 77308 77308A 77606 77701A 77701B 77701T 77740 77740A 77740C 77740F 9017008194 9017908146 9017908146 9046014084 9046062033 9046108326 9046108774 9046108774 9046400089 9046400102 9046400108 9046712058 9048018492 9048028006 9161640820 9165160825 9165540618 9165640818 9165640820 9165660825 9331516014 9331914010 9338515010 9611210220 9613230600
Part # Description Qty Price
77031 - CAP ASSY, FUEL TANK
77310-14070

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

 1
77310-12090

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

 1
77310-12090

RN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3

 1
77310-35060

LN3#,4#;RN46..ARL..CBU

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050

LN3#,4#,RN3#,4#

 1
77100 - TANK ASSY, FUEL
77100-35090

RN40..T1

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

LN3#,4#,RN3#,4#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

LN3#,4#,RN3#,4#

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
90445-21883

LN3#,4#,RN3#,4#

L=320

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35100

RN46..ARL..IV3;RN46..T1..(EUR,GEN);LN30,40,RN3#,40,41..T1

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77203-35081

RN40

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-35030

LN3#,4#,RN3#,4#..T1

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-35160

LN30,40..T1

 1
77251-35070

RN40,41..T1

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06030

RN30,31,40,41

*H,L=300

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-06030

RN40,41..T1;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..T1..(EUR,GEN,ME,SA)

*H,L=260

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77161-35010

LN3#,4#,RN3#,4#..T1

L=313

 1
77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE)
90446-12006

RN4#..T1..(EUR,GEN,ME,PHL,SA)

L=256

 1
77701B - HOSE, FUEL, NO.2 (FOR BREATHER VALVE)
95332-06010

RN4#..T1..(EUR,GEN,ME,PHL,SA)

*H,L=100

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10054

LN3#,4#,RN3#,4#..EUR,GEN,ME,PHL,SA

 1
Common parts
90170-08194
90179-08146
90460-14084
90460-62033
90461-08326
90461-08774
90464-00089
90464-00102
90464-00108
90467-12058
90480-18492
90480-28006
91616-40820
91651-60825
91655-40618
91656-40818
91656-40820
91656-60825
93315-16014
93319-14010
93385-15010
96112-10220
96132-30600
Linked diagrams

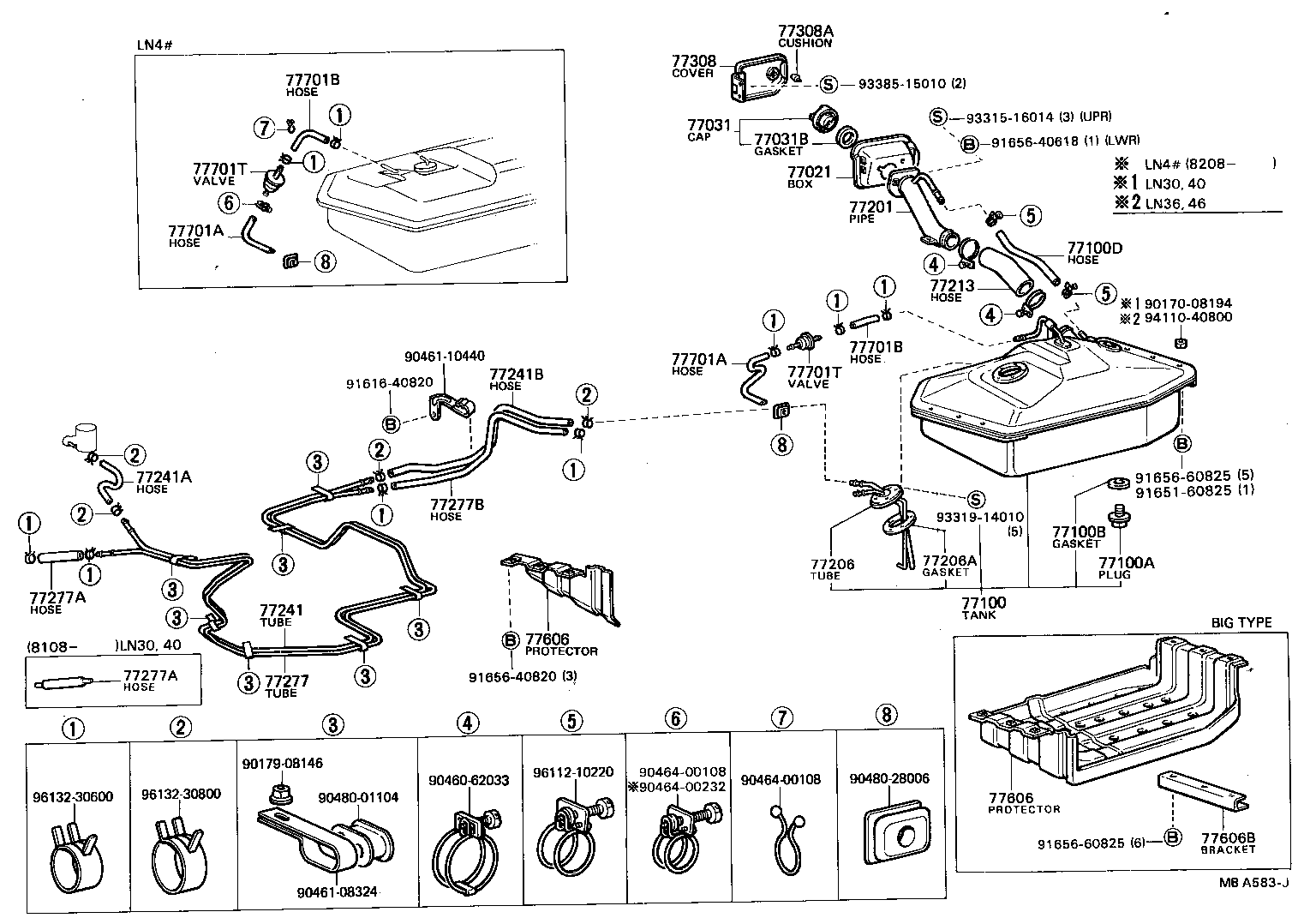

6765

(7909- )LN3#,4#

Click highlighted areas on diagram

diagram 77021 77031 77031B 77100 77100A 77100B 77100D 77201 77206 77206A 77213 77241 77241A 77241B 77277 77277A 77277A 77277B 77308 77308A 77606 77606 77606B 77701A 77701A 77701B 77701B 77701T 77701T 9017008194 9017908146 9046062033 9046108324 9046110440 9046400108 9046400108 9046400232 9048001104 9048028006 9161640820 9165160825 9165640618 9165640820 9165660825 9165660825 9331516014 9331914010 9338515010 9411040800 9611210220 9613230600 9613230800
Part # Description Qty Price
77031 - CAP ASSY, FUEL TANK
77310-14070

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

 1
77310-12090

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

 1
77310-12090

RN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3

 1
77310-35060

LN3#,4#;RN46..ARL..CBU

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050

LN3#,4#,RN3#,4#

 1
77100 - TANK ASSY, FUEL
77100-35090

RN40..T1

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

LN3#,4#,RN3#,4#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

LN3#,4#,RN3#,4#

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
90445-21883

LN3#,4#,RN3#,4#

L=320

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35100

RN46..ARL..IV3;RN46..T1..(EUR,GEN);LN30,40,RN3#,40,41..T1

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77203-35081

RN40

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-35030

LN3#,4#,RN3#,4#..T1

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-35160

LN30,40..T1

 1
77251-35070

RN40,41..T1

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06030

RN30,31,40,41

*H,L=300

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-06030

RN40,41..T1;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..T1..(EUR,GEN,ME,SA)

*H,L=260

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-35050

LN30,40..T1

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-06030

LN3#,4#;RN46..ARL..CBU

*H,L=280

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-06030

LN3#,4#;RN46..ARL..CBU

*H,L=280

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77161-35010

LN3#,4#,RN3#,4#..T1

L=313

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77161-35010

LN3#,4#,RN3#,4#..T1

L=313

 1
77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE)
90446-12006

RN4#..T1..(EUR,GEN,ME,PHL,SA)

L=256

 1
77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE)
90446-12006

RN4#..T1..(EUR,GEN,ME,PHL,SA)

L=256

 1
77701B - HOSE, FUEL, NO.2 (FOR BREATHER VALVE)
95332-06010

RN4#..T1..(EUR,GEN,ME,PHL,SA)

*H,L=100

 1
77701B - HOSE, FUEL, NO.2 (FOR BREATHER VALVE)
95332-06010

RN4#..T1..(EUR,GEN,ME,PHL,SA)

*H,L=100

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10054

LN3#,4#,RN3#,4#..EUR,GEN,ME,PHL,SA

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10054

LN3#,4#,RN3#,4#..EUR,GEN,ME,PHL,SA

 1
Common parts
90170-08194
90179-08146
90460-62033
90461-08324
90461-10440
90464-00108
90464-00232
90480-01104
90480-28006
91616-40820
91651-60825
91656-40618
91656-40820
91656-60825
93315-16014
93319-14010
93385-15010
94110-40800
96112-10220
96132-30600
96132-30800
