RN40R-KRS (1978)
Toyota Hilux
(7808- )RN3#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-13010 |
L,12R#,18R..LN3#,4#,RN3#,4# |
1 | ||
| 27700-13050 |
L,12R#,18R..LN3#,4#,RN3#,4# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
1 | ||
| 83420-16010 |
LN3#,4#,RN3#,4# DENSO |
1 | ||
| 83420-20020 |
LN3#,4#,RN3#,4# YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-36011 |
LN3#,4#,RN3#,4# |
1 | ||
| 83530-14010 |
LN3#,4#,RN3#,4# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-26010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8601 | ||||

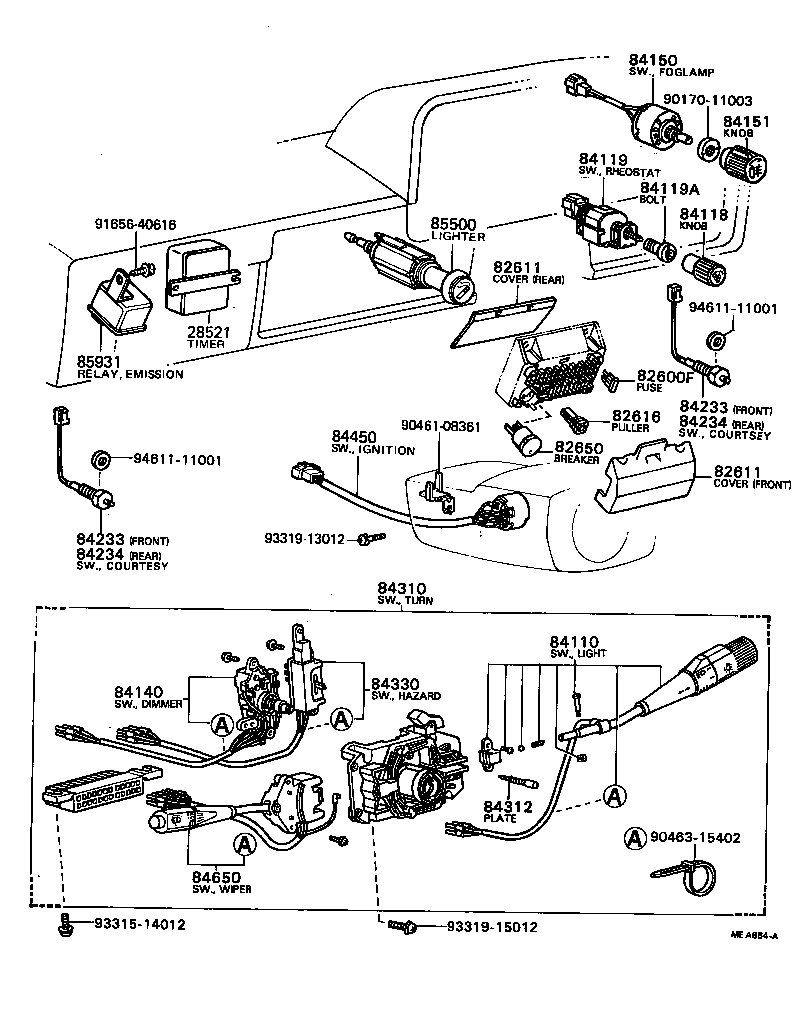

(7808-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62005 |
LN3#,4#,RN3#,4# 5A |
2 | ||
| 90982-09003 |
LN3#,4#,RN3#,4# 15A,15A |
8 | ||
| 90982-09005 |
LN3#,4#,RN3#,4# 7.5A,7.5A |
4 | ||
| 99118-62910 |
LN3#,4#,RN3#,4# 10A |
6 | ||
| 90982-09002 |
RN30,31,40,41..ARL,GEN,ME,PHL,SA 10A,10A |
1 | ||
| 99118-62915 |
LN3#,4#,RN3#,4# 15A,15A |
5 | ||
| 90982-09004 |
LN3#,4#,RN3#,4# 20A,YELLOW,20A |
2 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-89109 |
LN3#,4#,RN3#,4# RR |
1 | ||
| 82611-89105 |
LN3#,4#,RN3#,4# RR |
1 | ||
| 82611-89106 |
LN3#,4#,RN3#,4# FR |
1 | ||
| 82611-89108 |
LN3#,4#,RN3#,4# FR |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-89109 |
LN3#,4#,RN3#,4# RR |
1 | ||
| 82611-89105 |
LN3#,4#,RN3#,4# RR |
1 | ||
| 82611-89106 |
LN3#,4#,RN3#,4# FR |
1 | ||
| 82611-89108 |
LN3#,4#,RN3#,4# FR |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19075 |
RN46..ARL..IV3;RN46..RHD..(EUR,GEN);LN30,40,RN3#,40,41..RHD |
1 | ||
| 84112-19076 |
LN3#,4#,RN3#,4#..RHD |
1 | ||
| 84112-39135 |
LN3#,4#,RN3#,40,41..RHD;RN46..RHD..(ARL,EUR,GEN) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19015 |
LN3#,4#,RN3#,4#..RHD |
1 | ||
| 84140-39055 |
LN3#,4#,RN3#,40,41..RHD;RN46..RHD..(ARL,EUR,GEN) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-89102 |
LN3#,4#,RN3#,4# |
2 | ||
| 84230-20040 |
LN3#,4#,RN3#,4# |
2 | ||
| 84231-20060 |
LN3#,4#,RN3#,4# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-89102 |
LN3#,4#,RN3#,4# |
2 | ||
| 84230-20040 |
LN3#,4#,RN3#,4# |
2 | ||
| 84231-20060 |
LN3#,4#,RN3#,4# |
2 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-35120 |
LN30,40,RN30,40..RHD..(ARL,GEN,SA) |
1 | ||
| 84310-10210 |
RN46..RHD..GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41..RHD..(ARL,GEN,SA) |
1 | ||
| 84310-10211 |
LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
LN3#,4#,RN3#,4#..ARL,EUR,GEN,PHL,SA |
1 | ||
| 84312-20011 |
LN3#,4#,RN3#,4# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-39115 |
LN3#,4#,RN3#,40,41..RHD;RN46..RHD..(ARL,EUR,GEN) |
1 | ||
| 84332-19015 |
LN3#,4#,RN3#,4#..RHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-14021 |
LN3#,4#,RN3#,40,41;RN46..ARL,EUR,GEN,ME |
1 | ||
| 84450-14021 |
LN3#,4#,RN3#,4# |
1 | ||
| 84450-14021 |
RN46..ARL,EUR,GEN;LN3#,4#,RN3#,40,41..ARL,EUR,GEN,PHL,SA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19135 |
RN46..RHD..GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41..RHD..(ARL,GEN,SA) |
1 | ||
| 84652-19136 |
LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA) |
1 | ||
| 84652-39165 |
LN30,40,RN30,40..RHD..(ARL,GEN,SA) W/INTERMITTENT WIPER |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30340 |
LN3#,4#,RN3#,4# |
1 | ||
| 85500-20042 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-26010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 HEATER RELAY |
1 | ||
| 85999-12050 |
LN3#,4#,RN3#,4# HEATER RELAY |
1 | ||
| Common parts | ||||
| 90170-11003 | ||||
| 90461-08361 | ||||
| 90463-15402 | ||||
| 91656-40616 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 94611-10800 | ||||

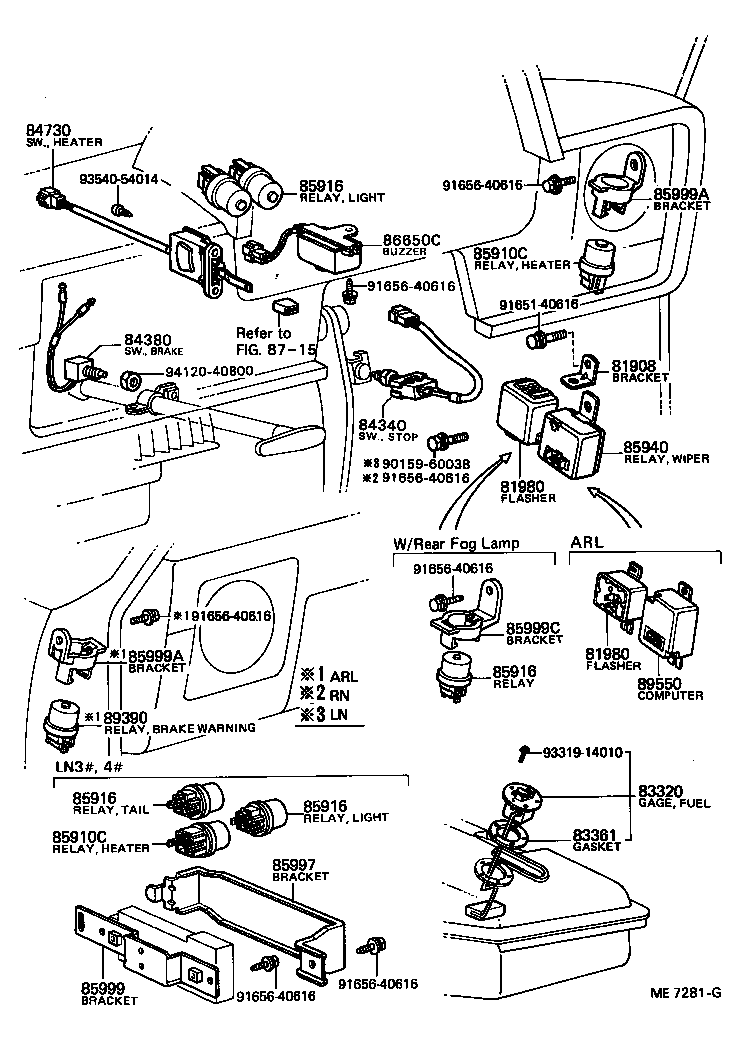

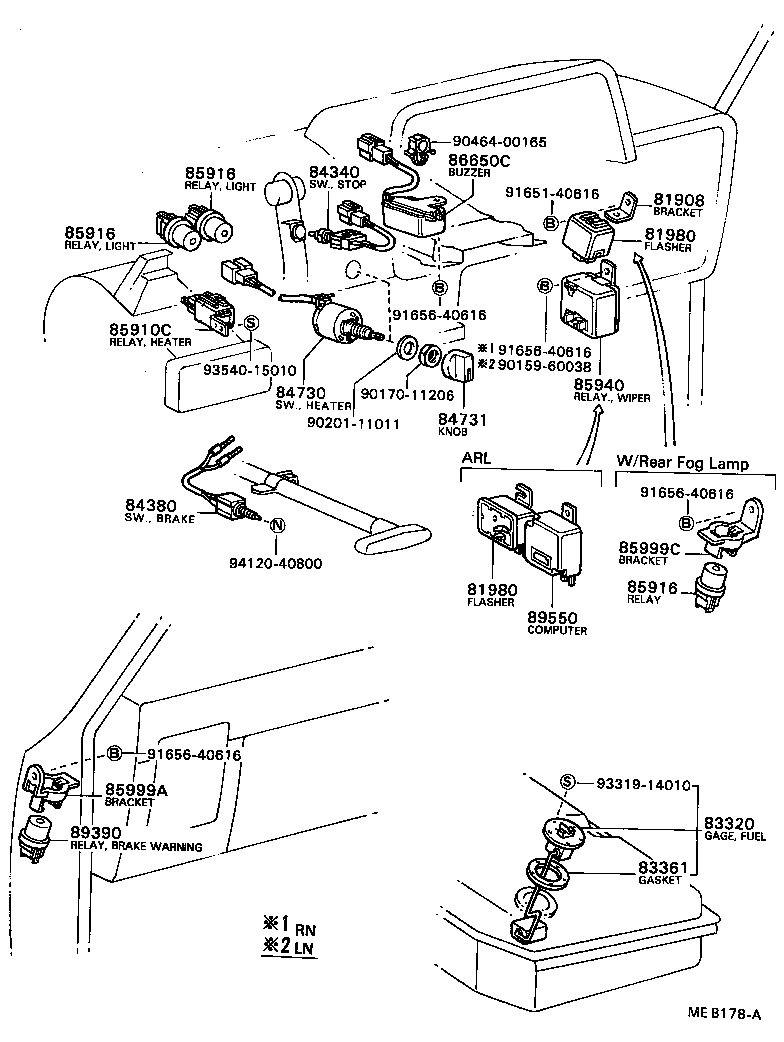

(7808-8108)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81908 - BRACKET SUB-ASSY, FLASHER | ||||
| 85999-89101 |
LN3#,4#,RN3#,4# |
1 | ||
| 85999-89101 |
LN30,40;RN30,36,40,46..EUR |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30030 |
RN46..GEN;RN46..ARL..IV3;RN3#,40,41..ARL,GEN,PHL,SA |
1 | ||
| 81980-22060 |
LN3#,4#,RN3#,4# |
1 | ||
| 81980-22070 |
LN3#,4#,RN3#,4# |
1 | ||
| 81980-22060 |
LN30,40;RN30,36,40,46..EUR |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30030 |
RN46..GEN;RN46..ARL..IV3;RN3#,40,41..ARL,GEN,PHL,SA |
1 | ||
| 81980-22060 |
LN3#,4#,RN3#,4# |
1 | ||
| 81980-22070 |
LN3#,4#,RN3#,4# |
1 | ||
| 81980-22060 |
LN30,40;RN30,36,40,46..EUR |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39185 |
LN40,RN40,41..EUR,GEN,ME,PHL |
1 | ||
| 83320-39186 |
LN40,RN40,41..EUR,GEN,ME,PHL |
1 | ||
| 83320-39185 |
LN40,RN40;RN41..GEN |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
LN3#,4#,RN3#,4# |
1 | ||
| 83361-20030 |
LN3#,4#,RN3#,4# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-36030 |
LN3#,4#,RN3#,4# MATSUSHITA |
1 | ||
| 84340-22060 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 MATSUSHITA |
1 | ||
| 84340-22072 |
LN3#,4#,RN3#,4# TOKAIRIKA |
1 | ||
| 84340-22071 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;LN30,40,RN3#,40,41;RN46..EUR,GEN,ME,SA TOKAIRIKA |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-35010 |
LN3#,4#,RN3#,4# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-89107 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA W/COOLER |
1 | ||
| 84732-89104 |
LN3#,4#,RN3#,4#..RHD |
1 | ||
| 84732-89106 |
LN3#,4#,RN3#,4# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-12010 |
LN3#,4#,RN3#,4# |
1 | ||
| 90987-02001 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
1 | ||
| 90987-02004 |
LN3#,4#,RN3#,4# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-12010 |
LN3#,4#,RN3#,4# |
1 | ||
| 90987-02001 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
1 | ||
| 90987-02004 |
LN3#,4#,RN3#,4# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
2 | ||
| 90987-01001 |
LN30,40,RN30,31,40,41 |
2 | ||
| 90987-01003 |
LN30,40,RN30,31,40,41 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
2 | ||
| 90987-01001 |
LN30,40,RN30,31,40,41 |
2 | ||
| 90987-01003 |
LN30,40,RN30,31,40,41 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
2 | ||
| 90987-01001 |
LN30,40,RN30,31,40,41 |
2 | ||
| 90987-01003 |
LN30,40,RN30,31,40,41 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
2 | ||
| 90987-01001 |
LN30,40,RN30,31,40,41 |
2 | ||
| 90987-01003 |
LN30,40,RN30,31,40,41 |
2 | ||
| 85997 - COVER, RELAY BRACKET | ||||
| 85997-89101 |
LN3#,4#;RN46..ARL..CBU |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 55767-89106 |
LN3#,4#;RN46..ARL..CBU |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-26010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 HEATER RELAY |
1 | ||
| 85999-12050 |
LN3#,4#,RN3#,4# HEATER RELAY |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-26010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 HEATER RELAY |
1 | ||
| 85999-12050 |
LN3#,4#,RN3#,4# HEATER RELAY |
1 | ||
| 86650C - BUZZER ASSY, SEDIMENTER WARNING | ||||
| 86650-55080 |
LN46..TW;LN46..T1..IV3;RN46..ARL..CBU;LN46..T1..GEN..CBU;LN3#,40..ARL,GEN,SA |
1 | ||
| Common parts | ||||
| 90159-60038 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 93319-14010 | ||||
| 93540-54014 | ||||
| 94120-40800 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(7909- )LN3#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-13010 |
L,12R#,18R..LN3#,4#,RN3#,4# |
1 | ||
| 27700-13050 |
L,12R#,18R..LN3#,4#,RN3#,4# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
LN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN) |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
1 | ||
| 83420-16010 |
LN3#,4#,RN3#,4# DENSO |
1 | ||
| 83420-20020 |
LN3#,4#,RN3#,4# YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-36011 |
LN3#,4#,RN3#,4# |
1 | ||
| 83530-14010 |
LN3#,4#,RN3#,4# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-26010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-26010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-30040 |
LN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN) |
1 | ||
| 84461-30030 |
LN30,40 |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
LN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN) |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28623-54010 | ||||
| 90099-14050 | ||||
| 90116-06275 | ||||
| 90119-06142 | ||||
| 90119-08063 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90461-06423 | ||||
| 90464-00190 | ||||
| 91656-40616 | ||||
| 91656-40818 | ||||
| 91666-40616 | ||||
| 93385-16012 | ||||
| 94613-10601 | ||||
| Linked diagrams | ||||
| 2203 | ||||
| 4703 | ||||
(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62005 |
LN3#,4#,RN3#,4# 5A |
2 | ||
| 90982-09003 |
LN3#,4#,RN3#,4# 15A,15A |
8 | ||
| 90982-09005 |
LN3#,4#,RN3#,4# 7.5A,7.5A |
4 | ||
| 99118-62910 |
LN3#,4#,RN3#,4# 10A |
6 | ||
| 90982-09002 |
RN30,31,40,41..ARL,GEN,ME,PHL,SA 10A,10A |
1 | ||
| 99118-62915 |
LN3#,4#,RN3#,4# 15A,15A |
5 | ||
| 90982-09004 |
LN3#,4#,RN3#,4# 20A,YELLOW,20A |
2 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-89109 |
LN3#,4#,RN3#,4# RR |
1 | ||
| 82611-89105 |
LN3#,4#,RN3#,4# RR |
1 | ||
| 82611-89106 |
LN3#,4#,RN3#,4# FR |
1 | ||
| 82611-89108 |
LN3#,4#,RN3#,4# FR |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-89109 |
LN3#,4#,RN3#,4# RR |
1 | ||
| 82611-89105 |
LN3#,4#,RN3#,4# RR |
1 | ||
| 82611-89106 |
LN3#,4#,RN3#,4# FR |
1 | ||
| 82611-89108 |
LN3#,4#,RN3#,4# FR |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
LN3#,4#,RN3#,4# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-35010 |
LN3#,4#,RN3#,4# 20A |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19075 |
RN46..ARL..IV3;RN46..RHD..(EUR,GEN);LN30,40,RN3#,40,41..RHD |
1 | ||
| 84112-19076 |
LN3#,4#,RN3#,4#..RHD |
1 | ||
| 84112-39135 |
LN3#,4#,RN3#,40,41..RHD;RN46..RHD..(ARL,EUR,GEN) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19015 |
LN3#,4#,RN3#,4#..RHD |
1 | ||
| 84140-39055 |
LN3#,4#,RN3#,40,41..RHD;RN46..RHD..(ARL,EUR,GEN) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-89102 |
LN3#,4#,RN3#,4# |
2 | ||
| 84230-20040 |
LN3#,4#,RN3#,4# |
2 | ||
| 84231-20060 |
LN3#,4#,RN3#,4# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-89102 |
LN3#,4#,RN3#,4# |
2 | ||
| 84230-20040 |
LN3#,4#,RN3#,4# |
2 | ||
| 84231-20060 |
LN3#,4#,RN3#,4# |
2 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-35120 |
LN30,40,RN30,40..RHD..(ARL,GEN,SA) |
1 | ||
| 84310-10210 |
RN46..RHD..GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41..RHD..(ARL,GEN,SA) |
1 | ||
| 84310-10211 |
LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
LN3#,4#,RN3#,4#..ARL,EUR,GEN,PHL,SA |
1 | ||
| 84312-20011 |
LN3#,4#,RN3#,4# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-39115 |
LN3#,4#,RN3#,40,41..RHD;RN46..RHD..(ARL,EUR,GEN) |
1 | ||
| 84332-19015 |
LN3#,4#,RN3#,4#..RHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-14021 |
LN3#,4#,RN3#,40,41;RN46..ARL,EUR,GEN,ME |
1 | ||
| 84450-14021 |
LN3#,4#,RN3#,4# |
1 | ||
| 84450-14021 |
RN46..ARL,EUR,GEN;LN3#,4#,RN3#,40,41..ARL,EUR,GEN,PHL,SA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19135 |
RN46..RHD..GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41..RHD..(ARL,GEN,SA) |
1 | ||
| 84652-19136 |
LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA) |
1 | ||
| 84652-39165 |
LN30,40,RN30,40..RHD..(ARL,GEN,SA) W/INTERMITTENT WIPER |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30340 |
LN3#,4#,RN3#,4# |
1 | ||
| 85500-20042 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
1 | ||
| Common parts | ||||
| 90170-11003 | ||||
| 90461-08361 | ||||
| 90463-15402 | ||||
| 91656-40616 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 94611-11001 | ||||
(8108- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81908 - BRACKET SUB-ASSY, FLASHER | ||||
| 85999-89101 |
LN3#,4#,RN3#,4# |
1 | ||
| 85999-89101 |
LN30,40;RN30,36,40,46..EUR |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30030 |
RN46..GEN;RN46..ARL..IV3;RN3#,40,41..ARL,GEN,PHL,SA |
1 | ||
| 81980-22060 |
LN3#,4#,RN3#,4# |
1 | ||
| 81980-22070 |
LN3#,4#,RN3#,4# |
1 | ||
| 81980-22060 |
LN30,40;RN30,36,40,46..EUR |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30030 |
RN46..GEN;RN46..ARL..IV3;RN3#,40,41..ARL,GEN,PHL,SA |
1 | ||
| 81980-22060 |
LN3#,4#,RN3#,4# |
1 | ||
| 81980-22070 |
LN3#,4#,RN3#,4# |
1 | ||
| 81980-22060 |
LN30,40;RN30,36,40,46..EUR |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39185 |
LN40,RN40,41..EUR,GEN,ME,PHL |
1 | ||
| 83320-39186 |
LN40,RN40,41..EUR,GEN,ME,PHL |
1 | ||
| 83320-39185 |
LN40,RN40;RN41..GEN |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
LN3#,4#,RN3#,4# |
1 | ||
| 83361-20030 |
LN3#,4#,RN3#,4# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-36030 |
LN3#,4#,RN3#,4# MATSUSHITA |
1 | ||
| 84340-22060 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 MATSUSHITA |
1 | ||
| 84340-22072 |
LN3#,4#,RN3#,4# TOKAIRIKA |
1 | ||
| 84340-22071 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;LN30,40,RN3#,40,41;RN46..EUR,GEN,ME,SA TOKAIRIKA |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-35010 |
LN3#,4#,RN3#,4# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-89107 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA W/COOLER |
1 | ||
| 84732-89104 |
LN3#,4#,RN3#,4#..RHD |
1 | ||
| 84732-89106 |
LN3#,4#,RN3#,4# |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
LN3#,4#,RN3#,4# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-12010 |
LN3#,4#,RN3#,4# |
1 | ||
| 90987-02001 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
1 | ||
| 90987-02004 |
LN3#,4#,RN3#,4# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
2 | ||
| 90987-01001 |
LN30,40,RN30,31,40,41 |
2 | ||
| 90987-01003 |
LN30,40,RN30,31,40,41 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
2 | ||
| 90987-01001 |
LN30,40,RN30,31,40,41 |
2 | ||
| 90987-01003 |
LN30,40,RN30,31,40,41 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
2 | ||
| 90987-01001 |
LN30,40,RN30,31,40,41 |
2 | ||
| 90987-01003 |
LN30,40,RN30,31,40,41 |
2 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-26010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 HEATER RELAY |
1 | ||
| 85999-12050 |
LN3#,4#,RN3#,4# HEATER RELAY |
1 | ||
| 86650C - BUZZER ASSY, SEDIMENTER WARNING | ||||
| 86650-55080 |
LN46..TW;LN46..T1..IV3;RN46..ARL..CBU;LN46..T1..GEN..CBU;LN3#,40..ARL,GEN,SA |
1 | ||
| Common parts | ||||
| 90159-60038 | ||||
| 90170-11206 | ||||
| 90201-11011 | ||||
| 90464-00165 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 93319-14010 | ||||
| 93540-15010 | ||||
| 94120-40800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
