RN40R-KRS (1978)
Toyota Hilux

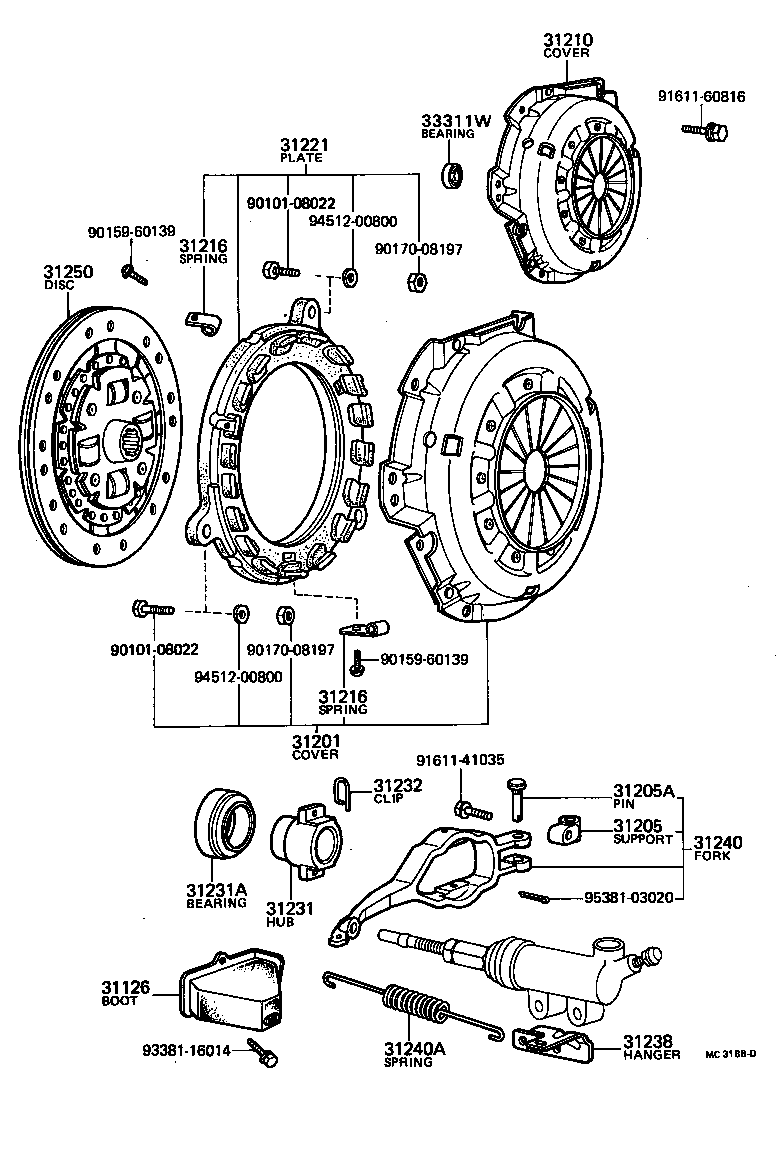

(7808- )RN30,40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-20050 |
RN46..ARL..IV3;LN30,40,RN36..4F;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 31126-26010 |
RN30,40 |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-39046 |
RN30,40 |
1 | ||
| 31201-39045 |
RN30,40 |
1 | ||
| 31201-29076 |
LN30,40 |
1 | ||
| 31201-39047 |
RN30,40 |
1 | ||
| 31201-29085 |
LN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN) |
1 | ||
| 31201-29076 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN31,36,41 |
1 | ||
| 31205 - SUPPORT SUB-ASSY, RELEASE FORK | ||||
| 31205-30010 |
RN30,40 |
1 | ||
| 31205A - PIN, W/SERRATION(FOR RELEASE FORK SUPPORT) | ||||
| 90245-10072 |
RN30,40 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-35040 |
RN30,40 |
1 | ||
| 31210-36028 |
LN30,40 |
1 | ||
| 31210-36029 |
LN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN) |
1 | ||
| 31210-35041 |
RN30,40 |
1 | ||
| 31210-35042 |
RN30,40 |
1 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
LN3#,4#,RN3#,4# |
3 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
LN3#,4#,RN3#,4# |
3 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31221-39056 |
LN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN) |
1 | ||
| 31221-39045 |
RN30,40 |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-20052 |
LN30,40 |
1 | ||
| 31231-30080 |
LN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN) |
1 | ||
| 31231-35021 |
RN30,40 |
1 | ||
| 31231-35022 |
RN30,40 |
1 | ||
| 31231-35020 |
RN30,40 |
1 | ||
| 31231-30080 |
LN40..ECB;LN30,40..4F |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40003 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN30,36,40 |
1 | ||
| 90363-40022 |
LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN3#,40,RN31,41;LN46..T1..(EUR,GEN) |
1 | ||
| 90363-40010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN30,36,40 |
1 | ||
| 90363-40022 |
LN3#,4#,RN3#,4# |
1 | ||
| 90363-40019 |
RN30,36,40;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 90363-40019 |
RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN30,36,40 |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-30020 |
LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN3#,40,RN30,40;LN46..T1..(EUR,GEN) |
2 | ||
| 31232-30010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN30,36,40 |
2 | ||
| 31232-30020 |
LN40..ECB;LN30,40,RN30,40..4F,4H |
2 | ||
| 31238 - HANGER, RELEASE FORK RETRACTING SPRING | ||||
| 31238-26010 |
RN30,40 |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31240-35012 |
RN30,40 |
1 | ||
| 31204-26010 |
LN40..ECB;LN30,40..4F |
1 | ||
| 31204-20020 |
LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 31204-26010 |
LN3#,4#,RN36,46 |
1 | ||
| 31240-35011 |
RN30,40 |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-16282 |
RN30,40 |
1 | ||
| 90506-16004 |
LN3#,4#,RN36,46 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-25063 |
LN30,40 |
1 | ||
| 31250-35060 |
RN30,40 |
1 | ||
| 31250-25061 |
LN30,40 |
1 | ||
| 31250-22101 |
LN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN) |
1 | ||
| 31250-25062 |
LN30,40 |
1 | ||
| 31250-35061 |
RN30,40 |
1 | ||
| 31250-28011 |
RN30,40 |
1 | ||
| 31250-35080 |
LN3#,4# |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 97143-06201 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
1 | ||
| 90363-12002 |
LN3#,4#,RN3#,4# |
1 | ||
| Common parts | ||||
| 90101-08022 | ||||
| 90159-60139 | ||||
| 90170-08197 | ||||
| 91611-41035 | ||||
| 91611-60816 | ||||
| 93381-16014 | ||||
| 94512-00800 | ||||
| 95381-03020 | ||||

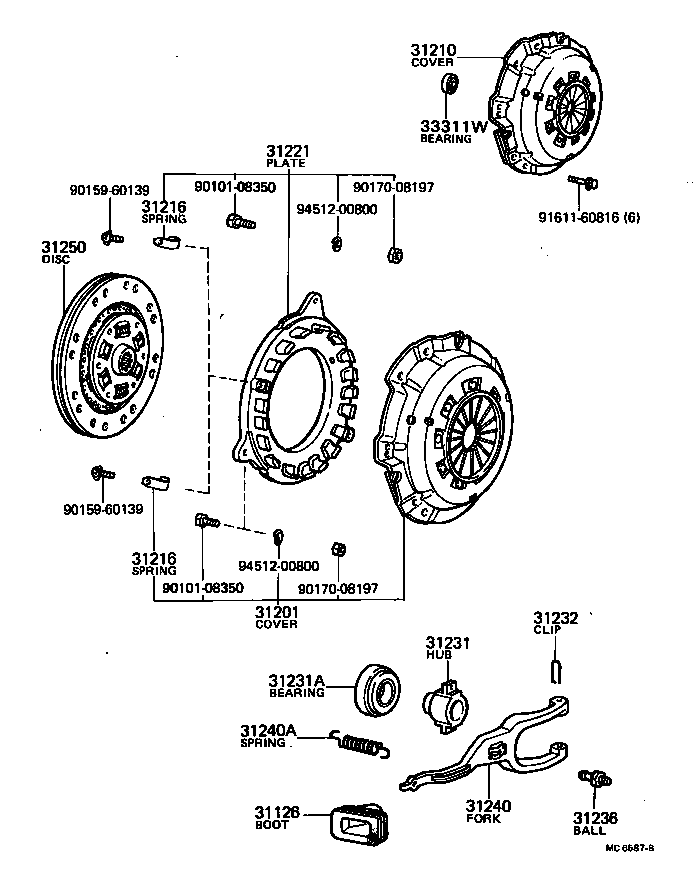

(7909- )LN3#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-20050 |
RN46..ARL..IV3;LN30,40,RN36..4F;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 31126-26010 |
RN30,40 |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-39046 |
RN30,40 |
1 | ||
| 31201-39045 |
RN30,40 |
1 | ||
| 31201-29076 |
LN30,40 |
1 | ||
| 31201-39047 |
RN30,40 |
1 | ||
| 31201-29085 |
LN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN) |
1 | ||
| 31201-29076 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN31,36,41 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-35040 |
RN30,40 |
1 | ||
| 31210-36028 |
LN30,40 |
1 | ||
| 31210-36029 |
LN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN) |
1 | ||
| 31210-35041 |
RN30,40 |
1 | ||
| 31210-35042 |
RN30,40 |
1 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
LN3#,4#,RN3#,4# |
3 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
LN3#,4#,RN3#,4# |
3 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31221-39056 |
LN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN) |
1 | ||
| 31221-39045 |
RN30,40 |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-20052 |
LN30,40 |
1 | ||
| 31231-30080 |
LN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN) |
1 | ||
| 31231-35021 |
RN30,40 |
1 | ||
| 31231-35022 |
RN30,40 |
1 | ||
| 31231-35020 |
RN30,40 |
1 | ||
| 31231-30080 |
LN40..ECB;LN30,40..4F |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40003 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN30,36,40 |
1 | ||
| 90363-40022 |
LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN3#,40,RN31,41;LN46..T1..(EUR,GEN) |
1 | ||
| 90363-40010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN30,36,40 |
1 | ||
| 90363-40022 |
LN3#,4#,RN3#,4# |
1 | ||
| 90363-40019 |
RN30,36,40;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 90363-40019 |
RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN30,36,40 |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-30020 |
LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN3#,40,RN30,40;LN46..T1..(EUR,GEN) |
2 | ||
| 31232-30010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN30,36,40 |
2 | ||
| 31232-30020 |
LN40..ECB;LN30,40,RN30,40..4F,4H |
2 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-20020 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN31,36,41 |
1 | ||
| 31236-30060 |
RN31,41;RN46..ARL..IV3;LN30,40,RN36..4F;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31240-35012 |
RN30,40 |
1 | ||
| 31204-26010 |
LN40..ECB;LN30,40..4F |
1 | ||
| 31204-20020 |
LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 31204-26010 |
LN3#,4#,RN36,46 |
1 | ||
| 31240-35011 |
RN30,40 |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-16282 |
RN30,40 |
1 | ||
| 90506-16004 |
LN3#,4#,RN36,46 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-25063 |
LN30,40 |
1 | ||
| 31250-35060 |
RN30,40 |
1 | ||
| 31250-25061 |
LN30,40 |
1 | ||
| 31250-22101 |
LN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN) |
1 | ||
| 31250-25062 |
LN30,40 |
1 | ||
| 31250-35061 |
RN30,40 |
1 | ||
| 31250-28011 |
RN30,40 |
1 | ||
| 31250-35080 |
LN3#,4# |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 97143-06201 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
1 | ||
| 90363-12002 |
LN3#,4#,RN3#,4# |
1 | ||
| Common parts | ||||
| 90101-08350 | ||||
| 90159-60139 | ||||
| 90170-08197 | ||||
| 91611-60816 | ||||
| 94512-00800 | ||||
