RN40R-JRS3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )12R#

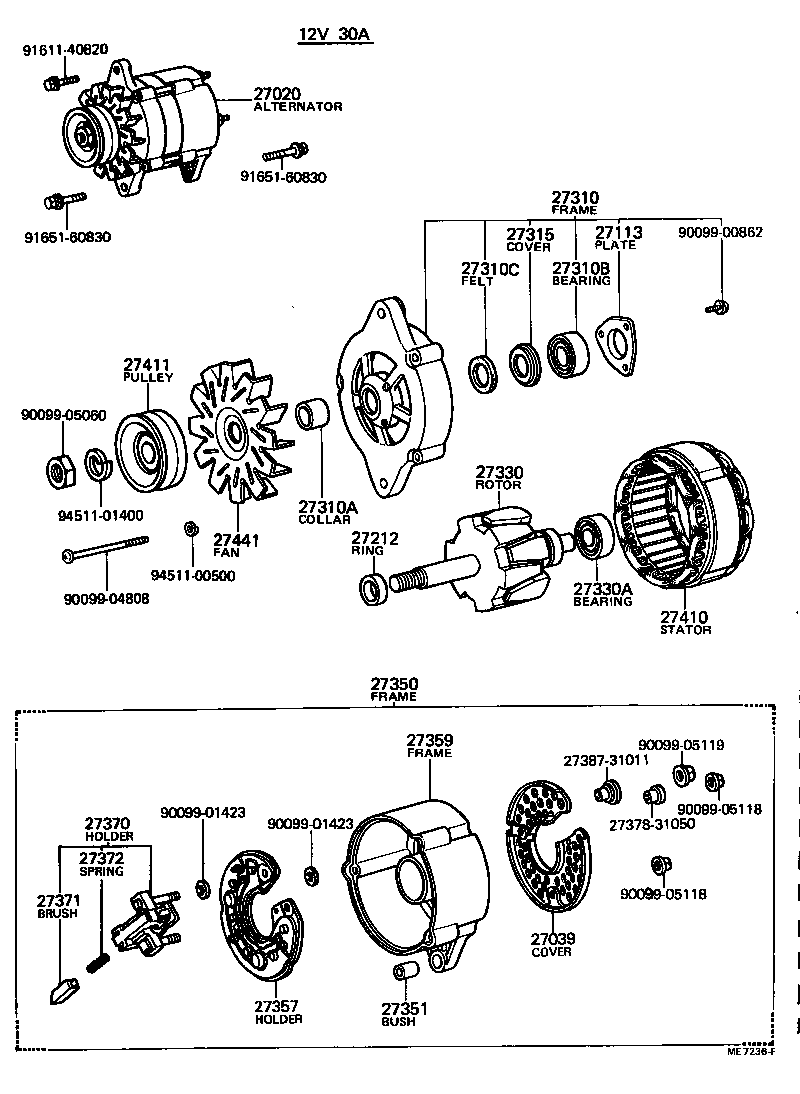

Click highlighted areas on diagram

diagram 27020 27039 27113 27212 27310 27310A 27310B 27310C 27315 27330 27330A 27350 27351 27357 27359 27370 27371 27372 2737831050 2738731011 27410 27411 27441 9009900862 9009901423 9009901423 9009904808 9009905060 9009905118 9009905118 9009905119 9161140820 9165160830 9165160830 9451100500 9451101400
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-31090

12R#..RN30,40

12V 30A,12V 30A

 1
27039 - COVER, ALTERNATOR REAR END
27039-11014

12R#..RN30,40

12V 30A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27113-10012

12R#..RN30,40

12V 30A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
90099-19068

12R#..RN30,40

12V 30A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-22012

12R#..RN30,40

12V 30A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-56040

12R#..RN30,40

12V 30A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10012

12R#..RN30,40

12V 30A

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02009

12R#..RN30,40

12V 30A

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27313-39010

12R#..RN30,40

12V 30A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-22012

12R#..RN30,40

12V 30A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
97110-06201

12R#..RN30,40

12V 30A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-31090

12R#..RN30,40

12V 30A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-24020

12R#..RN30,40

12V 30A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-11014

12R#..RN30,40

12V 30A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-31090

12R#..RN30,40

12V 30A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-31090

12R#..RN30,40

12V 30A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;L..LN46..T1..ARL..CBU;18R..RN46..EUR,GEN,ME,SA

12V 30A,40A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;L..LN46..T1..ARL..CBU;18R..RN46..EUR,GEN,ME,SA

12V 30A,40A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-11014

12R#..RN30,40

12V 30A

 1
27411 - PULLEY, ALTERNATOR
27411-31090

12R#..RN30,40

12V 30A

 1
27441 - FAN, ALTERNATOR
27441-31090

12R#..RN30,40

12V 30A

 1
Common parts
27378-31050
27387-31011
90099-00862
90099-01423
90099-04808
90099-05060
90099-05118
90099-05119
91611-40820
91651-60830
94511-00500
94511-01400
