RN40R-JRQ (1978)
Toyota Hilux
(7808-8008)

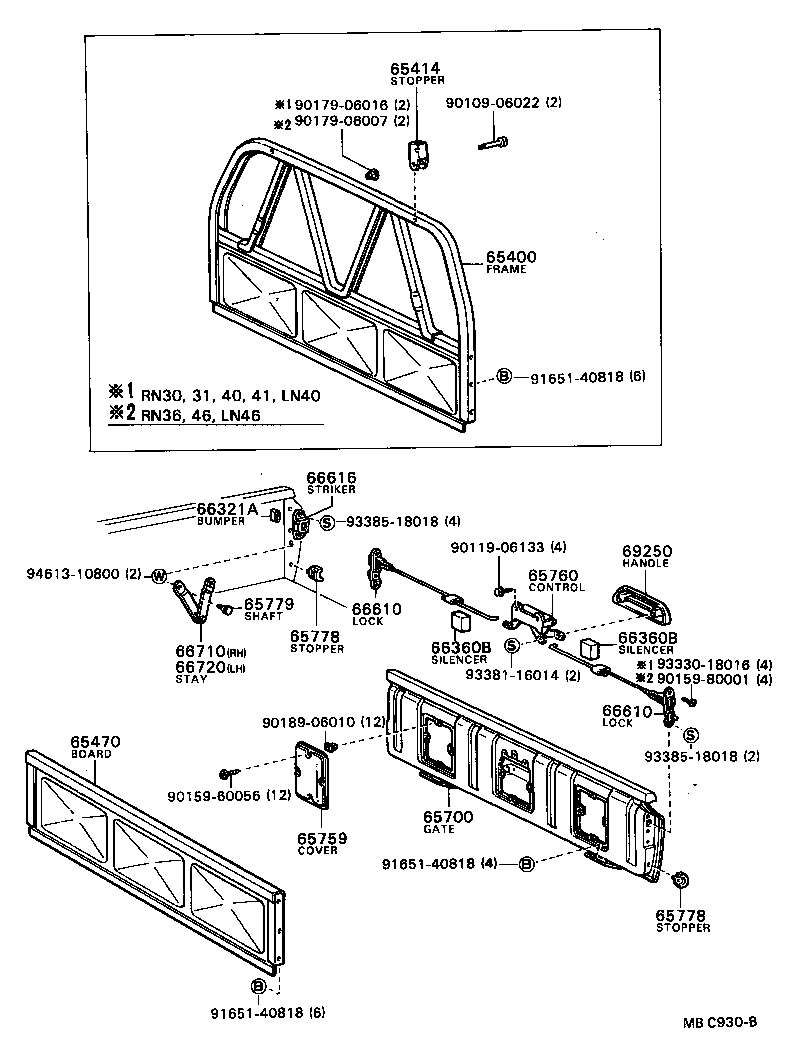

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65400 - FRAME ASSY, REAR BODY GUARD | ||||
| 65470-89109 |
LN3#,4#,RN3#,4#..T1..CBU W/GUARD FRAME |
1 | ||
| 65470-89104 |
RN46..T1..(EUR,GEN)..CBU;LN30,40,RN3#,40,41..T1..CBU W/GUARD FRAME |
1 | ||
| 65414 - STOPPER, GUARD FRAME | ||||
| 65414-89102 |
LN3#,4#,RN3#,4#..CBU W/GUARD FRAME |
2 | ||
| 65470 - BOARD ASSY, HEADER | ||||
| 65470-89105 |
RN46..T1..(EUR,GEN)..CBU;LN30,40,RN3#,40,41..T1..CBU W/O GUARD FRAME |
1 | ||
| 65470-89108 |
RN31,41..ECB..CBU;LN3#,4#,RN30,36,40,46..T1..CBU W/O GUARD FRAME |
1 | ||
| 65470-89108 |
LN3#,4#,RN3#,4#..T1..(ARL,EUR,GEN,SA)..CBU W/O GUARD FRAME |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-89120 |
LN30,40,RN30,31,40,41..(ARL,GEN,PHL)..CBU TOYOTA |
1 | ||
| 65700-89122 |
LN4#,RN3#,4#..ARL..CBU |
1 | ||
| 65700-89116 |
RN46..(EUR,GEN)..CBU;LN30,40,RN3#,40,41..CBU |
1 | ||
| 65700-95124 |
RN46..(EUR,GEN)..CBU;LN30,40,RN3#,40,41..CBU |
1 | ||
| 66110 - HINGE ASSY, TAIL GATE | ||||
| 66110-89102 |
LN3#,4#,RN3#,4#..CBU |
2 | ||
| 66170 - LATCH ASSY, REAR BODY TAIL GATE | ||||
| 66170-89105 |
LN3#,4#,RN3#,4#..CBU |
2 | ||
| 66170-89104 |
RN46..(EUR,GEN)..CBU;LN30,40,RN3#,40,41..CBU |
2 | ||
| 66280 - CHAIN ASSY, TAIL GATE, RH | ||||
| 66280-89105 |
LN3#,4#,RN3#,4#..CBU |
1 | ||
| 66290 - CHAIN ASSY, TAIL GATE, LH | ||||
| 66280-89105 |
LN3#,4#,RN3#,4#..CBU |
1 | ||
| Common parts | ||||
| 90109-06022 | ||||
| 90109-08030 | ||||
| 90179-06007 | ||||
| 90179-06016 | ||||
| 90201-08018 | ||||
| 91651-40816 | ||||
| 91651-40818 | ||||
(8008-8108) ; (8108- )EUR,GEN,ME,PHL,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65400 - FRAME ASSY, REAR BODY GUARD | ||||
| 65470-89109 |
LN3#,4#,RN3#,4#..T1..CBU W/GUARD FRAME |
1 | ||
| 65470-89104 |
RN46..T1..(EUR,GEN)..CBU;LN30,40,RN3#,40,41..T1..CBU W/GUARD FRAME |
1 | ||
| 65414 - STOPPER, GUARD FRAME | ||||
| 65414-89102 |
LN3#,4#,RN3#,4#..CBU W/GUARD FRAME |
2 | ||
| 65470 - BOARD ASSY, HEADER | ||||
| 65470-89105 |
RN46..T1..(EUR,GEN)..CBU;LN30,40,RN3#,40,41..T1..CBU W/O GUARD FRAME |
1 | ||
| 65470-89108 |
RN31,41..ECB..CBU;LN3#,4#,RN30,36,40,46..T1..CBU W/O GUARD FRAME |
1 | ||
| 65470-89108 |
LN3#,4#,RN3#,4#..T1..(ARL,EUR,GEN,SA)..CBU W/O GUARD FRAME |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-89120 |
LN30,40,RN30,31,40,41..(ARL,GEN,PHL)..CBU TOYOTA |
1 | ||
| 65700-89122 |
LN4#,RN3#,4#..ARL..CBU |
1 | ||
| 65700-89116 |
RN46..(EUR,GEN)..CBU;LN30,40,RN3#,40,41..CBU |
1 | ||
| 65700-95124 |
RN46..(EUR,GEN)..CBU;LN30,40,RN3#,40,41..CBU |
1 | ||
| 66110 - HINGE ASSY, TAIL GATE | ||||
| 66110-89102 |
LN3#,4#,RN3#,4#..CBU |
2 | ||
| 66170 - LATCH ASSY, REAR BODY TAIL GATE | ||||
| 66170-89105 |
LN3#,4#,RN3#,4#..CBU |
2 | ||
| 66170-89104 |
RN46..(EUR,GEN)..CBU;LN30,40,RN3#,40,41..CBU |
2 | ||
| 66280 - CHAIN ASSY, TAIL GATE, RH | ||||
| 66280-89105 |
LN3#,4#,RN3#,4#..CBU |
1 | ||
| 66290 - CHAIN ASSY, TAIL GATE, LH | ||||
| 66280-89105 |
LN3#,4#,RN3#,4#..CBU |
1 | ||
| Common parts | ||||
| 90109-06022 | ||||
| 90109-08030 | ||||
| 90179-06007 | ||||
| 90179-06016 | ||||
| 90201-08018 | ||||
| 91651-40818 | ||||
(8108-8307)ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65400 - FRAME ASSY, REAR BODY GUARD | ||||
| 65470-89109 |
LN3#,4#,RN3#,4#..T1..CBU W/GUARD FRAME |
1 | ||
| 65470-89104 |
RN46..T1..(EUR,GEN)..CBU;LN30,40,RN3#,40,41..T1..CBU W/GUARD FRAME |
1 | ||
| 65414 - STOPPER, GUARD FRAME | ||||
| 65414-89102 |
LN3#,4#,RN3#,4#..CBU W/GUARD FRAME |
2 | ||
| 65470 - BOARD ASSY, HEADER | ||||
| 65470-89105 |
RN46..T1..(EUR,GEN)..CBU;LN30,40,RN3#,40,41..T1..CBU W/O GUARD FRAME |
1 | ||
| 65470-89108 |
RN31,41..ECB..CBU;LN3#,4#,RN30,36,40,46..T1..CBU W/O GUARD FRAME |
1 | ||
| 65470-89108 |
LN3#,4#,RN3#,4#..T1..(ARL,EUR,GEN,SA)..CBU W/O GUARD FRAME |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-89120 |
LN30,40,RN30,31,40,41..(ARL,GEN,PHL)..CBU TOYOTA |
1 | ||
| 65700-89122 |
LN4#,RN3#,4#..ARL..CBU |
1 | ||
| 65700-89116 |
RN46..(EUR,GEN)..CBU;LN30,40,RN3#,40,41..CBU |
1 | ||
| 65700-95124 |
RN46..(EUR,GEN)..CBU;LN30,40,RN3#,40,41..CBU |
1 | ||
| 65759 - COVER, TAIL GATE SERVICE HOLE | ||||
| 65759-89101 |
LN4#,RN3#,4#..ARL..CBU |
3 | ||
| 65760 - CONTROL ASSY,TAIL GATE LOCK | ||||
| 65760-89101 |
LN4#,RN3#,4#..ARL..CBU |
1 | ||
| 65760-89102 |
LN4#,RN3#,4#..ARL..CBU |
1 | ||
| 65778 - STOPPER, TAIL GATE STAY | ||||
| 65778-89102 |
LN4#,RN3#,4#..ARL..CBU |
4 | ||
| 65778 - STOPPER, TAIL GATE STAY | ||||
| 65778-89102 |
LN4#,RN3#,4#..ARL..CBU |
4 | ||
| 65779 - SHAFT, TAIL GATE STAY, UPPER | ||||
| 65779-89101 |
LN4#,RN3#,4#..ARL..CBU |
2 | ||
| 66321A - BUMPER, GATE RUBBER | ||||
| 66321-89107 |
LN4#,RN3#,4#..ARL..CBU |
2 | ||
| 66360B - SILENCER, DOOR LOCK LINK | ||||
| 69759-89105 |
LN4#,RN3#,4#..ARL..CBU |
2 | ||
| 66360B - SILENCER, DOOR LOCK LINK | ||||
| 69759-89105 |
LN4#,RN3#,4#..ARL..CBU |
2 | ||
| 66610 - LOCK ASSY, TAIL GATE | ||||
| 65780-89101 |
LN4#,RN3#,4#..ARL..CBU RH |
1 | ||
| 65790-89101 |
LN4#,RN3#,4#..ARL..CBU LH |
1 | ||
| 66610 - LOCK ASSY, TAIL GATE | ||||
| 65780-89101 |
LN4#,RN3#,4#..ARL..CBU RH |
1 | ||
| 65790-89101 |
LN4#,RN3#,4#..ARL..CBU LH |
1 | ||
| 66616 - STRIKER, TAIL GATE LOCK | ||||
| 65768-89101 |
LN4#,RN3#,4#..ARL..CBU |
2 | ||
| 66710 - STAY ASSY, TAIL GATE, RH | ||||
| 65770-89101 |
LN4#,RN3#,4#..ARL..CBU |
1 | ||
| 66720 - STAY ASSY, TAIL GATE, LH | ||||
| 65770-89101 |
LN4#,RN3#,4#..ARL..CBU |
1 | ||
| 69250 - HANDLE ASSY, TAIL GATE LOCK | ||||
| 65755-89101 |
LN4#,RN3#,4#..ARL..CBU |
1 | ||
| Common parts | ||||
| 90109-06022 | ||||
| 90119-06133 | ||||
| 90159-60056 | ||||
| 90159-80001 | ||||
| 90179-06007 | ||||
| 90179-06016 | ||||
| 90189-06010 | ||||
| 91651-40818 | ||||
| 93330-18016 | ||||
| 93381-16014 | ||||
| 93385-18018 | ||||
| 94613-10800 | ||||
