RN40L-KRP (1979)

Toyota Hilux

Production Jan 1979 - Jul 1983
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

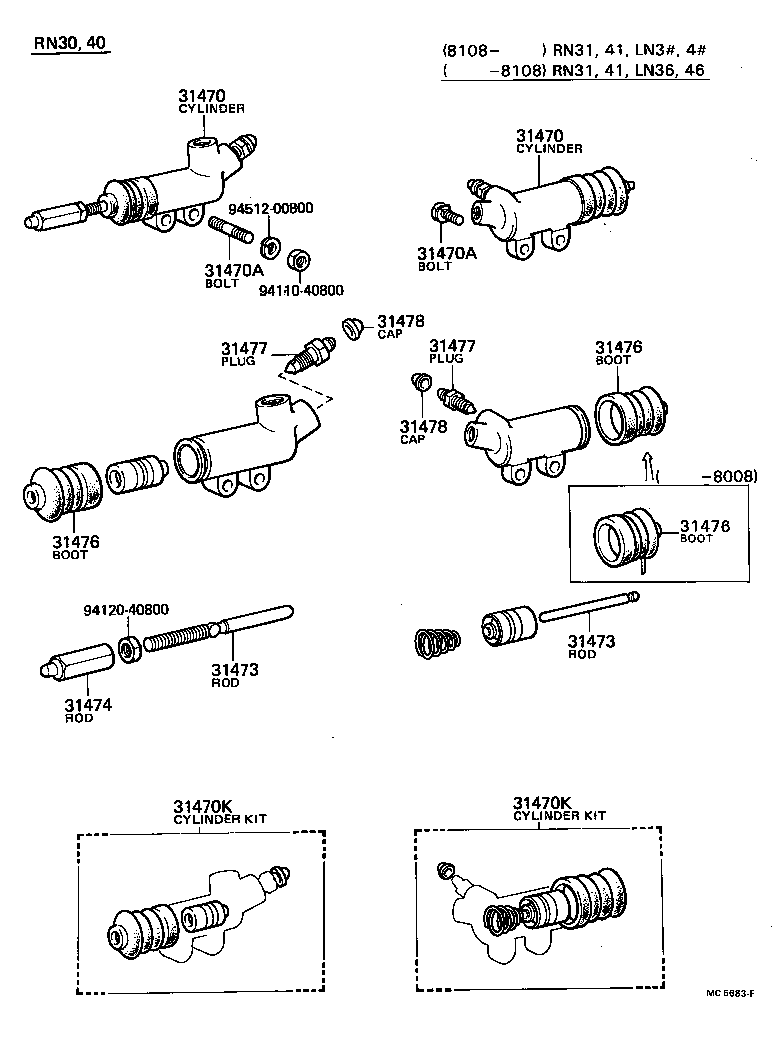

(7808-8108)LN3#,4#,RN30,31,40,41 ; (8108- )LN3#,4#,RN30,31,40,41

Click highlighted areas on diagram

diagram 31470 31470 31470A 31470A 31470K 31470K 31473 31473 31474 31476 31476 31476 31477 31477 31478 31478 9411040800 9412040800 9451200800
Part # Description Qty Price
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-26030

LN30,40

 1
31470-30120

LN30,40

 1
31470-35030

RN30,40

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-26030

LN30,40

 1
31470-30120

LN30,40

 1
31470-35030

RN30,40

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-40825

LN3#,4#,RN31,36,41,46

*8-1.25PX25-25

 2
90116-08018

RN30,40

 2
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-40825

LN3#,4#,RN31,36,41,46

*8-1.25PX25-25

 2
90116-08018

RN30,40

 2
31470K - CYLINDER KIT, CLUTCH RELEASE
04313-25010

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
04313-35030

RN30,40

 1
04313-30054

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
31470K - CYLINDER KIT, CLUTCH RELEASE
04313-25010

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
04313-35030

RN30,40

 1
04313-30054

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-30021

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
31473-35030

RN30,40

 1
31473-25010

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-30021

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
31473-35030

RN30,40

 1
31473-25010

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
31474 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.2
31475-35010

RN30,40

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-20040

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
31476-35020

RN30,40

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-20040

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
31476-35020

RN30,40

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-20040

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
31476-35020

RN30,40

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

LN3#,4#,RN3#,4#

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

LN3#,4#,RN3#,4#

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

LN3#,4#,RN3#,4#

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

LN3#,4#,RN3#,4#

 1
Common parts
94110-40800
94120-40800
94512-00800

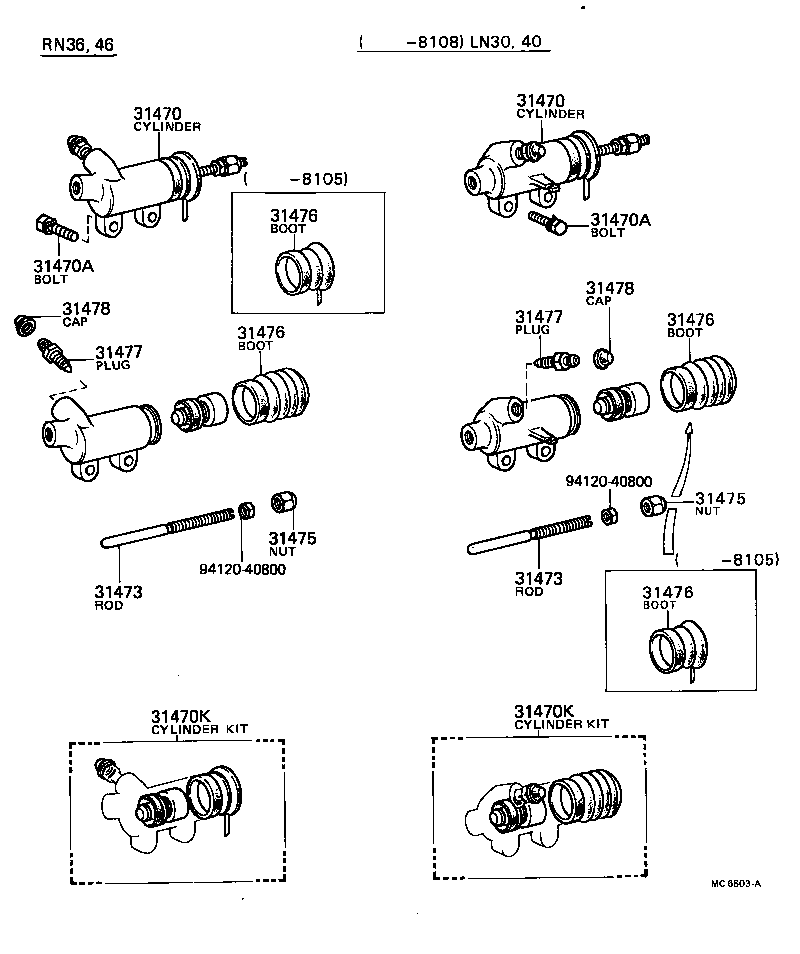

(7901-8108)LN30,40,RN36,46 ; (8108-8307)RN36,46

Click highlighted areas on diagram

diagram 31470 31470 31470A 31470A 31470K 31470K 31473 31473 31475 31475 31476 31476 31476 31476 31477 31477 31478 31478 9412040800 9412040800
Part # Description Qty Price
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-26030

LN30,40

 1
31470-30120

LN30,40

 1
31470-35030

RN30,40

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-26030

LN30,40

 1
31470-30120

LN30,40

 1
31470-35030

RN30,40

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-40825

LN3#,4#,RN31,36,41,46

*8-1.25PX25-25

 2
90116-08018

RN30,40

 2
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-40825

LN3#,4#,RN31,36,41,46

*8-1.25PX25-25

 2
90116-08018

RN30,40

 2
31470K - CYLINDER KIT, CLUTCH RELEASE
04313-25010

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
04313-35030

RN30,40

 1
04313-30054

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
31470K - CYLINDER KIT, CLUTCH RELEASE
04313-25010

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
04313-35030

RN30,40

 1
04313-30054

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-30021

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
31473-35030

RN30,40

 1
31473-25010

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-30021

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
31473-35030

RN30,40

 1
31473-25010

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
31475 - NUT, CLUTCH RELEASE CYLINDER PUSH ROD
31475-30020

LN3#,4#,RN36,46

 1
31475 - NUT, CLUTCH RELEASE CYLINDER PUSH ROD
31475-30020

LN3#,4#,RN36,46

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-20040

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
31476-35020

RN30,40

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-20040

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
31476-35020

RN30,40

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-20040

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
31476-35020

RN30,40

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-20040

LN30,40,RN36;RN46..EUR,GEN;RN46..ARL..IV3

 1
31476-35020

RN30,40

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

LN3#,4#,RN3#,4#

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

LN3#,4#,RN3#,4#

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

LN3#,4#,RN3#,4#

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

LN3#,4#,RN3#,4#

 1
Common parts
94120-40800
