RN36R-KRQ (1979)

Toyota Hilux

Production Jan 1979 - Jul 1983
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

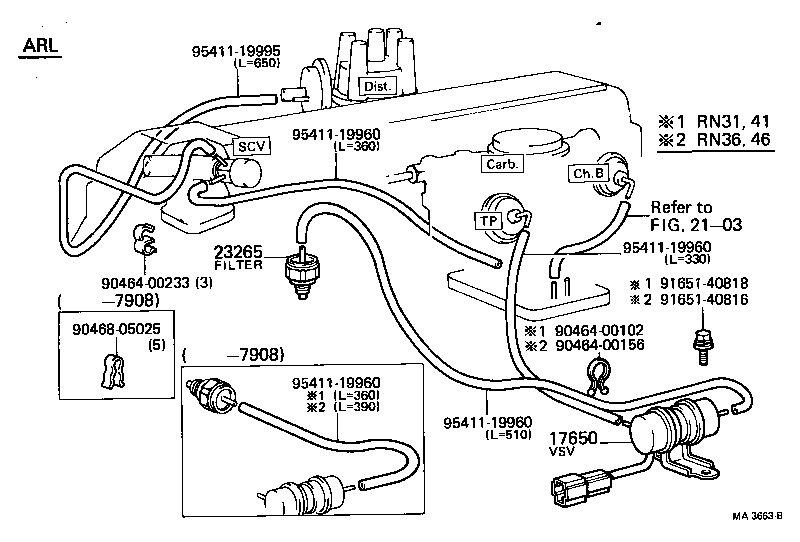

(7901-8307)18R..ARL

Click highlighted areas on diagram

diagram 17650 2103 23265 9046400102 9046400156 9046400233 9046805025 9165140816 9165140818 9541119960 9541119960 9541119960 9541119960 9541119995
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
17650-44020

18R..RN46..ARL..IV3;18R..RN31,36,41..ARL

TP

 1
23265 - FILTER, GAS, NO.1
90917-11022

18R..RN31,36,41,46..ARL,EUR

 1
90917-11024

18R..RN36..ARL;18R..RN46..ARL..IV3

 1
90917-11022

18R..RN46..ARL..IV3;18R..RN31,36,41..ARL

 1
90917-11023

18R..RN36..RHD;18R..RN46..ARL..IV3;18R..RN46..RHD..(EUR,GEN,SA)

HONG KONG SPEC

 1
Common parts
90464-00102
90464-00156
90464-00233
90468-05025
91651-40816
91651-40818
95411-19960
95411-19995
Linked diagrams
2103

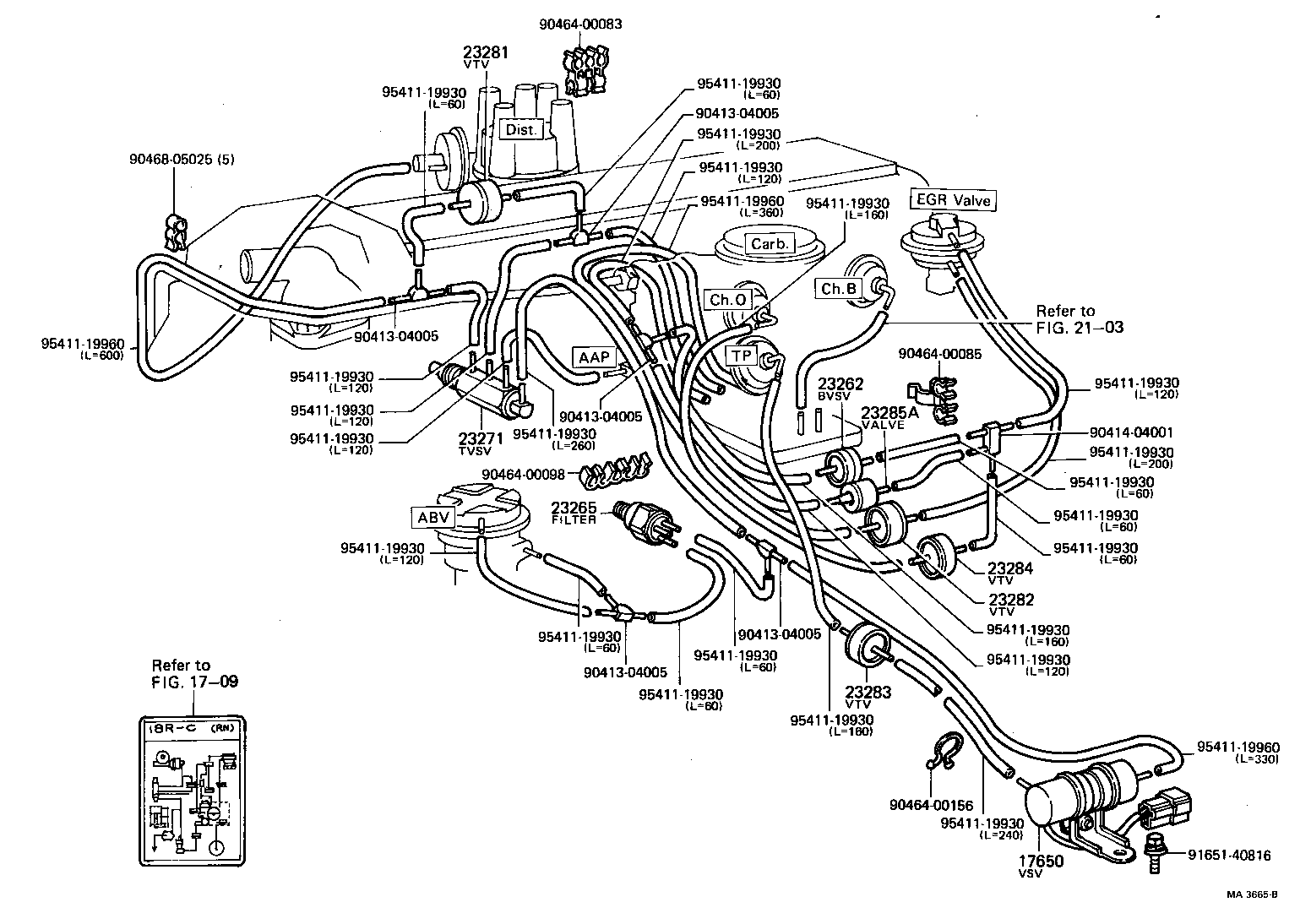

(7901-7908)18R..RN36,46..ARL

Click highlighted areas on diagram

diagram 1709 17650 2103 23262 23265 23271 23281 23282 23283 23284 23285A 9041304005 9041304005 9041304005 9041304005 9041304005 9041404001 9046400083 9046400085 9046400098 9046400156 9046805025 9165140816 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960 9541119960
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
17650-44020

18R..RN46..ARL..IV3;18R..RN31,36,41..ARL

TP

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05029

18R..RN36..ARL;18R..RN46..ARL..IV3

 1
23265 - FILTER, GAS, NO.1
90917-11022

18R..RN31,36,41,46..ARL,EUR

 1
90917-11024

18R..RN36..ARL;18R..RN46..ARL..IV3

 1
90917-11022

18R..RN46..ARL..IV3;18R..RN31,36,41..ARL

 1
90917-11023

18R..RN36..RHD;18R..RN46..ARL..IV3;18R..RN46..RHD..(EUR,GEN,SA)

HONG KONG SPEC

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02043

18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL

 1
90925-02043

18R..RN36..RHD;18R..RN46..ARL..IV3;18R..RN46..RHD..(EUR,GEN,SA)

HONG KONG SPEC

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01019

18R..RN36..RHD;18R..RN46..ARL..IV3;18R..RN46..RHD..(EUR,GEN,SA)

HONG KONG SPEC

 1
90925-01019

18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01027

18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL

 1
23283 - VALVE, VACUUM TRANSMITTING, NO.3
90925-01053

18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL

 1
23284 - VALVE, VACUUM TRANSMITTING, NO.4
90925-01014

18R..RN36..ARL;18R..RN46..ARL..IV3

 1
23285A - VALVE, CHECK, NO.1
90917-10049

18R..RN36..ARL;18R..RN46..ARL..IV3

 1
Common parts
90413-04005
90414-04001
90464-00083
90464-00085
90464-00098
90464-00156
90468-05025
91651-40816
95411-19930
95411-19960
Linked diagrams
1709
2103

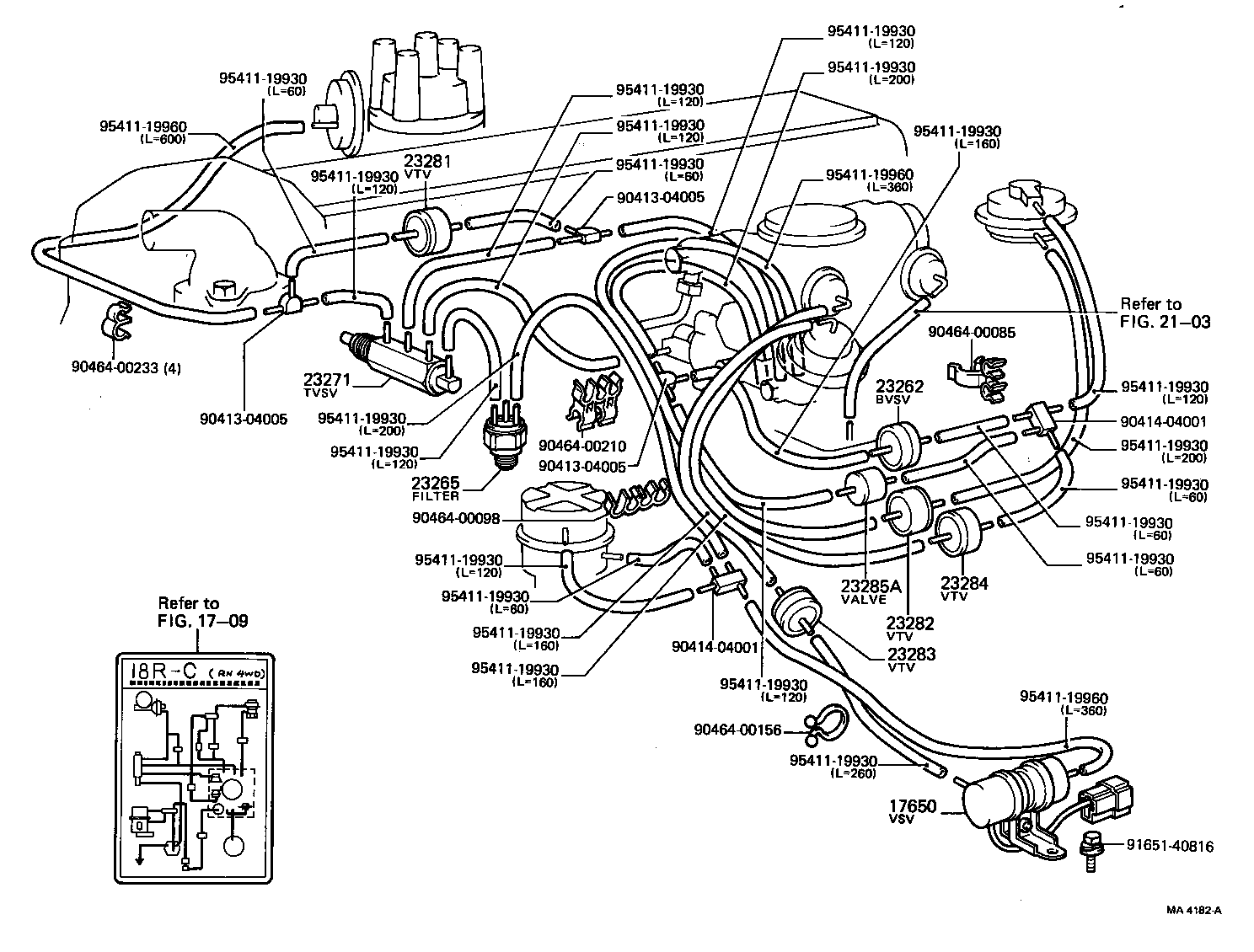

(7908-8307)18R..RN36,46..ARL

Click highlighted areas on diagram

diagram 1709 17650 2103 23262 23265 23271 23281 23282 23283 23284 23285A 9041304005 9041304005 9041304005 9041404001 9041404001 9046400085 9046400098 9046400156 9046400210 9046400233 9165140816 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960 9541119960
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
17650-44020

18R..RN46..ARL..IV3;18R..RN31,36,41..ARL

TP

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05029

18R..RN36..ARL;18R..RN46..ARL..IV3

 1
23265 - FILTER, GAS, NO.1
90917-11022

18R..RN31,36,41,46..ARL,EUR

 1
90917-11024

18R..RN36..ARL;18R..RN46..ARL..IV3

 1
90917-11022

18R..RN46..ARL..IV3;18R..RN31,36,41..ARL

 1
90917-11023

18R..RN36..RHD;18R..RN46..ARL..IV3;18R..RN46..RHD..(EUR,GEN,SA)

HONG KONG SPEC

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02043

18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL

 1
90925-02043

18R..RN36..RHD;18R..RN46..ARL..IV3;18R..RN46..RHD..(EUR,GEN,SA)

HONG KONG SPEC

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01019

18R..RN36..RHD;18R..RN46..ARL..IV3;18R..RN46..RHD..(EUR,GEN,SA)

HONG KONG SPEC

 1
90925-01019

18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01027

18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL

 1
23283 - VALVE, VACUUM TRANSMITTING, NO.3
90925-01053

18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL

 1
23284 - VALVE, VACUUM TRANSMITTING, NO.4
90925-01014

18R..RN36..ARL;18R..RN46..ARL..IV3

 1
23285A - VALVE, CHECK, NO.1
90917-10049

18R..RN36..ARL;18R..RN46..ARL..IV3

 1
Common parts
90413-04005
90414-04001
90464-00085
90464-00098
90464-00156
90464-00210
90464-00233
91651-40816
95411-19930
95411-19960
Linked diagrams
1709
2103

(0408-0908)2KDFTV..KUN15,25..HDCR..TH ; (0908-)2KDFTV..KUN15..HDCR ; (1008-

Click highlighted areas on diagram

diagram 1106 1106 1703 17696 23265 25706 25707 8271133250 8405 8405 9017906298 90182T0007 9033903005 90339T0001 90445T0002 90445T0003 90445T0004 90445T0005 9044708168 90447T0001 9099992002 9099992002
Part # Description Qty Price
Common parts
82711-33250
90179-06298
90182-T0007
90339-03005
90339-T0001
90445-T0002
90445-T0003
90445-T0004
90445-T0005
90447-08168
90447-T0001
90999-92002
Linked diagrams
1106
1703
8405

(1107-1208)2KDFTV..KUN25,35..SR..TH ; (1107-1208)2KDFTV..KUN15..DCB..SR..TH ; (1107

Click highlighted areas on diagram

WATER COOLING TURBO

diagram 1106 1701 17696 23265 25706 25707 25760 25760A 25770 25860E 8271133250 90105T0054 90159T0001 90445T0004 9044708168 90447T0001 9046400082 9046400082 9046907011 9046907011 90469T0005 9099992002 9099992002 9099992002 9099992002 9155180816 9331915008
Part # Description Qty Price
Common parts
82711-33250
90105-T0054
90159-T0001
90445-T0004
90447-08168
90447-T0001
90464-00082
90469-07011
90469-T0005
90999-92002
91551-80816
93319-15008
Linked diagrams
1106
1701
