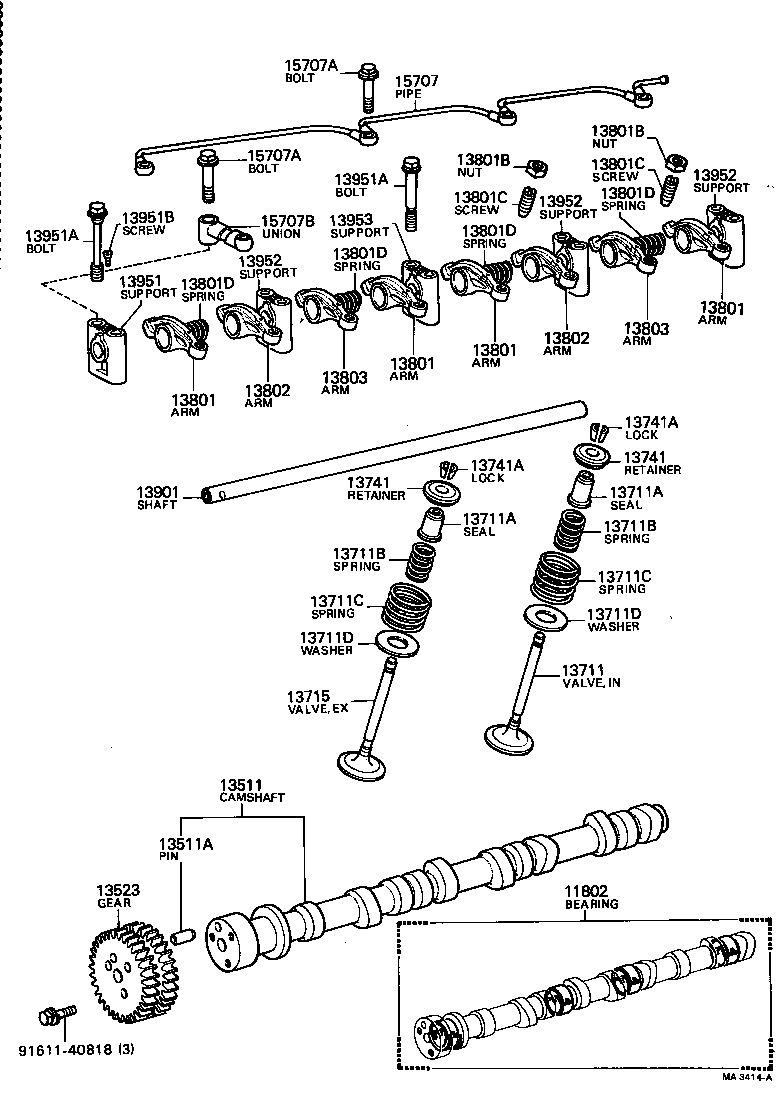

RN31R-MSS (1981)
Toyota Hilux
(7808-8312)18R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11804-33010 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA U/S 0.25,U/S 0.125 |
1 | ||
| 11805-33010 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA U/S 0.50,U/S 0.250 |
1 | ||
| 11802-33010 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA STD,STD |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-33905 |
18R..RN31,36,41,46 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-08074 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA L=15,OD=8,L=15,OD=8 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-33010 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA N=24 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-36021 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02016 |
18R..RN31,36,41,46 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02016 |
18R..RN31,36,41,46 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-26398 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA WD=2.6,CW=7.5 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-26398 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA WD=2.6,CW=7.5 |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-45459 |
18R..RN31,36,41,46 WD=4.5,CW=5.55 |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-45459 |
18R..RN31,36,41,46 WD=4.5,CW=5.55 |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-13308 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-13308 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-34022 |
18R..RN31,36,41,46 |
4 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-33010 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-33010 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-33014 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-33014 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-33014 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-33014 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
4 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-10116 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
8 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-10116 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05011 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05011 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
12R#,18R..RN3#,4# WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
12R#,18R..RN3#,4# WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
12R#,18R..RN3#,4# WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
12R#,18R..RN3#,4# WD=1.6,CW=7.5 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-33014 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
2 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-33014 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
2 | ||
| 13803 - ARM SUB-ASSY, VALVE ROCKER, NO.3 | ||||
| 13813-33014 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
2 | ||
| 13803 - ARM SUB-ASSY, VALVE ROCKER, NO.3 | ||||
| 13813-33014 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
2 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-33011 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-36010 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90105-08016 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA *8-1.25PX65-16 |
9 | ||
| 90910-01007 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA *8-1.25PX75-16 |
1 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90105-08016 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA *8-1.25PX65-16 |
9 | ||
| 90910-01007 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA *8-1.25PX75-16 |
1 | ||
| 13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK) | ||||
| 90151-40010 |
18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-36010 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
3 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-36010 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
3 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-36010 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
3 | ||
| 13953 - SUPPORT, VALVE ROCKER, NO.3 | ||||
| 13953-36010 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 15707 - PIPE SUB-ASSY, OIL | ||||
| 15707-33010 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 15707A - BOLT, UNION(FOR OIL PIPE) | ||||
| 90401-10050 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA L=37 |
1 | ||
| 90401-10051 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA L=19 |
3 | ||
| 15707A - BOLT, UNION(FOR OIL PIPE) | ||||
| 90401-10050 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA L=37 |
1 | ||
| 90401-10051 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA L=19 |
3 | ||
| 15707B - UNION(FOR OIL PIPE) | ||||
| 90406-08008 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| Common parts | ||||
| 91611-40818 | ||||
