RN31R-MSN3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )LN30,40,RN30,31,40,41

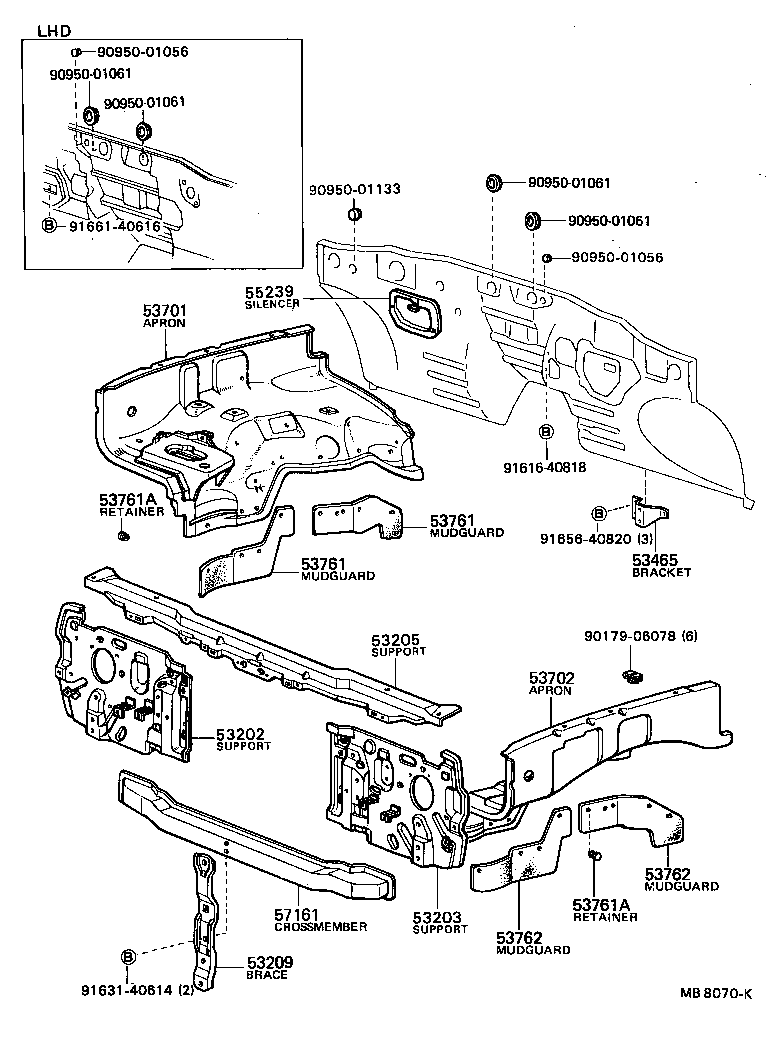

Click highlighted areas on diagram

diagram 53202 53203 53205 53209 53465 53701 53702 53761 53761 53761A 53761A 53762 53762 55239 57161 9017906078 9095001056 9095001056 9095001061 9095001061 9095001061 9095001061 9095001133 9161640818 9163140614 9165640820 9166140616
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-89109

LN30,40,RN30,31,40,41

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-89114

LN30,40,RN30,31,40,41

 1
53203-89109

LN30,40,RN30,31,40,41

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-89110

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

 1
53205-89108

RN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3

 1
53209 - BRACE SUB-ASSY, HOOD LOCK
53217-89105

LN30,40,RN30,31,40,41

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-89115

RN30,31,40,41

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-89142

RN31,41..GEN,ME,SA

W/CYCLONE AIR CLEANER

 1
53761 - MUDGUARD, RH
53736-89105

LN30,40,RN30,31,40,41

FR

 1
53737-89102

LN30,40,RN30,31,40,41

RR

 1
53761 - MUDGUARD, RH
53736-89105

LN30,40,RN30,31,40,41

FR

 1
53737-89102

LN30,40,RN30,31,40,41

RR

 1
53761A - RETAINER(FOR MUDGUARD)
90467-10005

LN30,40,RN30,31,40,41

 16
53761A - RETAINER(FOR MUDGUARD)
90467-10005

LN30,40,RN30,31,40,41

 16
53762 - MUDGUARD, LH
53736-89105

LN30,40,RN30,31,40,41

FR

 1
53737-89102

RN30,31,40,41

RR

 1
53762 - MUDGUARD, LH
53736-89105

LN30,40,RN30,31,40,41

FR

 1
53737-89102

RN30,31,40,41

RR

 1
55239 - SILENCER, STEERING COLUMN HOLE COVER
55210-89126

LN30,40,RN30,31,40,41..RHD..(4F,5F)

 1
57161 - CROSSMEMBER, FRONT
57104-89101

LN30,40,RN30,31,40,41

 1
Common parts
90179-06078
90950-01056
90950-01061
90950-01133
91616-40818
91631-40614
91656-40820
91661-40616
