RN31R-MSN3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )LN30,40,RN30,31,40,41

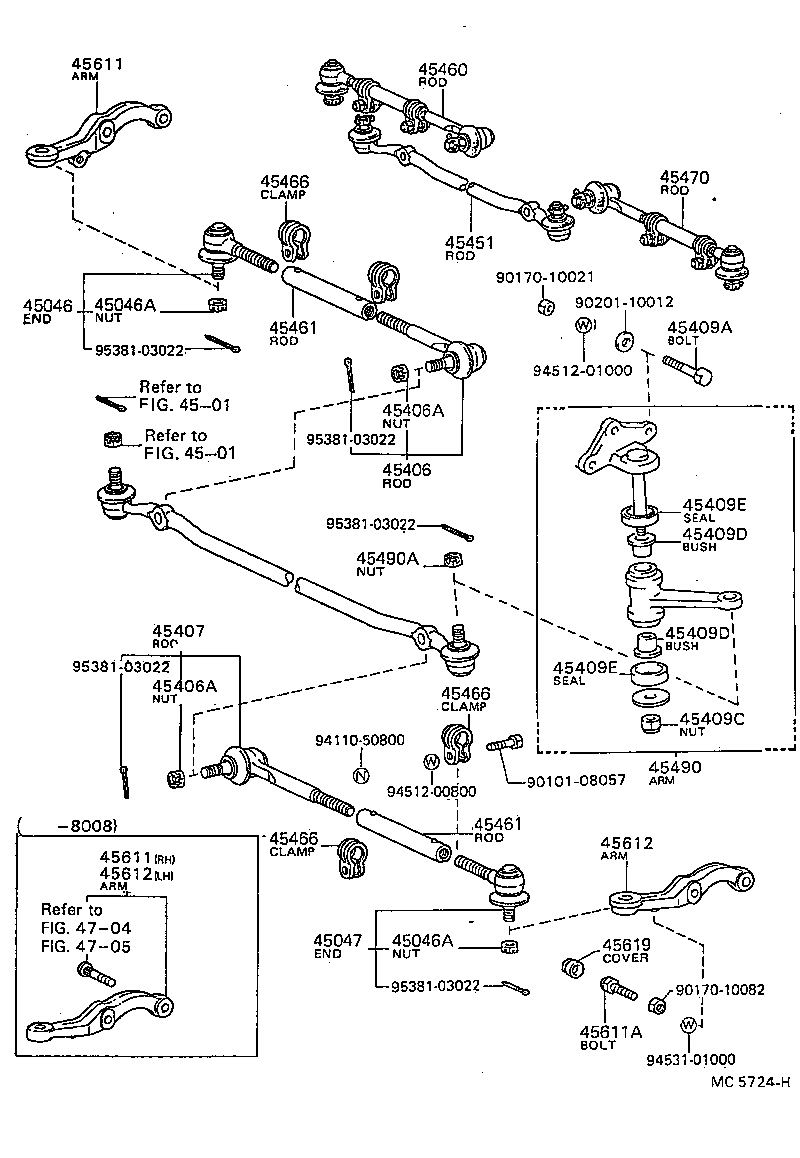

Click highlighted areas on diagram

diagram 4501 4501 45046 45046A 45046A 45047 45406 45406A 45406A 45407 45409A 45409C 45409D 45409D 45409E 45409E 45451 45460 45461 45461 45466 45466 45466 45470 45490 45490A 45611 45611 45611A 45612 45612 45619 4704 4705 9010108057 9017010021 9017010082 9020110012 9411050800 9451200800 9451201000 9453101000 9538103022 9538103022 9538103022 9538103022 9538103022
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-39105

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

 1
45046-39106

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

 1
45046-29115

LN30,40,RN30,31,40,41

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

LN3#,4#,RN3#,4#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

LN3#,4#,RN3#,4#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-39105

LN30,40,RN30,31,40,41

 1
45046-39106

LN30,40,RN30,31,40,41

 1
45406 - ROD SUB-ASSY, TIE, RH
45406-39086

LN30,40,RN30,31,40,41

 1
45406-39085

LN30,40,RN30,31,40,41

 1
45406A - NUT, CASTLE(FOR TIE ROD)
90171-14042

LN30,40,RN30,31,40,41

 2
45406A - NUT, CASTLE(FOR TIE ROD)
90171-14042

LN30,40,RN30,31,40,41

 2
45407 - ROD SUB-ASSY, TIE, LH
45406-39085

LN30,40,RN30,31,40,41

 1
45406-39086

LN30,40,RN30,31,40,41

 1
45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)
90101-10053

LN30,40,RN30,31,40,41

 3
45451 - ROD, STEERING RELAY
45450-39016

LN30,40,RN30,31,40,41..RHD

 1
45450-39015

LN30,40,RN30,31,40,41..RHD

 1
45460 - ROD ASSY, TIE, RH
45460-39095

LN30,40,RN30,31,40,41

 1
45460-39096

LN30,40,RN30,31,40,41

 1
45461 - ROD, STEERING TIE
45465-35020

LN30,40,RN30,31,40,41

 2
45461 - ROD, STEERING TIE
45465-35020

LN30,40,RN30,31,40,41

 2
45466 - CLAMP, TIE ROD END
45466-30020

LN3#,4#,RN3#,4#

 4
45466 - CLAMP, TIE ROD END
45466-30020

LN3#,4#,RN3#,4#

 4
45466 - CLAMP, TIE ROD END
45466-30020

LN3#,4#,RN3#,4#

 4
45470 - ROD ASSY, TIE, LH
45460-39096

LN30,40,RN30,31,40,41

 1
45460-39095

LN30,40,RN30,31,40,41

 1
45490 - ARM ASSY, STEERING IDLER
45490-35080

LN30,40,RN30,31,40,41..RHD

 1
45490A - NUT, CASTLE(FOR IDLER ARM)
90171-12028

LN30,40,RN30,31,40,41

 1
45611 - ARM, STEERING KNUCKLE, RH
45601-35060

LN30,40,RN30,31,40,41

 1
45611 - ARM, STEERING KNUCKLE, RH
45601-35060

LN30,40,RN30,31,40,41

 1
45611A - BOLT, KNUCKLE STOPPER
90106-10032

LN30,40,RN30,31,40,41

 2
45612 - ARM, STEERING KNUCKLE, LH
45606-35040

LN30,40,RN30,31,40,41

 1
45612 - ARM, STEERING KNUCKLE, LH
45606-35040

LN30,40,RN30,31,40,41

 1
Common parts
90101-08057
90170-10021
90170-10082
90201-10012
94110-50800
94512-00800
94512-01000
94531-01000
95381-03022
Linked diagrams
4501
4704
4705
