RN31R-MSN3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )12R#,18R..RN30,31,40,41

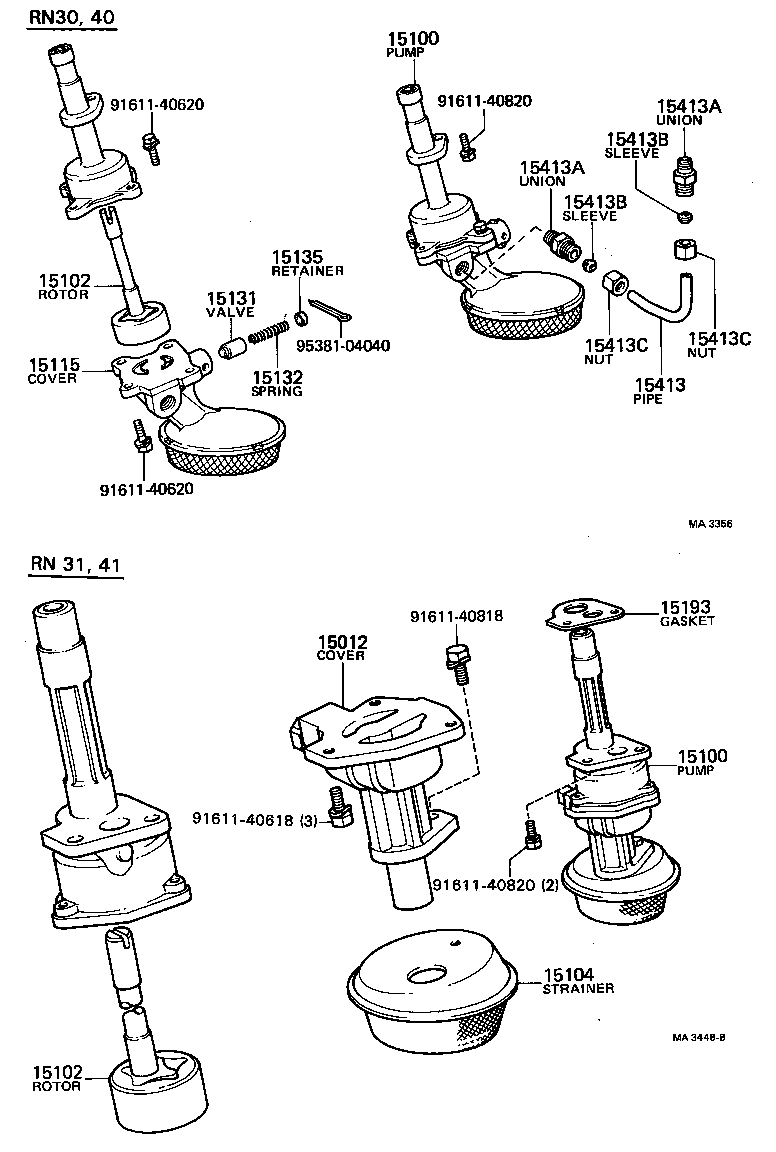

Click highlighted areas on diagram

diagram 15012 15100 15100 15102 15102 15104 15115 15131 15132 15135 15193 15413 15413A 15413A 15413B 15413B 15413C 15413C 9161140618 9161140620 9161140620 9161140818 9161140820 9161140820 9538104040
Part # Description Qty Price
15012 - COVER SUB-ASSY, OIL PUMP
15012-33011

18R..RN31,41

 1
15100 - PUMP ASSY, OIL
15100-33011

18R..RN31,41

 1
15100 - PUMP ASSY, OIL
15100-33011

18R..RN31,41

 1
15102 - ROTOR SET, OIL PUMP
15102-36010

18R..RN31,36,41,46

 1
15102 - ROTOR SET, OIL PUMP
15102-36010

18R..RN31,36,41,46

 1
15104 - STRAINER SUB-ASSY, OIL
15104-33011

18R..RN31,41

 1
15193 - GASKET, OIL PUMP
15193-33011

18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 1
Common parts
91611-40618
91611-40620
91611-40818
91611-40820
95381-04040
