RN31L-MS (1978)

Toyota Hilux

Production Aug 1978 - Jul 1983
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8312)RN31,41..SR5

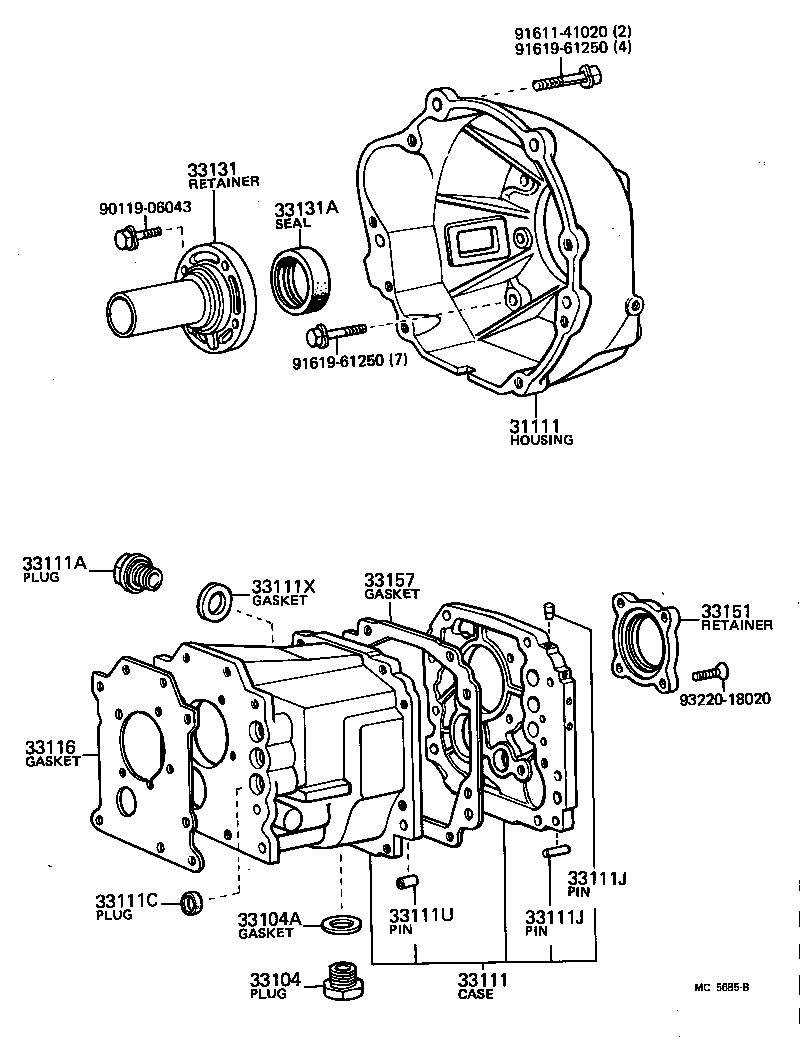

Click highlighted areas on diagram

diagram 31111 33104 33104A 33111 33111A 33111C 33111J 33111J 33111U 33111X 33116 33131 33131A 33151 33157 9011906043 9161141020 9161961250 9161961250 9322018020
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-20120

RN31,41

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

LN3#,4#,RN3#,4#

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

LN3#,4#,RN3#,4#

 1
33111 - CASE, MANUAL TRANSMISSION
33101-20011

RN31,41..SR5

 1
33101-20010

RN31,41..SR5

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

LN3#,4#,RN3#,4#

 1
90341-18006

RN31,41..SR5

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-20044

RN31,41..SR5

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12195

RN31,41..SR5

L=35,OD=12

 2
90334-06017

RN31,41..SR5

L=11,OD=6

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12195

RN31,41..SR5

L=35,OD=12

 2
90334-06017

RN31,41..SR5

L=11,OD=6

 1
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-13017

RN31,41..SR5

L=12,OD=13

 2
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

LN3#,4#,RN3#,4#

 1
33116 - GASKET, MANUAL TRANSMISSION CASE
33132-20040

RN31,41..SR5

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-31010

RN31,41..SR5

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN);LN30,40,RN31,41..5F,5H

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-20010

RN31,41..SR5

 1
33157 - GASKET, TRANSMISSION CASE, NO.2
33142-20020

RN31,41..SR5

 1
Common parts
90119-06043
91611-41020
91619-61250
93220-18020
