RN31L-MS (1978)
Toyota Hilux
(7808-8312)18R ; (7808- )12R#..GEN,ME,PHL,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-31371 |
12R#,18R..RN3#,4#..GEN,PHL,SA CYCLONE TYPE |
1 | ||
| 17700-36153 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17700-31372 |
12R#,18R..RN30,31,40,41..GEN,PHL,SA CYCLONE TYPE |
1 | ||
| 17700-34590 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06143 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 90116-06230 |
18R..RN31,41..GEN,ME,SA CYCLONE TYPE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-34060 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17801-31050 |
12R#,18R..RN30,31,40,41..GEN,ME,PHL,SA CYCLONE TYPE |
1 | ||
| 17801-34070 |
18R..RN31,41..ARL,GEN DUST AREA,PAPER ELEMENT TYPE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
18R..RN31,41 |
1 | ||
| 90430-72003 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 90430-72114 |
18R..RN31,41..GEN,SA CYCLONE TYPE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
18R..RN31,41 |
1 | ||
| 90430-72003 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 90430-72114 |
18R..RN31,41..GEN,SA CYCLONE TYPE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
18R..RN31,41 |
1 | ||
| 90430-72003 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 90430-72114 |
18R..RN31,41..GEN,SA CYCLONE TYPE |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-34070 |
18R..RN31,41..GEN,SA CYCLONE TYPE |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-34070 |
18R..RN31,41..GEN,SA CYCLONE TYPE |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-34070 |
18R..RN31,41..GEN,SA CYCLONE TYPE |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17882-34100 |
18R..RN31,41..GEN,ME,SA CYCLONE TYPE |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17882-34100 |
18R..RN31,41..GEN,ME,SA CYCLONE TYPE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
18R..RN31,41..GEN,ME,SA CYCLONE TYPE,ID=69 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
18R..RN31,41..GEN,ME,SA CYCLONE TYPE,ID=69 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
18R..RN31,41..GEN,ME,SA CYCLONE TYPE,ID=69 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
18R..RN31,41..GEN,ME,SA CYCLONE TYPE,ID=69 |
2 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-08096 | ||||
| 91656-40820 | ||||
| Linked diagrams | ||||
| 1709 | ||||

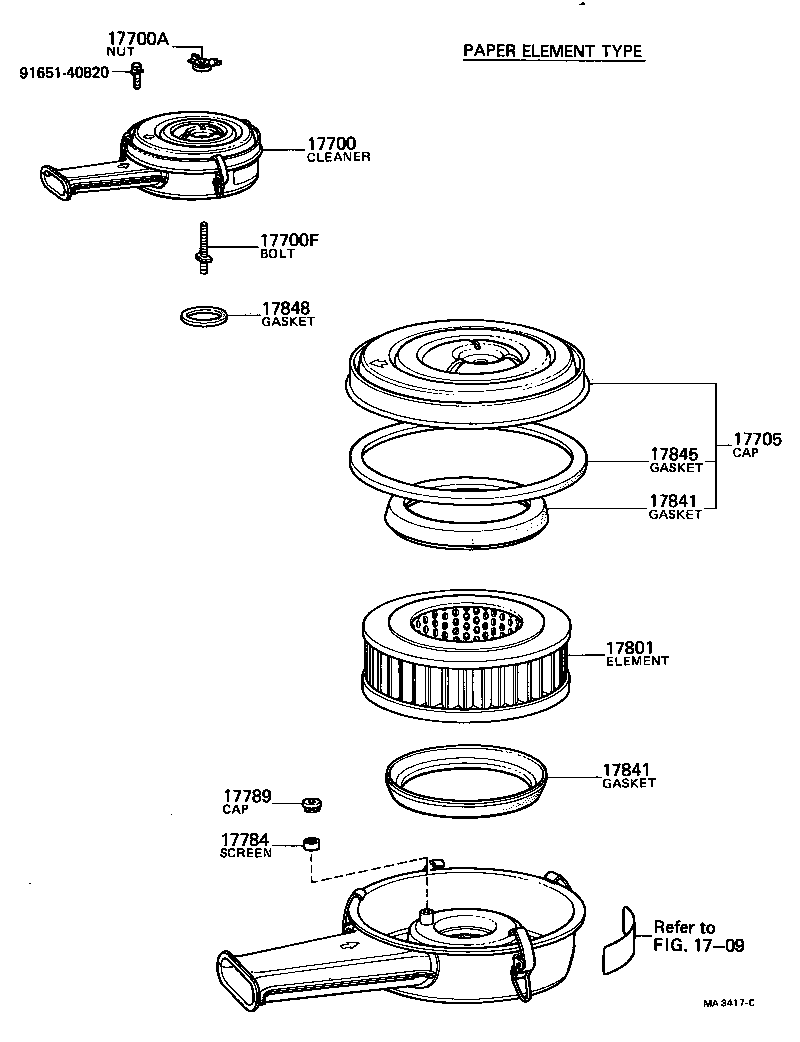

(7808-7901)18R..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-31371 |
12R#,18R..RN3#,4#..GEN,PHL,SA CYCLONE TYPE |
1 | ||
| 17700-36153 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17700-31372 |
12R#,18R..RN30,31,40,41..GEN,PHL,SA CYCLONE TYPE |
1 | ||
| 17700-34590 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06143 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 90116-06230 |
18R..RN31,41..GEN,ME,SA CYCLONE TYPE |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-34190 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17705-34141 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17705-34191 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17784 - SCREEN, AIR CLEANER | ||||
| 17784-31010 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17789 - CAP, AIR CLEANER SCREEN | ||||
| 17789-31010 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17789-31020 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-34060 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17801-31050 |
12R#,18R..RN30,31,40,41..GEN,ME,PHL,SA CYCLONE TYPE |
1 | ||
| 17801-34070 |
18R..RN31,41..ARL,GEN DUST AREA,PAPER ELEMENT TYPE |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-33011 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-33011 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-33011 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
18R..RN31,41 |
1 | ||
| 90430-72003 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 90430-72114 |
18R..RN31,41..GEN,SA CYCLONE TYPE |
1 | ||
| Common parts | ||||
| 91651-40820 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7901-8307)18R..RN31,41..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-31371 |
12R#,18R..RN3#,4#..GEN,PHL,SA CYCLONE TYPE |
1 | ||
| 17700-36153 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17700-31372 |
12R#,18R..RN30,31,40,41..GEN,PHL,SA CYCLONE TYPE |
1 | ||
| 17700-34590 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06143 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 90116-06230 |
18R..RN31,41..GEN,ME,SA CYCLONE TYPE |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-34190 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17705-34141 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17705-34191 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17784 - SCREEN, AIR CLEANER | ||||
| 17784-31010 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17789 - CAP, AIR CLEANER SCREEN | ||||
| 17789-31010 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17789-31020 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-34060 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17801-31050 |
12R#,18R..RN30,31,40,41..GEN,ME,PHL,SA CYCLONE TYPE |
1 | ||
| 17801-34070 |
18R..RN31,41..ARL,GEN DUST AREA,PAPER ELEMENT TYPE |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-33011 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-33011 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-33011 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
18R..RN31,41 |
1 | ||
| 90430-72003 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 90430-72114 |
18R..RN31,41..GEN,SA CYCLONE TYPE |
1 | ||
| Common parts | ||||
| 91611-40820 | ||||
| Linked diagrams | ||||
| 1709 | ||||

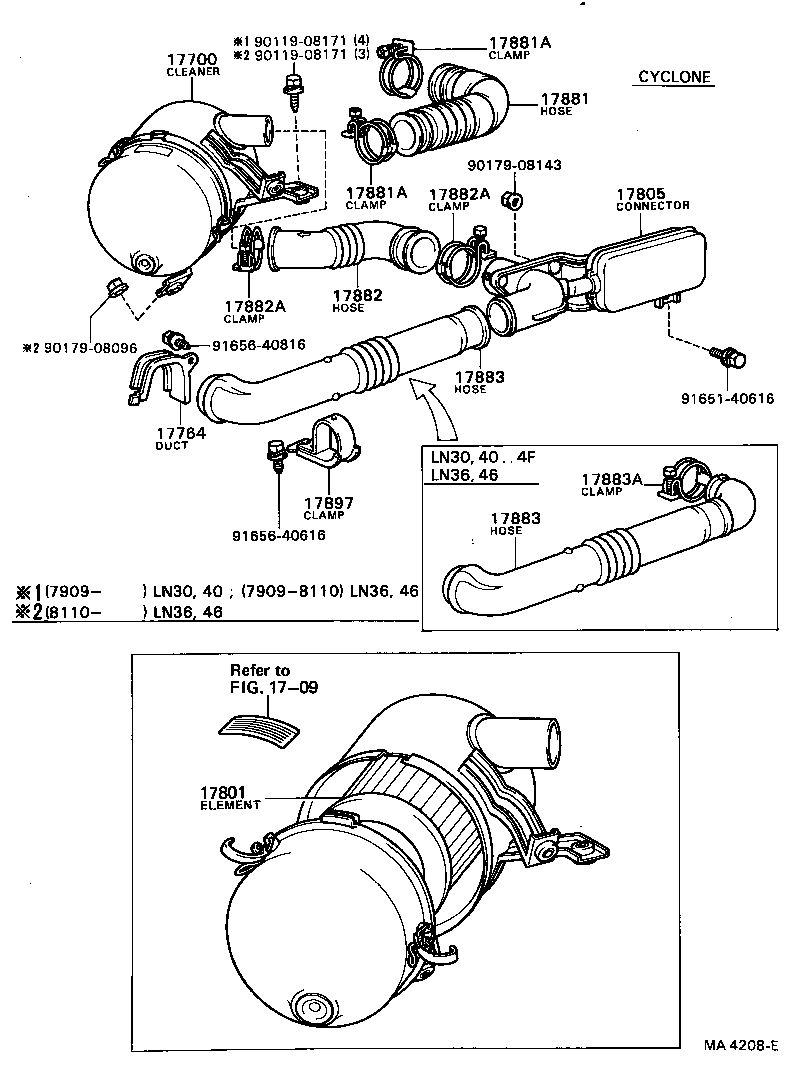

(7909- )L..ARL,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-31371 |
12R#,18R..RN3#,4#..GEN,PHL,SA CYCLONE TYPE |
1 | ||
| 17700-36153 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17700-31372 |
12R#,18R..RN30,31,40,41..GEN,PHL,SA CYCLONE TYPE |
1 | ||
| 17700-34590 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-34060 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17801-31050 |
12R#,18R..RN30,31,40,41..GEN,ME,PHL,SA CYCLONE TYPE |
1 | ||
| 17801-34070 |
18R..RN31,41..ARL,GEN DUST AREA,PAPER ELEMENT TYPE |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17882-34100 |
18R..RN31,41..GEN,ME,SA CYCLONE TYPE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
18R..RN31,41..GEN,ME,SA CYCLONE TYPE,ID=69 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
18R..RN31,41..GEN,ME,SA CYCLONE TYPE,ID=69 |
2 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-08096 | ||||
| 90179-08143 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||
| Linked diagrams | ||||
| 1709 | ||||

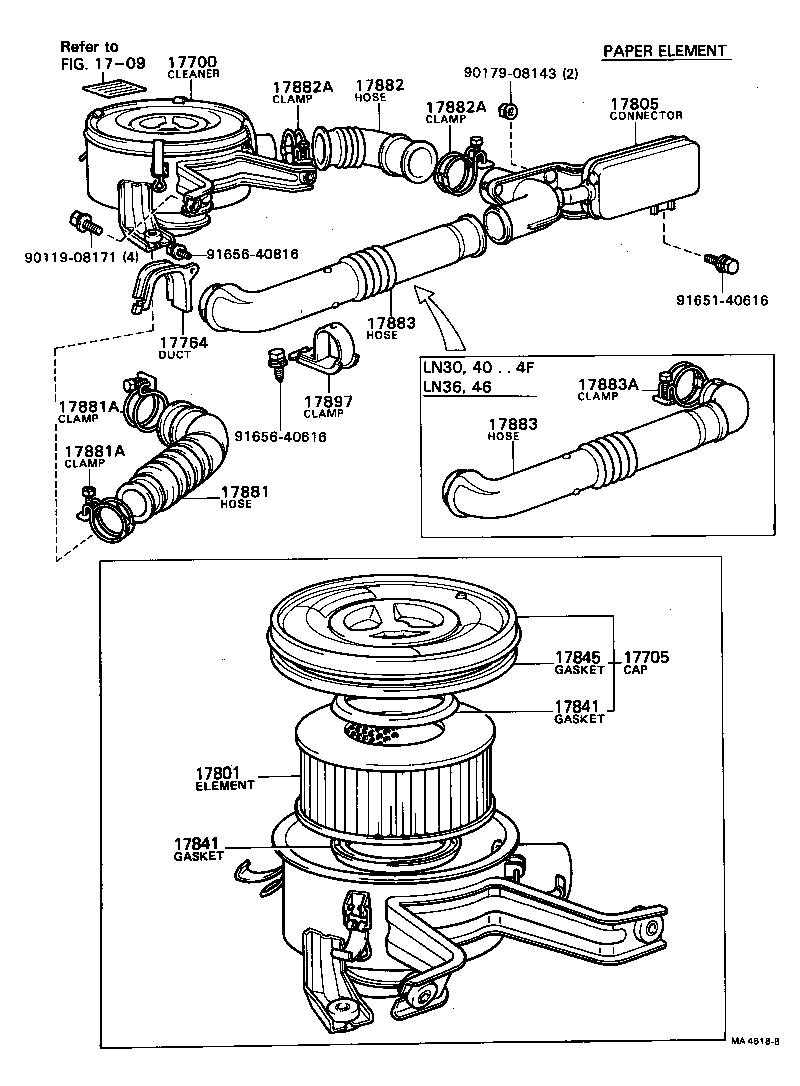

(7909-8307)L..EUR,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-31371 |
12R#,18R..RN3#,4#..GEN,PHL,SA CYCLONE TYPE |
1 | ||
| 17700-36153 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17700-31372 |
12R#,18R..RN30,31,40,41..GEN,PHL,SA CYCLONE TYPE |
1 | ||
| 17700-34590 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-34190 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17705-34141 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17705-34191 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-34060 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17801-31050 |
12R#,18R..RN30,31,40,41..GEN,ME,PHL,SA CYCLONE TYPE |
1 | ||
| 17801-34070 |
18R..RN31,41..ARL,GEN DUST AREA,PAPER ELEMENT TYPE |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-33011 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-33011 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-33011 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17882-34100 |
18R..RN31,41..GEN,ME,SA CYCLONE TYPE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
18R..RN31,41..GEN,ME,SA CYCLONE TYPE,ID=69 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
18R..RN31,41..GEN,ME,SA CYCLONE TYPE,ID=69 |
2 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-08143 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||
| Linked diagrams | ||||
| 1709 | ||||
ILLUST NO. 2 OF 2(0408-0908)2KDFTV..KUN15,25..HDCR..TH ; (0908-)2KDFTV..KUN15..HDCR ; (1008-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0054 | ||||
| 90105-T0070 | ||||
| 90119-06830 | ||||
| 90119-T0064 | ||||
| 90119-T0331 | ||||
| 90176-06019 | ||||
| 90460-57005 | ||||
| 91671-B0816 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1708 | ||||
| 2606 | ||||
| 8405 | ||||
ILLUST NO. 1 OF 2(0408-0808)1KDFTV..ARL,GEN,PHL,TH ; (0808- )1KDFTV..GEN,IDN,PHL,TH ; (0908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00289 | ||||
| 90119-T0286 | ||||
| 90119-T0334 | ||||
| 90480-T0002 | ||||
| Linked diagrams | ||||
| 1701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
