RN31L-KD (1978)

Toyota Hilux

Production Aug 1978 - Jul 1983
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )L

Click highlighted areas on diagram

diagram 22119 22119 22160 22322A 2239554010 22701 22703A 22712 22728 22749 22774 22776 22776A 9009210601 9009210601 9009300803 9009904576 9009904946 9009905140 9451100600
Part # Description Qty Price
22160 - SCREW SUB-ASSY, OVERFLOW
22160-54010

L..LN3#,4#

 1
22701 - LEVER SUB-ASSY, ADJUSTING
22701-54121

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC,MARK "0"

 1
22701-54120

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC,NO MARK

 1
22703A - COVER SUB-ASSY, GOVERNOR
22703-54140

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22703-54141

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
Common parts
22395-54010
90092-10601
90093-00803
90099-04576
90099-04946
90099-05140
94511-00600

(8101- )L

Click highlighted areas on diagram

diagram 22119 22119 22129 22160 22193 22308B 22321A 22322A 22324 22327A 22338A 22348A 22348B 22378 2239554010 2239554180 22526A 22680D 22680E 22681 22686A 22686B 22701 22703A 22712 2272254120 22728 22739A 22739A 22776 22776A 22777 2277754130 9009120610 9009210601 9009210601 9009300803 9009904576 9009904946 9009905140 9009905156 9009933293 9020112109 9451100600
Part # Description Qty Price
22129 - PLUG, SCREW
22129-54120

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22160 - SCREW SUB-ASSY, OVERFLOW
22160-54010

L..LN3#,4#

 1
22193 - RING, O(FOR LEVER CONNECTING PIN)
22193-54120

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22308B - LEVER SUB-ASSY, CONTROL
22308-54140

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22321A - ROD, PUSH
22321-54120

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22324 - NIPPLE(FOR BELLOWS)
22324-54120

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22327A - SPRING(FOR BELLOWS)
22327-54120

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22338A - PIN, LEVER CONNECTING
22338-54120

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22348A - BUSHING, GUIDE
22348-54122

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22348-54120

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22348B - BUSHING, GUIDE(FOR LEVER CONNECTING PIN)
22348-54121

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22378 - WASHER, DRAIN SCREW
22378-76010

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 2
22526A - PIN, LEVER SUPPORT
22526-54120

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22680D - BELLOWS ASSY, PNEUMATIC
22680-54140

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22680E - WASHER, COPPER PLATE
90099-01473

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22681 - BELLOWS SUB-ASSY, PNEUMATIC
22681-54120

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22686A - COVER, PNEUMATIC BELLOWS
22682-54120

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22686B - RING, O(FOR BELLOWS COVER)
90099-14057

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22701 - LEVER SUB-ASSY, ADJUSTING
22701-54121

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC,MARK "0"

 1
22701-54120

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC,NO MARK

 1
22703A - COVER SUB-ASSY, GOVERNOR
22703-54140

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22703-54141

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22739A - BOLT, GOVERNOR LINK SUPPORT NO.2
22739-54120

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 2
22739A - BOLT, GOVERNOR LINK SUPPORT NO.2
22739-54120

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 2
22777 - CAP, RUBBER(FOR BELLOWS)
22777-54120

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
Common parts
22395-54010
22395-54180
22722-54120
22777-54130
90091-20610
90092-10601
90093-00803
90099-04576
90099-04946
90099-05140
90099-05156
90099-33293
90201-12109
94511-00600

(7909- )L

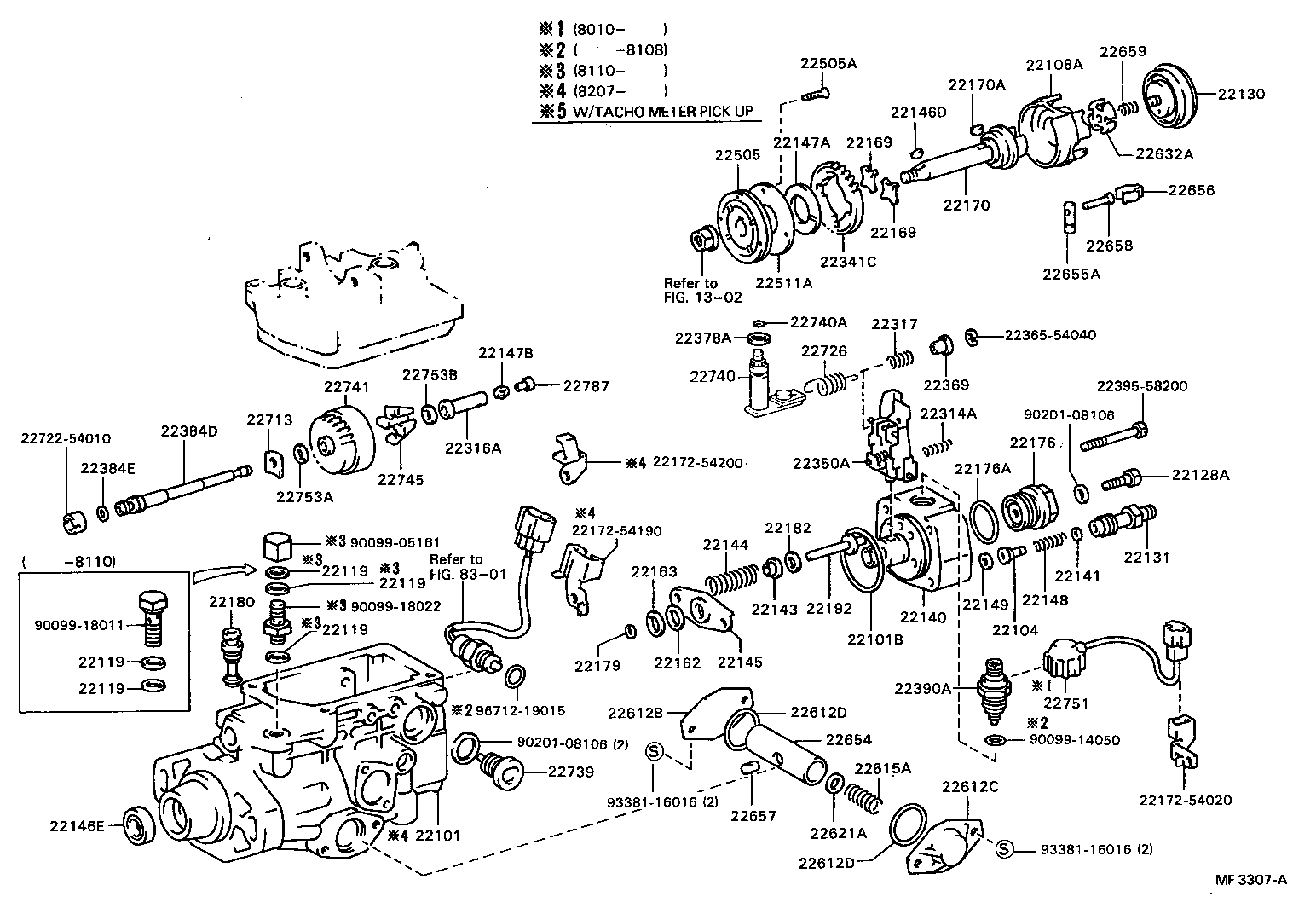

Click highlighted areas on diagram

diagram 1302 22101 22101B 22104 22108A 22119 22119 22119 22119 22119 22128A 22130 22131 22140 22141 22143 22144 22145 22146D 22146E 22147A 22147B 22148 22149 22162 22163 22169 22169 22170 22170A 2217254020 2217254190 2217254200 22176 22176A 22179 22180 22182 22192 22314A 22316A 22317 22341C 22350A 2236554040 22369 22378A 22384D 22384E 22390A 2239558200 22505 22505A 22511A 22612B 22612C 22612D 22612D 22615A 22621A 22632A 22654 22655A 22656 22657 22658 22659 22713 2272254010 22726 22739 22740 22740A 22741 22745 22751 22753A 22753B 22787 8301 9009905161 9009914050 9009918011 9009918022 9020108106 9020108106 9338116016 9338116016 9671219015
Part # Description Qty Price
22101 - HOUSING SUB-ASSY, INJECTION PUMP
22101-54120

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
22144 - SPRING, PUMP PLUNGER
22144-54010

L..LN3#,4#

 2
22316A - SLEEVE, GOVERNOR
22316-54020

L..LN3#,4#..ARL,EUR,GEN

 1
22316-54120

L..LN3#,4#..GEN

HIGH ALTITUDE SPEC

 1
Common parts
22172-54020
22172-54190
22172-54200
22365-54040
22395-58200
22722-54010
90099-05161
90099-14050
90099-18011
90099-18022
90201-08106
93381-16016
96712-19015
Linked diagrams
1302
8301
