RN30R-KRS (1978)

Toyota Hilux

Production Aug 1978 - Mar 1984
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )12R#

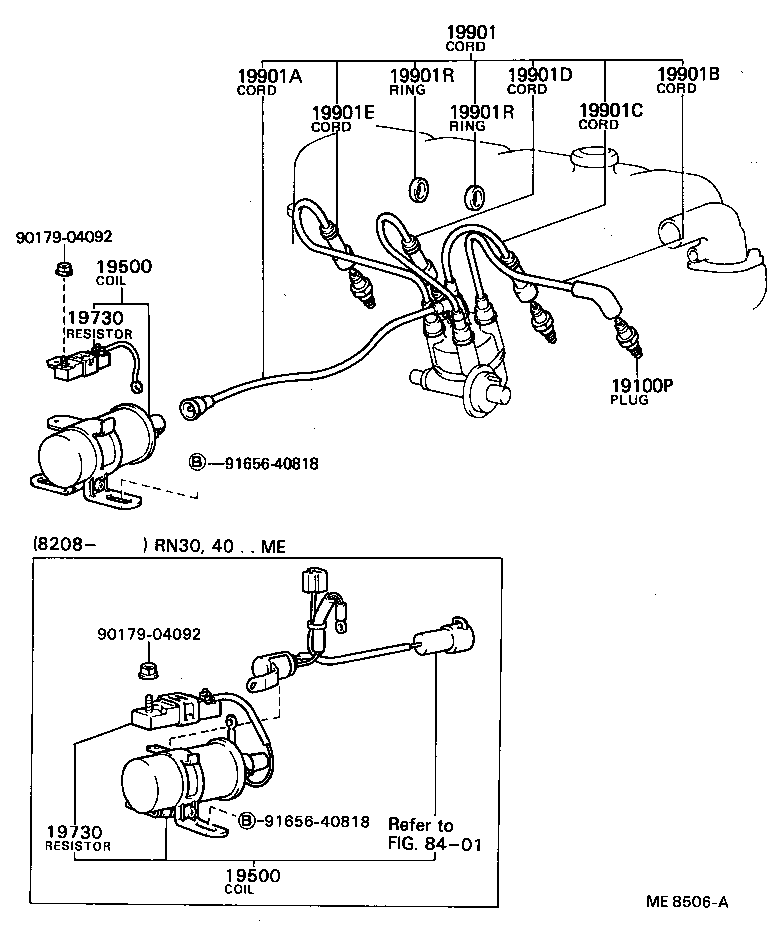

Click highlighted areas on diagram

diagram 19100P 19500 19500 19730 19730 19901 19901A 19901B 19901C 19901D 19901E 19901R 19901R 8401 9017904092 9017904092 9165640818 9165640818
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01064

12R,18R..RN30,36,40,46..RHD..GEN

W16EXR-U,HONG KONG SPEC,W16EXR-U

 4
90919-01059

18R..RN46..ARL..IV3;18R..RN46..GEN,ME,SA;12R#,18R..RN30,36,40..ARL,GEN,ME,PHL,SA

W16EX-U,W16EX-U

 4
19500 - COIL ASSY, IGNITION
90919-02098

12R#..RN30,40

 1
90919-02098

18R..RN46..GEN,SA;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41..ARL,GEN,PHL,SA

 1
90919-02098

12R#..RN30,40..ARL,GEN,ME,PHL,SA

 1
19500 - COIL ASSY, IGNITION
90919-02098

12R#..RN30,40

 1
90919-02098

18R..RN46..GEN,SA;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41..ARL,GEN,PHL,SA

 1
90919-02098

12R#..RN30,40..ARL,GEN,ME,PHL,SA

 1
19730 - RESISTOR, IGNITION COIL
90919-04027

12R#..RN30,40..ARL,GEN,ME,PHL,SA

 1
90919-04027

12R#..RN30,40

 1
19730 - RESISTOR, IGNITION COIL
90919-04027

12R#..RN30,40..ARL,GEN,ME,PHL,SA

 1
90919-04027

12R#..RN30,40

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21245

12R#..RN30,40

 1
90919-21162

12R#..RN30,40

 1
19901A - CORD, COIL RESISTIVE
90919-13146

12R#..RN30,40

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12308

12R#..RN30,40

 1
90919-12082

12R#..RN30,40

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12145

12R#..RN30,40

 1
90919-12310

12R#..RN30,40

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12310

12R#..RN30,40

 1
90919-12145

12R#..RN30,40

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12146

12R#..RN30,40

 1
90919-12146

12R#,18R..RN3#,4#

 1
90919-12311

12R#..RN30,40

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA

 2
Common parts
90179-04092
91656-40818
Linked diagrams
8401
