RN30R-KRS (1978)

Toyota Hilux

Production Aug 1978 - Mar 1984
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )12R#

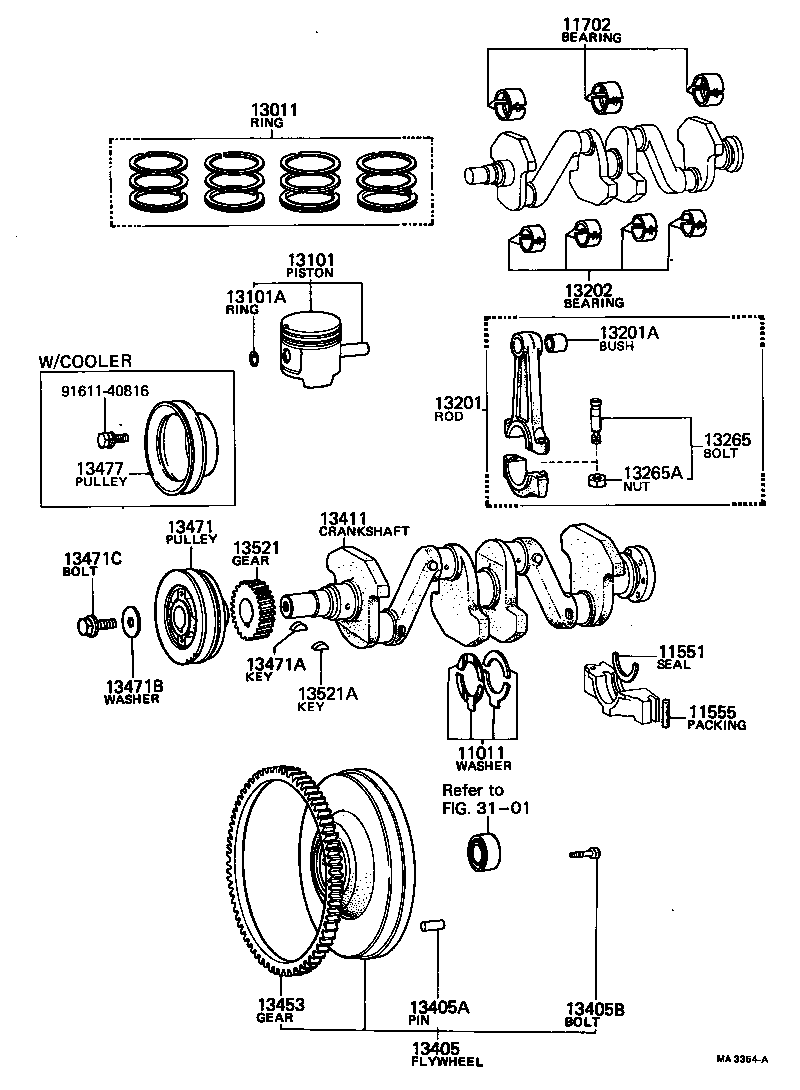

Click highlighted areas on diagram

diagram 11011 11551 11555 11702 13011 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471A 13471B 13471C 13477 13521 13521A 3101 9161140816
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-31030

12R#..RN30,40

STD

 1
11013-31020

12R#..RN30,40

O/S 0.250

 1
11012-31020

12R#..RN30,40

O/S 0.125

 1
11551 - SEAL, CRANKSHAFT OIL, REAR
11551-31010

12R#..RN30,40

 2
11555 - PACKING, BEARING CAP SIDE, NO.1
11555-23010

12R#..RN30,40

 2
11702 - BEARING SET, CRANKSHAFT
11703-31020

12R#..RN30,40

U/S 0.05

 1
11702-31020

12R#..RN30,40

STD

 1
11704-31020

12R#..RN30,40

U/S 0.25

 1
11705-31020

12R#..RN30,40

U/S 0.50

 1
13011 - RING SET, PISTON
13011-31061

12R#..RN30,40

STD

 1
13014-31061

12R#..RN30,40

O/S 0.75

 1
13013-31061

12R#..RN30,40

O/S 0.50

 1
13015-31061

12R#..RN30,40

O/S 1.00

 1
13101 - PISTON SUB-ASSY, W/PIN
13104-31021

12R#..RN30,40

O/S 0.75

 4
13101-31021

12R#..RN30,40

STD

 4
13105-31021

12R#..RN30,40

O/S 1.00

 4
13103-31021

12R#..RN30,40

O/S 0.50

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-23051

12R#..RN30,40

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-31010

12R#..RN30,40

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73027

12R#..RN30,40

 4
13202 - BEARING SET, CONNECTING ROD
13203-31020

12R#..RN30,40

U/S 0.05

 1
13202-31020

12R#..RN30,40

STD

 1
13205-31020

12R#..RN30,40

U/S 0.50

 1
13204-31020

12R#..RN30,40

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-39015

12R#..RN30,40

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09195

12R#..RN30,40

 8
13405 - FLYWHEEL SUB-ASSY
13405-39066

12R#..RN30,40

N=125

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

12R#,18R..RN3#,4#

L=23,OD=8,L=23,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90913-01012

12R#..RN30,40

 6
13411 - CRANKSHAFT
13411-31902

12R#..RN30,40

 1
13453 - GEAR, FLYWHEEL RING
13453-30010

12R#..RN30,40

N=125

 1
13471 - PULLEY, CRANKSHAFT
13407-31025

12R#..RN30,40

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
95161-10519

12R#..RN30,40

 1
13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
90209-13003

12R#..RN30,40

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-12050

12R#..RN30,40

 1
13477 - PULLEY, CRANKSHAFT, NO.2
13477-31010

12R..RN30,40..ARL,GEN,ME,SA

W/COOLER

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-31011

12R#..RN30,40

N=25

 1
13521-31020

12R#..RN30,40

N=25

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
95161-10519

12R#..RN30,40

 1
Common parts
91611-40816
Linked diagrams
3101
