RN30R-JRW3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8307)EUR

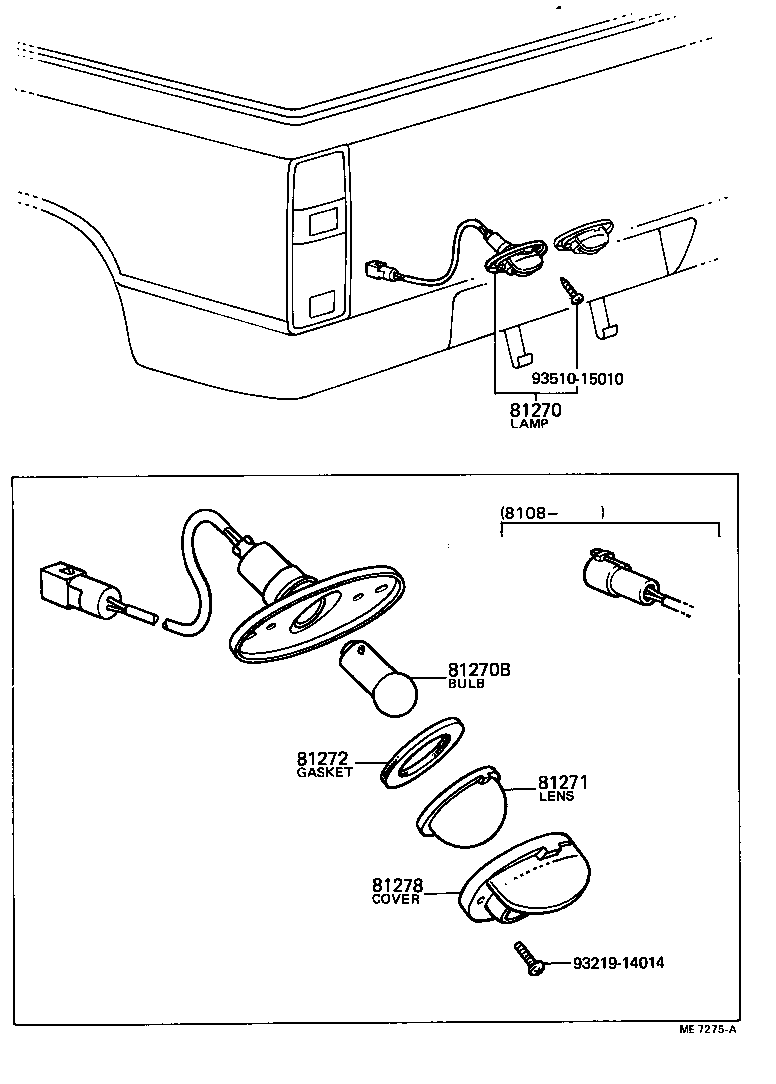

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 81278 9321914014 9351015010
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-39145

LN40,RN30,36,40,46..EUR

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100

LN36,4#,RN30,36,40,46..EUR

12V 10W,12V 10W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-89102

LN36,4#,RN30,36,40,46..EUR

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-10010

LN36,4#,RN30,36,40,46..EUR

 2
81278 - COVER, LICENSE PLATE LAMP
81276-89112

LN36,4#,RN30,36,40,46..EUR

 2
Common parts
93219-14014
93510-15010
