RN30R-JRW3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )LN30,40,RN30,31,40,41

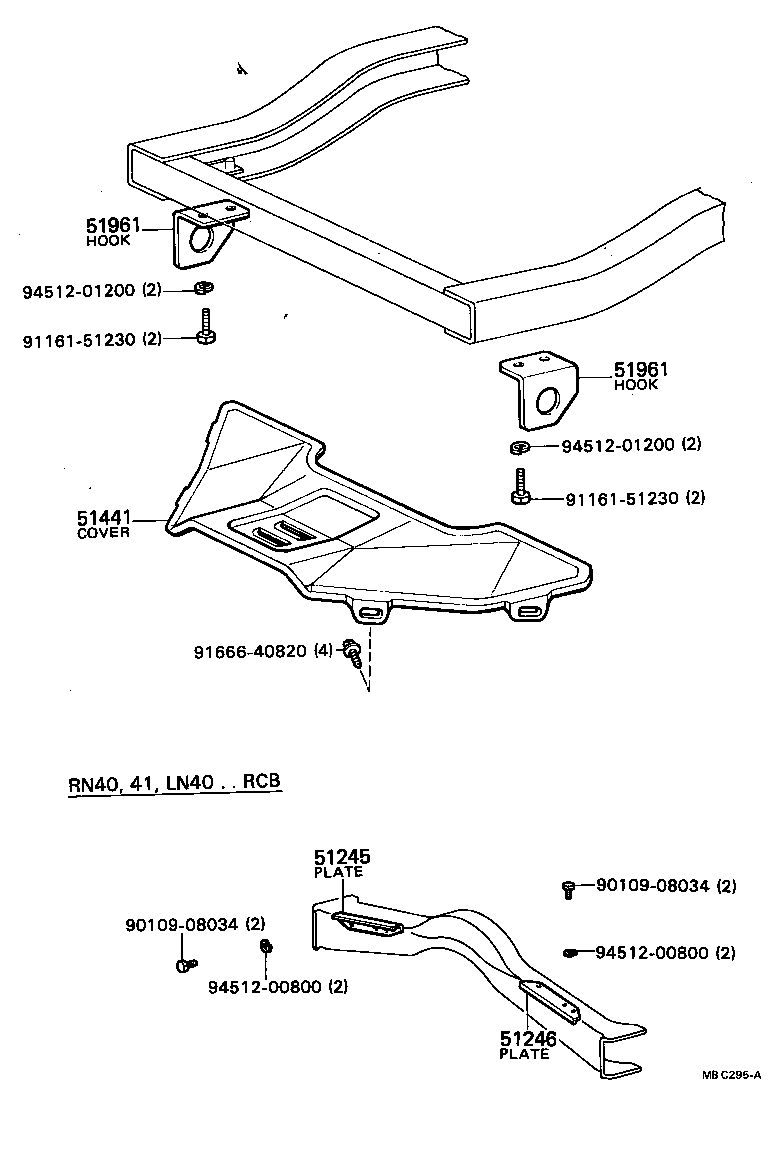

Click highlighted areas on diagram

diagram 51245 51246 51441 51961 51961 9010908034 9010908034 9116151230 9116151230 9166640820 9451200800 9451200800 9451201200 9451201200
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-35060

LN30,40,RN30,31,40,41

 1
51961 - HOOK, NO.1
51964-35040

LN30,40,RN30,31,40,41

LH

 1
51963-35050

LN30,40,RN30,31,40,41

RH

 1
51961 - HOOK, NO.1
51964-35040

LN30,40,RN30,31,40,41

LH

 1
51963-35050

LN30,40,RN30,31,40,41

RH

 1
Common parts
90109-08034
91161-51230
91666-40820
94512-00800
94512-01200

(0408-0608)GGN25,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,GCC,GEN,MA,PHL,SA,TH ; (0501

Click highlighted areas on diagram

diagram 51407A 51441 51442 51457B 51457B 51473A 51474 52161K 90119T0142 90119T0142 90119T0142 90119T0142 90119T0142 90119T0142 90119T0194 90119T0194 90119T0194
Part # Description Qty Price
Common parts
90119-T0142
90119-T0194
