RN30R-JRSN3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

Click highlighted areas on diagram

diagram 5551 5551 5553 5553 5553 5553 87201 87210 87211 87231 87231 87232 87232 87447 9015960128 9165640614
Part # Description Qty Price
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-89101

LN3#,4#,RN3#,4#

 1
87210 - DAMPER ASSY, AIR
87210-89102

LN3#,4#,RN3#,4#..RHD

 1
87211 - DUCT, AIR, NO.1
55670-8910104

LN3#,4#,RN3#,4#

FIXATION TYPE,BLUE,BLUE,TRIM8#

 1
55670-8910101

LN3#,4#,RN3#,4#

FIXATION TYPE,BLACK,BLACK,TRIM2#

 1
88575-89101

LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA

W/COOLER

 1
55670-8910105

LN3#,4#,RN3#,4#

FIXATION TYPE,BEIGE,BEIGE,TRIM4#

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-89106

LN30,40,RN30,31,40,41..ARL,GEN,ME,PHL,SA

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-89106

LN30,40,RN30,31,40,41..ARL,GEN,ME,PHL,SA

 1
87232 - HOSE, HEATER DEFROSTER, LH
87232-89106

LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA

 1
87232 - HOSE, HEATER DEFROSTER, LH
87232-89106

LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA

 1
Common parts
90159-60128
91656-40614
Linked diagrams
5551
5553

(7808- )RHD

Click highlighted areas on diagram

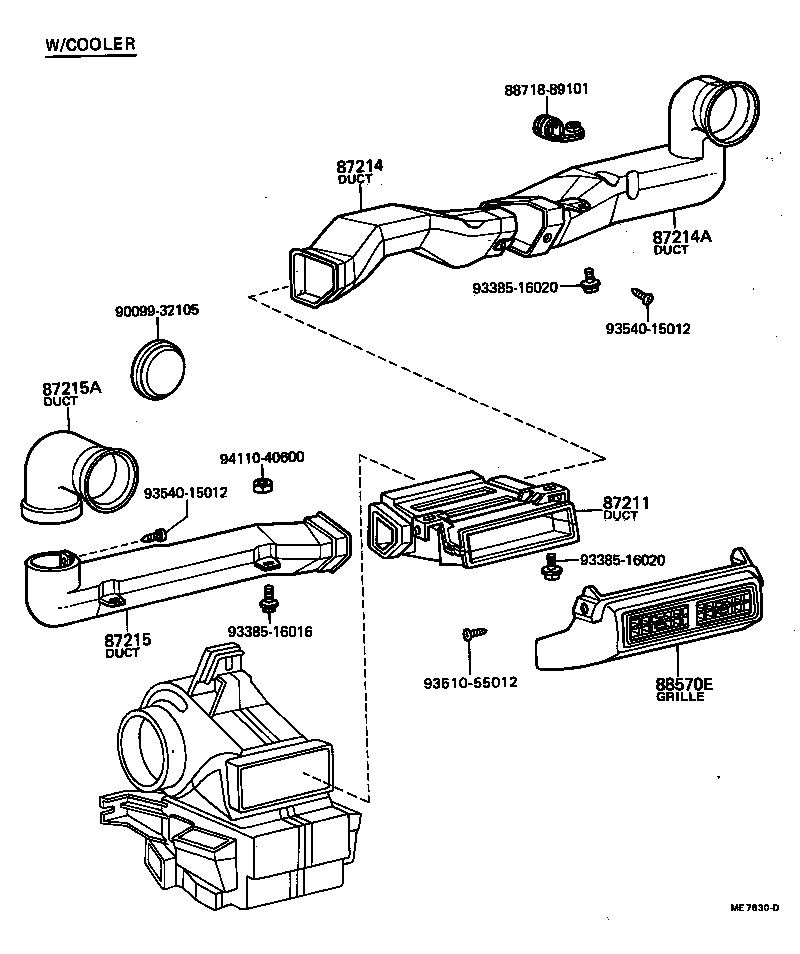

diagram 87211 87214 87214A 87215 87215A 88570E 8871889101 9009932105 9338516016 9338516020 9338516020 9351055012 9354015012 9354015012 9411040600
Part # Description Qty Price
87211 - DUCT, AIR, NO.1
55670-8910104

LN3#,4#,RN3#,4#

FIXATION TYPE,BLUE,BLUE,TRIM8#

 1
55670-8910101

LN3#,4#,RN3#,4#

FIXATION TYPE,BLACK,BLACK,TRIM2#

 1
88575-89101

LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA

W/COOLER

 1
55670-8910105

LN3#,4#,RN3#,4#

FIXATION TYPE,BEIGE,BEIGE,TRIM4#

 1
87214 - DUCT, AIR, SIDE NO.1 RH
88576-89101

LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA)

 1
87214A - DUCT, AIR, SIDE NO.2 RH
88576-89102

LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA)

 1
87215 - DUCT, AIR, SIDE NO.1 LH
88576-89103

LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA)

 1
87215A - DUCT, AIR, SIDE NO.2 LH
88576-89104

LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA)

 1
88570E - GRILLE ASSY, AIR OUTLET
88570-89103

LN40;LN3#,46,RN3#,4#..ARL,GEN,ME,PHL,SA

 1
Common parts
88718-89101
90099-32105
93385-16016
93385-16020
93510-55012
93540-15012
94110-40600

(7808- )

Click highlighted areas on diagram

diagram 55906A 55906A 55907A 55907A 55908A 55908A 55909A 55909A 55910 55910 55913A 5593314010 5593314010 5593314010 5593314010 5593324010 5593324010 5593324010 5593324010 55937 55937 55937 55937 55937 55937 55937 55937 5594189103 8401 8401 8401 8401 87284 9048015001 9048015001 9331915008 9338515014 9354054014 9356654512
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-89104

LN3#,4#,RN3#,4#

L=500

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-89104

LN3#,4#,RN3#,4#

L=500

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-89107

LN3#,4#,RN3#,4#..RHD

L=440

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-89107

LN3#,4#,RN3#,4#..RHD

L=440

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-89102

LN3#,4#,RN3#,4#

L=720

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-89102

LN3#,4#,RN3#,4#

L=720

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-89103

LN3#,4#,RN3#,4#

L=365

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-89103

LN3#,4#,RN3#,4#

L=365

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-89109

LN3#,4#,RN3#,4#..RHD

 1
55910-89111

LN3#,4#,RN3#,4#..RHD..(GEN,SA)

W/BOOST VENTILATOR

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-89109

LN3#,4#,RN3#,4#..RHD

 1
55910-89111

LN3#,4#,RN3#,4#..RHD..(GEN,SA)

W/BOOST VENTILATOR

 1
55913A - PLATE, HEATER CONTROL LEVER GUIDE
55913-89104

RN46..ARL..IV3;RN46..RHD..(EUR,GEN);LN30,40,RN3#,40,41..RHD

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

LN3#,4#,RN3#,4#

 5
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

LN3#,4#,RN3#,4#

 5
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

LN3#,4#,RN3#,4#

 5
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

LN3#,4#,RN3#,4#

 5
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

LN3#,4#,RN3#,4#

 5
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

LN3#,4#,RN3#,4#

 5
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

LN3#,4#,RN3#,4#

 5
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

LN3#,4#,RN3#,4#

 5
87284 - RESISTOR SUB-ASSY, VARIABLE
88622-89101

LN3#,4#,RN31,41;RN30,36,40,46..ARL,GEN,PHL,SA

 1
Common parts
55933-14010
55933-24010
55941-89103
90480-15001
93319-15008
93385-15014
93540-54014
93566-54512
Linked diagrams
8401
