RN30R-JRSN3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

Click highlighted areas on diagram

diagram 71071B 71073B 71125 71410B 71430B 7158789101 7158789101 71704 71704 71812 71812 71945 72110B 72120B 72301 9010910035 9010910035 9011908044 9011908044 9011908080 9011908085 9011911002 9011911002 9017908146 9020510003 9050826025 9356015020 9356015025
Part # Description Qty Price
71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE)
71071-8915205

RN31..4H..IV3;RN31..DLX..CBU;RN30,4#..DLX,STD

F-VL,T=1.5,BEIGE,BEIGE,TRIM4#

 1
71071-8915204

RN31..4H..IV3;RN31..DLX..CBU;RN30,4#..DLX,STD

F-VL,T=1.5,BLUE,BLUE,TRIM8#

 1
71071-8915201

RN31..4H..IV3;RN31..DLX..CBU;RN30,4#..DLX,STD

F-VL,T=1.5,BLACK,BLACK,TRIM2#

 1
71071-8915201

LN30,40,RN30,31,40,41..T1..(DLX,STD)

F-VL,T=1.5,BLACK,BLACK,TRIM2#

 1
71071-8915204

LN30,40,RN30,31,40,41..T1..(DLX,STD)

F-VL,T=1.5,BLUE,BLUE,TRIM8#

 1
71071-8915205

LN30,40,RN30,31,40,41..T1..(DLX,STD)

F-VL,T=1.5,BEIGE,BEIGE,TRIM4#

 1
71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE)
71073-8916604

RN31..4H..IV3;RN31..DLX..CBU;RN30,4#..DLX,STD

F-VL,T=1.5,BLUE,BLUE,TRIM8#

 1
71073-8916605

RN31..4H..IV3;RN31..DLX..CBU;RN30,4#..DLX,STD

F-VL,T=1.5,BEIGE,BEIGE,TRIM4#

 1
71073-8916701

RN31..4H..IV3;RN31..DLX..CBU;RN30,4#..DLX,STD

F-VL,T=1.5,*HBS,BLACK,BLACK,TRIM2#

 1
71073-8916704

RN31..4H..IV3;RN31..DLX..CBU;RN30,4#..DLX,STD

F-VL,T=1.5,*HBS,BLUE,BLUE,TRIM8#

 1
71073-8916601

RN31..4H..IV3;RN31..DLX..CBU;RN30,4#..DLX,STD

F-VL,T=1.5,BLACK,BLACK,TRIM2#

 1
71073-8916705

RN31..4H..IV3;RN31..DLX..CBU;RN30,4#..DLX,STD

F-VL,T=1.5,*HBS,BEIGE,BEIGE,TRIM4#

 1
71073-8916705

LN30,40,RN30,31,40,41..T1..(DLX,STD)

F-VL,T=1.5,*HBS,BEIGE,BEIGE,TRIM4#

 1
71073-8916601

LN30,40,RN30,31,40,41..T1..(DLX,STD)..(EUR,GEN,PHL,SA)

F-VL,T=1.5,BLACK,BLACK,TRIM2#

 1
71073-8916701

LN30,40,RN30,31,40,41..T1..(DLX,STD)

F-VL,T=1.5,*HBS,BLACK,BLACK,TRIM2#

 1
71073-8916604

LN30,40,RN30,31,40,41..T1..(DLX,STD)..(EUR,GEN,PHL,SA)

F-VL,T=1.5,BLUE,BLUE,TRIM8#

 1
71073-8916605

LN30,40,RN30,31,40,41..T1..(DLX,STD)..(EUR,GEN,PHL,SA)

F-VL,T=1.5,BEIGE,BEIGE,TRIM4#

 1
71073-8916704

LN30,40,RN30,31,40,41..T1..(DLX,STD)

F-VL,T=1.5,*HBS,BLUE,BLUE,TRIM8#

 1
71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)
71410-8913701

RN31..4H..IV3;RN31..DLX..CBU;RN30,4#..DLX,STD

F-VL,T=1.5,BLACK,BLACK,TRIM2#

 1
71410-8913704

RN31..4H..IV3;RN31..DLX..CBU;RN30,4#..DLX,STD

F-VL,T=1.5,BLUE,BLUE,TRIM8#

 1
71410-8913705

RN31..4H..IV3;RN31..DLX..CBU;RN30,4#..DLX,STD

F-VL,T=1.5,BEIGE,BEIGE,TRIM4#

 1
71410-8913705

LN30,40,RN30,31,40,41..T1..(DLX,STD)

F-VL,T=1.5,BEIGE,BEIGE,TRIM4#

 1
71410-8913704

LN30,40,RN30,31,40,41..T1..(DLX,STD)

F-VL,T=1.5,BLUE,BLUE,TRIM8#

 1
71410-8913701

LN30,40,RN30,31,40,41..T1..(DLX,STD)

F-VL,T=1.5,BLACK,BLACK,TRIM2#

 1
71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE)
71430-8913401

RN31..4H..IV3;RN31..DLX..CBU;RN30,4#..DLX,STD

F-VL,T=1.5,*HBS,BLACK,BLACK,TRIM2#

 1
71430-8913405

RN31..4H..IV3;RN31..DLX..CBU;RN30,4#..DLX,STD

F-VL,T=1.5,*HBS,BEIGE,BEIGE,TRIM4#

 1
71430-8913305

RN31..4H..IV3;RN31..DLX..CBU;RN30,4#..DLX,STD

F-VL,T=1.5,BEIGE,BEIGE,TRIM4#

 1
71430-8913301

LN30,40,RN30,31,40,41..T1..(DLX,STD)..(EUR,GEN,PHL,SA)

F-VL,T=1.5,BLACK,BLACK,TRIM2#

 1
71430-8913304

RN31..4H..IV3;RN31..DLX..CBU;RN30,4#..DLX,STD

F-VL,T=1.5,BLUE,BLUE,TRIM8#

 1
71430-8913301

RN31..4H..IV3;RN31..DLX..CBU;RN30,4#..DLX,STD

F-VL,T=1.5,BLACK,BLACK,TRIM2#

 1
71430-8913305

LN30,40,RN30,31,40,41..T1..(DLX,STD)..(EUR,GEN,PHL,SA)

F-VL,T=1.5,BEIGE,BEIGE,TRIM4#

 1
71430-8913405

LN30,40,RN30,31,40,41..T1..(DLX,STD)

F-VL,T=1.5,*HBS,BEIGE,BEIGE,TRIM4#

 1
71430-8913304

LN30,40,RN30,31,40,41..T1..(DLX,STD)..(EUR,GEN,PHL,SA)

F-VL,T=1.5,BLUE,BLUE,TRIM8#

 1
71430-8913404

RN31..4H..IV3;RN31..DLX..CBU;RN30,4#..DLX,STD

F-VL,T=1.5,*HBS,BLUE,BLUE,TRIM8#

 1
71430-8913401

LN30,40,RN30,31,40,41..T1..(DLX,STD)

F-VL,T=1.5,*HBS,BLACK,BLACK,TRIM2#

 1
71430-8913404

LN30,40,RN30,31,40,41..T1..(DLX,STD)

F-VL,T=1.5,*HBS,BLUE,BLUE,TRIM8#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LN3#,4#,RN3#,4#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

LN3#,4#,RN3#,4#

 1
71945 - BUMPER, SEAT BACK
71739-89103

LN30,40,RN30,31,40,41..T1

 2
72110B - TRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT)
72110-89130

LN30,40,RN30,40..RHD..STD..RCB

 1
72120B - TRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT)
72120-89125

LN30,40,RN30,40..RHD..STD..RCB

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-89103

RN31..4H..IV3;RN31..DLX..CBU;RN30,4#..DLX,STD

 1
Common parts
71587-89101
90109-10035
90119-08044
90119-08080
90119-08085
90119-11002
90179-08146
90205-10003
90508-26025
93560-15020
93560-15025

(7808-8108)

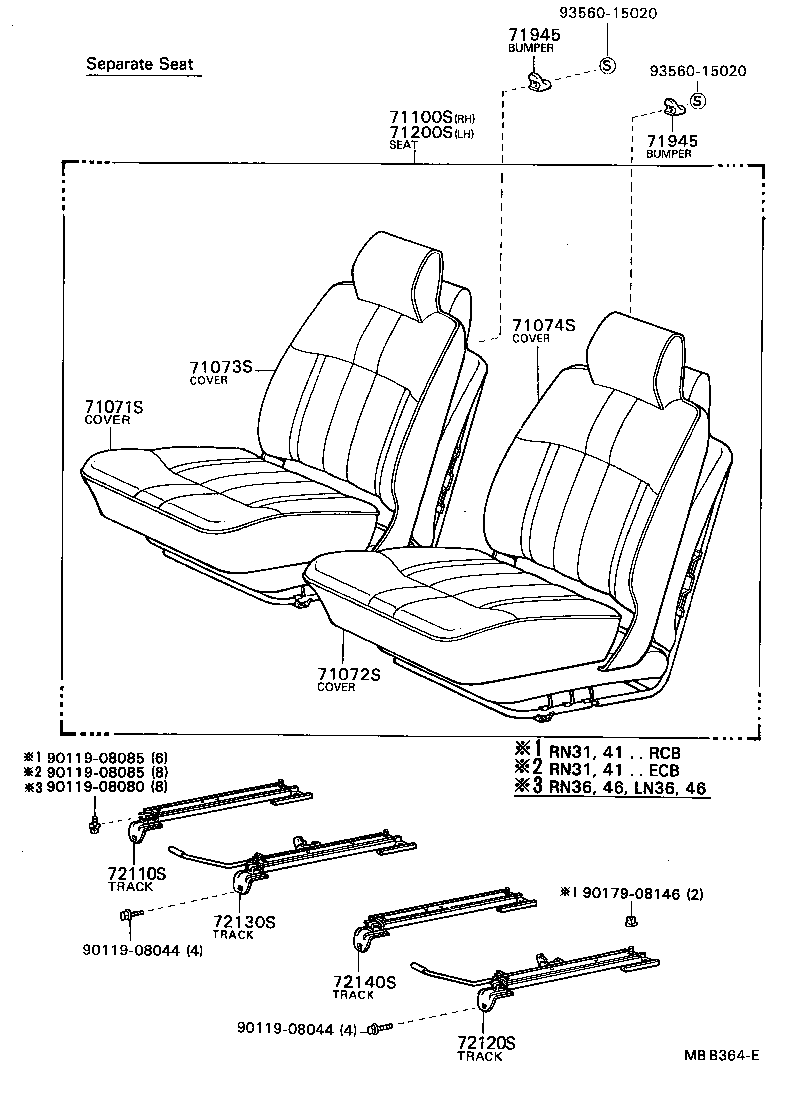

Click highlighted areas on diagram

diagram 71071S 71072S 71073S 71074S 71100S 71200S 71945 71945 72110S 72120S 72130S 72140S 9011908044 9011908044 9011908080 9011908085 9011908085 9017908146 9356015020 9356015020
Part # Description Qty Price
71945 - BUMPER, SEAT BACK
71739-89103

LN30,40,RN30,31,40,41..T1

 2
71945 - BUMPER, SEAT BACK
71739-89103

LN30,40,RN30,31,40,41..T1

 2
Common parts
90119-08044
90119-08080
90119-08085
90179-08146
93560-15020
