RN30R-JRSN3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )T1

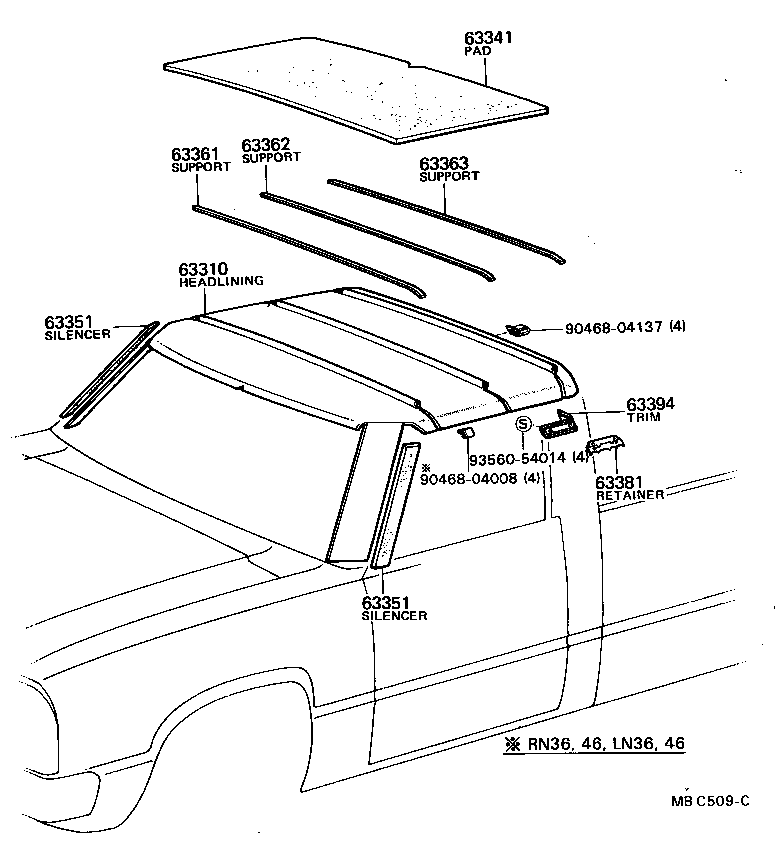

Click highlighted areas on diagram

diagram 63310 63341 63351 63351 63361 63362 63363 63381 63394 9046804008 9046804137 9356054014
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63311-8910103

LN30,40,RN30,31,40,41..RCB

GRAY,GRAY,TRIM2#

 1
63311-8910104

LN30,40,RN30,31,40,41..RCB

LIGHT BLUE,BLUE,TRIM8#

 1
63311-8910105

LN30,40,RN30,31,40,41..RCB

LIGHT BEIGE,BEIGE,TRIM4#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-89107

RN3#,4#

 1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-89101

LN3#,4#,RN3#,4#..T1

L=1230,YELLOW

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63361-89101

LN3#,4#,RN3#,4#..T1

L=1230,YELLOW

 1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63361-89102

LN3#,4#,RN3#,4#..T1

L=1233,RED

 1
63381 - RETAINER, HEADLINING, FRONT
63381-89101

LN40,RN40..TW;LN30,40,RN30,31,40,41..RCB

 2
63394 - TRIM, ROOF HEADLINING
63393-8910103

LN4#,RN40,46..TW;LN30,40,RN30,31,40,41..RCB

RH,GRAY,GRAY,TRIM2#

 1
63393-8910104

LN4#,RN40,46..TW;LN30,40,RN30,31,40,41..RCB

RH,LIGHT BLUE,BLUE,TRIM8#

 1
63393-8910105

LN4#,RN40,46..TW;LN30,40,RN30,31,40,41..RCB

RH,LIGHT BEIGE,BEIGE,TRIM4#

 1
63394-8910105

LN4#,RN40,46..TW;LN30,40,RN30,31,40,41..RCB

LH,LIGHT BEIGE,BEIGE,TRIM4#

 1
63394-8910104

LN4#,RN40,46..TW;LN30,40,RN30,31,40,41..RCB

LH,LIGHT BLUE,BLUE,TRIM8#

 1
63394-8910103

LN4#,RN40,46..TW;LN30,40,RN30,31,40,41..RCB

LH,GRAY,GRAY,TRIM2#

 1
Common parts
90468-04008
90468-04137
93560-54014
