RN30L-KRW3 (1978)

Toyota Hilux

Production Aug 1978 - Jul 1983
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )RN30,40

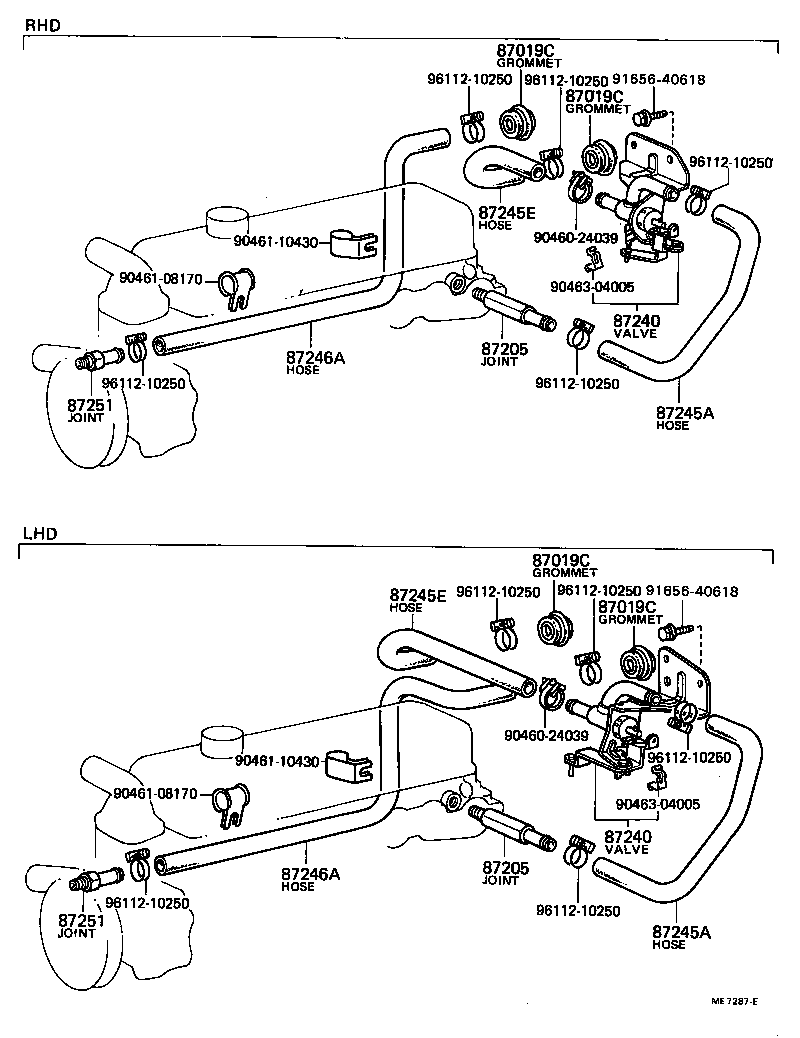

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 87205 87205 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87251 87251 9046024039 9046024039 9046108170 9046108170 9046110430 9046110430 9046304005 9046304005 9165640618 9165640618 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-36005

RN31,41;LN3#,4#,RN30,36,40,46..(DLX,STD)..(ARL,EUR,GEN,ME,SA)

 2
87019C - GROMMET, HEATER HOSE
90480-36005

RN31,41;LN3#,4#,RN30,36,40,46..(DLX,STD)..(ARL,EUR,GEN,ME,SA)

 2
87019C - GROMMET, HEATER HOSE
90480-36005

RN31,41;LN3#,4#,RN30,36,40,46..(DLX,STD)..(ARL,EUR,GEN,ME,SA)

 2
87019C - GROMMET, HEATER HOSE
90480-36005

RN31,41;LN3#,4#,RN30,36,40,46..(DLX,STD)..(ARL,EUR,GEN,ME,SA)

 2
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-87308

RN30,40..ARL,EUR,GEN,SA

 1
87251-89111

RN30,40..ARL,EUR,GEN,ME,SA

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-87308

RN30,40..ARL,EUR,GEN,SA

 1
87251-89111

RN30,40..ARL,EUR,GEN,ME,SA

 1
87240 - VALVE ASSY, HEATER WATER
87240-89110

RN30,40..LHD..(EUR,GEN,ME)

 1
87240-89111

LN3#,4#,RN31,36,41,46..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-89110

RN30,40..LHD..(EUR,GEN,ME)

 1
87240-89111

LN3#,4#,RN31,36,41,46..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89124

RN30,40..LHD..(EUR,GEN,ME)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89124

RN30,40..LHD..(EUR,GEN,ME)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89122

LN3#,4#,RN3#,4#..LHD..(EUR,GEN,ME)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89122

LN3#,4#,RN3#,4#..LHD..(EUR,GEN,ME)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89132

RN30,40..LHD..(EUR,GEN,ME)

 1
87245-89127

RN30,40..LHD..(EUR,GEN)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89132

RN30,40..LHD..(EUR,GEN,ME)

 1
87245-89127

RN30,40..LHD..(EUR,GEN)

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN);LN3#,40,RN30,40..(DLX,STD)..(ARL,EUR,GEN,ME,SA)

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN);LN3#,40,RN30,40..(DLX,STD)..(ARL,EUR,GEN,ME,SA)

 1
Common parts
90460-24039
90461-08170
90461-10430
90463-04005
91656-40618
96112-10250

(7909- )LN3#,4#

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 87205 87205 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87251 87251 87264 87264 9033916007 9033916007 9046024039 9046024039 9046110240 9046110240 9046315002 9046315002 9046315002 9046315002 9165140816 9165140816 9165640618 9165640618 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-36005

RN31,41;LN3#,4#,RN30,36,40,46..(DLX,STD)..(ARL,EUR,GEN,ME,SA)

 2
87019C - GROMMET, HEATER HOSE
90480-36005

RN31,41;LN3#,4#,RN30,36,40,46..(DLX,STD)..(ARL,EUR,GEN,ME,SA)

 2
87019C - GROMMET, HEATER HOSE
90480-36005

RN31,41;LN3#,4#,RN30,36,40,46..(DLX,STD)..(ARL,EUR,GEN,ME,SA)

 2
87019C - GROMMET, HEATER HOSE
90480-36005

RN31,41;LN3#,4#,RN30,36,40,46..(DLX,STD)..(ARL,EUR,GEN,ME,SA)

 2
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-87308

RN30,40..ARL,EUR,GEN,SA

 1
87251-89111

RN30,40..ARL,EUR,GEN,ME,SA

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-87308

RN30,40..ARL,EUR,GEN,SA

 1
87251-89111

RN30,40..ARL,EUR,GEN,ME,SA

 1
87240 - VALVE ASSY, HEATER WATER
87240-89110

RN30,40..LHD..(EUR,GEN,ME)

 1
87240-89111

LN3#,4#,RN31,36,41,46..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-89110

RN30,40..LHD..(EUR,GEN,ME)

 1
87240-89111

LN3#,4#,RN31,36,41,46..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89124

RN30,40..LHD..(EUR,GEN,ME)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89124

RN30,40..LHD..(EUR,GEN,ME)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89122

LN3#,4#,RN3#,4#..LHD..(EUR,GEN,ME)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89122

LN3#,4#,RN3#,4#..LHD..(EUR,GEN,ME)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89132

RN30,40..LHD..(EUR,GEN,ME)

 1
87245-89127

RN30,40..LHD..(EUR,GEN)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89132

RN30,40..LHD..(EUR,GEN,ME)

 1
87245-89127

RN30,40..LHD..(EUR,GEN)

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN);LN3#,40,RN30,40..(DLX,STD)..(ARL,EUR,GEN,ME,SA)

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN);LN3#,40,RN30,40..(DLX,STD)..(ARL,EUR,GEN,ME,SA)

 1
Common parts
90339-16007
90460-24039
90461-10240
90463-15002
91651-40816
91656-40618
96112-10250
