RN30L-KRS3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8307)RN30,40..LHD

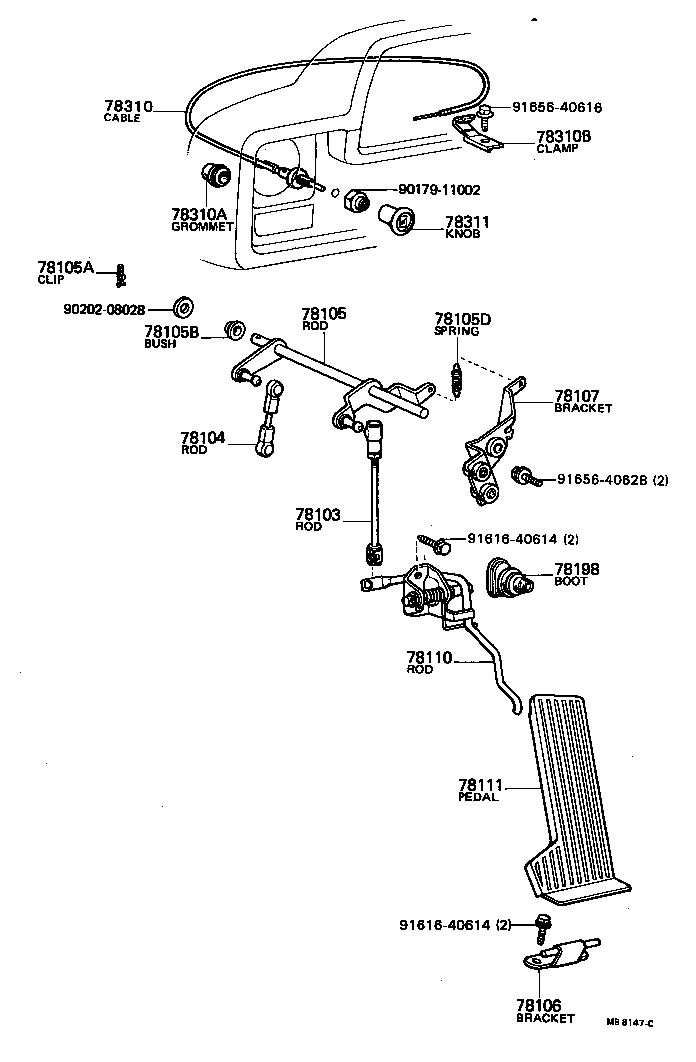

Click highlighted areas on diagram

diagram 78103 78104 78105 78105A 78105B 78105D 78106 78107 78110 78111 78198 78310 78310A 78310B 78311 9017911002 9020208028 9161640614 9161640614 9165640616 9165640628
Part # Description Qty Price
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-89109

RN30,40..LHD

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-20041

RN30,40..LHD

 1
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-89111

RN30,40..LHD

 1
78105A - CLIP (FOR ACCELERATOR TORQUE ROD)
90468-16012

RN31,36,41;RN30,40..LHD;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA

 1
78105B - BUSH (FOR ACCELERATOR TORQUE ROD)
90386-08077

RN30,40..LHD

 1
78105D - SPRING (FOR ACCELERATOR TORQUE ROD)
90506-12021

RN30,40..LHD

 1
78106 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78011-89101

LN30,40,RN30,31,40,41

 1
78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD
78170-89101

RN30,40..LHD

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-89102

RN30,31,40,41..LHD

 1
78111 - PEDAL, ACCELERATOR
78111-89102

LN3#,4#,RN3#,4#

 1
78198 - BOOT, ACCELERATOR CONNECTING ROD
78199-89104

RN3#,4#..LHD

 1
78310 - CABLE ASSY, CHOKE
78310-89110

RN30,40..LHD

 1
78310A - GROMMET, CHOKE CABLE
90480-15001

RN30,40

 1
78310B - CLAMP, CHOKE CABLE
90461-08363

RN30,40..LHD

 2
78311 - KNOB, CHOKE CONTROL CABLE
78311-89101

RN30,40

 1
Common parts
90179-11002
90202-08028
91616-40614
91656-40616
91656-40628
