RN27-KD (1977)
Toyota Hilux
Production
Oct 1977
-
Jul 1978
Engine
18R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7205-7807)

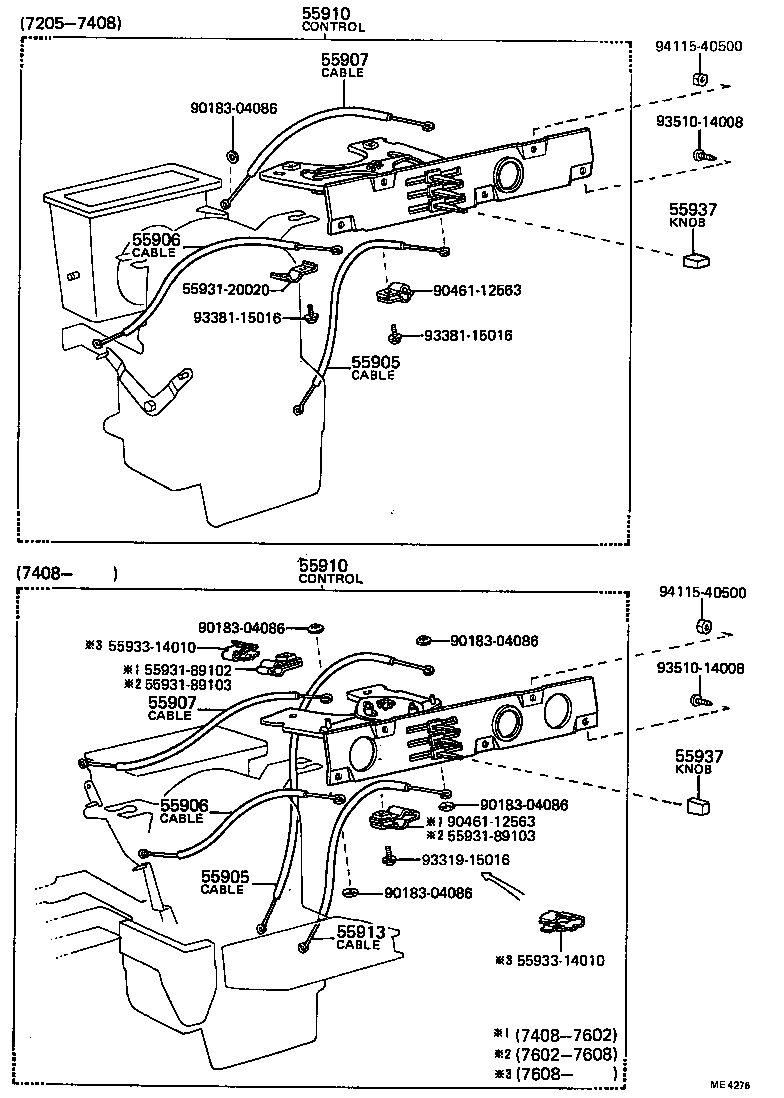

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905 - CABLE SUB-ASSY, DEFROST CONTROL | ||||
| 55905-89103 |
RN2# L=424 |
1 | ||
| 55905 - CABLE SUB-ASSY, DEFROST CONTROL | ||||
| 55905-89103 |
RN2# L=424 |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55906-89101 |
RN2# L=319 |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55906-89101 |
RN2# L=319 |
1 | ||
| 55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY | ||||
| 55907-89104 |
RN2# L=310 |
1 | ||
| 55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY | ||||
| 55907-89104 |
RN2# L=310 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-89106 |
RN2# |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-89106 |
RN2# |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55937-22901 |
RN2# |
3 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55937-22901 |
RN2# |
3 | ||
| Common parts | ||||
| 55931-20020 | ||||
| 55931-89102 | ||||
| 55931-89103 | ||||
| 55933-14010 | ||||
| 90183-04086 | ||||
| 90461-12563 | ||||
| 93319-15016 | ||||
| 93381-15016 | ||||
| 93510-14008 | ||||
| 94115-40500 | ||||
(7205-7807)

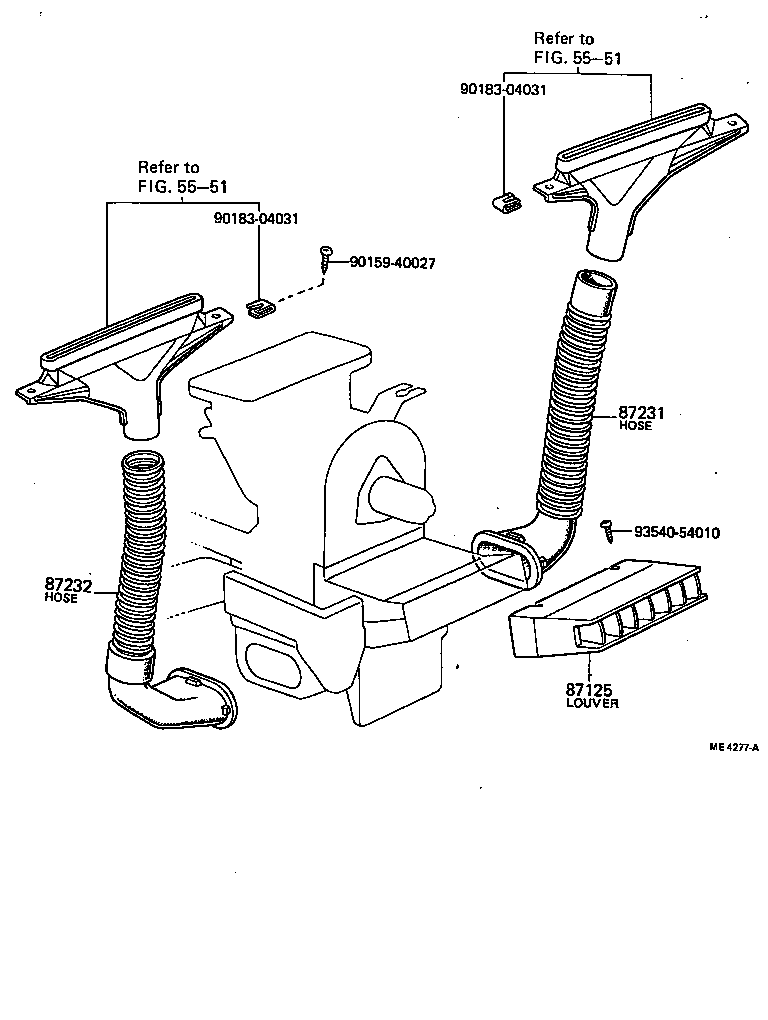

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87231-12031 |
RN2# |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87231-12040 |
RN2# |
1 | ||
| Common parts | ||||
| 90159-40027 | ||||
| 90183-04031 | ||||
| 93540-54010 | ||||
| Linked diagrams | ||||
| 5551 | ||||
