RN27-KD (1977)

Toyota Hilux

Production Oct 1977 - Jul 1978
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

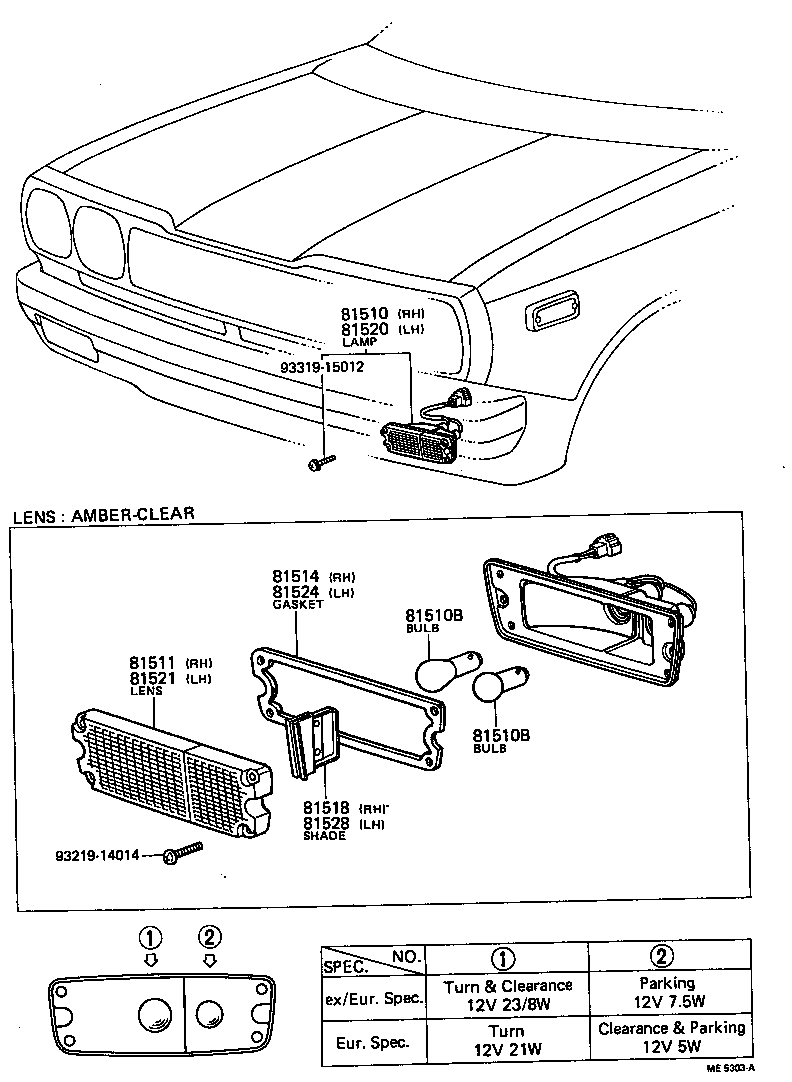

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81514 81518 81520 81521 81524 81528 9321914014 9331915012
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-89804

RN2#

AMBER

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11075

RN20,25,27

12V 7.5W,12V 7.5W

 2
99132-11230

RN20,25,27

12V 23W,12V 23W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11075

RN20,25,27

12V 7.5W,12V 7.5W

 2
99132-11230

RN20,25,27

12V 23W,12V 23W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-89106

RN20,25,27

AMBER-CLEAR

 1
81514 - GASKET, FRONT TURN SIGNAL LAMP BODY, RH
81512-89104

RN2#

 1
81518 - SHADE, FRONT TURN SIGNAL LAMP, RH
81517-89101

RN20,25,27

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-89804

RN2#

AMBER

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-89105

RN20,25,27

AMBER-CLEAR

 1
81524 - GASKET, FRONT TURN SIGNAL LAMP BODY, LH
81512-89104

RN2#

 1
81528 - SHADE, FRONT TURN SIGNAL LAMP, LH
81527-89101

RN20,25,27

 1
Common parts
93219-14014
93319-15012

(7205-7807)

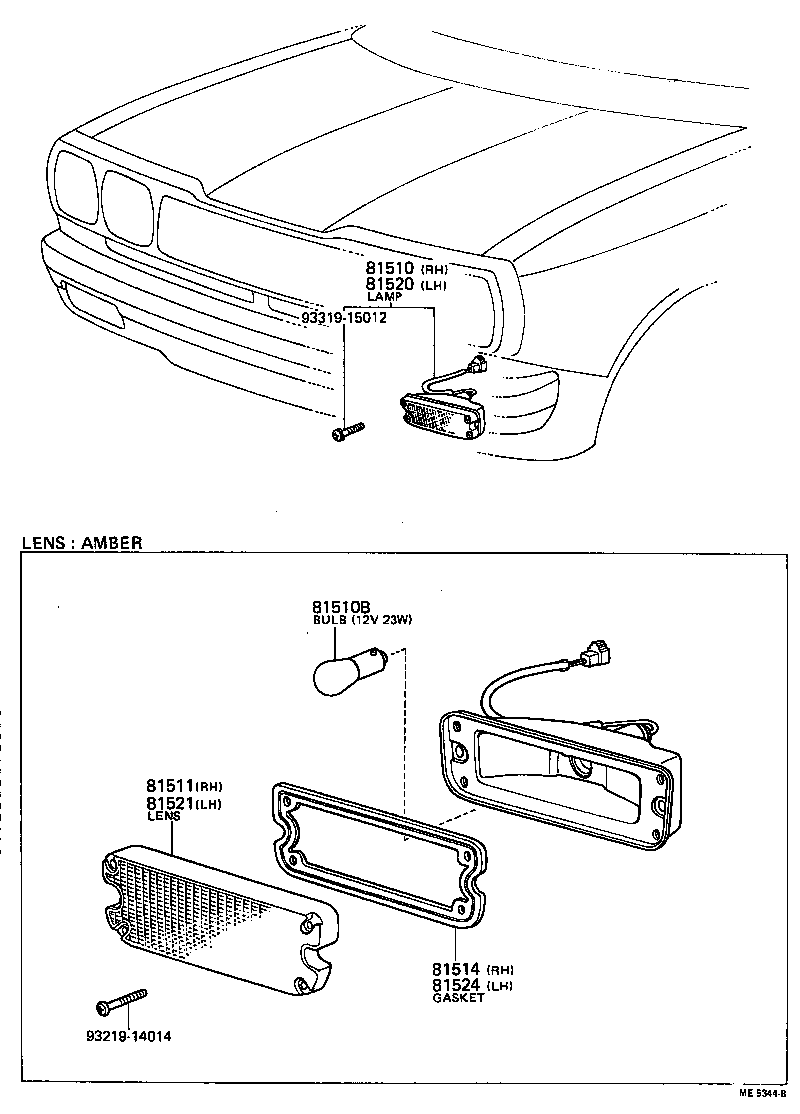

Click highlighted areas on diagram

diagram 81510 81510B 81511 81514 81520 81521 81524 9321914014 9331915012
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-89804

RN2#

AMBER

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11075

RN20,25,27

12V 7.5W,12V 7.5W

 2
99132-11230

RN20,25,27

12V 23W,12V 23W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-89106

RN20,25,27

AMBER-CLEAR

 1
81514 - GASKET, FRONT TURN SIGNAL LAMP BODY, RH
81512-89104

RN2#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-89804

RN2#

AMBER

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-89105

RN20,25,27

AMBER-CLEAR

 1
81524 - GASKET, FRONT TURN SIGNAL LAMP BODY, LH
81512-89104

RN2#

 1
Common parts
93219-14014
93319-15012
