RN27-KD (1977)
Toyota Hilux
Production
Oct 1977
-
Jul 1978
Engine
18R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

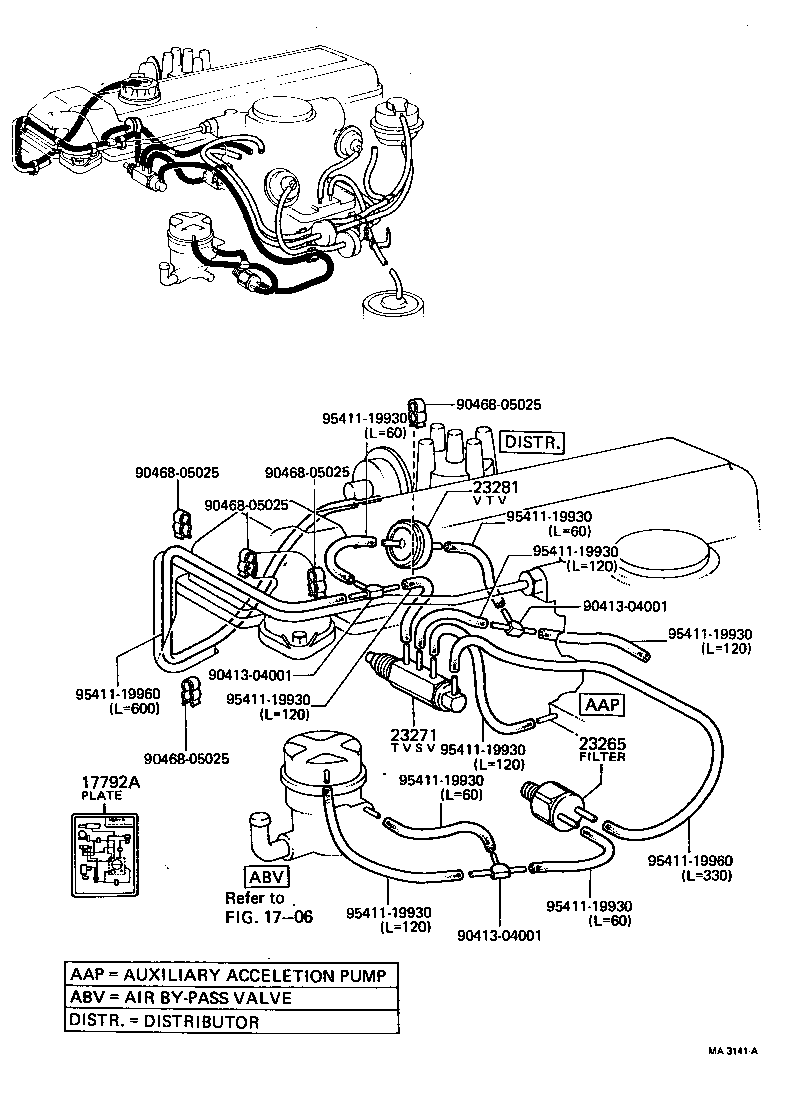

(7711-7805)18R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17792A - PLATE, ENGINE VACUUM HOSE INFORMATION | ||||
| 17792-34060 |
18R..RN27 18RC |
1 | ||
| 17792-34090 |
18R..RN27 18RC |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11012 |
18R..RN27 18RC |
1 | ||
| 90917-11023 |
18R..RN27 18RC |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02043 |
18R..RN27 18RC |
1 | ||
| Common parts | ||||
| 90413-04001 | ||||
| 90468-05025 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 98468-05025 | ||||
| Linked diagrams | ||||
| 1706 | ||||

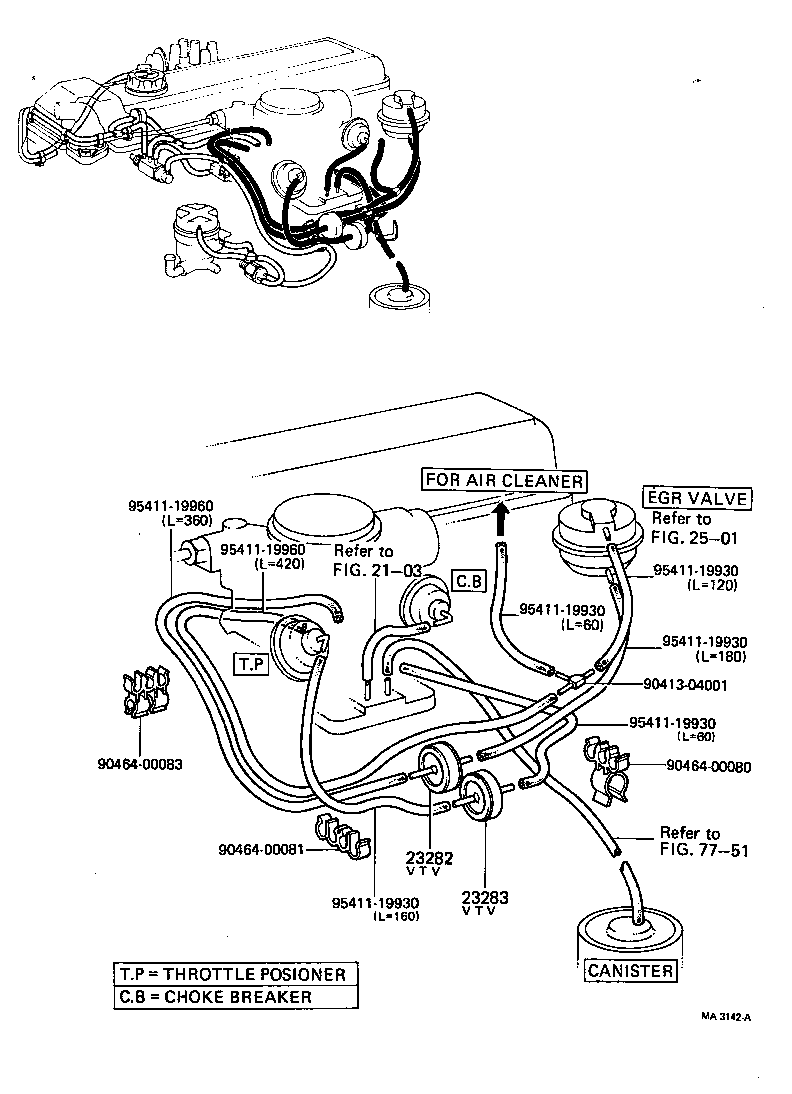

(7711-7805)18R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01027 |
18R..RN27 18RC |
1 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-01053 |
18R..RN27 18RC |
1 | ||
| Common parts | ||||
| 90413-04001 | ||||
| 90464-00080 | ||||
| 90464-00081 | ||||
| 90464-00083 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 2103 | ||||
| 2501 | ||||
| 7751 | ||||

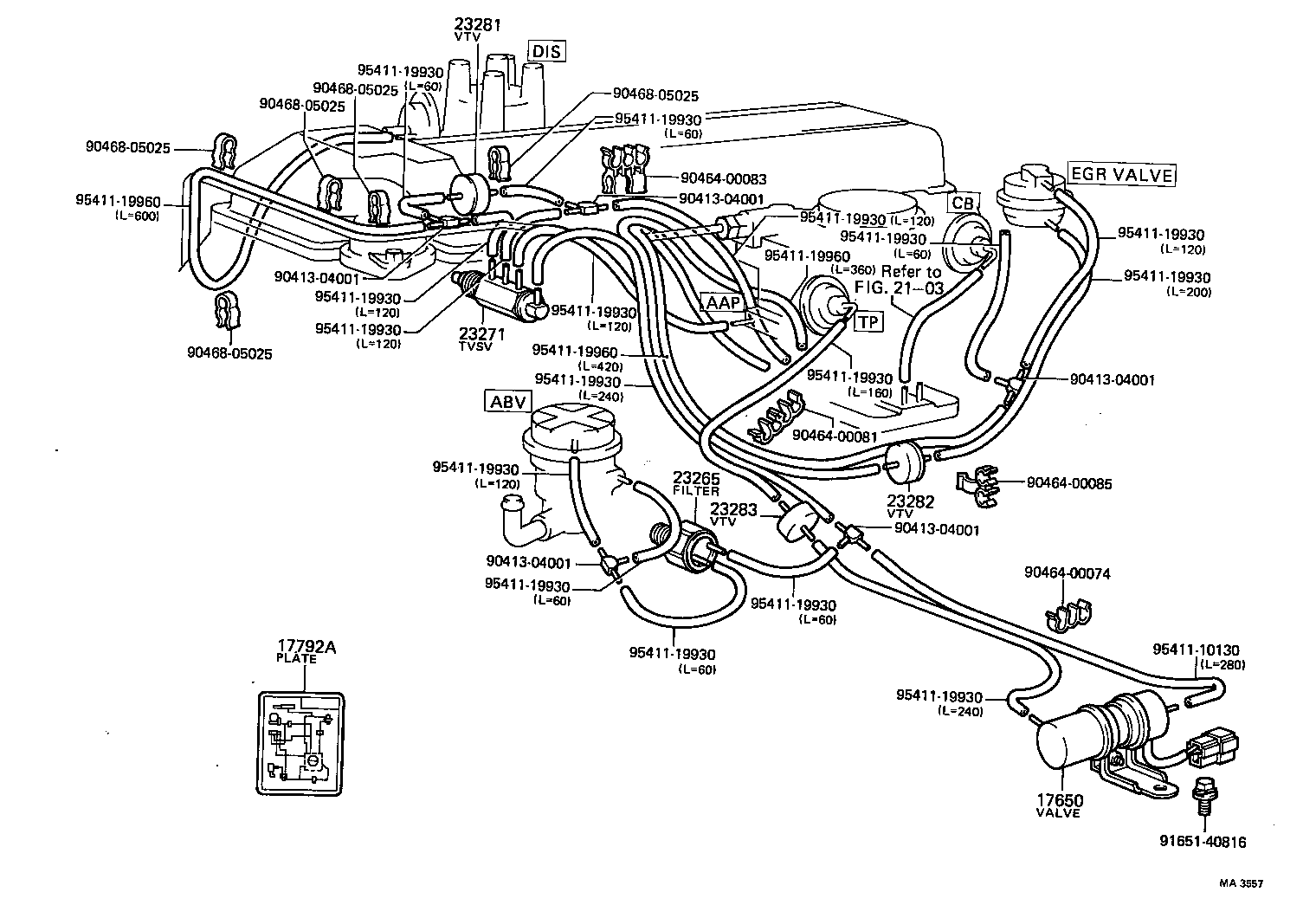

(7805-7807)18R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 17650-44020 |
18R..RN27 18RC |
1 | ||
| 17792A - PLATE, ENGINE VACUUM HOSE INFORMATION | ||||
| 17792-34060 |
18R..RN27 18RC |
1 | ||
| 17792-34090 |
18R..RN27 18RC |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11012 |
18R..RN27 18RC |
1 | ||
| 90917-11023 |
18R..RN27 18RC |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02043 |
18R..RN27 18RC |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01027 |
18R..RN27 18RC |
1 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-01053 |
18R..RN27 18RC |
1 | ||
| Common parts | ||||
| 90413-04001 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00083 | ||||
| 90464-00085 | ||||
| 90468-05025 | ||||
| 91651-40816 | ||||
| 95411-10130 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 2103 | ||||
(7205-7807)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90925-01004 | ||||
| 90925-01005 | ||||
| 90925-01006 | ||||
| 90925-01008 | ||||
| 90925-01018 | ||||
| 90925-01019 | ||||
| 90925-01021 | ||||
| 90925-01026 | ||||
| 90925-01027 | ||||
| 90925-01029 | ||||
| 90925-01042 | ||||
| 90925-01043 | ||||
| 90925-01053 | ||||
| 90925-01054 | ||||
| 90925-01062 | ||||
| 90925-01064 | ||||
(0408-0908)2KDFTV..KUN15,25..HDCR..TH ; (0908-)2KDFTV..KUN15..HDCR ; (1008-
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-33250 | ||||
| 90179-06298 | ||||
| 90182-T0007 | ||||
| 90339-03005 | ||||
| 90339-T0001 | ||||
| 90445-T0002 | ||||
| 90445-T0003 | ||||
| 90445-T0004 | ||||
| 90445-T0005 | ||||
| 90447-08168 | ||||
| 90447-T0001 | ||||
| 90999-92002 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1703 | ||||
| 8405 | ||||
(1107-1208)2KDFTV..KUN25,35..SR..TH ; (1107-1208)2KDFTV..KUN15..DCB..SR..TH ; (1107
Click highlighted areas on diagram
WATER COOLING TURBO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-33250 | ||||
| 90105-T0054 | ||||
| 90159-T0001 | ||||
| 90445-T0004 | ||||
| 90447-08168 | ||||
| 90447-T0001 | ||||
| 90464-00082 | ||||
| 90469-07011 | ||||
| 90469-T0005 | ||||
| 90999-92002 | ||||
| 91551-80816 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1701 | ||||
