RN25L-KR (1972)

Toyota Hilux

Production May 1972 - Jul 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7605-7807)

Click highlighted areas on diagram

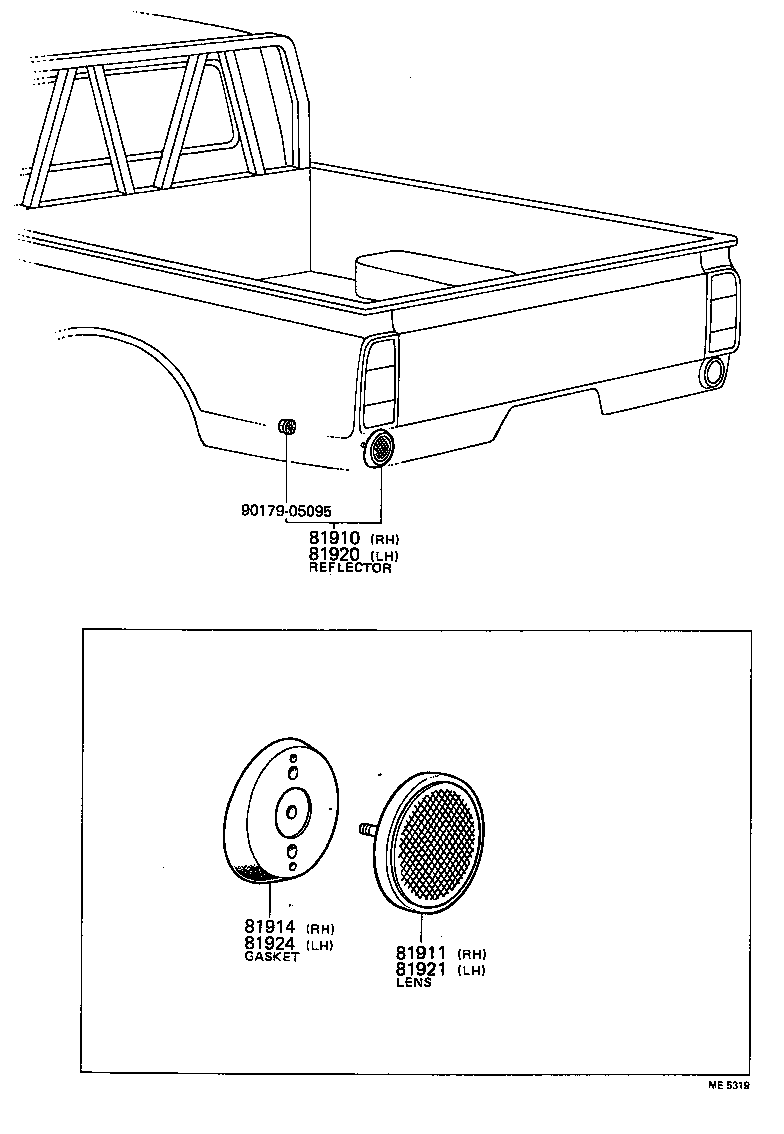

diagram 81910 81911 81914 81920 81921 81924 9017905095
Part # Description Qty Price
81910 - REFLECTOR ASSY, REFLEX, RH
81910-89803

RN20,25

EUR.SPEC.

 1
81911 - LENS, REFLEX REFLECTOR, REAR RH
81911-89103

RN20,25

 1
81914 - GASKET, REFLEX REFLECTOR BODY, RH
81912-89104

RN20,25

 1
81920 - REFLECTOR ASSY, REFLEX, LH
81920-89803

RN20,25

EUR.SPEC.

 1
81921 - LENS, REFLEX REFLECTOR, REAR LH
81911-89103

RN20,25

 1
81924 - GASKET, REFLEX REFLECTOR BODY, LH
81922-89104

RN20,25

 1
Common parts
90179-05095
