RN25L-KR (1972)
Toyota Hilux
Production
May 1972
-
Jul 1978
Engine
12R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

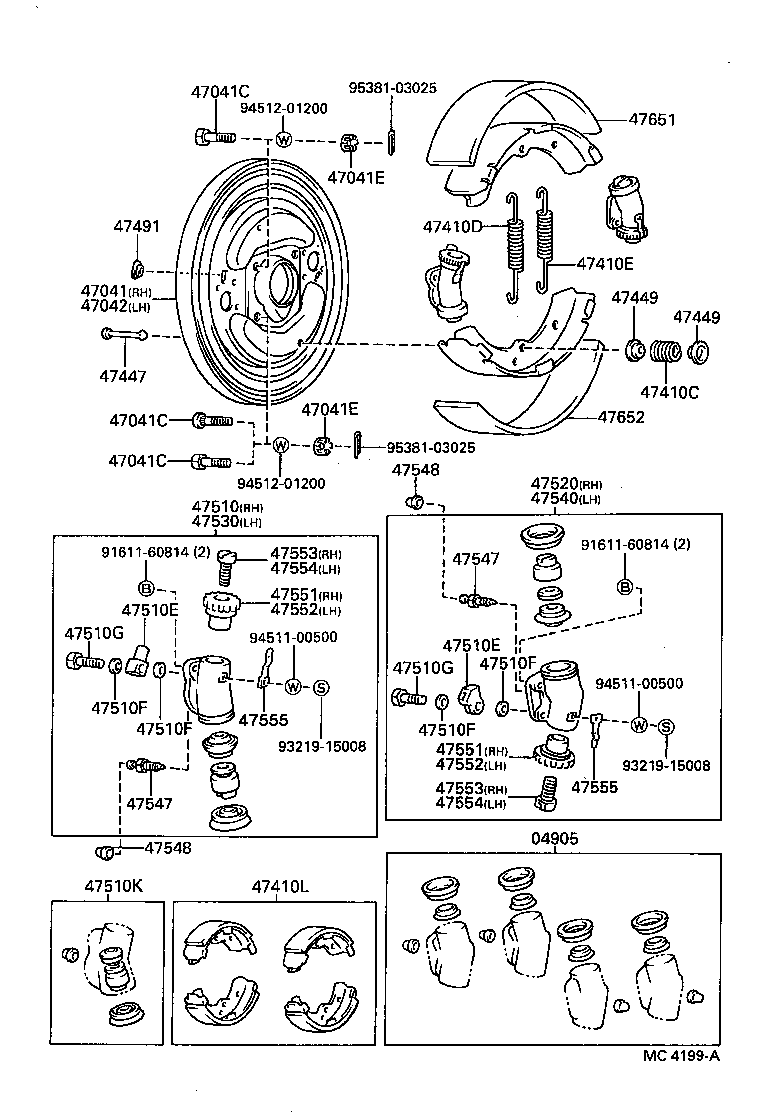

(7205-7507)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-30012 |
RN2# |
1 | ||
| 04905-35050 |
RN2# |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-35030 |
RN2# |
1 | ||
| 47041-35031 |
RN2# |
1 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90114-12138 |
RN2# 12-1.25PX60-20,W/SERRATION |
2 | ||
| 90102-12065 |
RN2# 12-1.25PX58.5-20 |
2 | ||
| 90102-12051 |
RN2# 12-1.25PX60-20 |
2 | ||
| 90102-12058 |
RN2# 12-1.25PX36.3-20 |
4 | ||
| 90114-12092 |
RN2# 12-1.25PX61-20,W/SERRATION |
2 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90114-12138 |
RN2# 12-1.25PX60-20,W/SERRATION |
2 | ||
| 90102-12065 |
RN2# 12-1.25PX58.5-20 |
2 | ||
| 90102-12051 |
RN2# 12-1.25PX60-20 |
2 | ||
| 90102-12058 |
RN2# 12-1.25PX36.3-20 |
4 | ||
| 90114-12092 |
RN2# 12-1.25PX61-20,W/SERRATION |
2 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90114-12138 |
RN2# 12-1.25PX60-20,W/SERRATION |
2 | ||
| 90102-12065 |
RN2# 12-1.25PX58.5-20 |
2 | ||
| 90102-12051 |
RN2# 12-1.25PX60-20 |
2 | ||
| 90102-12058 |
RN2# 12-1.25PX36.3-20 |
4 | ||
| 90114-12092 |
RN2# 12-1.25PX61-20,W/SERRATION |
2 | ||
| 47041E - NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-71200 |
RN2# |
8 | ||
| 47041E - NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-71200 |
RN2# |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-35011 |
RN2# |
1 | ||
| 47042-35010 |
RN2# |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20225 |
RN2# |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-23301 |
RN2# |
2 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-23301 |
RN2# |
2 | ||
| 47410L - SHOE KIT, FRONT BRAKE | ||||
| 04494-30011 |
RN2# |
1 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-35030 |
RN2# |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-20011 |
RN2# |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-20011 |
RN2# |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-35030 |
RN2# |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-39096 |
RN2# ID=28.57 |
1 | ||
| 47510-39095 |
RN2# ID=28.57 |
1 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-09144 |
RN2# |
4 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-09144 |
RN2# |
4 | ||
| 47510E - UNION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90405-10171 |
RN2# FR |
2 | ||
| 90405-10073 |
RN2# FR |
2 | ||
| 90405-10135 |
RN2# RR |
2 | ||
| 47510E - UNION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90405-10171 |
RN2# FR |
2 | ||
| 90405-10073 |
RN2# FR |
2 | ||
| 90405-10135 |
RN2# RR |
2 | ||
| 47510F - GASKET(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90430-10074 |
RN2# |
8 | ||
| 47510F - GASKET(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90430-10074 |
RN2# |
8 | ||
| 47510F - GASKET(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90430-10074 |
RN2# |
8 | ||
| 47510F - GASKET(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90430-10074 |
RN2# |
8 | ||
| 47510G - BOLT, UNION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90401-10047 |
RN2# |
4 | ||
| 47510G - BOLT, UNION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90401-10047 |
RN2# |
4 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-39066 |
RN2# ID=28.57 |
1 | ||
| 47520-39065 |
RN2# ID=28.57 |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-39096 |
RN2# ID=28.57 |
1 | ||
| 47530-39095 |
RN2# ID=28.57 |
1 | ||
| 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) | ||||
| 47531-35110 |
RN2# |
4 | ||
| 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) | ||||
| 47531-35110 |
RN2# |
4 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-30010 |
RN2# |
4 | ||
| 47533-30011 |
RN2# |
4 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-30010 |
RN2# |
4 | ||
| 47533-30011 |
RN2# |
4 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-39065 |
RN2# ID=28.57 |
1 | ||
| 47540-39066 |
RN2# ID=28.57 |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
RN2# |
4 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
RN2# |
4 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
RN2#..MTM |
4 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
RN2#..MTM |
4 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-40010 |
RN2# |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-40010 |
RN2# |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-40010 |
RN2# |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-40010 |
RN2# |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-30051 |
RN2# |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-30051 |
RN2# |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-30051 |
RN2# |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-30051 |
RN2# |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-30020 |
RN2# |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-30020 |
RN2# |
4 | ||
| 47651 - LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47651-30070 |
RN2# |
2 | ||
| 47652 - LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-30070 |
RN2# |
2 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 93219-15008 | ||||
| 94511-00500 | ||||
| 94512-01200 | ||||
| 95381-03025 | ||||

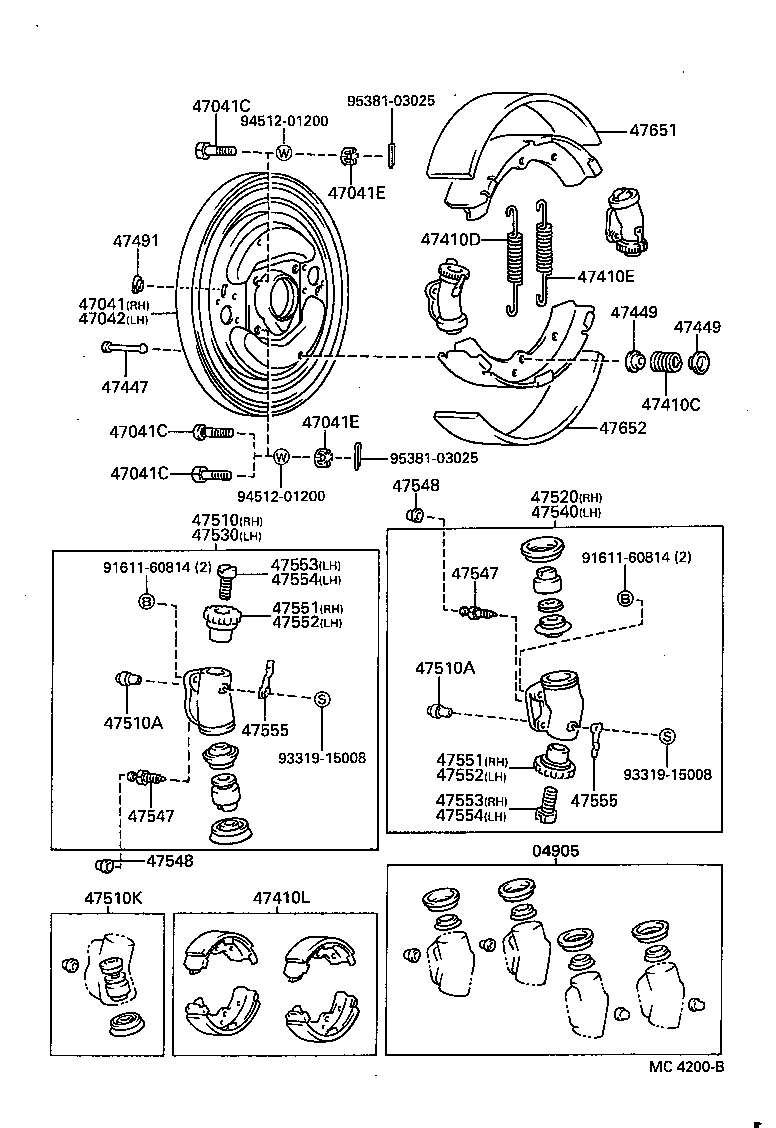

(7507-7511)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-30012 |
RN2# |
1 | ||
| 04905-35050 |
RN2# |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-35030 |
RN2# |
1 | ||
| 47041-35031 |
RN2# |
1 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90114-12138 |
RN2# 12-1.25PX60-20,W/SERRATION |
2 | ||
| 90102-12065 |
RN2# 12-1.25PX58.5-20 |
2 | ||
| 90102-12051 |
RN2# 12-1.25PX60-20 |
2 | ||
| 90102-12058 |
RN2# 12-1.25PX36.3-20 |
4 | ||
| 90114-12092 |
RN2# 12-1.25PX61-20,W/SERRATION |
2 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90114-12138 |
RN2# 12-1.25PX60-20,W/SERRATION |
2 | ||
| 90102-12065 |
RN2# 12-1.25PX58.5-20 |
2 | ||
| 90102-12051 |
RN2# 12-1.25PX60-20 |
2 | ||
| 90102-12058 |
RN2# 12-1.25PX36.3-20 |
4 | ||
| 90114-12092 |
RN2# 12-1.25PX61-20,W/SERRATION |
2 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90114-12138 |
RN2# 12-1.25PX60-20,W/SERRATION |
2 | ||
| 90102-12065 |
RN2# 12-1.25PX58.5-20 |
2 | ||
| 90102-12051 |
RN2# 12-1.25PX60-20 |
2 | ||
| 90102-12058 |
RN2# 12-1.25PX36.3-20 |
4 | ||
| 90114-12092 |
RN2# 12-1.25PX61-20,W/SERRATION |
2 | ||
| 47041E - NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-71200 |
RN2# |
8 | ||
| 47041E - NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-71200 |
RN2# |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-35011 |
RN2# |
1 | ||
| 47042-35010 |
RN2# |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20225 |
RN2# |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-23301 |
RN2# |
2 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-23301 |
RN2# |
2 | ||
| 47410L - SHOE KIT, FRONT BRAKE | ||||
| 04494-30011 |
RN2# |
1 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-35030 |
RN2# |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-20011 |
RN2# |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-20011 |
RN2# |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-35030 |
RN2# |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-39096 |
RN2# ID=28.57 |
1 | ||
| 47510-39095 |
RN2# ID=28.57 |
1 | ||
| 47510E - UNION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90405-10171 |
RN2# FR |
2 | ||
| 90405-10073 |
RN2# FR |
2 | ||
| 90405-10135 |
RN2# RR |
2 | ||
| 47510E - UNION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90405-10171 |
RN2# FR |
2 | ||
| 90405-10073 |
RN2# FR |
2 | ||
| 90405-10135 |
RN2# RR |
2 | ||
| 47510F - GASKET(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90430-10074 |
RN2# |
8 | ||
| 47510F - GASKET(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90430-10074 |
RN2# |
8 | ||
| 47510F - GASKET(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90430-10074 |
RN2# |
8 | ||
| 47510F - GASKET(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90430-10074 |
RN2# |
8 | ||
| 47510G - BOLT, UNION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90401-10047 |
RN2# |
4 | ||
| 47510G - BOLT, UNION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90401-10047 |
RN2# |
4 | ||
| 47510K - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-35040 |
RN2# |
4 | ||
| 04473-26010 |
RN2# |
4 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-39066 |
RN2# ID=28.57 |
1 | ||
| 47520-39065 |
RN2# ID=28.57 |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-39096 |
RN2# ID=28.57 |
1 | ||
| 47530-39095 |
RN2# ID=28.57 |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-39065 |
RN2# ID=28.57 |
1 | ||
| 47540-39066 |
RN2# ID=28.57 |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
RN2# |
4 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
RN2# |
4 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
RN2#..MTM |
4 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
RN2#..MTM |
4 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-40010 |
RN2# |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-40010 |
RN2# |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-40010 |
RN2# |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-40010 |
RN2# |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-30051 |
RN2# |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-30051 |
RN2# |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-30051 |
RN2# |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-30051 |
RN2# |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-30020 |
RN2# |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-30020 |
RN2# |
4 | ||
| 47651 - LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47651-30070 |
RN2# |
2 | ||
| 47652 - LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-30070 |
RN2# |
2 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 93219-15008 | ||||
| 94511-00500 | ||||
| 94512-01200 | ||||
| 95381-03025 | ||||
(7511-7807)

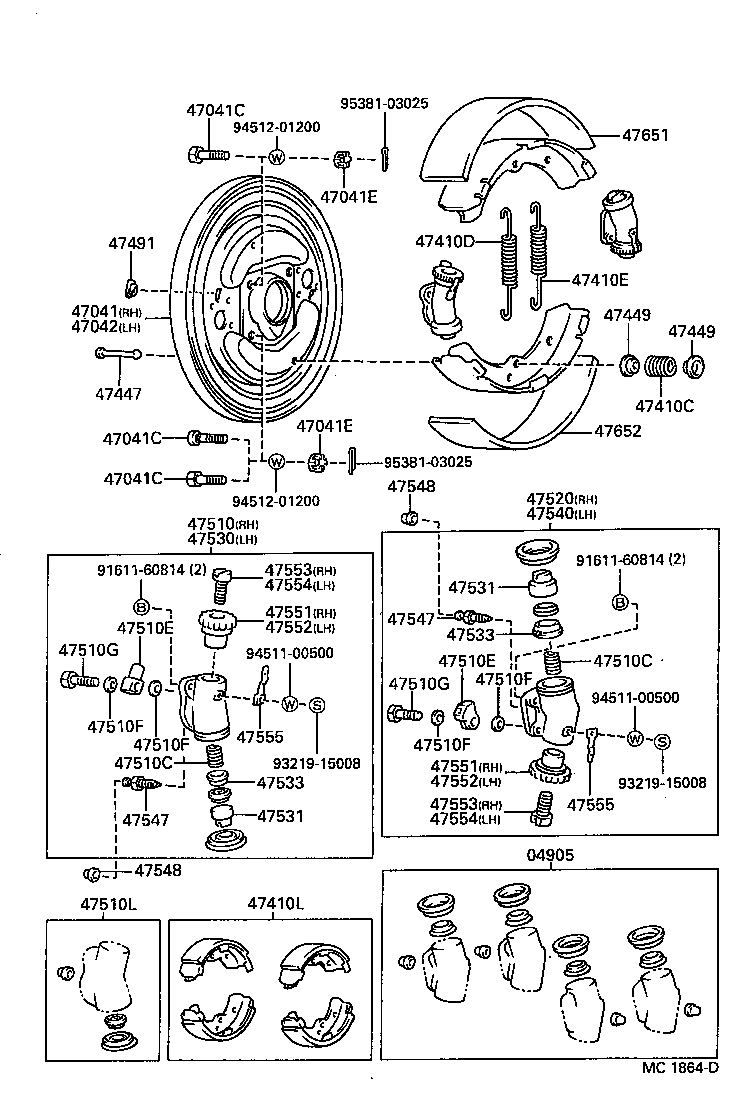

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-30012 |
RN2# |
1 | ||
| 04905-35050 |
RN2# |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-35030 |
RN2# |
1 | ||
| 47041-35031 |
RN2# |
1 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90114-12138 |
RN2# 12-1.25PX60-20,W/SERRATION |
2 | ||
| 90102-12065 |
RN2# 12-1.25PX58.5-20 |
2 | ||
| 90102-12051 |
RN2# 12-1.25PX60-20 |
2 | ||
| 90102-12058 |
RN2# 12-1.25PX36.3-20 |
4 | ||
| 90114-12092 |
RN2# 12-1.25PX61-20,W/SERRATION |
2 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90114-12138 |
RN2# 12-1.25PX60-20,W/SERRATION |
2 | ||
| 90102-12065 |
RN2# 12-1.25PX58.5-20 |
2 | ||
| 90102-12051 |
RN2# 12-1.25PX60-20 |
2 | ||
| 90102-12058 |
RN2# 12-1.25PX36.3-20 |
4 | ||
| 90114-12092 |
RN2# 12-1.25PX61-20,W/SERRATION |
2 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90114-12138 |
RN2# 12-1.25PX60-20,W/SERRATION |
2 | ||
| 90102-12065 |
RN2# 12-1.25PX58.5-20 |
2 | ||
| 90102-12051 |
RN2# 12-1.25PX60-20 |
2 | ||
| 90102-12058 |
RN2# 12-1.25PX36.3-20 |
4 | ||
| 90114-12092 |
RN2# 12-1.25PX61-20,W/SERRATION |
2 | ||
| 47041E - NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-71200 |
RN2# |
8 | ||
| 47041E - NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-71200 |
RN2# |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-35011 |
RN2# |
1 | ||
| 47042-35010 |
RN2# |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20225 |
RN2# |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-23301 |
RN2# |
2 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-23301 |
RN2# |
2 | ||
| 47410L - SHOE KIT, FRONT BRAKE | ||||
| 04494-30011 |
RN2# |
1 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-35030 |
RN2# |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-20011 |
RN2# |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-20011 |
RN2# |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-35030 |
RN2# |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-39096 |
RN2# ID=28.57 |
1 | ||
| 47510-39095 |
RN2# ID=28.57 |
1 | ||
| 47510A - SEAT, UNION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90410-03015 |
RN2# |
6 | ||
| 47510A - SEAT, UNION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90410-03015 |
RN2# |
6 | ||
| 47510K - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-35040 |
RN2# |
4 | ||
| 04473-26010 |
RN2# |
4 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-39066 |
RN2# ID=28.57 |
1 | ||
| 47520-39065 |
RN2# ID=28.57 |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-39096 |
RN2# ID=28.57 |
1 | ||
| 47530-39095 |
RN2# ID=28.57 |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-39065 |
RN2# ID=28.57 |
1 | ||
| 47540-39066 |
RN2# ID=28.57 |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
RN2# |
4 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
RN2# |
4 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
RN2#..MTM |
4 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
RN2#..MTM |
4 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-40010 |
RN2# |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-40010 |
RN2# |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-40010 |
RN2# |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-40010 |
RN2# |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-30051 |
RN2# |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-30051 |
RN2# |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-30051 |
RN2# |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-30051 |
RN2# |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-30020 |
RN2# |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-30020 |
RN2# |
4 | ||
| 47651 - LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47651-30070 |
RN2# |
2 | ||
| 47652 - LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-30070 |
RN2# |
2 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 93319-15008 | ||||
| 94512-01200 | ||||
| 95381-03025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
