RN25L-KR (1972)
Toyota Hilux
Production
May 1972
-
Jul 1978
Engine
12R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

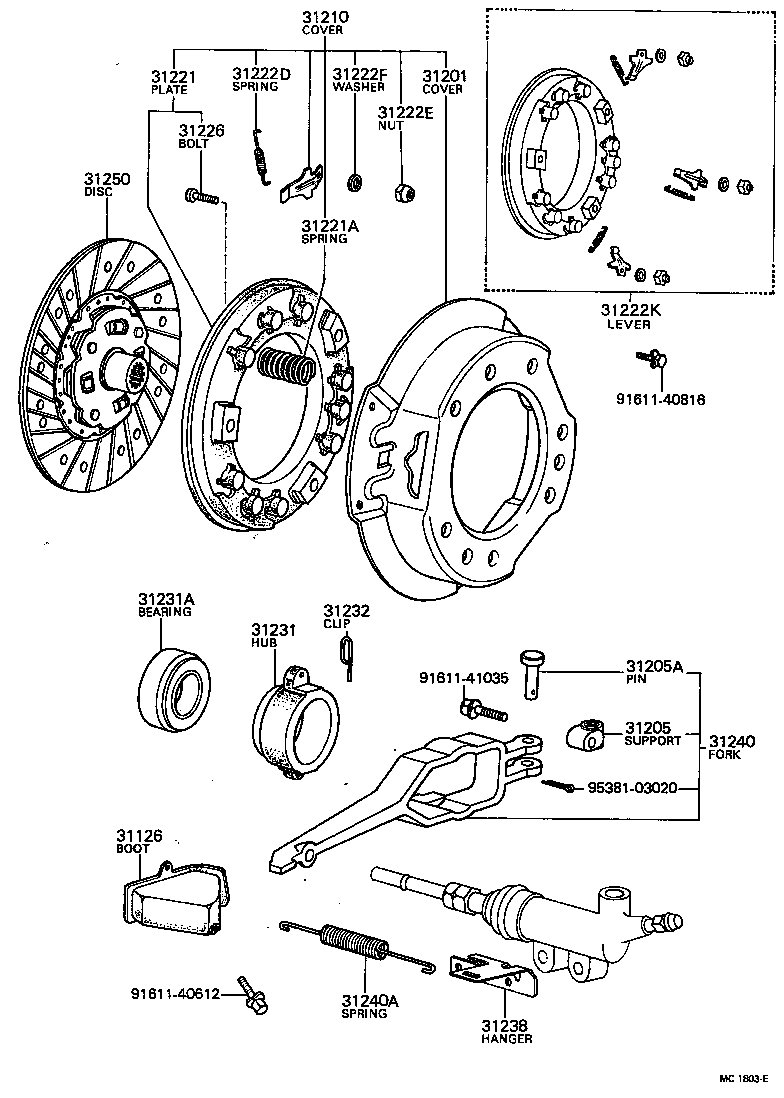

(7205-7408)RN20,25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-26010 |
RN20,25 |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-36020 |
RN20,25 |
1 | ||
| 31201-39045 |
RN20,25 |
1 | ||
| 31205 - SUPPORT SUB-ASSY, RELEASE FORK | ||||
| 31205-30010 |
RN20,25 |
1 | ||
| 31205A - PIN, W/SERRATION(FOR RELEASE FORK SUPPORT) | ||||
| 90245-10072 |
RN20,25 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-35040 |
RN20,25 |
1 | ||
| 31210-26010 |
RN20,25 |
1 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31202-26010 |
RN20,25 |
1 | ||
| 31221-39045 |
RN20,25 |
1 | ||
| 31221A - SPRING, COMPRESSION(FOR CLUTCH) | ||||
| 90501-40612 |
RN20,25 |
6 | ||
| 31222D - SPRING, TENSION(FOR CLUTCH PRESSURE LEVER) | ||||
| 90506-10022 |
RN20,25 |
3 | ||
| 31222E - NUT(FOR CLUTCH PRESSURE LEVER ADJUST) | ||||
| 90179-10111 |
RN20,25 |
3 | ||
| 31222F - WASHER(FOR CLUTCH PRESSURE LEVER) | ||||
| 90201-10429 |
RN20,25 |
3 | ||
| 31222K - LEVER KIT, CLUTCH PRESSURE | ||||
| 04315-36021 |
RN20,25 |
1 | ||
| 31226 - BOLT, CLUTCH PRESSURE PLATE | ||||
| 90114-10088 |
RN20,25 |
3 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-35010 |
RN20,25 |
1 | ||
| 31231-35020 |
RN20,25 |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40061 |
RN20,25 40TMK29-1 |
1 | ||
| 90363-40078 |
RN2#..MTM 40TRK39-1SB |
1 | ||
| 90363-40003 |
RN2#..MTM 40TRK39-1SB |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-20010 |
RN20,25 |
2 | ||
| 31232-30010 |
RN2#..MTM |
2 | ||
| 31238 - HANGER, RELEASE FORK RETRACTING SPRING | ||||
| 31238-26010 |
RN20,25 |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31240-35010 |
RN20,25 |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-16282 |
RN20,25 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-26040 |
RN20,25 |
1 | ||
| 31250-28011 |
RN20,25 |
1 | ||
| Common parts | ||||
| 91611-40612 | ||||
| 91611-40816 | ||||
| 91611-41035 | ||||
| 95381-03020 | ||||

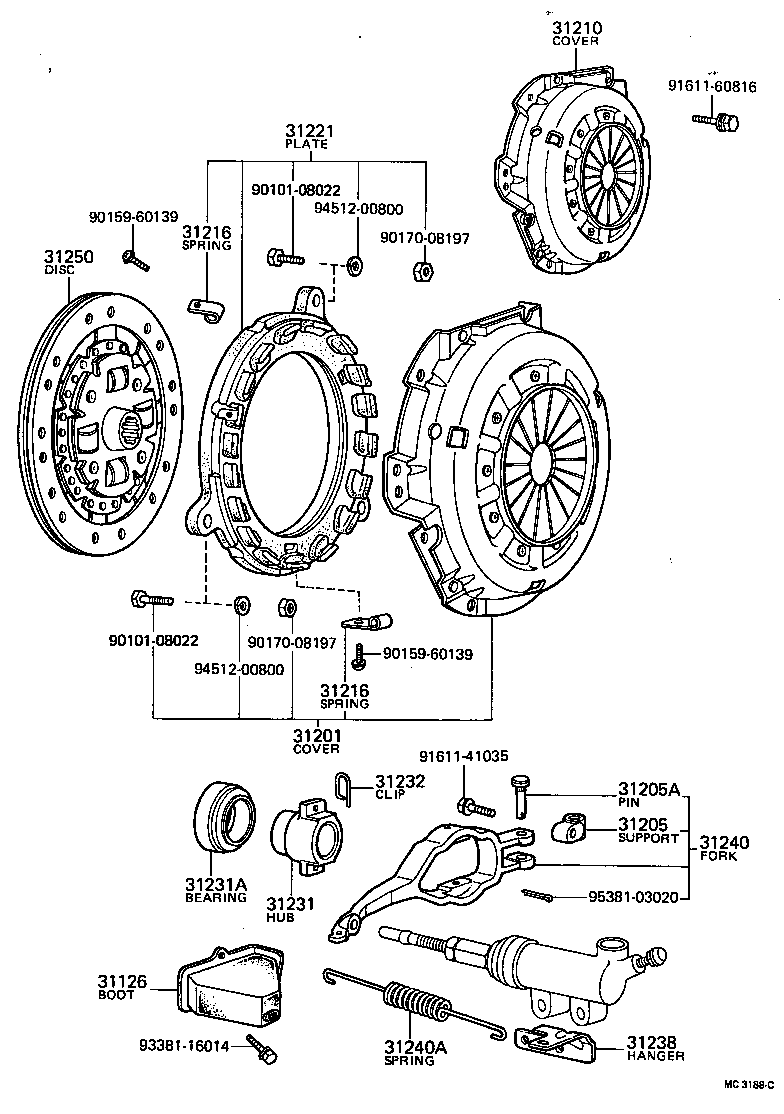

(7408-7807)RN20,25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-26010 |
RN20,25 |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-36020 |
RN20,25 |
1 | ||
| 31201-39045 |
RN20,25 |
1 | ||
| 31205 - SUPPORT SUB-ASSY, RELEASE FORK | ||||
| 31205-30010 |
RN20,25 |
1 | ||
| 31205A - PIN, W/SERRATION(FOR RELEASE FORK SUPPORT) | ||||
| 90245-10072 |
RN20,25 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-35040 |
RN20,25 |
1 | ||
| 31210-26010 |
RN20,25 |
1 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
RN2#..MTM |
3 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
RN2#..MTM |
3 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31202-26010 |
RN20,25 |
1 | ||
| 31221-39045 |
RN20,25 |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-35010 |
RN20,25 |
1 | ||
| 31231-35020 |
RN20,25 |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40061 |
RN20,25 40TMK29-1 |
1 | ||
| 90363-40078 |
RN2#..MTM 40TRK39-1SB |
1 | ||
| 90363-40003 |
RN2#..MTM 40TRK39-1SB |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-20010 |
RN20,25 |
2 | ||
| 31232-30010 |
RN2#..MTM |
2 | ||
| 31238 - HANGER, RELEASE FORK RETRACTING SPRING | ||||
| 31238-26010 |
RN20,25 |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31240-35010 |
RN20,25 |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-16282 |
RN20,25 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-26040 |
RN20,25 |
1 | ||
| 31250-28011 |
RN20,25 |
1 | ||
| Common parts | ||||
| 90101-08022 | ||||
| 90159-60139 | ||||
| 90170-08197 | ||||
| 91611-41035 | ||||
| 91611-60816 | ||||
| 93381-16014 | ||||
| 94512-00800 | ||||
| 95381-03020 | ||||
