RN25-KR (1972)
Toyota Hilux
Production
Nov 1972
-
Jul 1978
Engine
12R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

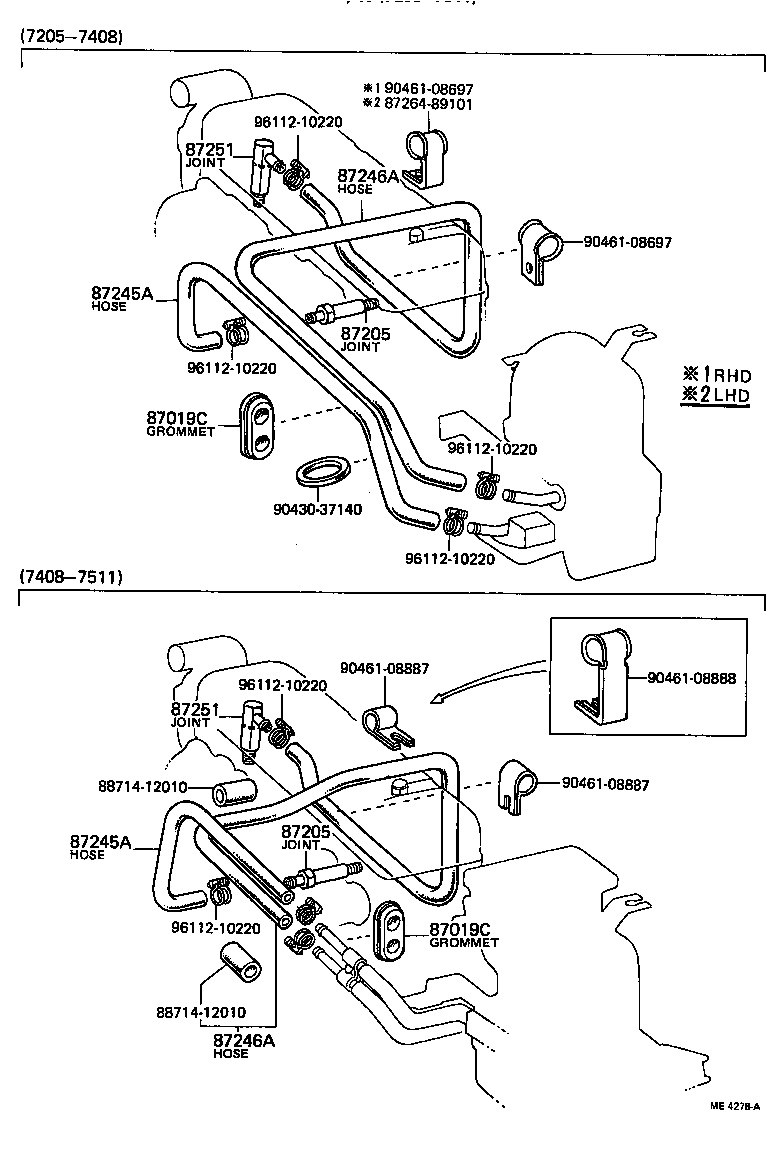

(7205-7511)RN20,25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01011 |
RN2# |
1 | ||
| 87267-89101 |
RN2# |
1 | ||
| 90480-01011 |
RN20,25 |
1 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01011 |
RN2# |
1 | ||
| 87267-89101 |
RN2# |
1 | ||
| 90480-01011 |
RN20,25 |
1 | ||
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87252-89102 |
RN20,25 |
1 | ||
| 87252-89103 |
RN20,25 |
1 | ||
| 87252-89104 |
RN20,25 |
1 | ||
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87252-89102 |
RN20,25 |
1 | ||
| 87252-89103 |
RN20,25 |
1 | ||
| 87252-89104 |
RN20,25 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-89107 |
RN20,25 |
1 | ||
| 87245-89109 |
RN20,25 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-89107 |
RN20,25 |
1 | ||
| 87245-89109 |
RN20,25 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99552-21160 |
RN20,25..RHD L=1160 |
1 | ||
| 87245-89111 |
RN20,25..RHD |
1 | ||
| 87245-89116 |
RN20,25 |
1 | ||
| 87245-89114 |
RN20,25..RHD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99552-21160 |
RN20,25..RHD L=1160 |
1 | ||
| 87245-89111 |
RN20,25..RHD |
1 | ||
| 87245-89116 |
RN20,25 |
1 | ||
| 87245-89114 |
RN20,25..RHD |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-29020 |
RN20,25 |
1 | ||
| 87251-20010 |
RN20,25 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-29020 |
RN20,25 |
1 | ||
| 87251-20010 |
RN20,25 |
1 | ||
| Common parts | ||||
| 87264-89101 | ||||
| 88714-12010 | ||||
| 90430-37140 | ||||
| 90461-08697 | ||||
| 90461-08887 | ||||
| 90461-08888 | ||||
| 96112-10220 | ||||

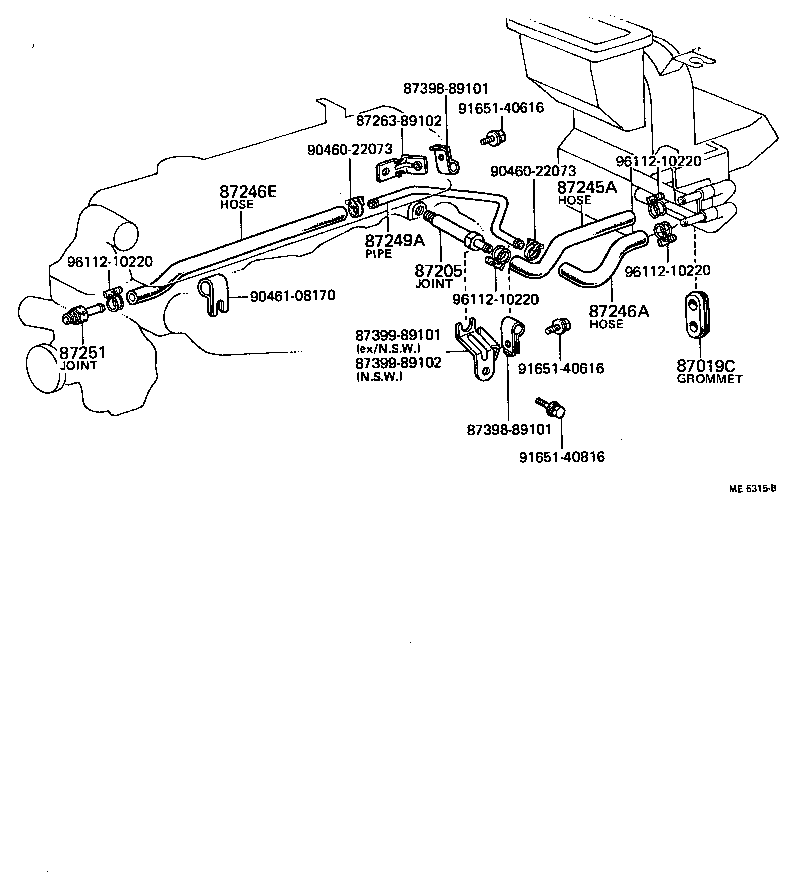

(7511-7807)RN20,25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01011 |
RN2# |
1 | ||
| 87267-89101 |
RN2# |
1 | ||
| 90480-01011 |
RN20,25 |
1 | ||
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87252-89102 |
RN20,25 |
1 | ||
| 87252-89103 |
RN20,25 |
1 | ||
| 87252-89104 |
RN20,25 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-89107 |
RN20,25 |
1 | ||
| 87245-89109 |
RN20,25 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99552-21160 |
RN20,25..RHD L=1160 |
1 | ||
| 87245-89111 |
RN20,25..RHD |
1 | ||
| 87245-89116 |
RN20,25 |
1 | ||
| 87245-89114 |
RN20,25..RHD |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 99552-20430 |
RN20,25 L=430 |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-89109 |
RN20,25 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-29020 |
RN20,25 |
1 | ||
| 87251-20010 |
RN20,25 |
1 | ||
| Common parts | ||||
| 87263-89102 | ||||
| 87398-89101 | ||||
| 87399-89101 | ||||
| 87399-89102 | ||||
| 90460-22073 | ||||
| 90461-08170 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 96112-10220 | ||||
