RN25-KR (1972)
Toyota Hilux
Production
Nov 1972
-
Jul 1978
Engine
12R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7205-7807)

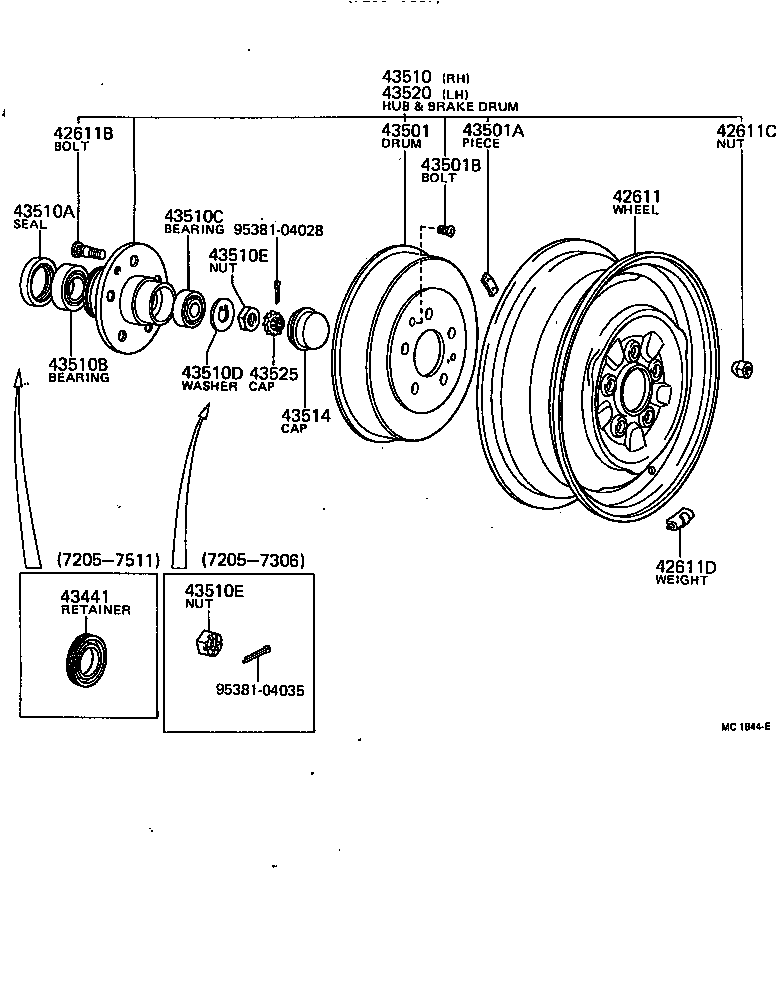

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611 - WHEEL, DISC | ||||
| 42601-35080 |
RN2# 4.5J-14 |
2 | ||
| 42601-26110 |
RN20,25 5.5J-14 |
2 | ||
| 42601-35081 |
RN20,22,25 4.5J-14 |
2 | ||
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02037 |
RN2# |
10 | ||
| 90942-02017 |
RN2# |
10 | ||
| 42611C - NUT, HUB (FOR FRONT AXLE) | ||||
| 90942-01007 |
RN2# |
10 | ||
| 90942-01021 |
RN20,25 CAP NUT |
10 | ||
| 42611D - WEIGHT, BALANCE(FOR FRONT DISC WHEEL) | ||||
| 90942-03010 |
RN2# 40G. |
1 | ||
| 90942-03012 |
RN2# 80G. |
1 | ||
| 90942-03017 |
RN2# 20G. |
1 | ||
| 90942-03022 |
RN2# 40G. |
1 | ||
| 90942-03031 |
RN2# 80G. |
1 | ||
| 90942-03011 |
RN2# 60G. |
1 | ||
| 90942-03027 |
RN2# 60G. |
1 | ||
| 43441 - RETAINER, STEERING KNUCKLE GREASE | ||||
| 43441-30020 |
RN2# |
2 | ||
| 43501 - DRUM SUB-ASSY, FRONT BRAKE | ||||
| 42431-35030 |
RN2# |
2 | ||
| 43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM) | ||||
| 90937-01100 |
RN2# 40.5G,40G. |
1 | ||
| 90937-01117 |
RN2# 10G,10G. |
1 | ||
| 90937-01118 |
RN2# 20G,20G. |
1 | ||
| 90937-01146 |
RN2# 25G,50G. |
1 | ||
| 90937-01119 |
RN2# 30G,30G. |
1 | ||
| 43501B - BOLT, SET (FOR FRONT BRAKE DRUM SETTING) | ||||
| 90113-10035 |
RN2# |
2 | ||
| 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH | ||||
| 43510-39025 |
RN2# |
1 | ||
| 43510-35031 |
RN2# |
1 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-50136 |
RN2# |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-31005 |
RN2# |
2 | ||
| 90368-34039 |
RN2# |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-21065 |
RN2# |
2 | ||
| 90368-19004 |
RN2# |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-20007 |
RN2# |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90171-19035 |
RN2# |
2 | ||
| 90170-19185 |
RN2# |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90171-19035 |
RN2# |
2 | ||
| 90170-19185 |
RN2# |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-35010 |
RN2# |
2 | ||
| 43514-30010 |
RN2# |
2 | ||
| 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH | ||||
| 43510-39025 |
RN2# |
1 | ||
| 43510-35031 |
RN2# |
1 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-22010 |
RN2# |
2 | ||
| Common parts | ||||
| 95381-04028 | ||||
| 95381-04035 | ||||
