RN25-JR (1972)

Toyota Hilux

Production May 1972 - Jul 1978
Engine 12R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

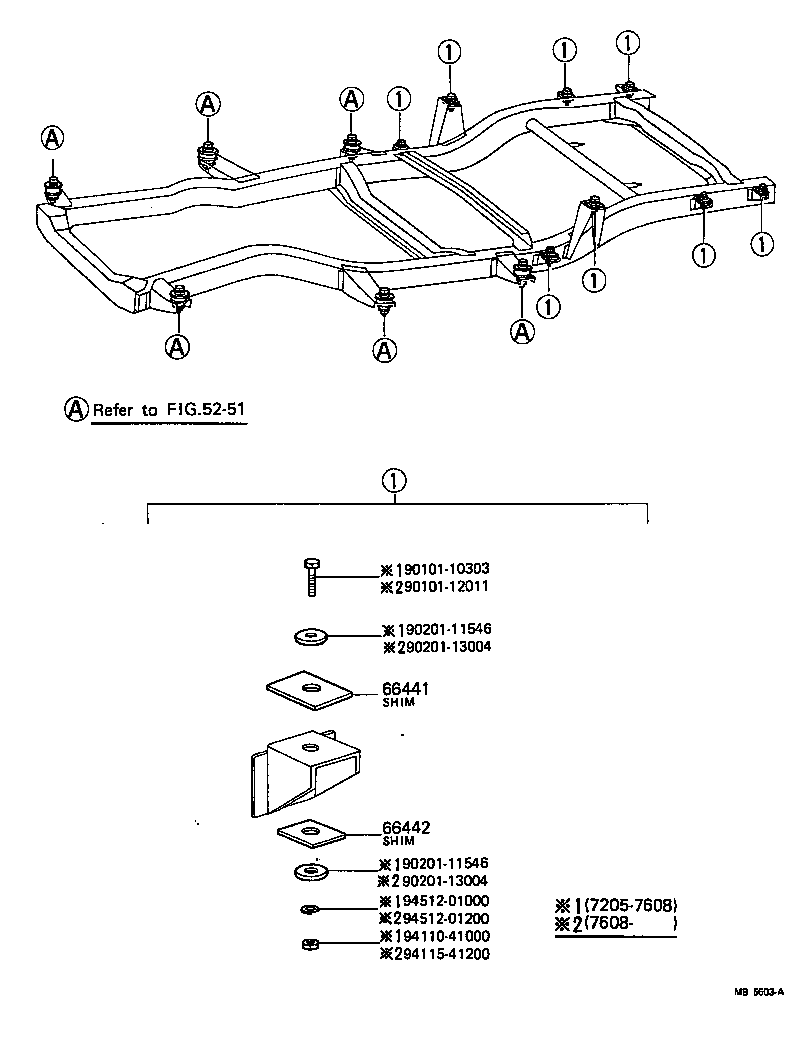

Click highlighted areas on diagram

diagram 5251 66441 66442 9010110303 9010112011 9020111546 9020111546 9020113004 9020113004 9411041000 9411541200 9451201000 9451201200
Part # Description Qty Price
66441 - SHIM, MOUNTING, NO.1
90950-04002

RN2#

50X40

 8
90950-04016

RN2#

40X40

 8
90950-04017

RN2#

50X40

 8
66442 - SHIM, MOUNTING, NO.2
90950-04003

RN2#

40X40

 8
90950-04016

RN2#

40X40

 8
Common parts
90101-10303
90101-12011
90201-11546
90201-13004
94110-41000
94115-41200
94512-01000
94512-01200
Linked diagrams
5251
