RN25-JR (1972)
Toyota Hilux

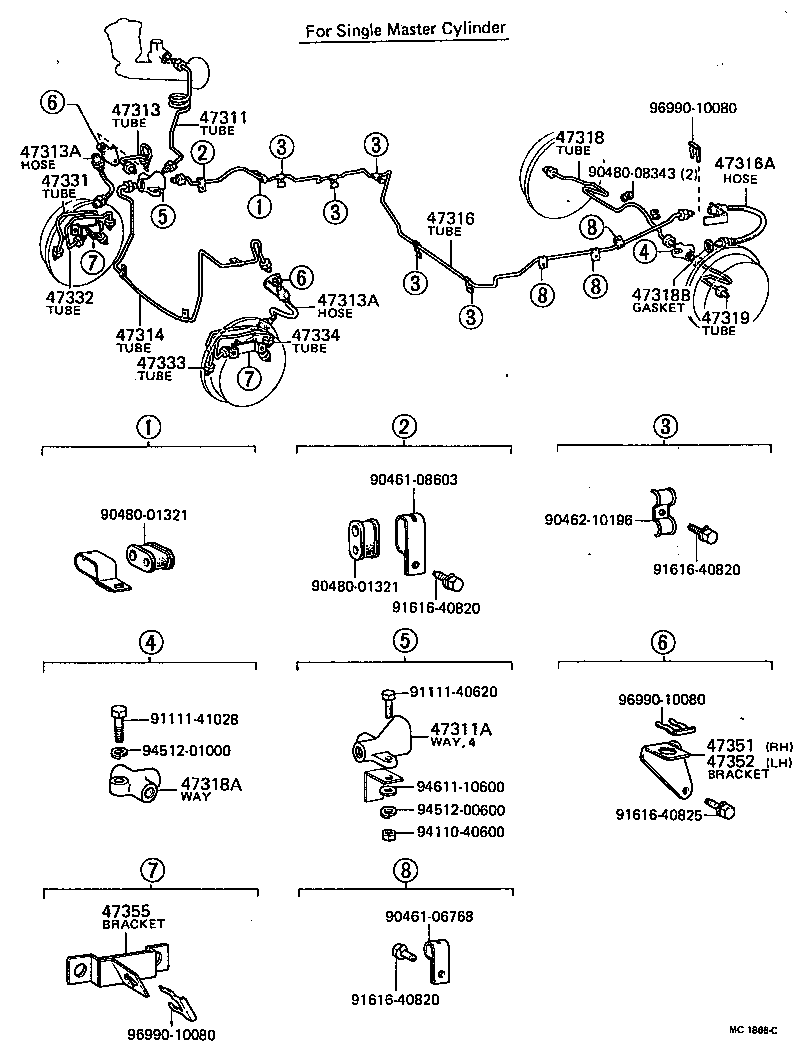

(7205-7408)RN20,25..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35150 |
RN20,25..RHD FOR SINGLE MASTER CYLINDER |
1 | ||
| 47311-35160 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311-35210 |
RN20,25..RHD FOR SINGLE MASTER CYLINDER |
1 | ||
| 47311-35241 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311-35242 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311-35240 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10123 |
RN2# FOR TANDEM MASTER CYL1NDER |
1 | ||
| 90414-10050 |
RN20,25 FOR SINGLE MASTER CYL1NDER |
1 | ||
| 90414-10047 |
RN20,25 FOR SINGLE MASTER CYL1NDER |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-35060 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313-35061 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313-35090 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313-35070 |
RN2# FOR SINGLE MASTER CYLINDER |
1 | ||
| 47313-35080 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47313-35071 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47313-35100 |
RN20,25 FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02231 |
RN2# L=388 |
2 | ||
| 90947-02089 |
RN2# L=388 |
2 | ||
| 90947-02248 |
RN2# L=375 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02231 |
RN2# L=388 |
2 | ||
| 90947-02089 |
RN2# L=388 |
2 | ||
| 90947-02248 |
RN2# L=375 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-35081 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47314-35070 |
RN2# FOR SINGLE MASTER CYLINDER |
1 | ||
| 47314-35100 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47314-35090 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47314-35120 |
RN20,25..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47314-35071 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47314-35080 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-35130 |
RN25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47316-35130 |
RN25 FOR TANDEM MASTER CYLINDER |
1 | ||
| 47316-35130 |
RN25..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47316-35171 |
RN25 |
1 | ||
| 47316-35170 |
RN25 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96920-31462 |
RN2# L=460 |
1 | ||
| 96920-31463 |
RN2# L=460 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-35060 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47318-35060 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47318-35060 |
RN20,25 |
1 | ||
| 47318-35060 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47318A - WAY(FOR REAR RH BRAKE TUBE) | ||||
| 90413-10028 |
RN2# |
1 | ||
| 47318B - GASKET(FOR REAR RH BRAKE TUBE) | ||||
| 90430-10027 |
RN2# |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-35060 |
RN20,25 |
1 | ||
| 47319-35060 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47319-35060 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47319-35060 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-30061 |
RN2# |
1 | ||
| 47331-35020 |
RN2# |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-35022 |
RN2# |
1 | ||
| 47332-35023 |
RN2# |
1 | ||
| 47332-35025 |
RN2# |
1 | ||
| 47332-35024 |
RN2# |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47331-30061 |
RN2# |
1 | ||
| 47333-35020 |
RN2# |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-35024 |
RN2# |
1 | ||
| 47334-35025 |
RN2# |
1 | ||
| 47334-35022 |
RN2# |
1 | ||
| 47334-35023 |
RN2# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35040 |
RN2# |
1 | ||
| 47351-35041 |
RN2# |
1 | ||
| 47351-35050 |
RN2# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47353-35021 |
RN2# |
1 | ||
| 47353-35020 |
RN2# |
1 | ||
| 47353-35030 |
RN2# |
1 | ||
| 47355 - BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT) | ||||
| 47354-35011 |
RN2# FOR RH. |
1 | ||
| 47354-35020 |
RN2# FOR RH. |
1 | ||
| 47354-35010 |
RN2# FOR RH. |
1 | ||
| 47355-35020 |
RN2# FOR LH. |
1 | ||
| 47355-35011 |
RN2# FOR LH. |
1 | ||
| 47355-35010 |
RN2# FOR LH. |
1 | ||
| Common parts | ||||
| 90461-06768 | ||||
| 90461-08603 | ||||
| 90462-10196 | ||||
| 90480-01321 | ||||
| 90480-08343 | ||||
| 91111-40620 | ||||
| 91111-41028 | ||||
| 91616-40820 | ||||
| 91616-40825 | ||||
| 94110-40600 | ||||
| 94512-00600 | ||||
| 94512-01000 | ||||
| 94611-10600 | ||||
| 96990-10080 | ||||
(7205-7408)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35150 |
RN20,25..RHD FOR SINGLE MASTER CYLINDER |
1 | ||
| 47311-35160 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311-35210 |
RN20,25..RHD FOR SINGLE MASTER CYLINDER |
1 | ||
| 47311-35241 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311-35242 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311-35240 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10123 |
RN2# FOR TANDEM MASTER CYL1NDER |
1 | ||
| 90414-10050 |
RN20,25 FOR SINGLE MASTER CYL1NDER |
1 | ||
| 90414-10047 |
RN20,25 FOR SINGLE MASTER CYL1NDER |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-35060 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313-35061 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313-35090 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313-35070 |
RN2# FOR SINGLE MASTER CYLINDER |
1 | ||
| 47313-35080 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47313-35071 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47313-35100 |
RN20,25 FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02231 |
RN2# L=388 |
2 | ||
| 90947-02089 |
RN2# L=388 |
2 | ||
| 90947-02248 |
RN2# L=375 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02231 |
RN2# L=388 |
2 | ||
| 90947-02089 |
RN2# L=388 |
2 | ||
| 90947-02248 |
RN2# L=375 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-35081 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47314-35070 |
RN2# FOR SINGLE MASTER CYLINDER |
1 | ||
| 47314-35100 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47314-35090 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47314-35120 |
RN20,25..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47314-35071 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47314-35080 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47312-35111 |
RN2#..RHD |
1 | ||
| 47312-35060 |
RN2#..RHD |
1 | ||
| 47312-35110 |
RN2#..RHD |
1 | ||
| 47315A - WAY OR UNION(FOR REAR BRAKE TUBE) | ||||
| 90412-10034 |
RN2# |
1 | ||
| 90412-10079 |
RN2# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-35130 |
RN25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47316-35130 |
RN25 FOR TANDEM MASTER CYLINDER |
1 | ||
| 47316-35130 |
RN25..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47316-35171 |
RN25 |
1 | ||
| 47316-35170 |
RN25 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96920-31462 |
RN2# L=460 |
1 | ||
| 96920-31463 |
RN2# L=460 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-35060 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47318-35060 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47318-35060 |
RN20,25 |
1 | ||
| 47318-35060 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47318A - WAY(FOR REAR RH BRAKE TUBE) | ||||
| 90413-10028 |
RN2# |
1 | ||
| 47318B - GASKET(FOR REAR RH BRAKE TUBE) | ||||
| 90430-10027 |
RN2# |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-35060 |
RN20,25 |
1 | ||
| 47319-35060 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47319-35060 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47319-35060 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-30061 |
RN2# |
1 | ||
| 47331-35020 |
RN2# |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-35022 |
RN2# |
1 | ||
| 47332-35023 |
RN2# |
1 | ||
| 47332-35025 |
RN2# |
1 | ||
| 47332-35024 |
RN2# |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47331-30061 |
RN2# |
1 | ||
| 47333-35020 |
RN2# |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-35024 |
RN2# |
1 | ||
| 47334-35025 |
RN2# |
1 | ||
| 47334-35022 |
RN2# |
1 | ||
| 47334-35023 |
RN2# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35040 |
RN2# |
1 | ||
| 47351-35041 |
RN2# |
1 | ||
| 47351-35050 |
RN2# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47353-35021 |
RN2# |
1 | ||
| 47353-35020 |
RN2# |
1 | ||
| 47353-35030 |
RN2# |
1 | ||
| 47355 - BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT) | ||||
| 47354-35011 |
RN2# FOR RH. |
1 | ||
| 47354-35020 |
RN2# FOR RH. |
1 | ||
| 47354-35010 |
RN2# FOR RH. |
1 | ||
| 47355-35020 |
RN2# FOR LH. |
1 | ||
| 47355-35011 |
RN2# FOR LH. |
1 | ||
| 47355-35010 |
RN2# FOR LH. |
1 | ||
| Common parts | ||||
| 90461-06768 | ||||
| 90461-08603 | ||||
| 90462-10196 | ||||
| 90480-01321 | ||||
| 90480-08343 | ||||
| 91111-40620 | ||||
| 91111-41028 | ||||
| 91616-40820 | ||||
| 91616-40825 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94512-01000 | ||||
| 94611-10600 | ||||
| 96990-10080 | ||||
(7408-7511)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35150 |
RN20,25..RHD FOR SINGLE MASTER CYLINDER |
1 | ||
| 47311-35160 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311-35210 |
RN20,25..RHD FOR SINGLE MASTER CYLINDER |
1 | ||
| 47311-35241 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311-35242 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311-35240 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10123 |
RN2# FOR TANDEM MASTER CYL1NDER |
1 | ||
| 90414-10050 |
RN20,25 FOR SINGLE MASTER CYL1NDER |
1 | ||
| 90414-10047 |
RN20,25 FOR SINGLE MASTER CYL1NDER |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-35060 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313-35061 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313-35090 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313-35070 |
RN2# FOR SINGLE MASTER CYLINDER |
1 | ||
| 47313-35080 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47313-35071 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47313-35100 |
RN20,25 FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02231 |
RN2# L=388 |
2 | ||
| 90947-02089 |
RN2# L=388 |
2 | ||
| 90947-02248 |
RN2# L=375 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02231 |
RN2# L=388 |
2 | ||
| 90947-02089 |
RN2# L=388 |
2 | ||
| 90947-02248 |
RN2# L=375 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-35081 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47314-35070 |
RN2# FOR SINGLE MASTER CYLINDER |
1 | ||
| 47314-35100 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47314-35090 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47314-35120 |
RN20,25..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47314-35071 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47314-35080 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47312-35111 |
RN2#..RHD |
1 | ||
| 47312-35060 |
RN2#..RHD |
1 | ||
| 47312-35110 |
RN2#..RHD |
1 | ||
| 47315A - WAY OR UNION(FOR REAR BRAKE TUBE) | ||||
| 90412-10034 |
RN2# |
1 | ||
| 90412-10079 |
RN2# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-35130 |
RN25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47316-35130 |
RN25 FOR TANDEM MASTER CYLINDER |
1 | ||
| 47316-35130 |
RN25..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47316-35171 |
RN25 |
1 | ||
| 47316-35170 |
RN25 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96920-31462 |
RN2# L=460 |
1 | ||
| 96920-31463 |
RN2# L=460 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-35060 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47318-35060 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47318-35060 |
RN20,25 |
1 | ||
| 47318-35060 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47318A - WAY(FOR REAR RH BRAKE TUBE) | ||||
| 90413-10028 |
RN2# |
1 | ||
| 47318B - GASKET(FOR REAR RH BRAKE TUBE) | ||||
| 90430-10027 |
RN2# |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-35060 |
RN20,25 |
1 | ||
| 47319-35060 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47319-35060 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47319-35060 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-30061 |
RN2# |
1 | ||
| 47331-35020 |
RN2# |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-35022 |
RN2# |
1 | ||
| 47332-35023 |
RN2# |
1 | ||
| 47332-35025 |
RN2# |
1 | ||
| 47332-35024 |
RN2# |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47331-30061 |
RN2# |
1 | ||
| 47333-35020 |
RN2# |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-35024 |
RN2# |
1 | ||
| 47334-35025 |
RN2# |
1 | ||
| 47334-35022 |
RN2# |
1 | ||
| 47334-35023 |
RN2# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35040 |
RN2# |
1 | ||
| 47351-35041 |
RN2# |
1 | ||
| 47351-35050 |
RN2# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47353-35021 |
RN2# |
1 | ||
| 47353-35020 |
RN2# |
1 | ||
| 47353-35030 |
RN2# |
1 | ||
| 47355 - BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT) | ||||
| 47354-35011 |
RN2# FOR RH. |
1 | ||
| 47354-35020 |
RN2# FOR RH. |
1 | ||
| 47354-35010 |
RN2# FOR RH. |
1 | ||
| 47355-35020 |
RN2# FOR LH. |
1 | ||
| 47355-35011 |
RN2# FOR LH. |
1 | ||
| 47355-35010 |
RN2# FOR LH. |
1 | ||
| Common parts | ||||
| 90461-06031 | ||||
| 90461-06768 | ||||
| 90461-08115 | ||||
| 90461-08603 | ||||
| 90462-10194 | ||||
| 90462-12219 | ||||
| 90480-01321 | ||||
| 90480-01487 | ||||
| 90480-08343 | ||||
| 91111-40614 | ||||
| 91111-41028 | ||||
| 91616-40820 | ||||
| 94110-40600 | ||||
| 94180-40800 | ||||
| 94512-00600 | ||||
| 94512-01000 | ||||
| 94611-10600 | ||||
| 96991-10080 | ||||
(7408-7807)RN20,25..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35150 |
RN20,25..RHD FOR SINGLE MASTER CYLINDER |
1 | ||
| 47311-35160 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311-35210 |
RN20,25..RHD FOR SINGLE MASTER CYLINDER |
1 | ||
| 47311-35241 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311-35242 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311-35240 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10123 |
RN2# FOR TANDEM MASTER CYL1NDER |
1 | ||
| 90414-10050 |
RN20,25 FOR SINGLE MASTER CYL1NDER |
1 | ||
| 90414-10047 |
RN20,25 FOR SINGLE MASTER CYL1NDER |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-35060 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313-35061 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313-35090 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313-35070 |
RN2# FOR SINGLE MASTER CYLINDER |
1 | ||
| 47313-35080 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47313-35071 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47313-35100 |
RN20,25 FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02231 |
RN2# L=388 |
2 | ||
| 90947-02089 |
RN2# L=388 |
2 | ||
| 90947-02248 |
RN2# L=375 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02231 |
RN2# L=388 |
2 | ||
| 90947-02089 |
RN2# L=388 |
2 | ||
| 90947-02248 |
RN2# L=375 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-35081 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47314-35070 |
RN2# FOR SINGLE MASTER CYLINDER |
1 | ||
| 47314-35100 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47314-35090 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47314-35120 |
RN20,25..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47314-35071 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47314-35080 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-35130 |
RN25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47316-35130 |
RN25 FOR TANDEM MASTER CYLINDER |
1 | ||
| 47316-35130 |
RN25..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47316-35171 |
RN25 |
1 | ||
| 47316-35170 |
RN25 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96920-31462 |
RN2# L=460 |
1 | ||
| 96920-31463 |
RN2# L=460 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-35060 |
RN20,25 |
1 | ||
| 47318-35060 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47318-35060 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47318-35060 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47318A - WAY(FOR REAR RH BRAKE TUBE) | ||||
| 90413-10028 |
RN2# |
1 | ||
| 47318B - GASKET(FOR REAR RH BRAKE TUBE) | ||||
| 90430-10027 |
RN2# |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-35060 |
RN20,25 |
1 | ||
| 47319-35060 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47319-35060 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47319-35060 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-30061 |
RN2# |
1 | ||
| 47331-35020 |
RN2# |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-35022 |
RN2# |
1 | ||
| 47332-35023 |
RN2# |
1 | ||
| 47332-35025 |
RN2# |
1 | ||
| 47332-35024 |
RN2# |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47331-30061 |
RN2# |
1 | ||
| 47333-35020 |
RN2# |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-35024 |
RN2# |
1 | ||
| 47334-35025 |
RN2# |
1 | ||
| 47334-35022 |
RN2# |
1 | ||
| 47334-35023 |
RN2# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35040 |
RN2# |
1 | ||
| 47351-35041 |
RN2# |
1 | ||
| 47351-35050 |
RN2# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47353-35021 |
RN2# |
1 | ||
| 47353-35020 |
RN2# |
1 | ||
| 47353-35030 |
RN2# |
1 | ||
| 47355 - BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT) | ||||
| 47354-35011 |
RN2# FOR RH. |
1 | ||
| 47354-35020 |
RN2# FOR RH. |
1 | ||
| 47354-35010 |
RN2# FOR RH. |
1 | ||
| 47355-35020 |
RN2# FOR LH. |
1 | ||
| 47355-35011 |
RN2# FOR LH. |
1 | ||
| 47355-35010 |
RN2# FOR LH. |
1 | ||
| Common parts | ||||
| 90461-06788 | ||||
| 90461-08603 | ||||
| 90462-10194 | ||||
| 90462-12003 | ||||
| 90480-01487 | ||||
| 90480-08343 | ||||
| 91111-40614 | ||||
| 91111-41028 | ||||
| 91616-40820 | ||||
| 94110-40600 | ||||
| 94512-00600 | ||||
| 94512-01000 | ||||
| 94611-10600 | ||||
| 96991-10080 | ||||
(7511-7807)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35150 |
RN20,25..RHD FOR SINGLE MASTER CYLINDER |
1 | ||
| 47311-35160 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311-35210 |
RN20,25..RHD FOR SINGLE MASTER CYLINDER |
1 | ||
| 47311-35241 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311-35242 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311-35240 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10123 |
RN2# FOR TANDEM MASTER CYL1NDER |
1 | ||
| 90414-10050 |
RN20,25 FOR SINGLE MASTER CYL1NDER |
1 | ||
| 90414-10047 |
RN20,25 FOR SINGLE MASTER CYL1NDER |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-35060 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313-35061 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313-35090 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313-35070 |
RN2# FOR SINGLE MASTER CYLINDER |
1 | ||
| 47313-35080 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47313-35071 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47313-35100 |
RN20,25 FOR TANDEM MASTER CYLINDER |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02231 |
RN2# L=388 |
2 | ||
| 90947-02089 |
RN2# L=388 |
2 | ||
| 90947-02248 |
RN2# L=375 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02231 |
RN2# L=388 |
2 | ||
| 90947-02089 |
RN2# L=388 |
2 | ||
| 90947-02248 |
RN2# L=375 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-35081 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47314-35070 |
RN2# FOR SINGLE MASTER CYLINDER |
1 | ||
| 47314-35100 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47314-35090 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47314-35120 |
RN20,25..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47314-35071 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47314-35080 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47312-35111 |
RN2#..RHD |
1 | ||
| 47312-35060 |
RN2#..RHD |
1 | ||
| 47312-35110 |
RN2#..RHD |
1 | ||
| 47315A - WAY OR UNION(FOR REAR BRAKE TUBE) | ||||
| 90412-10034 |
RN2# |
1 | ||
| 90412-10079 |
RN2# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-35130 |
RN25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47316-35130 |
RN25 FOR TANDEM MASTER CYLINDER |
1 | ||
| 47316-35130 |
RN25..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47316-35171 |
RN25 |
1 | ||
| 47316-35170 |
RN25 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96920-31462 |
RN2# L=460 |
1 | ||
| 96920-31463 |
RN2# L=460 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-35060 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47318-35060 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47318-35060 |
RN20,25 |
1 | ||
| 47318-35060 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47318A - WAY(FOR REAR RH BRAKE TUBE) | ||||
| 90413-10028 |
RN2# |
1 | ||
| 47318B - GASKET(FOR REAR RH BRAKE TUBE) | ||||
| 90430-10027 |
RN2# |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-35060 |
RN20,25 |
1 | ||
| 47319-35060 |
RN2# FOR TANDEM MASTER CYLINDER |
1 | ||
| 47319-35060 |
RN20,25 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47319-35060 |
RN2#..RHD FOR TANDEM MASTER CYLINDER |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-30061 |
RN2# |
1 | ||
| 47331-35020 |
RN2# |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-35022 |
RN2# |
1 | ||
| 47332-35023 |
RN2# |
1 | ||
| 47332-35025 |
RN2# |
1 | ||
| 47332-35024 |
RN2# |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47331-30061 |
RN2# |
1 | ||
| 47333-35020 |
RN2# |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-35024 |
RN2# |
1 | ||
| 47334-35025 |
RN2# |
1 | ||
| 47334-35022 |
RN2# |
1 | ||
| 47334-35023 |
RN2# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35040 |
RN2# |
1 | ||
| 47351-35041 |
RN2# |
1 | ||
| 47351-35050 |
RN2# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47353-35021 |
RN2# |
1 | ||
| 47353-35020 |
RN2# |
1 | ||
| 47353-35030 |
RN2# |
1 | ||
| 47355 - BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT) | ||||
| 47354-35011 |
RN2# FOR RH. |
1 | ||
| 47354-35020 |
RN2# FOR RH. |
1 | ||
| 47354-35010 |
RN2# FOR RH. |
1 | ||
| 47355-35020 |
RN2# FOR LH. |
1 | ||
| 47355-35011 |
RN2# FOR LH. |
1 | ||
| 47355-35010 |
RN2# FOR LH. |
1 | ||
| Common parts | ||||
| 90461-06768 | ||||
| 90461-08603 | ||||
| 90462-12003 | ||||
| 90462-12219 | ||||
| 90480-01487 | ||||
| 90480-08343 | ||||
| 91111-40614 | ||||
| 91111-41028 | ||||
| 91616-40820 | ||||
| 94110-40600 | ||||
| 94512-00600 | ||||
| 94512-01000 | ||||
| 94611-10600 | ||||
| 96991-10080 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
