RN22-KD (1974)
Toyota Hilux
(7205-7807)

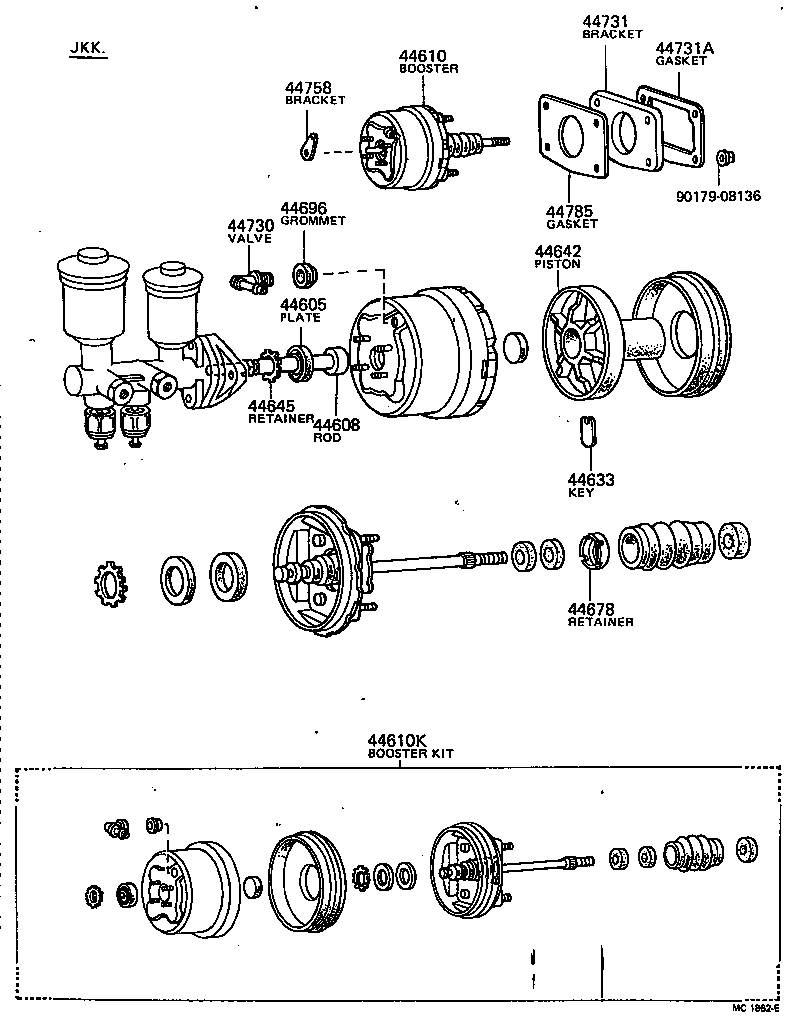

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
RN2# |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-30050 |
RN2#..RHD ASCO |
1 | ||
| 44608-14040 |
RN2# JKK |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-35031 |
RN2# JKK |
1 | ||
| 44610-35061 |
RN2#..RHD ASCO |
1 | ||
| 44610-35031 |
RN2#..RHD JKK |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-35020 |
RN2# JKK |
1 | ||
| 04443-35030 |
RN2#..RHD ASCO FOR MAJOR |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-22020 |
RN2# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-25010 |
RN2#..RHD ASCO |
1 | ||
| 44642-25021 |
RN2# JKK |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
RN2#..RHD ASCO |
1 | ||
| 44645-22020 |
RN2# JKK |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
RN2# |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24438 |
RN2# JKK |
1 | ||
| 90480-24517 |
RN2# JKK |
1 | ||
| 90480-24439 |
RN2#..RHD ASCO |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22050 |
RN2# JKK |
1 | ||
| 44730-22060 |
RN2#..RHD ASCO |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-35030 |
RN2# |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-35010 |
RN2# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-35010 |
RN2# |
1 | ||
| 44758-20060 |
RN2# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35010 |
RN2# |
1 | ||
| Common parts | ||||
| 90179-08136 | ||||

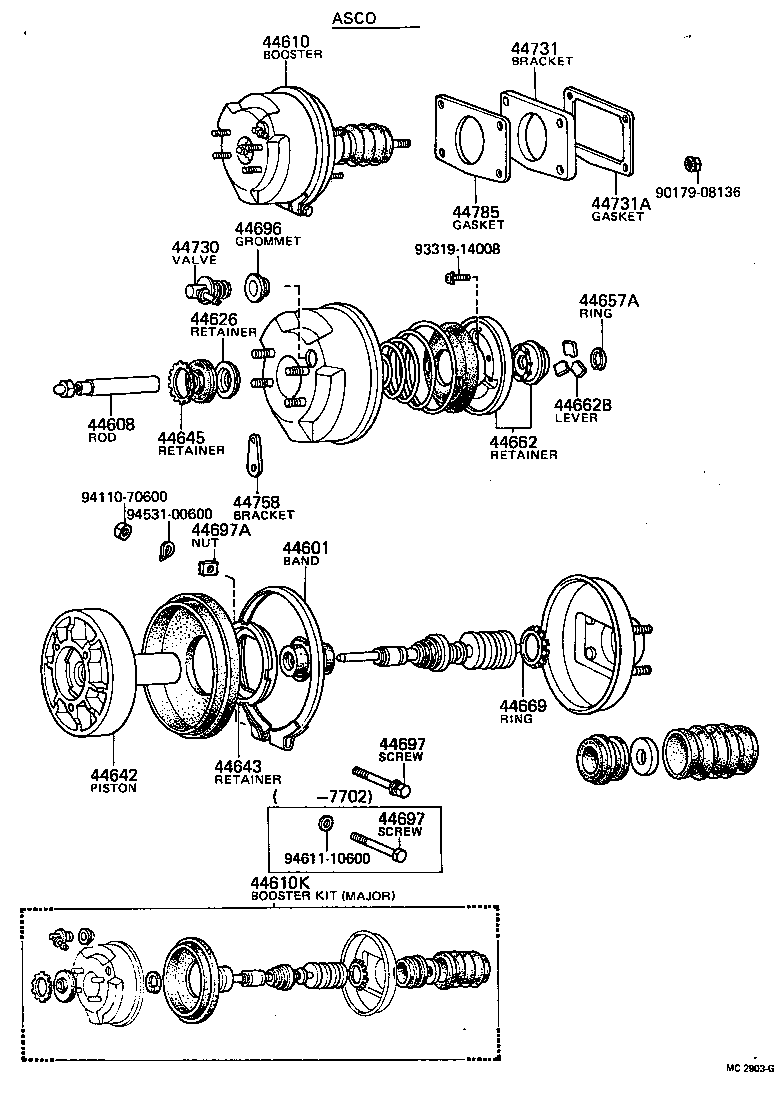

(7408-7807)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44601 - BAND SUB-ASSY, BOOSTER BODY | ||||
| 44605-60010 |
RN2#..RHD |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-30050 |
RN2#..RHD ASCO |
1 | ||
| 44608-14040 |
RN2# JKK |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-35031 |
RN2# JKK |
1 | ||
| 44610-35061 |
RN2#..RHD ASCO |
1 | ||
| 44610-35031 |
RN2#..RHD JKK |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-35020 |
RN2# JKK |
1 | ||
| 04443-35030 |
RN2#..RHD ASCO FOR MAJOR |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
RN2#..RHD |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-25010 |
RN2#..RHD ASCO |
1 | ||
| 44642-25021 |
RN2# JKK |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
RN2#..RHD |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
RN2#..RHD ASCO |
1 | ||
| 44645-22020 |
RN2# JKK |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
RN2#..RHD |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44609-35060 |
RN2# |
1 | ||
| 44609-30100 |
RN2#..RHD |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-60010 |
RN2#..RHD |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
RN2#..RHD |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24438 |
RN2# JKK |
1 | ||
| 90480-24517 |
RN2# JKK |
1 | ||
| 90480-24439 |
RN2#..RHD ASCO |
1 | ||
| 44697 - SCREW, BOOSTER BAND SET | ||||
| 44681-60011 |
RN2# |
1 | ||
| 44681-30170 |
RN2#..RHD |
1 | ||
| 44697 - SCREW, BOOSTER BAND SET | ||||
| 44681-60011 |
RN2# |
1 | ||
| 44681-30170 |
RN2#..RHD |
1 | ||
| 44697A - NUT(FOR BOOSTER BAND SET) | ||||
| 44686-30030 |
RN2#..RHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22050 |
RN2# JKK |
1 | ||
| 44730-22060 |
RN2#..RHD ASCO |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-35030 |
RN2# |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-35010 |
RN2# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-35010 |
RN2# |
1 | ||
| 44758-20060 |
RN2# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35010 |
RN2# |
1 | ||
| Common parts | ||||
| 90179-08136 | ||||
| 93319-14008 | ||||
| 94110-70600 | ||||
| 94531-00600 | ||||
| 94611-10600 | ||||

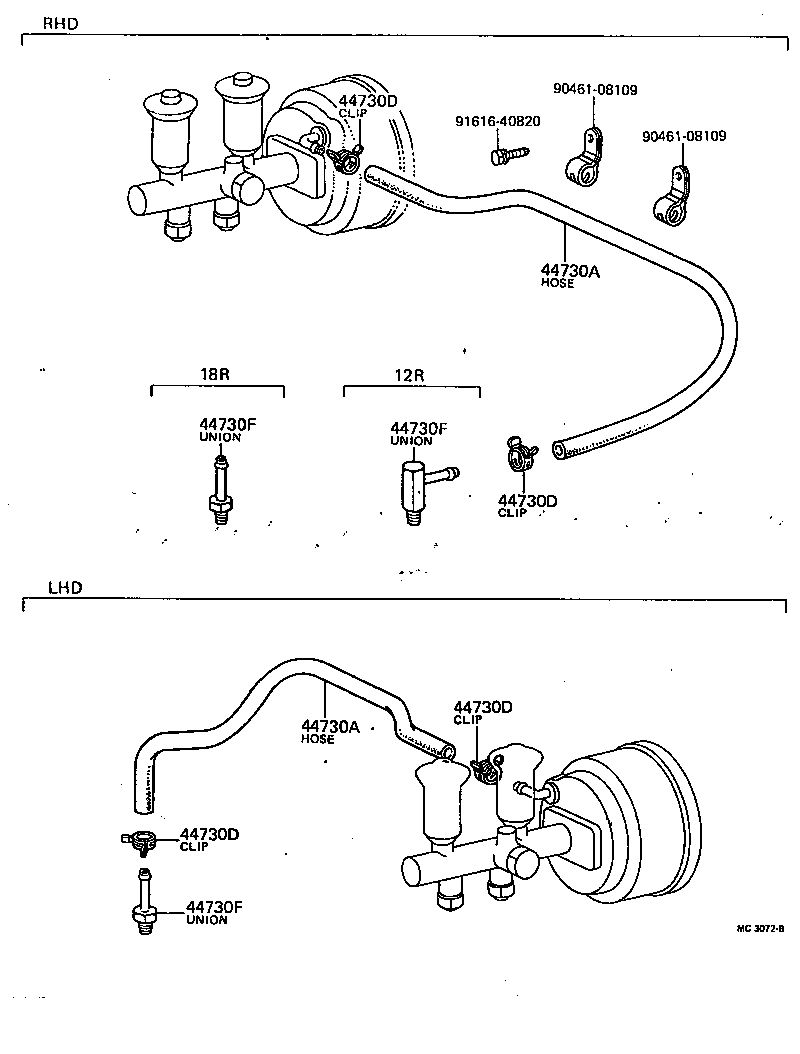

(7205-7807)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 90445-17859 |
RN22..RHD |
1 | ||
| 44773-35060 |
RN22,27..RHD |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 90445-17859 |
RN22..RHD |
1 | ||
| 44773-35060 |
RN22,27..RHD |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RN2# |
2 | ||
| 96112-10180 |
RN2# |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RN2# |
2 | ||
| 96112-10180 |
RN2# |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RN2# |
2 | ||
| 96112-10180 |
RN2# |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RN2# |
2 | ||
| 96112-10180 |
RN2# |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
RN22,27..4F,5F |
1 | ||
| 90404-51237 |
RN22 |
1 | ||
| 90404-51237 |
RN20,22,25..4F,4H |
1 | ||
| 90404-51237 |
RN2# |
1 | ||
| 90404-51237 |
RN22 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
RN22,27..4F,5F |
1 | ||
| 90404-51237 |
RN22 |
1 | ||
| 90404-51237 |
RN20,22,25..4F,4H |
1 | ||
| 90404-51237 |
RN2# |
1 | ||
| 90404-51237 |
RN22 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
RN22,27..4F,5F |
1 | ||
| 90404-51237 |
RN22 |
1 | ||
| 90404-51237 |
RN20,22,25..4F,4H |
1 | ||
| 90404-51237 |
RN2# |
1 | ||
| 90404-51237 |
RN22 |
1 | ||
| Common parts | ||||
| 90461-08109 | ||||
| 91616-40820 | ||||
(0408-0808)KUN15,16,2#,3#..RHD ; (0808- )KUN26..RHD..5F ; (0808- )KUN15,16,25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0059 | ||||
| 90178-T0067 | ||||
| 90182-T0001 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 4702 | ||||
| 8401 | ||||
