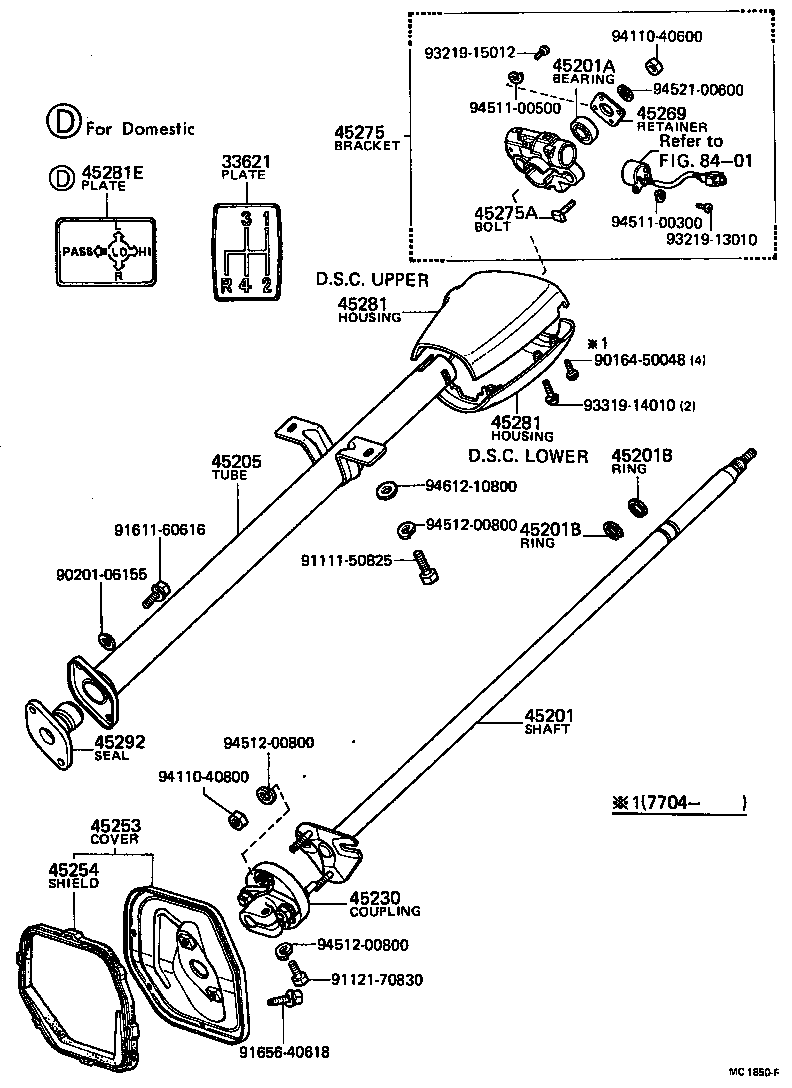

RN22-KD (1974)
Toyota Hilux
(7205-7807)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-35080 |
RN22,27..RHD W/STEERING LOCK |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
RN2# B18Z-1B1 C3 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RN2# T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RN2# T=1.20 |
2 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45250-35050 |
RN22 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-35010 |
RN2# |
1 | ||
| 45230-35020 |
RN2# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 55607-89106 |
RN2#..RHD..4F |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 55673-89104 |
RN20,22,25..RHD |
1 | ||
| 55673-89102 |
RN2#..RHD |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-60010 |
RN2# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-35030 |
RN22,27..RHD W/STEERING LOCK |
1 | ||
| 45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET) | ||||
| 90108-06024 |
RN2# |
2 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-35041 |
RN2#..RHD..4F FOR LOWER |
1 | ||
| 45286-35071 |
RN2#..RHD..4F FOR UPPER,W/STEERING LOCK |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-35041 |
RN2#..RHD..4F FOR LOWER |
1 | ||
| 45286-35071 |
RN2#..RHD..4F FOR UPPER,W/STEERING LOCK |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35020 |
RN2# |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 90201-06155 | ||||
| 91111-50825 | ||||
| 91121-70830 | ||||
| 91611-60616 | ||||
| 91656-40618 | ||||
| 93219-13010 | ||||
| 93219-15012 | ||||
| 93319-14010 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94511-00300 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
| 94521-00600 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

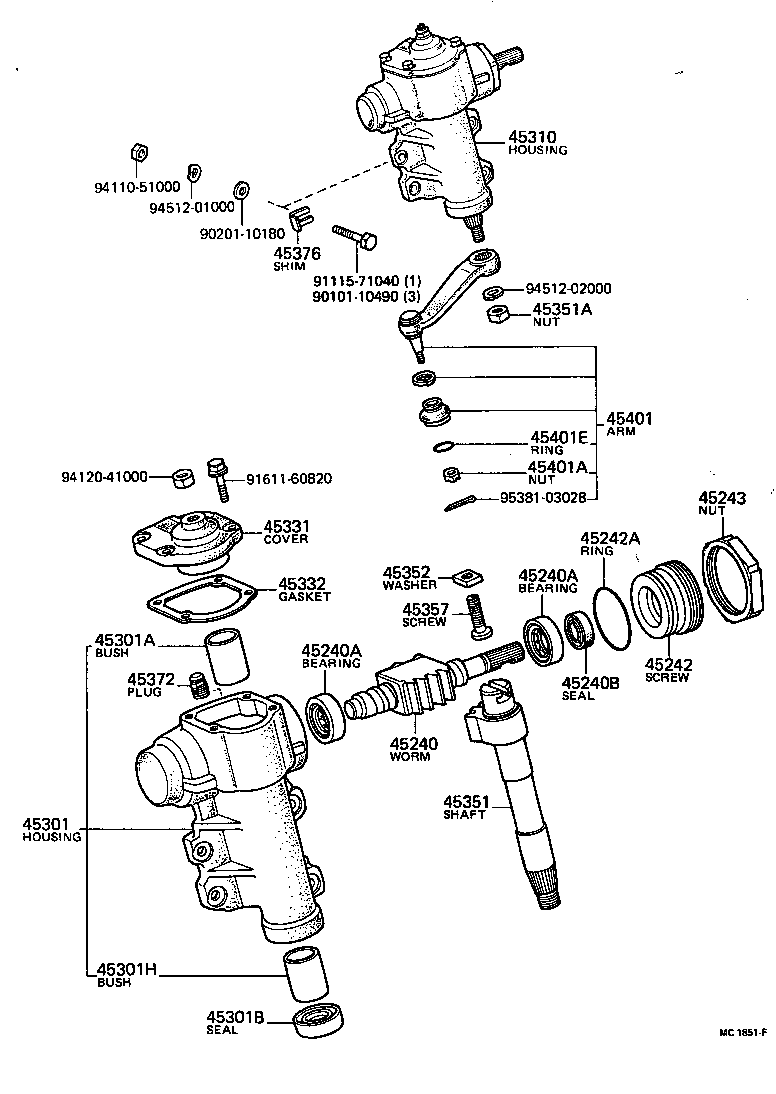

(7205-7807)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-14010 |
RN2#..RHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40018 |
RN2#..RHD |
2 | ||
| 90369-40018 |
RN2# |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40018 |
RN2#..RHD |
2 | ||
| 90369-40018 |
RN2# |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-17092 |
RN2#..RHD MHSA 17.4 30 7 |
1 | ||
| 90311-17092 |
RN2# MHSA 17.4 30 7 |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-35040 |
RN2#..RHD |
1 | ||
| 45242A - RING, O(FOR WORM BEARING ADJUSTING SCREW) | ||||
| 90301-53181 |
RN2#..RHD |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-22020 |
RN2#..RHD |
1 | ||
| 45243-22020 |
RN2# |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-35050 |
RN2#..RHD |
1 | ||
| 45301-35060 |
RN2#..4F |
1 | ||
| 45301-35070 |
RN2#..RHD |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73008 |
RN2# |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-28027 |
RN2# |
1 | ||
| 45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2 | ||||
| 90999-73008 |
RN2# |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-35060 |
RN2#..RHD |
1 | ||
| 45310-35050 |
RN2#..4F |
1 | ||
| 45310-35040 |
RN2#..RHD |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-35020 |
RN2#..RHD |
1 | ||
| 45304-35020 |
RN2# |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-35020 |
RN2#..RHD |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-22030 |
RN2#..RHD |
1 | ||
| 45351-35040 |
RN2#..4F |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
RN2# |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-14050 |
RN2#..RHD T=2.16,T=2.16 |
1 | ||
| 45352-14030 |
RN2#..RHD T=2.08,T=2.08 |
1 | ||
| 45352-14020 |
RN2#..RHD T=2.04,T=2.04 |
1 | ||
| 45352-14040 |
RN2#..RHD T=2.12,T=2.12 |
1 | ||
| 45352-14060 |
RN2#..RHD T=2.20,T=2.20 |
1 | ||
| 45352-14010 |
RN2#..RHD T=2.00,T=2.00 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
RN2#..RHD |
1 | ||
| 45357-30040 |
RN2# |
1 | ||
| 45357-30040 |
RN2# |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
RN2# |
1 | ||
| 45376 - SHIM,STEERING POST ADJUST, NO.2 | ||||
| 45376-35010 |
RN2# T=0.5 |
2 | ||
| 45377-35010 |
RN2# T=1.0 |
2 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-39115 |
RN2#..RHD |
1 | ||
| 45401-39135 |
RN2#..RHD |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
RN2# |
1 | ||
| 45401E - RING, O(FOR PITMAN ARM) | ||||
| 90562-16107 |
RN2# |
1 | ||
| Common parts | ||||
| 90101-10490 | ||||
| 90201-10180 | ||||
| 91115-71040 | ||||
| 91611-60820 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
| 94512-02000 | ||||
| 95381-03028 | ||||
