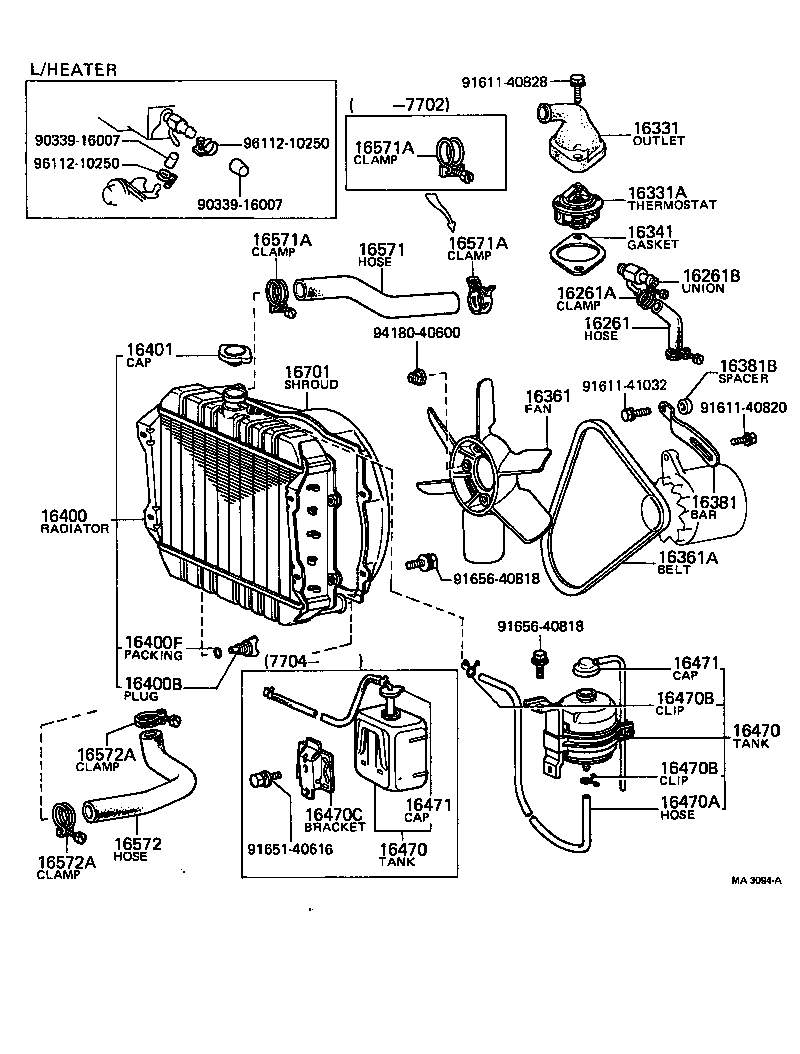

RN22-KD (1974)
Toyota Hilux
(7404-7807)18R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 90910-05106 |
18R..RN22,27 |
1 | ||
| 90910-05081 |
18R..RN22 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10160 |
18R..RN22,27 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-17005 |
18R..RN22,27 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-36011 |
18R..RN22 |
1 | ||
| 16331-36012 |
18R..RN22,27 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03033 |
18R..RN22 WAX 82-95 FUJI-THOMSON |
1 | ||
| 90916-03036 |
18R..RN22,27 WAX 88-100 FUJI-THOMSON |
1 | ||
| 90916-03040 |
18R..RN22,27 WAX 88-100 KUZEH |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-49010 |
12R#,18R..RN2# |
1 | ||
| 16361 - FAN | ||||
| 16361-34030 |
18R..RN22 7 BLADES |
1 | ||
| 16361-33020 |
18R..RN22..MTM 6 BLADES |
1 | ||
| 16361-38010 |
18R..RN22,27 7 BLADES |
1 | ||
| 16361-33020 |
18R..RN22..MTM 6 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99521-10839 |
18R..RN22,27 L=839 |
1 | ||
| 99521-10843 |
18R..RN22 L=843 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-33010 |
18R..RN22 |
1 | ||
| 16381-34030 |
18R..RN22,27 |
1 | ||
| 16381B - SPACER, FAN BELT ADJUSTING BAR | ||||
| 90560-10005 |
18R..RN22,27 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-34080 |
18R..RN22..4F |
1 | ||
| 16400-34081 |
18R..RN22..MTM |
1 | ||
| 16400-34082 |
18R..RN22,27..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
12R#,18R..RN2# |
1 | ||
| 90910-09052 |
12R,18R..RN2# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 90099-06030 |
12R,18R..RN2# |
1 | ||
| 96710-01007 |
12R#,18R..RN2# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36010 |
12R#,18R..RN2# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-34120 |
18R..RN22,27 |
1 | ||
| 16470-31010 |
12R,18R..RN2# |
1 | ||
| 16470-34110 |
12R#,18R..RN2# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-34120 |
18R..RN22,27 |
1 | ||
| 16470-31010 |
12R,18R..RN2# |
1 | ||
| 16470-34110 |
12R#,18R..RN2# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12013 |
12R,18R..RN2# *H,L=700 |
1 | ||
| 90445-12781 |
12R,18R..RN2# *H,L=750 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
12R,18R..RN2# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
12R,18R..RN2# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-31010 |
12R#,18R..RN2# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-41060 |
12R,18R..RN2# |
1 | ||
| 16471-34120 |
18R..RN22,27 |
1 | ||
| 16471-34110 |
12R#,18R..RN2# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-41060 |
12R,18R..RN2# |
1 | ||
| 16471-34120 |
18R..RN22,27 |
1 | ||
| 16471-34110 |
12R#,18R..RN2# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-33011 |
18R..RN22 |
1 | ||
| 16571-33012 |
18R..RN22 |
1 | ||
| 16571-34050 |
18R..RN22,27 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-47036 |
18R..RN22 |
2 | ||
| 96111-10430 |
18R..RN22,27 RADIATOR SIDE |
1 | ||
| 96111-10450 |
18R..RN22 |
2 | ||
| 90467-37001 |
18R..RN22,27 WATER OUTLET SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-47036 |
18R..RN22 |
2 | ||
| 96111-10430 |
18R..RN22,27 RADIATOR SIDE |
1 | ||
| 96111-10450 |
18R..RN22 |
2 | ||
| 90467-37001 |
18R..RN22,27 WATER OUTLET SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-47036 |
18R..RN22 |
2 | ||
| 96111-10430 |
18R..RN22,27 RADIATOR SIDE |
1 | ||
| 96111-10450 |
18R..RN22 |
2 | ||
| 90467-37001 |
18R..RN22,27 WATER OUTLET SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-33011 |
18R..RN22 |
1 | ||
| 16572-33012 |
18R..RN22,27 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10450 |
18R..RN22,27 ID=45 |
1 | ||
| 96111-10480 |
18R..RN22,27 ID=48 |
1 | ||
| 90460-47036 |
18R..RN22 ID=47 |
1 | ||
| 90460-49062 |
18R..RN22 ID=49 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10450 |
18R..RN22,27 ID=45 |
1 | ||
| 96111-10480 |
18R..RN22,27 ID=48 |
1 | ||
| 90460-47036 |
18R..RN22 ID=47 |
1 | ||
| 90460-49062 |
18R..RN22 ID=49 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-34050 |
18R..RN22 |
1 | ||
| 16711-34051 |
18R..RN22 |
1 | ||
| 16711-34052 |
18R..RN22,27 |
1 | ||
| Common parts | ||||
| 90339-16007 | ||||
| 91611-40820 | ||||
| 91611-40828 | ||||
| 91611-41032 | ||||
| 91651-40616 | ||||
| 91656-40818 | ||||
| 94180-40600 | ||||
| 96112-10250 | ||||
