RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

Click highlighted areas on diagram

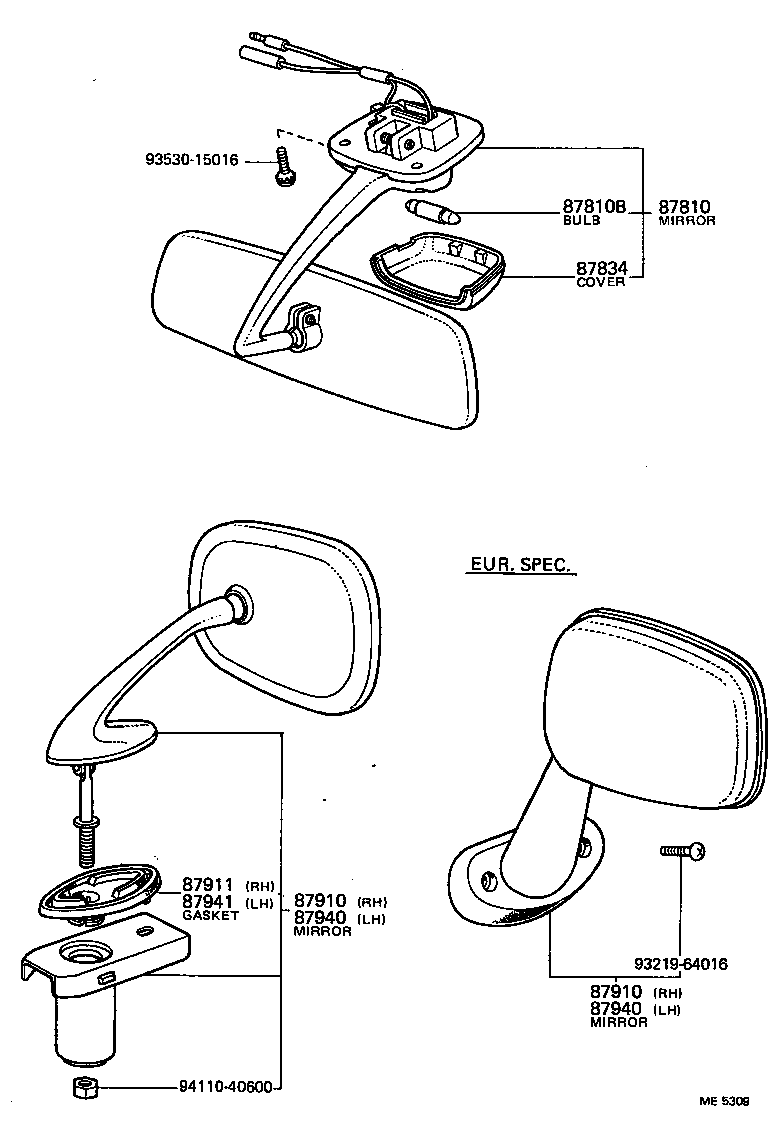

diagram 87810 87810B 87834 87910 87910 87911 87940 87940 87941 9321964016 9353015016 9411040600
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-89104

RN2#

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
99132-13050

RN2#

12V 5W,12V 5W

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87814-12020

RN2#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-89103

RN2#

CONVEX TYPE

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-89103

RN2#

CONVEX TYPE

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-89102

RN2#

CONVEX TYPE

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-89102

RN2#

CONVEX TYPE

 1
Common parts
93219-64016
93530-15016
94110-40600
