RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

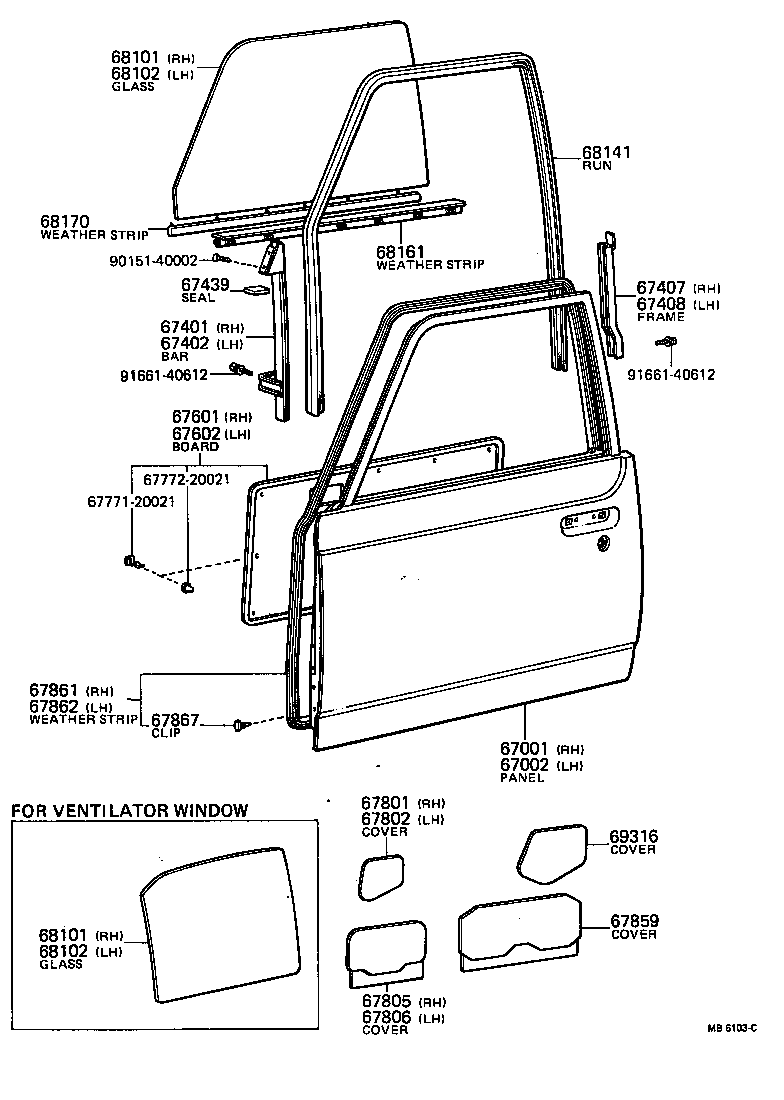

Click highlighted areas on diagram

diagram 67001 67002 67401 67402 67407 67408 67439 67601 67602 6777120021 6777220021 67801 67802 67805 67806 67859 67861 67862 67867 68101 68101 68102 68102 68141 68161 68170 69316 9015140002 9166140612 9166140612
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-89106

RN2#

 1
67001-89112

RN2#

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-89114

RN2#

 1
67002-89107

RN2#

 1
67401 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH
67401-89102

RN22,27..RHD

 1
67402 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH
67402-89102

RN22,27..RHD

 1
67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67407-89101

RN2#

 1
67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67408-89101

RN2#

 1
67439 - SEAL, FRONT JOINT PIECE
67439-89101

RN22,27..RHD

 2
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-8911306

RN22

FOR W/ARM REST,BROWN,BROWN

 1
67610-8911401

RN22..RHD

FOR W/ARM REST,BLACK,BLACK

 1
67610-8911301

RN22

FOR W/ARM REST,BLACK,BLACK

 1
67610-8911406

RN22..RHD

FOR W/ARM REST,BROWN,BROWN

 1
67610-8911404

RN22..RHD

BLUE,BLUE

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-8911106

RN22..RHD

FOR W/ARM REST,BROWN,BROWN

 1
67620-8911111

RN22..RHD

FOR W/ARM REST,BLACK,BLACK

 1
67620-8911104

RN22..RHD

FOR W/ARM REST,BLUE,BLUE

 1
67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
67839-89101

RN20,22,25

 1
67802 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
67839-89101

RN20,22,25

 1
67805 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.2 RH
67805-89101

RN2#

 1
67805-89103

RN20,22,25

 1
67806 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.2 LH
67806-89103

RN20,22,25

 1
67806-89101

RN2#

 1
67859 - COVER, FRONT DOOR GLASS CHANNEL SERVICE HOLE
67801-89102

RN2#

 2
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-89102

RN2#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-89101

RN2#

 1
67867 - CLIP, DOOR WEATHERSTRIP
67867-12010

RN2#

 50
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-89106

RN2#

FOR VENTILATOR WINDOW,TP.T=4.0

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-89106

RN2#

FOR VENTILATOR WINDOW,TP.T=4.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-89105

RN2#

FOR VENTILATOR WINDOW,TP.T=4.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-89105

RN2#

FOR VENTILATOR WINDOW,TP.T=4.0

 1
68141 - RUN, FRONT DOOR GLASS
68141-89104

RN2#

FOR VENTILATOR WINDOW

 2
68141-89103

RN22,27..RHD

 2
68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68160-89103

RN2#

FOR VENTILATOR WINDOW

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-89111

RN2#

FOR VENTILATOR WINDOW,RH.

 1
68170-89103

RN22,27..RHD

 2
68172-89101

RN2#

FOR VENTILATOR WINDOW,LH.

 1
69316 - COVER,FRONT DOOR LOCK
67836-89101

RN20,22,25

 2
Common parts
67771-20021
67772-20021
90151-40002
91661-40612
