RN22-HD (1974)
Toyota Hilux
Production
Apr 1974
-
Jul 1978
Engine
18R
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7205-7807)

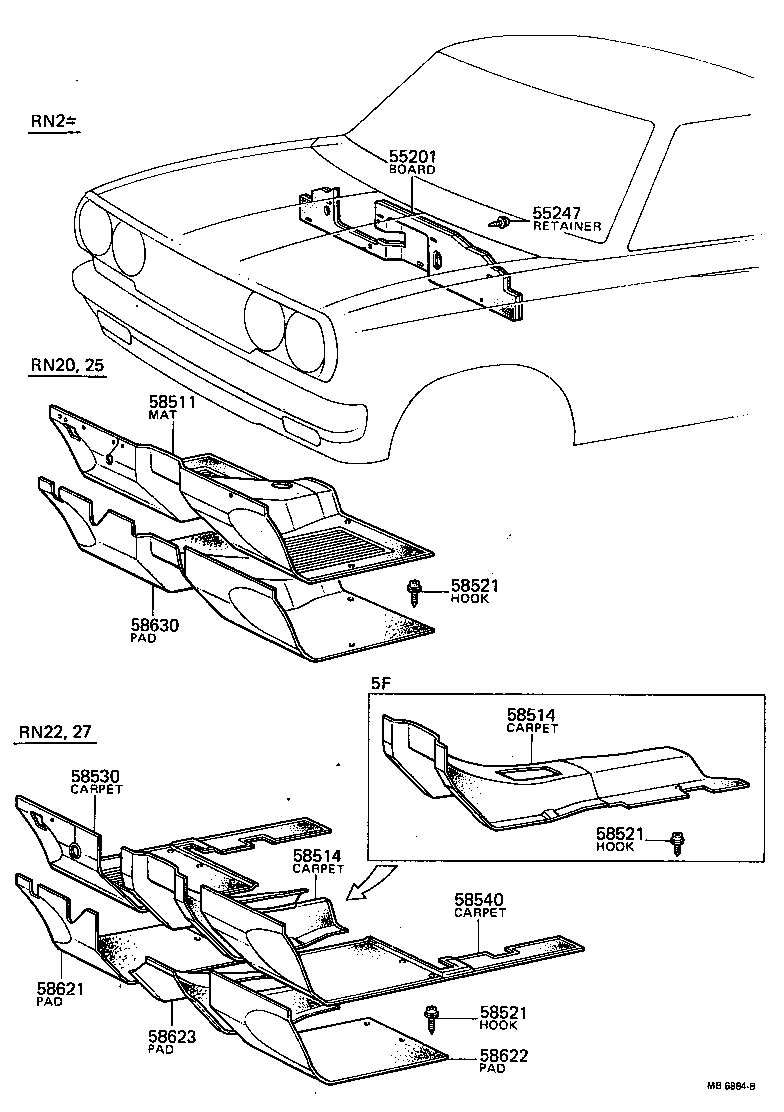

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55201 - BOARD SUB-ASSY, DASH PANEL SILENCER | ||||
| 55210-89116 |
RN2#..RHD |
1 | ||
| 55210-89119 |
RN2#..RHD |
1 | ||
| 55210-89120 |
RN22,27..RHD |
1 | ||
| 55210-89110 |
RN2#..RHD |
1 | ||
| 55247 - RETAINER, DASH PANEL SILENCER BOARD | ||||
| 90467-07099 |
RN2# |
5 | ||
| 90530-04004 |
RN20,22,25 |
2 | ||
| 58521 - HOOK, MALE, NO.1 | ||||
| 90530-04004 |
RN2# |
10 | ||
| 58521 - HOOK, MALE, NO.1 | ||||
| 90530-04004 |
RN2# |
10 | ||
| 58521 - HOOK, MALE, NO.1 | ||||
| 90530-04004 |
RN2# |
10 | ||
| 58530 - CARPET ASSY, FLOOR, FRONT RH | ||||
| 58530-8910201 |
RN22 BLACK,BLACK |
1 | ||
| 58530-8910206 |
RN22 BROWN,BROWN |
1 | ||
| 58540 - CARPET ASSY, FLOOR, FRONT LH | ||||
| 58540-8910206 |
RN22 BROWN,BROWN |
1 | ||
| 58540-8910201 |
RN22 BLACK,BLACK |
1 | ||
| 58540-8910404 |
RN22..RHD BLUE,BLUE |
1 | ||
| 58540-8910406 |
RN22..RHD BROWN,BROWN |
1 | ||
| 58540-8910401 |
RN22..RHD BLACK,BLACK |
1 | ||
| 58621 - PAD, FLOOR SILENCER, FRONT RH | ||||
| 58621-89101 |
RN22 |
1 | ||
| 58621-89102 |
RN22 |
1 | ||
| 58621-89103 |
RN22,27 |
1 | ||
| 58622 - PAD, FLOOR SILENCER, FRONT LH | ||||
| 58622-89102 |
RN22 |
1 | ||
| 58622-89101 |
RN22 |
1 | ||
| 58622-89103 |
RN22,27..RHD |
1 | ||
| 58623 - PAD, FLOOR SILENCER, FRONT CENTER | ||||
| 58623-89101 |
RN22 |
1 | ||
| 58623-89102 |
RN22 |
1 | ||
| 58623-89103 |
RN22,27 |
1 | ||
