RN22-HD (1974)

Toyota Hilux

Production Apr 1974 - Jul 1978
Engine 18R
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

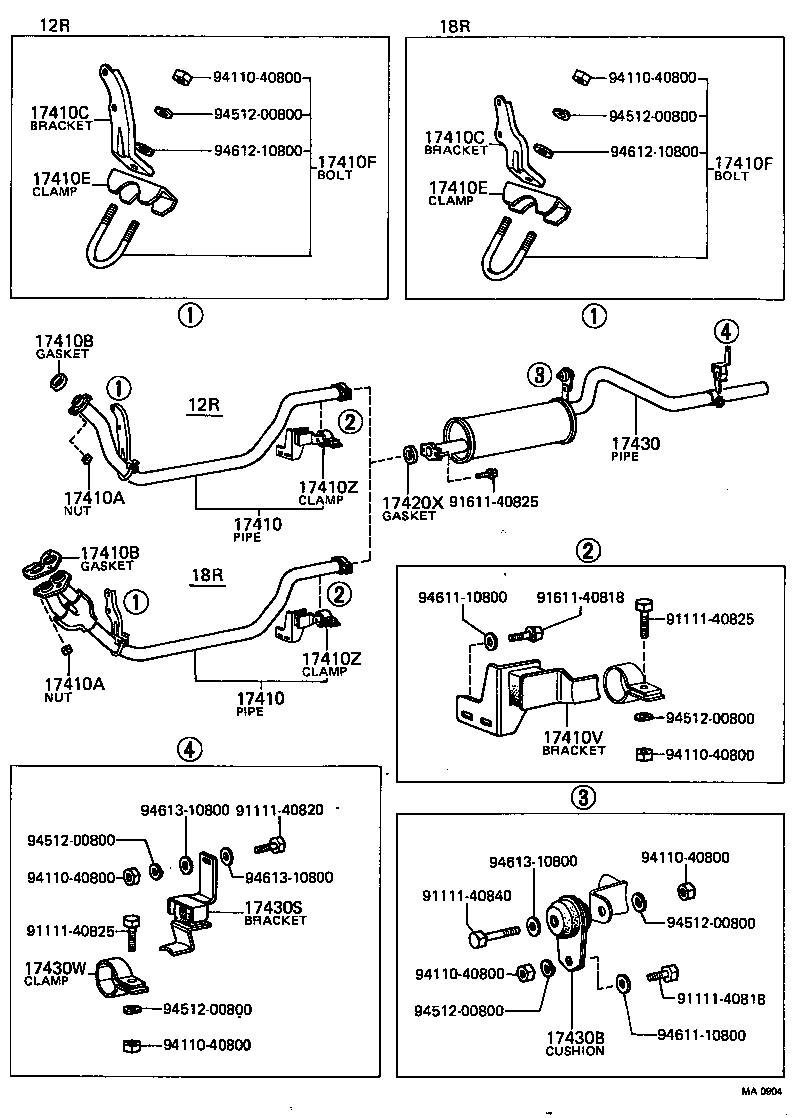

(7205-7605)

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410C 17410C 17410E 17410E 17410F 17410F 17410V 17410Z 17410Z 17420X 17430 17430B 17430S 17430W 9111140818 9111140820 9111140825 9111140825 9111140840 9161140818 9161140825 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9451200800 9451200800 9451200800 9451200800 9451200800 9451200800 9451200800 9461110800 9461110800 9461210800 9461210800 9461310800 9461310800 9461310800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-34130

18R..RN22

 1
17410-34080

18R..RN22

 1
17410-34131

18R..RN22,27..RHD

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-34130

18R..RN22

 1
17410-34080

18R..RN22

 1
17410-34131

18R..RN22,27..RHD

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10049

12R,18R..RN2#

 2
90170-10199

12R#,18R..RN2#

 2
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10049

12R,18R..RN2#

 2
90170-10199

12R#,18R..RN2#

 2
17410B - GASKET, EXHAUST PIPE
17451-41010

18R..RN22,27

 1
17410B - GASKET, EXHAUST PIPE
17451-41010

18R..RN22,27

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-34050

18R..RN22

 1
17571-34080

18R..RN22

 1
17571-34081

18R..RN22,27

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-34050

18R..RN22

 1
17571-34080

18R..RN22

 1
17571-34081

18R..RN22,27

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04007

12R,18R..RN2#

 1
90917-04021

12R#,18R..RN2#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04007

12R,18R..RN2#

 1
90917-04021

12R#,18R..RN2#

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90118-08135

12R#,18R..RN2#

 1
90999-99002

12R,18R..RN2#

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90118-08135

12R#,18R..RN2#

 1
90999-99002

12R,18R..RN2#

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17561-34040

18R..RN22

 1
17561-31060

18R..RN22

 1
17410Z - CLAMP NO.2, EXHAUST PIPE FRONT (FOR REAR)
90461-23204

12R,18R..RN2#

 1
17410Z - CLAMP NO.2, EXHAUST PIPE FRONT (FOR REAR)
90461-23204

12R,18R..RN2#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

12R#,18R..RN2#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31040

12R,18R..RN2#

 1
17430-34221

18R..RN22

 1
17430-34220

18R..RN22

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90917-08004

12R,18R..RN2#

 1
90540-09003

18R..RN22,27

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17563-31030

12R,18R..RN2#

 1
17577-38012

18R..RN22,27

UPPER

 1
17577-38011

18R..RN22

UPPER

 1
17566-38010

18R..RN22,27

LOWER

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-23556

18R..RN22,27

 1
90461-23188

12R,18R..RN2#

 1
Common parts
91111-40818
91111-40820
91111-40825
91111-40840
91611-40818
91611-40825
94110-40800
94512-00800
94611-10800
94612-10800
94613-10800

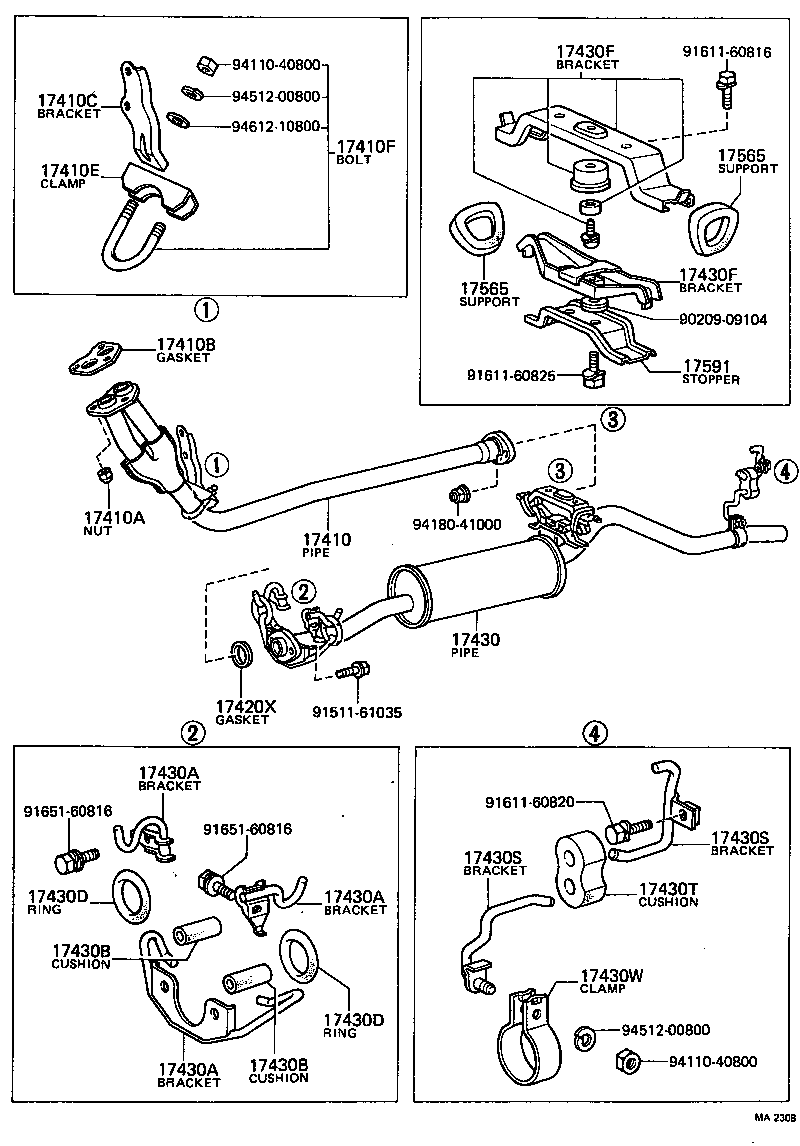

(7605-7807)18R

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410E 17410F 17420X 17430 17430A 17430A 17430A 17430B 17430B 17430D 17430D 17430F 17430F 17430S 17430S 17430T 17430W 17565 17565 17591 9020909104 9151161035 9161160816 9161160820 9161160825 9165160816 9165160816 9411040800 9411040800 9418041000 9451200800 9451200800 9461210800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-34130

18R..RN22

 1
17410-34080

18R..RN22

 1
17410-34131

18R..RN22,27..RHD

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10049

12R,18R..RN2#

 2
90170-10199

12R#,18R..RN2#

 2
17410B - GASKET, EXHAUST PIPE
17451-41010

18R..RN22,27

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-34050

18R..RN22

 1
17571-34080

18R..RN22

 1
17571-34081

18R..RN22,27

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04007

12R,18R..RN2#

 1
90917-04021

12R#,18R..RN2#

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90118-08135

12R#,18R..RN2#

 1
90999-99002

12R,18R..RN2#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

12R#,18R..RN2#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31040

12R,18R..RN2#

 1
17430-34221

18R..RN22

 1
17430-34220

18R..RN22

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17573-38030

18R..RN22,27

RH

 1
17503-38050

18R..RN22,27

CENTER

 1
17572-38030

18R..RN22,27

LH

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17573-38030

18R..RN22,27

RH

 1
17503-38050

18R..RN22,27

CENTER

 1
17572-38030

18R..RN22,27

LH

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17573-38030

18R..RN22,27

RH

 1
17503-38050

18R..RN22,27

CENTER

 1
17572-38030

18R..RN22,27

LH

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90917-08004

12R,18R..RN2#

 1
90540-09003

18R..RN22,27

 2
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90917-08004

12R,18R..RN2#

 1
90540-09003

18R..RN22,27

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-33001

18R..RN22,27

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-33001

18R..RN22,27

 2
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17578-38030

18R..RN22,27

LOWER

 1
17508-38030

18R..RN22,27

UPPER

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17578-38030

18R..RN22,27

LOWER

 1
17508-38030

18R..RN22,27

UPPER

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17563-31030

12R,18R..RN2#

 1
17577-38012

18R..RN22,27

UPPER

 1
17577-38011

18R..RN22

UPPER

 1
17566-38010

18R..RN22,27

LOWER

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17563-31030

12R,18R..RN2#

 1
17577-38012

18R..RN22,27

UPPER

 1
17577-38011

18R..RN22

UPPER

 1
17566-38010

18R..RN22,27

LOWER

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17563-38051

18R..RN22

 1
17563-38052

18R..RN22,27

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-23556

18R..RN22,27

 1
90461-23188

12R,18R..RN2#

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-41010

18R..RN22,27

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-41010

18R..RN22,27

 2
17591 - STOPPER, EXHAUST PIPE HANGER
17592-38010

18R..RN22,27

 1
Common parts
90209-09104
91511-61035
91611-60816
91611-60820
91611-60825
91651-60816
94110-40800
94180-41000
94512-00800
94612-10800
