RN20L-KR (1972)

Toyota Hilux

Production May 1972 - Jul 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

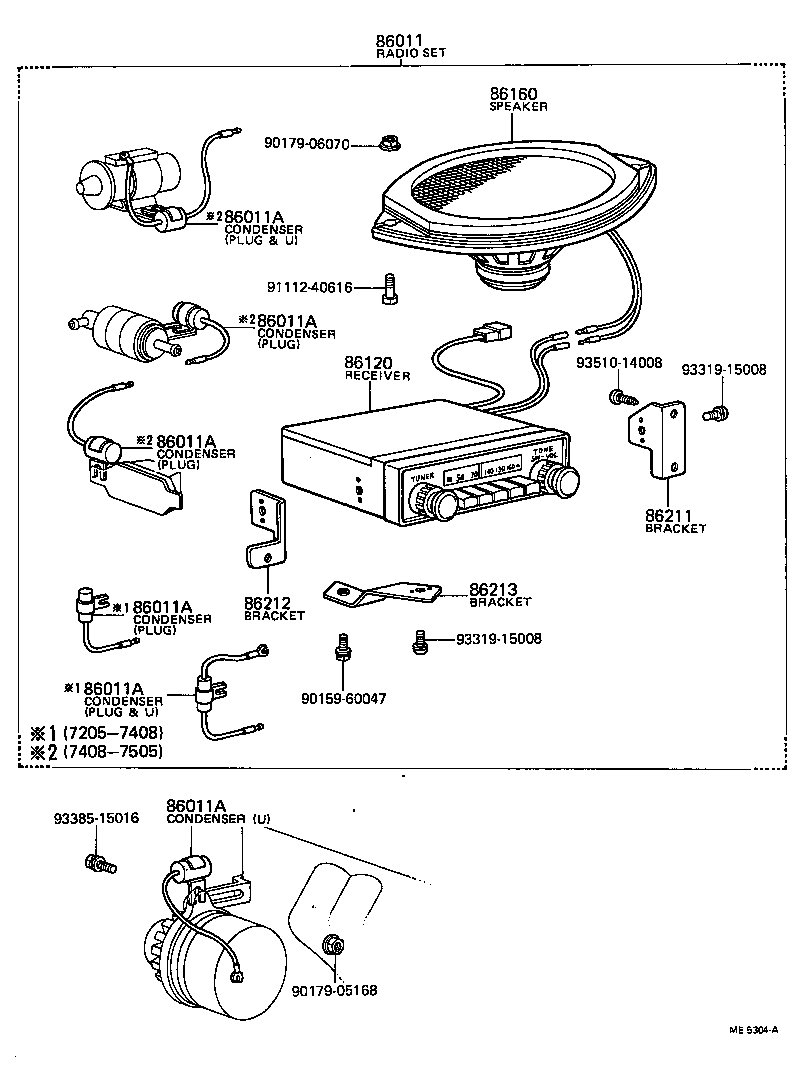

Click highlighted areas on diagram

diagram 86011 86011A 86011A 86011A 86011A 86011A 86011A 86120 86160 86211 86212 86213 9015960047 9017905168 9017906070 9111240616 9331915008 9331915008 9338515016 9351014008
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-89104

RN2#

AM

 1
86011-89108

RN2#

AM

 1
86011-89106

RN2#

AM

 1
86011-89111

RN20,22,25

MW/SW

 1
86011A - CONDENSER, RADIO SETTING
90980-04018

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04017

RN2#

CONNECTOR: (U)

 1
90980-04022

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04011

RN2#

CONNECTOR: PLUG

 2
86011A - CONDENSER, RADIO SETTING
90980-04018

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04017

RN2#

CONNECTOR: (U)

 1
90980-04022

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04011

RN2#

CONNECTOR: PLUG

 2
86011A - CONDENSER, RADIO SETTING
90980-04018

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04017

RN2#

CONNECTOR: (U)

 1
90980-04022

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04011

RN2#

CONNECTOR: PLUG

 2
86011A - CONDENSER, RADIO SETTING
90980-04018

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04017

RN2#

CONNECTOR: (U)

 1
90980-04022

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04011

RN2#

CONNECTOR: PLUG

 2
86011A - CONDENSER, RADIO SETTING
90980-04018

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04017

RN2#

CONNECTOR: (U)

 1
90980-04022

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04011

RN2#

CONNECTOR: PLUG

 2
86011A - CONDENSER, RADIO SETTING
90980-04018

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04017

RN2#

CONNECTOR: (U)

 1
90980-04022

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04011

RN2#

CONNECTOR: PLUG

 2
86120 - RECEIVER ASSY, RADIO
86120-35024

RN2#

AM

 1
86120-35025

RN2#

AM

 1
86120-89103

RN20,22,25

MW/SW

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-95402

RN20,22,25

MW/SW

 1
86160-35011

RN2#

AM

 1
86160-35010

RN2#

AM

 1
86211 - BRACKET, RADIO, NO.1
86211-89101

RN2#

 1
86211-89102

RN2#

 1
86212 - BRACKET, RADIO, NO.2
86212-89102

RN2#

 1
86212-89101

RN2#

 1
86213 - BRACKET, RADIO, NO.3
86215-89103

RN2#

 1
86215-89106

RN2#

 1
86215-89107

RN2#

 1
Common parts
90159-60047
90179-05168
90179-06070
91112-40616
93319-15008
93385-15016
93510-14008

(7505-7807)

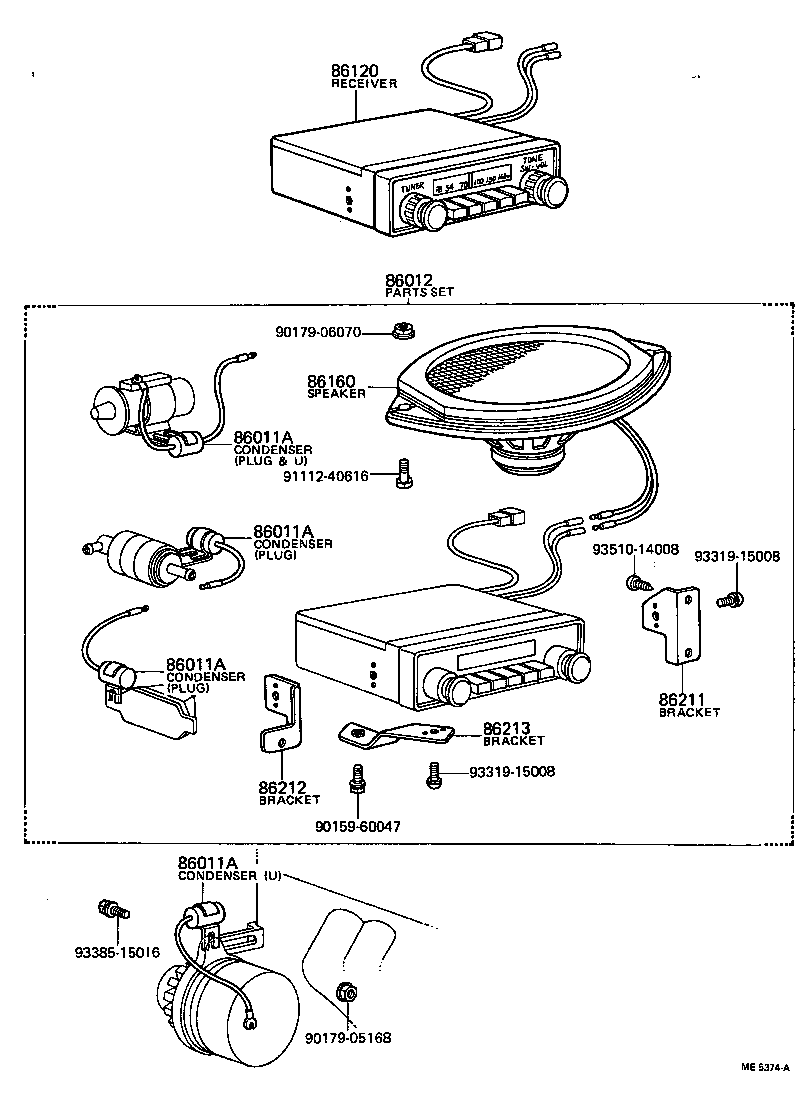

Click highlighted areas on diagram

diagram 86011A 86011A 86011A 86011A 86012 86120 86160 86211 86212 86213 9015960047 9017905168 9017906070 9111240616 9331915008 9331915008 9338515016 9351014008
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04018

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04017

RN2#

CONNECTOR: (U)

 1
90980-04022

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04011

RN2#

CONNECTOR: PLUG

 2
86011A - CONDENSER, RADIO SETTING
90980-04018

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04017

RN2#

CONNECTOR: (U)

 1
90980-04022

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04011

RN2#

CONNECTOR: PLUG

 2
86011A - CONDENSER, RADIO SETTING
90980-04018

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04017

RN2#

CONNECTOR: (U)

 1
90980-04022

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04011

RN2#

CONNECTOR: PLUG

 2
86011A - CONDENSER, RADIO SETTING
90980-04018

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04017

RN2#

CONNECTOR: (U)

 1
90980-04022

RN2#

CONNECTOR: PLUG&(U)

 1
90980-04011

RN2#

CONNECTOR: PLUG

 2
86012 - PARTS SET, RADIO SETTING
86012-39025

RN2#

 1
86120 - RECEIVER ASSY, RADIO
86120-35024

RN2#

AM

 1
86120-35025

RN2#

AM

 1
86120-89103

RN20,22,25

MW/SW

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-95402

RN20,22,25

MW/SW

 1
86160-35011

RN2#

AM

 1
86160-35010

RN2#

AM

 1
86211 - BRACKET, RADIO, NO.1
86211-89101

RN2#

 1
86211-89102

RN2#

 1
86212 - BRACKET, RADIO, NO.2
86212-89102

RN2#

 1
86212-89101

RN2#

 1
86213 - BRACKET, RADIO, NO.3
86215-89103

RN2#

 1
86215-89106

RN2#

 1
86215-89107

RN2#

 1
Common parts
90159-60047
90179-05168
90179-06070
91112-40616
93319-15008
93385-15016
93510-14008
