RN20L-KR (1972)

Toyota Hilux

Production May 1972 - Jul 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

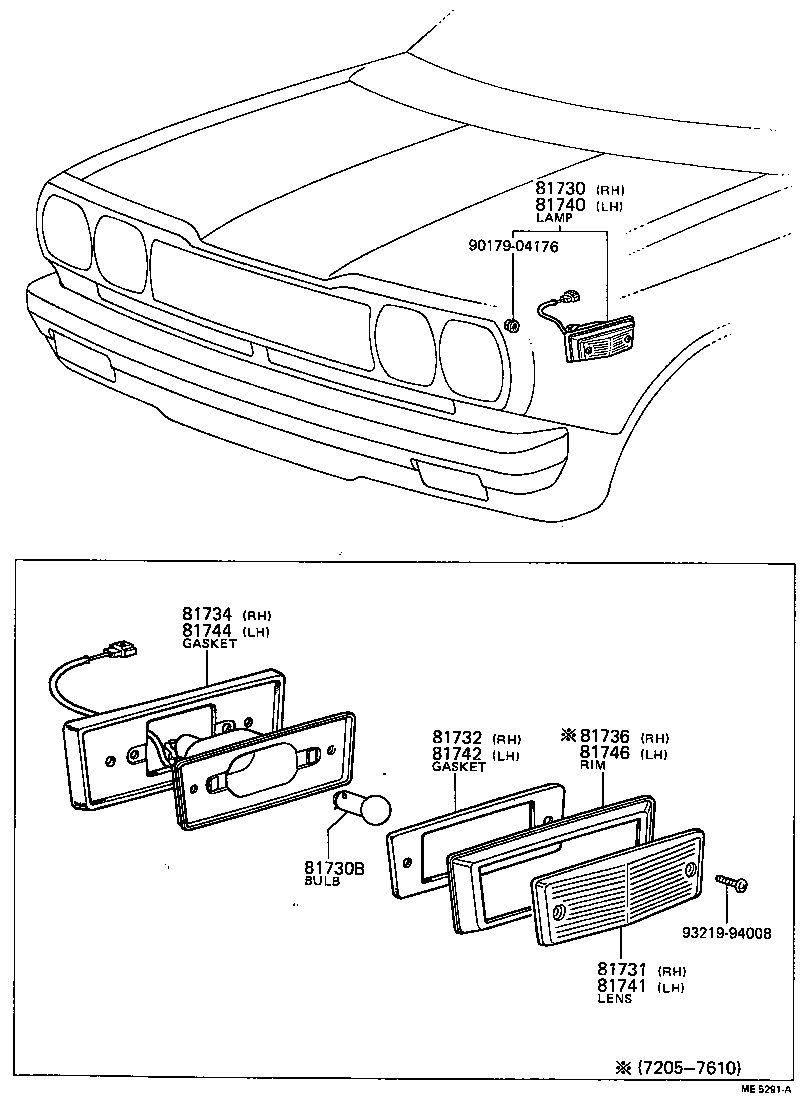

Click highlighted areas on diagram

diagram 81730 81730B 81731 81732 81734 81736 81740 81741 81742 81744 81746 9017904176 9321994008
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-19085

RN2#

 1
81730-89805

RN2#

 1
81730-89803

RN2#

 1
81730-89804

RN20,25

EUR.SPEC.

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
90981-12005

RN2#

12V 8W,12V 8W

 2
99132-13060

RN20,25

12V 6W,12V 6W EUR.SPEC.

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-14030

RN2#

 1
81732 - GASKET, SIDE TURN SIGNAL LAMP LENS, RH
81732-14030

RN2#

 1
81734 - GASKET, SIDE TURN SIGNAL LAMP BODY, RH
81734-14030

RN2#

 1
81734-89101

RN2#

 1
81736 - RIM, SIDE TURN SIGNAL LAMP, RH
81736-14030

RN2#

 1
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-19065

RN2#

 1
81740-89805

RN2#

 1
81740-89804

RN20,25

EUR.SPEC.

 1
81740-89803

RN2#

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81741-14030

RN2#

 1
81742 - GASKET, SIDE TURN SIGNAL LAMP LENS, LH
81732-14030

RN2#

 1
81744 - GASKET, SIDE TURN SIGNAL LAMP BODY, LH
81744-14030

RN2#

 1
81744-89101

RN2#

 1
81746 - RIM, SIDE TURN SIGNAL LAMP, LH
81746-14030

RN2#

 1
Common parts
90179-04176
93219-94008
