RN20L-KR (1972)

Toyota Hilux

Production May 1972 - Jul 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

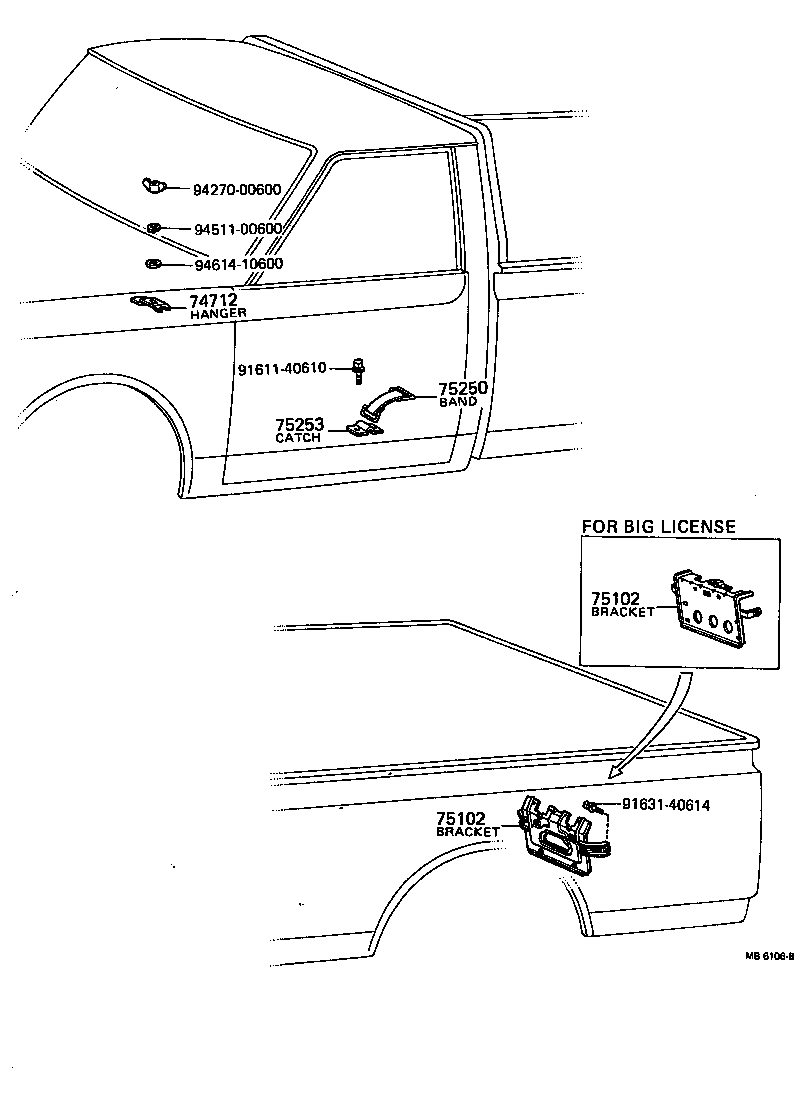

Click highlighted areas on diagram

diagram 74712 75102 75102 75250 75253 9161140610 9163140614 9427000600 9451100600 9461410600
Part # Description Qty Price
74712 - HANGER, JACK HOLDER
74714-89102

RN2#

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-89108

RN20,25,27

 1
75102-89109

RN20,25

FOR BIG LICENSE

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-89108

RN20,25,27

 1
75102-89109

RN20,25

FOR BIG LICENSE

 1
75250 - BAND ASSY, TOOL CASE REST, NO.1
74702-89101

RN2#

 1
75253 - CATCH, TOOL CASE REST BAND
74733-89101

RN2#

 1
Common parts
91611-40610
91631-40614
94270-00600
94511-00600
94614-10600
