RN20L-KR (1972)
Toyota Hilux

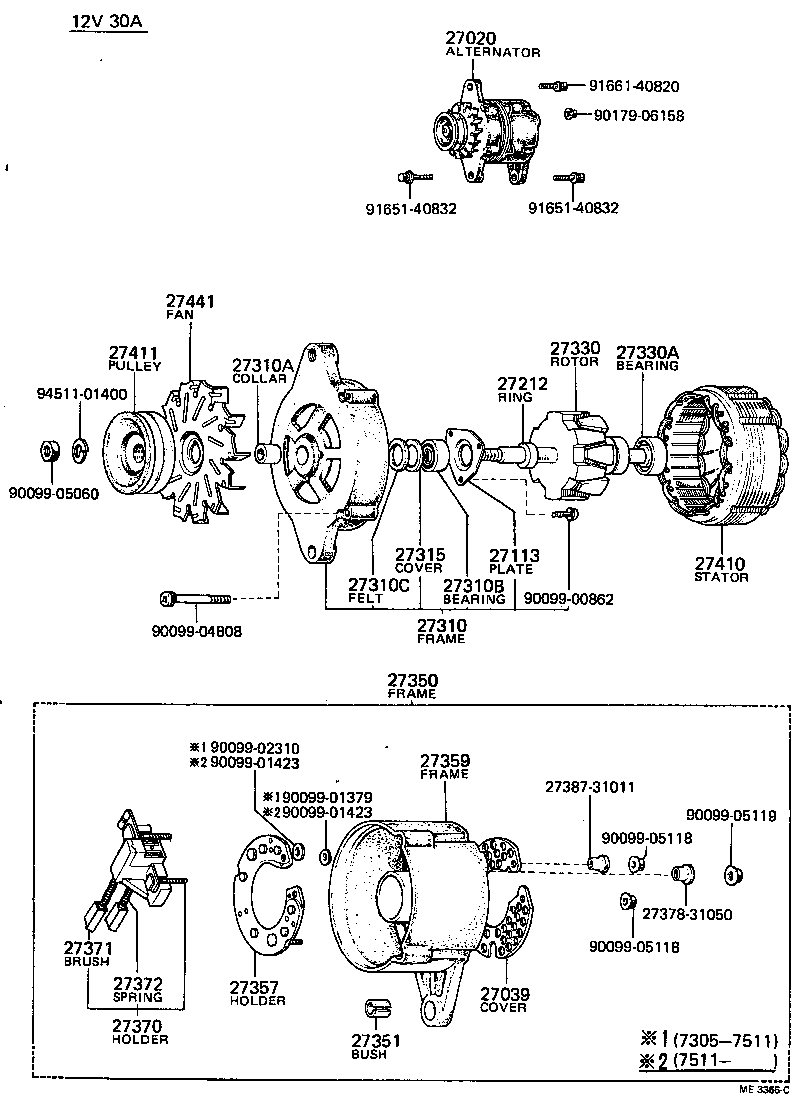

(7305-7807)12R#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-31050 |
12R..RN2# 12V 30A |
1 | ||
| 27020-31032 |
12R..RN2# 12V 30A |
1 | ||
| 27020-31090 |
12R#..RN20,25 12V 30A,12V 30A |
1 | ||
| 27020-31051 |
12R..RN20,25 12V 30A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-22012 |
12R..RN2# |
1 | ||
| 27039-11014 |
12R#..RN20,25 |
1 | ||
| 27039-24030 |
12R..RN2# |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27113-10012 |
12R#..RN20,25 |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 90099-19068 |
12R#..RN20,25 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-22012 |
12R#..RN20,25 |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-31090 |
12R#..RN20,25 |
1 | ||
| 90099-19191 |
12R..RN20,25 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10012 |
12R#..RN20,25 6202Z |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02009 |
12R#..RN20,25 |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-39010 |
12R#..RN20,25 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-22012 |
12R#..RN20,25 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 97110-06201 |
12R#..RN20,25 6201Z |
1 | ||
| 97110-06201 |
12R,18R..RN2# 6201Z |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-31050 |
12R..RN2# |
1 | ||
| 27350-31051 |
12R..RN2# |
1 | ||
| 27350-22013 |
12R..RN2# |
1 | ||
| 27350-31052 |
12R..RN20,25 |
1 | ||
| 27350-31090 |
12R#..RN20,25 |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-24020 |
12R#..RN20,25 |
1 | ||
| 27351-22010 |
12R..RN2# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-11014 |
12R#..RN20,25 |
1 | ||
| 27357-22012 |
12R..RN2# |
1 | ||
| 27357-24030 |
12R..RN2# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-31050 |
12R..RN20,25 |
1 | ||
| 27359-31090 |
12R#..RN20,25 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-24030 |
12R..RN2# |
1 | ||
| 27370-40061 |
12R..RN20,25 |
1 | ||
| 27370-22010 |
12R..RN2# |
1 | ||
| 27370-31090 |
12R#..RN20,25 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
12R#,18R..RN2# |
1 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12R#,18R..RN2# |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-22010 |
12R..RN2# |
1 | ||
| 27410-11014 |
12R#..RN20,25 |
1 | ||
| 27410-31050 |
12R..RN2# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-11011 |
12R..RN2# |
1 | ||
| 27411-31033 |
12R..RN20,25 |
1 | ||
| 27411-31090 |
12R#..RN20,25 |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-31090 |
12R#..RN20,25 |
1 | ||
| 27441-22010 |
12R..RN20,25 |
1 | ||
| Common parts | ||||
| 27378-31050 | ||||
| 27387-31011 | ||||
| 90099-00862 | ||||
| 90099-01379 | ||||
| 90099-01423 | ||||
| 90099-02310 | ||||
| 90099-04808 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90179-06158 | ||||
| 91651-40832 | ||||
| 91661-40820 | ||||
| 94511-01400 | ||||

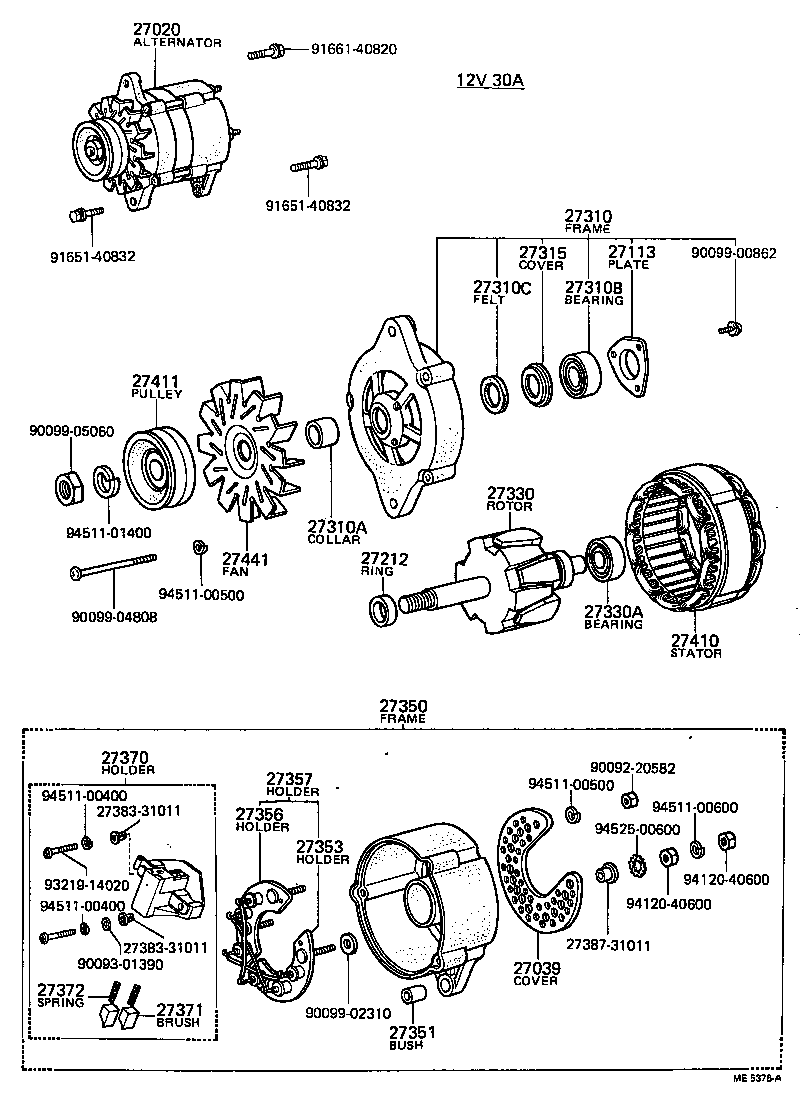

(7205-7206)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-31050 |
12R..RN2# 12V 30A |
1 | ||
| 27020-31032 |
12R..RN2# 12V 30A |
1 | ||
| 27020-31090 |
12R#..RN20,25 12V 30A,12V 30A |
1 | ||
| 27020-31051 |
12R..RN20,25 12V 30A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-22012 |
12R..RN2# |
1 | ||
| 27039-11014 |
12R#..RN20,25 |
1 | ||
| 27039-24030 |
12R..RN2# |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27113-10012 |
12R#..RN20,25 |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 90099-19068 |
12R#..RN20,25 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-22012 |
12R#..RN20,25 |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-31090 |
12R#..RN20,25 |
1 | ||
| 90099-19191 |
12R..RN20,25 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10012 |
12R#..RN20,25 6202Z |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02009 |
12R#..RN20,25 |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-39010 |
12R#..RN20,25 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-22012 |
12R#..RN20,25 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 97110-06201 |
12R#..RN20,25 6201Z |
1 | ||
| 97110-06201 |
12R,18R..RN2# 6201Z |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-31050 |
12R..RN2# |
1 | ||
| 27350-31051 |
12R..RN2# |
1 | ||
| 27350-22013 |
12R..RN2# |
1 | ||
| 27350-31052 |
12R..RN20,25 |
1 | ||
| 27350-31090 |
12R#..RN20,25 |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-24020 |
12R#..RN20,25 |
1 | ||
| 27351-22010 |
12R..RN2# |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-22012 |
12R..RN2# |
1 | ||
| 27353-24030 |
12R..RN2# |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-24030 |
12R..RN2# |
1 | ||
| 27356-22011 |
12R..RN2# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-11014 |
12R#..RN20,25 |
1 | ||
| 27357-22012 |
12R..RN2# |
1 | ||
| 27357-24030 |
12R..RN2# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-24030 |
12R..RN2# |
1 | ||
| 27370-40061 |
12R..RN20,25 |
1 | ||
| 27370-22010 |
12R..RN2# |
1 | ||
| 27370-31090 |
12R#..RN20,25 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
12R#,18R..RN2# |
1 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12R#,18R..RN2# |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-22010 |
12R..RN2# |
1 | ||
| 27410-11014 |
12R#..RN20,25 |
1 | ||
| 27410-31050 |
12R..RN2# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-11011 |
12R..RN2# |
1 | ||
| 27411-31033 |
12R..RN20,25 |
1 | ||
| 27411-31090 |
12R#..RN20,25 |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-31090 |
12R#..RN20,25 |
1 | ||
| 27441-22010 |
12R..RN20,25 |
1 | ||
| Common parts | ||||
| 27383-31011 | ||||
| 27387-31011 | ||||
| 90092-20582 | ||||
| 90093-01390 | ||||
| 90099-00862 | ||||
| 90099-02310 | ||||
| 90099-04808 | ||||
| 90099-05060 | ||||
| 91651-40832 | ||||
| 91661-40820 | ||||
| 93219-14020 | ||||
| 94120-40600 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 94511-00600 | ||||
| 94511-01400 | ||||
| 94525-00600 | ||||

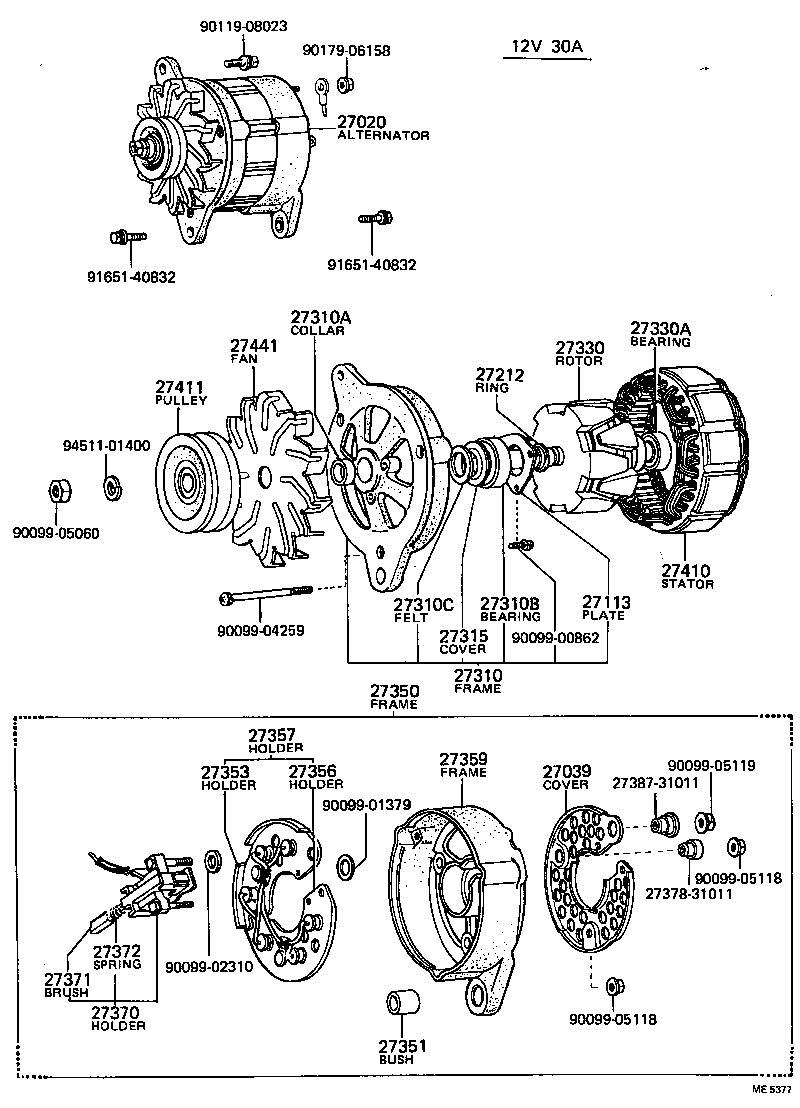

(7206-7305)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-31050 |
12R..RN2# 12V 30A |
1 | ||
| 27020-31032 |
12R..RN2# 12V 30A |
1 | ||
| 27020-31090 |
12R#..RN20,25 12V 30A,12V 30A |
1 | ||
| 27020-31051 |
12R..RN20,25 12V 30A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-22012 |
12R..RN2# |
1 | ||
| 27039-11014 |
12R#..RN20,25 |
1 | ||
| 27039-24030 |
12R..RN2# |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27113-10012 |
12R#..RN20,25 |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 90099-19068 |
12R#..RN20,25 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-22012 |
12R#..RN20,25 |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-31090 |
12R#..RN20,25 |
1 | ||
| 90099-19191 |
12R..RN20,25 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10012 |
12R#..RN20,25 6202Z |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02009 |
12R#..RN20,25 |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-39010 |
12R#..RN20,25 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-22012 |
12R#..RN20,25 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 97110-06201 |
12R#..RN20,25 6201Z |
1 | ||
| 97110-06201 |
12R,18R..RN2# 6201Z |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-31050 |
12R..RN2# |
1 | ||
| 27350-31051 |
12R..RN2# |
1 | ||
| 27350-22013 |
12R..RN2# |
1 | ||
| 27350-31052 |
12R..RN20,25 |
1 | ||
| 27350-31090 |
12R#..RN20,25 |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-24020 |
12R#..RN20,25 |
1 | ||
| 27351-22010 |
12R..RN2# |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-22012 |
12R..RN2# |
1 | ||
| 27353-24030 |
12R..RN2# |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-24030 |
12R..RN2# |
1 | ||
| 27356-22011 |
12R..RN2# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-11014 |
12R#..RN20,25 |
1 | ||
| 27357-22012 |
12R..RN2# |
1 | ||
| 27357-24030 |
12R..RN2# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-31050 |
12R..RN20,25 |
1 | ||
| 27359-31090 |
12R#..RN20,25 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-24030 |
12R..RN2# |
1 | ||
| 27370-40061 |
12R..RN20,25 |
1 | ||
| 27370-22010 |
12R..RN2# |
1 | ||
| 27370-31090 |
12R#..RN20,25 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
12R#,18R..RN2# |
1 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12R#,18R..RN2# |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-22010 |
12R..RN2# |
1 | ||
| 27410-11014 |
12R#..RN20,25 |
1 | ||
| 27410-31050 |
12R..RN2# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-11011 |
12R..RN2# |
1 | ||
| 27411-31033 |
12R..RN20,25 |
1 | ||
| 27411-31090 |
12R#..RN20,25 |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-31090 |
12R#..RN20,25 |
1 | ||
| 27441-22010 |
12R..RN20,25 |
1 | ||
| Common parts | ||||
| 27378-31011 | ||||
| 27387-31011 | ||||
| 90099-00862 | ||||
| 90099-01379 | ||||
| 90099-02310 | ||||
| 90099-04259 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 91651-40832 | ||||
| 94511-01400 | ||||
