RN20L-KR (1972)
Toyota Hilux

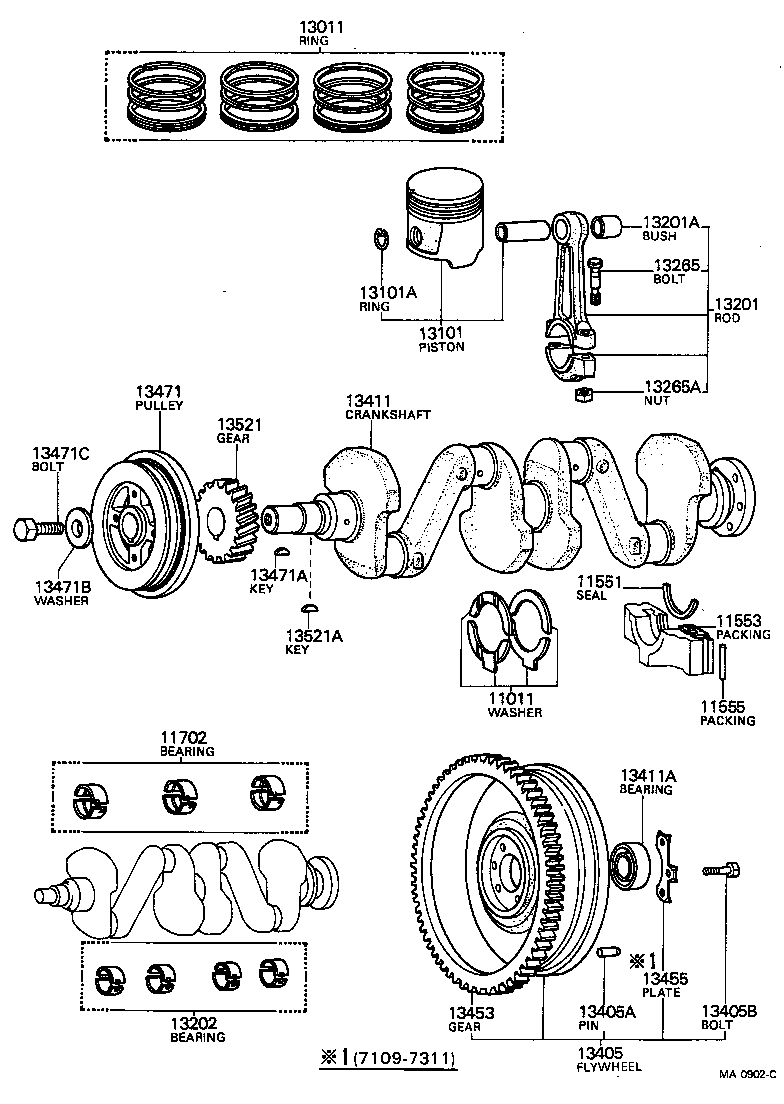

(7205-7511)12R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-31020 |
12R#..RN20,25 STD |
1 | ||
| 11014-31020 |
12R#..RN20,25 O/S 0.50 |
1 | ||
| 11012-31020 |
12R#..RN20,25 O/S 0.125 |
1 | ||
| 11011-31030 |
12R#..RN20,25 STD |
1 | ||
| 11012-31030 |
12R#..RN20,25 O/S 0.125 |
1 | ||
| 11013-31030 |
12R#..RN20,25 O/S 0.25 |
1 | ||
| 11013-31020 |
12R#..RN20,25 O/S 0.25 |
1 | ||
| 11014-31030 |
12R#..RN20,25 O/S 0.50 |
1 | ||
| 11551 - SEAL, CRANKSHAFT OIL, REAR | ||||
| 11551-31010 |
12R#..RN20,25 |
2 | ||
| 11553 - PACKING, BEARING CAP | ||||
| 11553-31010 |
12R#..RN20,25 |
2 | ||
| 11555 - PACKING, BEARING CAP SIDE, NO.1 | ||||
| 11555-23010 |
12R#..RN20,25 |
2 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11706-31020 |
12R..RN20,25 U/S 0.75 |
1 | ||
| 11705-31020 |
12R#..RN20,25 U/S 0.50 |
1 | ||
| 11703-31020 |
12R#..RN20,25 U/S 0.05 |
1 | ||
| 11702-31020 |
12R#..RN20,25 STD |
1 | ||
| 11707-31020 |
12R..RN20,25 U/S 1.00 |
1 | ||
| 11704-31020 |
12R#..RN20,25 U/S 0.25 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13016-31070 |
12R..RN20,25 0/S 1.25 3PCS. |
1 | ||
| 13016-31060 |
12R..RN20,25 O/S 1.25 |
1 | ||
| 13017-31060 |
12R..RN20,25 O/S 1.50 |
1 | ||
| 13011-31070 |
12R..RN20,25 STD,3PCS. |
1 | ||
| 13012-31060 |
12R..RN20,25 O/S 0.25 |
1 | ||
| 13011-31060 |
12R..RN20,25 STD |
1 | ||
| 13012-31070 |
12R..RN20,25 O/S 0.25 3PCS. |
1 | ||
| 13017-31070 |
12R..RN20,25 O/S 1.50 3PCS. |
1 | ||
| 13013-31060 |
12R..RN20,25 O/S 0.50 |
1 | ||
| 13013-31070 |
12R..RN20,25 O/S 0.50 3PCS. |
1 | ||
| 13014-31060 |
12R..RN20,25 O/S 0.75 |
1 | ||
| 13015-31060 |
12R..RN20,25 O/S 1.00 |
1 | ||
| 13013-31061 |
12R#..RN20,25 O/S 0.50 |
1 | ||
| 13014-31070 |
12R..RN20,25 O/S 0.75 3PCS. |
1 | ||
| 13015-31070 |
12R..RN20,25 O/S 1.00 3PCS. |
1 | ||
| 13014-31061 |
12R#..RN20,25 O/S 0.75 |
1 | ||
| 13011-31061 |
12R#..RN20,25 STD |
1 | ||
| 13015-31061 |
12R#..RN20,25 O/S 1.00 |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13106-31020 |
12R..RN20,25 O/S 1.25 |
4 | ||
| 13102-31020 |
12R..RN20,25 O/S 0.25 |
4 | ||
| 13103-31020 |
12R..RN20,25 O/S 0.50 |
4 | ||
| 13107-31020 |
12R..RN20,25 O/S 1.50 |
4 | ||
| 13103-31021 |
12R#..RN20,25 O/S 0.50 |
4 | ||
| 13101-31020 |
12R..RN20,25 STD |
4 | ||
| 13104-31021 |
12R#..RN20,25 O/S 0.75 |
4 | ||
| 13105-31020 |
12R..RN20,25 O/S 1.00 |
4 | ||
| 13101-31021 |
12R#..RN20,25 STD |
4 | ||
| 13104-31020 |
12R..RN20,25 O/S 0.75 |
4 | ||
| 13101-31022 |
12R#..RN20,25 STD |
4 | ||
| 13105-31021 |
12R#..RN20,25 O/S 1.00 |
4 | ||
| 13103-31022 |
12R#..RN20,25 O/S 0.50 |
4 | ||
| 13104-31022 |
12R#..RN20,25 O/S 0.75 |
4 | ||
| 13105-31022 |
12R#..RN20,25 O/S 1.00 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-23051 |
12R#..RN20,25 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-31010 |
12R#..RN20,25 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73027 |
12R#..RN20,25 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13207-31020 |
12R..RN20,25 U/S 1.00 |
1 | ||
| 13203-31020 |
12R#..RN20,25 U/S 0.05 |
1 | ||
| 13205-31020 |
12R#..RN20,25 U/S 0.50 |
1 | ||
| 13202-31020 |
12R#..RN20,25 STD |
1 | ||
| 13206-31020 |
12R..RN20,25 U/S 0.75 |
1 | ||
| 13204-31020 |
12R#..RN20,25 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-31011 |
12R..RN20,25 |
8 | ||
| 13265-39015 |
12R#..RN20,25 |
8 | ||
| 13265-31010 |
12R..RN2# |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09042 |
12R..RN2# |
8 | ||
| 90170-09195 |
12R#..RN20,25 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-39047 |
12R..RN20,25 N=125 |
1 | ||
| 13405-39066 |
12R..RN20,25 N=125 |
1 | ||
| 13405-39065 |
12R..RN20,25 N=125 |
1 | ||
| 13405-39046 |
12R..RN2# N=125 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
12R#,18R..RN2#..MTM L=23,OD=8,L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90913-01001 |
12R..RN2# |
6 | ||
| 90913-01010 |
12R#..RN20,25 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-31902 |
12R#..RN20,25 |
1 | ||
| 13411A - BEARING(FOR INPUT SHAFT FRONT) | ||||
| 97143-06201 |
12R#,18R..RN2#..MTM 6201 VV C3 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-30010 |
12R#..RN20,25 N=125 |
1 | ||
| 13455 - PLATE, FLYWHEEL BOLT LOCK, NO.1 | ||||
| 13455-31010 |
12R..RN2# |
2 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13407-31020 |
12R..RN2# |
1 | ||
| 13407-31021 |
12R..RN20,25 |
1 | ||
| 13407-31022 |
12R..RN20,25 |
1 | ||
| 13407-31023 |
12R#..RN20,25 |
1 | ||
| 13407-31024 |
12R#..RN20,25 |
1 | ||
| 13407-31025 |
12R#..RN20,25 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
12R,18R..RN2# |
1 | ||
| 95161-10519 |
12R#..RN20,25 |
1 | ||
| 13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET) | ||||
| 90209-13059 |
12R#..RN20,25 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90109-12040 |
12R..RN2# |
1 | ||
| 90105-12050 |
12R#..RN20,25 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-31010 |
12R..RN20,25 N=25 |
1 | ||
| 13521-31011 |
12R#..RN20,25 N=25 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-10519 |
12R#..RN20,25 |
1 | ||
| 90280-05010 |
12R,18R..RN2# |
1 | ||

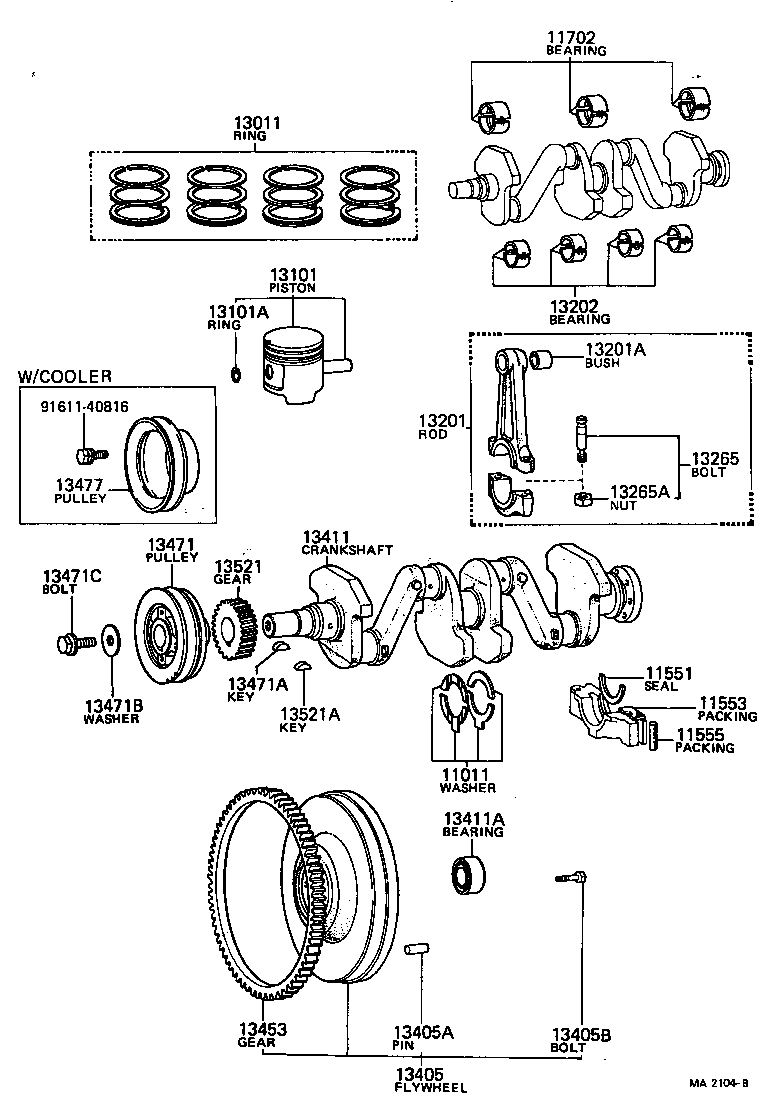

(7511-7807)12R#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-31020 |
12R#..RN20,25 STD |
1 | ||
| 11014-31020 |
12R#..RN20,25 O/S 0.50 |
1 | ||
| 11012-31020 |
12R#..RN20,25 O/S 0.125 |
1 | ||
| 11011-31030 |
12R#..RN20,25 STD |
1 | ||
| 11012-31030 |
12R#..RN20,25 O/S 0.125 |
1 | ||
| 11013-31030 |
12R#..RN20,25 O/S 0.25 |
1 | ||
| 11013-31020 |
12R#..RN20,25 O/S 0.25 |
1 | ||
| 11014-31030 |
12R#..RN20,25 O/S 0.50 |
1 | ||
| 11551 - SEAL, CRANKSHAFT OIL, REAR | ||||
| 11551-31010 |
12R#..RN20,25 |
2 | ||
| 11553 - PACKING, BEARING CAP | ||||
| 11553-31010 |
12R#..RN20,25 |
2 | ||
| 11555 - PACKING, BEARING CAP SIDE, NO.1 | ||||
| 11555-23010 |
12R#..RN20,25 |
2 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11706-31020 |
12R..RN20,25 U/S 0.75 |
1 | ||
| 11705-31020 |
12R#..RN20,25 U/S 0.50 |
1 | ||
| 11703-31020 |
12R#..RN20,25 U/S 0.05 |
1 | ||
| 11702-31020 |
12R#..RN20,25 STD |
1 | ||
| 11707-31020 |
12R..RN20,25 U/S 1.00 |
1 | ||
| 11704-31020 |
12R#..RN20,25 U/S 0.25 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13016-31070 |
12R..RN20,25 0/S 1.25 3PCS. |
1 | ||
| 13016-31060 |
12R..RN20,25 O/S 1.25 |
1 | ||
| 13017-31060 |
12R..RN20,25 O/S 1.50 |
1 | ||
| 13011-31070 |
12R..RN20,25 STD,3PCS. |
1 | ||
| 13012-31060 |
12R..RN20,25 O/S 0.25 |
1 | ||
| 13011-31060 |
12R..RN20,25 STD |
1 | ||
| 13012-31070 |
12R..RN20,25 O/S 0.25 3PCS. |
1 | ||
| 13017-31070 |
12R..RN20,25 O/S 1.50 3PCS. |
1 | ||
| 13013-31060 |
12R..RN20,25 O/S 0.50 |
1 | ||
| 13013-31070 |
12R..RN20,25 O/S 0.50 3PCS. |
1 | ||
| 13014-31060 |
12R..RN20,25 O/S 0.75 |
1 | ||
| 13015-31060 |
12R..RN20,25 O/S 1.00 |
1 | ||
| 13013-31061 |
12R#..RN20,25 O/S 0.50 |
1 | ||
| 13014-31070 |
12R..RN20,25 O/S 0.75 3PCS. |
1 | ||
| 13015-31070 |
12R..RN20,25 O/S 1.00 3PCS. |
1 | ||
| 13014-31061 |
12R#..RN20,25 O/S 0.75 |
1 | ||
| 13011-31061 |
12R#..RN20,25 STD |
1 | ||
| 13015-31061 |
12R#..RN20,25 O/S 1.00 |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13106-31020 |
12R..RN20,25 O/S 1.25 |
4 | ||
| 13102-31020 |
12R..RN20,25 O/S 0.25 |
4 | ||
| 13103-31020 |
12R..RN20,25 O/S 0.50 |
4 | ||
| 13107-31020 |
12R..RN20,25 O/S 1.50 |
4 | ||
| 13103-31021 |
12R#..RN20,25 O/S 0.50 |
4 | ||
| 13101-31020 |
12R..RN20,25 STD |
4 | ||
| 13104-31021 |
12R#..RN20,25 O/S 0.75 |
4 | ||
| 13105-31020 |
12R..RN20,25 O/S 1.00 |
4 | ||
| 13101-31021 |
12R#..RN20,25 STD |
4 | ||
| 13104-31020 |
12R..RN20,25 O/S 0.75 |
4 | ||
| 13101-31022 |
12R#..RN20,25 STD |
4 | ||
| 13105-31021 |
12R#..RN20,25 O/S 1.00 |
4 | ||
| 13103-31022 |
12R#..RN20,25 O/S 0.50 |
4 | ||
| 13104-31022 |
12R#..RN20,25 O/S 0.75 |
4 | ||
| 13105-31022 |
12R#..RN20,25 O/S 1.00 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-23051 |
12R#..RN20,25 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-31010 |
12R#..RN20,25 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73027 |
12R#..RN20,25 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13207-31020 |
12R..RN20,25 U/S 1.00 |
1 | ||
| 13203-31020 |
12R#..RN20,25 U/S 0.05 |
1 | ||
| 13205-31020 |
12R#..RN20,25 U/S 0.50 |
1 | ||
| 13202-31020 |
12R#..RN20,25 STD |
1 | ||
| 13206-31020 |
12R..RN20,25 U/S 0.75 |
1 | ||
| 13204-31020 |
12R#..RN20,25 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-31011 |
12R..RN20,25 |
8 | ||
| 13265-39015 |
12R#..RN20,25 |
8 | ||
| 13265-31010 |
12R..RN2# |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09042 |
12R..RN2# |
8 | ||
| 90170-09195 |
12R#..RN20,25 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-39047 |
12R..RN20,25 N=125 |
1 | ||
| 13405-39066 |
12R..RN20,25 N=125 |
1 | ||
| 13405-39065 |
12R..RN20,25 N=125 |
1 | ||
| 13405-39046 |
12R..RN2# N=125 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
12R#,18R..RN2#..MTM L=23,OD=8,L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90913-01001 |
12R..RN2# |
6 | ||
| 90913-01010 |
12R#..RN20,25 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-31902 |
12R#..RN20,25 |
1 | ||
| 13411A - BEARING(FOR INPUT SHAFT FRONT) | ||||
| 97143-06201 |
12R#,18R..RN2#..MTM 6201 VV C3 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-30010 |
12R#..RN20,25 N=125 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13407-31020 |
12R..RN2# |
1 | ||
| 13407-31021 |
12R..RN20,25 |
1 | ||
| 13407-31022 |
12R..RN20,25 |
1 | ||
| 13407-31023 |
12R#..RN20,25 |
1 | ||
| 13407-31024 |
12R#..RN20,25 |
1 | ||
| 13407-31025 |
12R#..RN20,25 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
12R,18R..RN2# |
1 | ||
| 95161-10519 |
12R#..RN20,25 |
1 | ||
| 13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET) | ||||
| 90209-13059 |
12R#..RN20,25 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90109-12040 |
12R..RN2# |
1 | ||
| 90105-12050 |
12R#..RN20,25 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 13477-31010 |
12R..RN20,25 W/COOLER |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-31010 |
12R..RN20,25 N=25 |
1 | ||
| 13521-31011 |
12R#..RN20,25 N=25 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-10519 |
12R#..RN20,25 |
1 | ||
| 90280-05010 |
12R,18R..RN2# |
1 | ||
| Common parts | ||||
| 91611-40816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
